Default 2002 Camaro Morimoto Mini H1 install

Just got finished installing these on my car. Got the kit from the retrofit source and it was about as straightforward as it can be, as they include the harness and their website has some helpful tips on installing them. They also have excellent customer service.

Gotta thank walter1234, VIP1, and everyone who chimed in on retrofitting HIDs. There is a lot of helpful information in another thread so I won't repeat everything they said, and VIP1's thread "lighting FAQ" is excellent.

In my experience, there are going to be some SNAFUs the first time with any install, and this was no different, but if I had to do it again I'm sure it would be no big deal (and take a lot less time).

After getting the cover off the headlight assembly, I used 400 grit sandpaper and green scotchbrite pads to scuff all the chrome off. I'm not sure that was completely necessary, as plastic primer does about the same thing as scuffing, but I did it anyway, and it took a couple hours and a lot of elbow grease. I did not scuff the mini gatling gun shrouds, I just painted them with the same paint I used on the headlight assembly, that was satin black general purpose spray paint with primer in it, and they look almost the same as the headlight assembly that I spent a pretty long time prepping for paint. I used some halogen work lights mounted on a tripod to help bake the paint on, and speed up the drying time. Now's probably a good time to let y'all know that I don't expect to win any car shows with this install and I know it's not as "clean" as it could be.

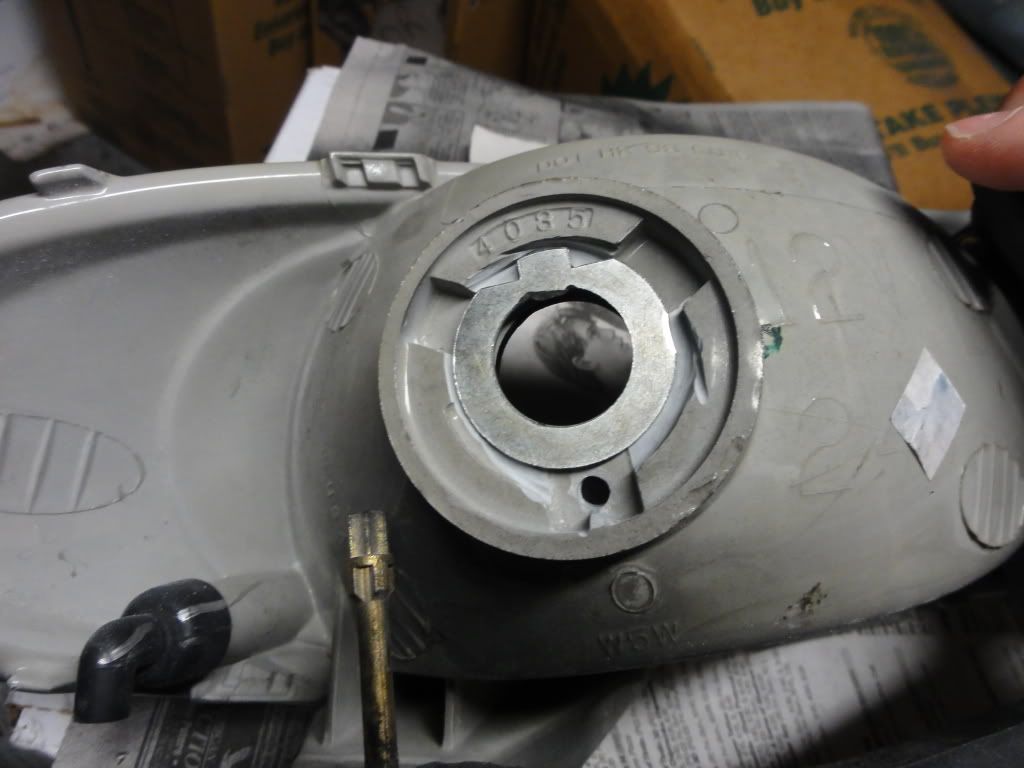

Removing the three tabs on the inside of the headlight assembly allows the projector housing to go further back, which will expose more threads for the locknut in the rear to bite on. I also cut the tabs on the back of the headlight assembly so the washer would have a flat surface to sit on, and this also allows the locknut to have more threads to bite on. You have to drill a small hole under the factory hole for the wires going to the solenoid. The silicone washer that goes on the projector housing should seal the drilled hole pretty well, but I put some silicone sealant in the hole from the back of the assembly just to seal it up a little better. It would have been nice if I had done this stuff before I put the shrouds on the projector housings, as I got a lot of dust on the inner side of the glass from the cutting/drilling.

Click the image to open in full size.

Click the image to open in full size.

Putting the covers back on the headlight assemblies, I used butyl tape from NAPA that was about $20 and it's probably enough to do 4 headlights. After getting the covers on, I ran my finger around the edges to seal in the grooves and remove some of the excess. The stuff looks like it is excellent for preventing any water leak issues, and it might be overkill, but I would recommend using it over just trying to use the leftover factory stuff to seal up the headlight assemblies.

The harness that comes with the kit is nice, but there has to be some strategic placement of the ballasts and the relays to ensure that there is enough wire for all the connectors. I didn't want to drill any holes for the ballasts and relays, so I used industrial strength velcro and cleaned off the areas with paper towels and denatured alcohol before installing the velcro. After some thought, these locations seemed to be the best for all the stuff.

Click the image to open in full size.

Click the image to open in full size.


The diode that has to be wired is pretty easy. I Just got the right diode, used a soldering gun and 14 gauge wire, and soldered the diode onto two pieces of wire about 6 inches or so. I tapped into the positive side of the factory high beam and the positive side of the factory low beam with tap-in squeeze connectors. The diode has to be facing the right direction and make sure to you squeeze the metal tap hard to pierce the wires, and finally, seal it with electrical tape. I used some wire loom and electrical tape on the wires to help protect them.

Getting the beams level isn't that big of a deal. I marked on the headlight assembly where 12 o'clock is and when you install the projector housing, the center of the groove on the top of the projector housing is where it should be at 12 o'clock so the cutoff is horizontal. You can adjust it when the headlights are on the car to get it perfect. Use a TORX T20 (?) and the link Walter mentioned to get the final aiming right. I used blue tape and a marker to get them lined up right.

One SNAFU I ran into was after getting everything mounted and wired, the driver side cutoff was making the light in a V shape. Andrew at TRS told me to put a pick in the light bulb hole to pull back the projector cutoff. After bending it some, then putting it back on the car, repeating a few times, it's almost perfect.

It's a pretty big difference, and it's all pretty basic stuff, just takes some common sense and some patience. The extra/better light really does help at night, even when they're just on the low beams. The high beams are insanely bright, and they make a huge difference driving on real dark roads.

Thanks again, fellas.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Last edited by NeoLoco; 01-13-2012 at 11:27 PM..
NeoLoco is offline   Reply With Quote
Old 01-13-2012, 11:18 PM   #2
TECH Enthusiast
Garage is empty, add now

Conrad's Avatar

Trader Rating: 20
Join Date: Jul 2011
Location: 48348
Posts: 654
Default

VERY COOL! I would totally do that if they were cheaper. Looks great, good write up.
Conrad is offline   Reply With Quote
Old 01-13-2012, 11:28 PM   #3
Staging Lane
Garage is empty, add now

Trader Rating: 0
Join Date: Sep 2010
Posts: 71
Default

Thanks man. It was about $300 for the parts and materials and well worth it IMO.
NeoLoco is offline   Reply With Quote
Old 01-13-2012, 11:33 PM   #4
TECH Senior Member
1999 Chevrolet Camaro
My Garage

SparkyJJO's Avatar

Trader Rating: 10
Join Date: Aug 2007
Location: Ohio
Posts: 6,523
Send a message via AIM to SparkyJJO
Default

So the brights buckets are just for the evil eyes now?
__________________
'99 Camaro, Mystic Teal Metallic, L36, A4, cammed, headers, tuned, Stranos, Bilsteins, Founders LCAs, relos, and adj. panhard. BLS w/ 5000k HID, tinted corners
'02 Trailblazer, Forest Green Metallic and Herculiner, Vortec 4.2L I6, 4x4, suspension lift w/ 32s, custom projector headlights w/ 5000k HID, exterior LED conversion
SparkyJJO is offline   Reply With Quote
Old 01-13-2012, 11:39 PM   #5
Staging Lane
Garage is empty, add now

Trader Rating: 0
Join Date: Sep 2010
Posts: 71
Default

The old high beams are still hooked up. There is a splitter for each side included in the kit that is a splitter from the factory high beam wire to the factory high beam and to the solenoid for the projector. The factory high beam probably doesn't do much with the HID high beam on, but might as well use it for the extra light.
NeoLoco is offline   Reply With Quote
Old 01-14-2012, 02:59 AM   #6
On The Tree
Garage is empty, add now

95cam86roc's Avatar

Trader Rating: 5
Join Date: May 2011
Location: Portsmouth, OH IO
Posts: 135
Default

Nice job and great write up. I am about to do a retrofit using the same projector. Right now the only thing keeping me from starting the process is my hectic work schedule.
__________________

1999 BBM z28- 1 of 1,117
LS1.com Oct 2012 COTM
Camaro Performers RR Feb 2013
2006 Silverado ECSB z71
1986 Iroc-Z LSx swap
95cam86roc is online now   Reply With Quote
Old 01-14-2012, 04:15 AM   #7
TECH Addict
Garage is empty, add now

Trader Rating: 7
Join Date: Apr 2004
Location: NorcaL
Posts: 2,188
Default

I think its amazing what you did.

I always wanted to do it but I feel like I wont know how to install the projector and make sure it aims straight.
__________________
2002 NBM SS
Born The Best Dead The Rest 1Up Every Time
SS DNA is offline   Reply With Quote
Old 01-14-2012, 04:21 AM   #8
TECH Fanatic
2000 Chevrolet Camaro

LT4vert's Avatar

Trader Rating: 1
Join Date: Feb 2002
Location: South Bend , IN
Posts: 1,335
Default

Nice clean retro man, it looks killer. Its great to see people doing HID the right way. Im suprised you had to do any movement on the sheild. As critical as sheild placement is, as any slightest movement can COMPLETELY change how sharp the cut off is, I would been pretty disappointed. What did TRS have to say about why it came to you like that? Their customer service is really good, just wondering why it was sent you like that.
__________________
LT4vert is online now   Reply With Quote
Old 01-14-2012, 05:13 PM   #9
11 Second Club
2001 Pontiac Trans Am

LS1rob00's Avatar

Trader Rating: 9
Join Date: Apr 2010
Location: Bay Area, CA
Posts: 950
Default

Probably the cleanest projector I've seen in an LS1 Camaro headlight. It looks very nice, not ricey like the aftermarket junk. Always water to do this when I ha my Camaro.
__________________
2002 NBM SS M6 Hardtop
2001 WS6 M6 - Stolen
2000 SS M6 - Sold
LS1rob00 is offline   Reply With Quote
Old 01-14-2012, 05:23 PM   #10
TECH Addict
Garage is empty, add now

bad_408_vert's Avatar

Trader Rating: 4
Join Date: Jan 2009
Location: Queens, NYC
Posts: 2,716
Default

very nice install
__________________
"that guy in the fly red coupe..."
bad_408_vert is online now   Reply With Quote
Old 01-14-2012, 09:56 PM   #11
11 Second Club
1999 Chevrolet Camaro
My Garage

99Ls1fever's Avatar

Trader Rating: 0
Join Date: Apr 2008
Location: Bandimere, CO
Posts: 1,720
Default

Looks great man!
__________________

2000- Sierra RCSB 5.3 | 76mm | Ls1 Fans | 340lph |
1997- GT TT 60mm's | TKO 600 |
1989- Notch 351w | PG | Limited Car |
Sold-1999 Camaro SS| Forged 347 | Vortech YSI 25psi | Strange 12 Bolt | 974hp/ trq?
Sold-2003 Cobra | E85 | Whipple 3.4 | SRA Swap | Full Return Fuel System | 755hp 685trq

99Ls1fever is offline   Reply With Quote
Old 01-15-2012, 10:52 AM   #12
On The Tree
Garage is empty, add now

Shadow1999's Avatar

Trader Rating: 0
Join Date: Jan 2006
Location: Vegas
Posts: 185
Default

Great job!
__________________
SHADOW 1999
Shadow1999 is offline   Reply With Quote
Old 01-15-2012, 11:08 AM   #13
Staging Lane
Garage is empty, add now

Trader Rating: 0
Join Date: Sep 2010
Posts: 71
Default

Thanks y'all.

Quote:
Originally Posted by LT4vert View Post

As critical as sheild placement is, as any slightest movement can COMPLETELY change how sharp the cut off is, I would been pretty disappointed. What did TRS have to say about why it came to you like that? Their customer service is really good, just wondering why it was sent you like that.
I have no idea why it was sent to me like that. It was a little frustrating that the cutoff was off by a lot. Now that I've adjusted it some, the cutoff is pretty good, and I couldn't really tell when I was driving that it is off. If I'm parked directly at a wall I can tell, but it's not out of alignment by much, so it's probably not noticeable on the street.

You're definitely right about how much the light is affected by the angle of the cutoff, as I adjusted it several times and there is no way I can make it perfect like the one on the passenger side, that arrived as it should be. It doesn't really make a lot of sense to not make it perfect, so there is a good possibility that I'll call them and get a replacement. I'll let y'all know how it goes.

Quote:
Originally Posted by SS DNA View Post
I think its amazing what you did.

I always wanted to do it but I feel like I wont know how to install the projector and make sure it aims straight.
It's pretty easy. Just set the projectors on the markings at as close to 12 o'clock as possible, so the cutoff is horizontal, then put the headlight assemblies back together, and finally make adjustments to the up/down and left/right adjustments with the factory adjustment screws. You can still adjust the cutoff once everything is put back together by turning the projector at the locknut with needle nose pliers.
NeoLoco is offline   Reply With Quote
Old 01-15-2012, 11:19 AM   #14
Captain Double Post
Garage is empty, add now

Trader Rating: 2
Join Date: Jun 2010
Location: Elyria Ohio
Posts: 1,670
Default

i would love to do this very bad ***
BOBS99SS is offline   Reply With Quote
Old 01-15-2012, 07:35 PM   #15
TECH Fanatic
2000 Chevrolet Camaro

LT4vert's Avatar

Trader Rating: 1
Join Date: Feb 2002
Location: South Bend , IN
Posts: 1,335
Default

Quote:
Originally Posted by NeoLoco View Post
Thanks y'all.



I have no idea why it was sent to me like that. It was a little frustrating that the cutoff was off by a lot. Now that I've adjusted it some, the cutoff is pretty good, and I couldn't really tell when I was driving that it is off. If I'm parked directly at a wall I can tell, but it's not out of alignment by much, so it's probably not noticeable on the street.

You're definitely right about how much the light is affected by the angle of the cutoff, as I adjusted it several times and there is no way I can make it perfect like the one on the passenger side, that arrived as it should be. It doesn't really make a lot of sense to not make it perfect, so there is a good possibility that I'll call them and get a replacement. I'll let y'all know how it goes.
Damn that sucks. I mean its possible to disassemble the projector and adjust the sheild, but its such a tedius job as you have to reassemble the projector to verify the adjustment. Your opinion may differ, but and uneven cut off line is huge pet peeve of mine, on my own car it would **** me off every time I saw it Especially since the mini's have a pretty wide razor sharp line.

GL if you go for a replacement man.
__________________
LT4vert is online now   Reply With Quote
Old 01-15-2012, 11:12 PM   #16
TECH Fanatic
Garage is empty, add now

dabest09's Avatar

Trader Rating: 1
Join Date: Jul 2008
Location: Georgia
Posts: 1,671
Default

Nice. I'm surprised more 98-02 camaro owners aren't doing this. It's really easy with the mini h1s.
__________________
2002 Trans Am WS6 M6
dabest09 is offline   Reply With Quote
Old 01-16-2012, 05:36 AM   #17
TECH Enthusiast
Garage is empty, add now

MasterV8's Avatar

Trader Rating: 7
Join Date: Jul 2005
Location: Shithole England!
Posts: 547
Send a message via MSN to MasterV8
Default

Quote:
Originally Posted by dabest09 View Post
Nice. I'm surprised more 98-02 camaro owners aren't doing this. It's really easy with the mini h1s.
I definitely want to do this I have hids but I want to do it properly.
Can you buy this kit without the ballasts so I can use the ones I already have?
__________________
SILVER '02SS
MTI Lid, Holley Filter, SLP Bellows,Ported TB, FTRA, SLP LTs, Corsa Catback, SLP Pulley, BAER Eradispeed F/R Rotors, BMR LCAs/PHRs,Koni 4/4s,Hotchkis Polished Strut Brace.
MISC:pro 5.0.,Clear Corner Lenses,SS engine bling.


07 C30 T5
MasterV8 is offline   Reply With Quote
Old 01-16-2012, 08:04 AM   #18
Kleeborp the Moderator™
Garage is empty, add now

MeentSS02's Avatar

Trader Rating: 11
Join Date: Mar 2004
Location: Dayton, OH
Posts: 10,300
Default

You can buy the projectors separately. As a matter of fact, I have a pair that I am going to be selling since I decided to sell my car before I had a chance to install them.
__________________
2008 Viper
MeentSS02 is offline   Reply With Quote
Old 01-16-2012, 08:32 AM   #19
TECH Enthusiast
Garage is empty, add now

MasterV8's Avatar

Trader Rating: 7
Join Date: Jul 2005
Location: Shithole England!
Posts: 547
Send a message via MSN to MasterV8
Default

Quote:
Originally Posted by MeentSS02 View Post
You can buy the projectors separately. As a matter of fact, I have a pair that I am going to be selling since I decided to sell my car before I had a chance to install them.
Chrome or graphite shroud? And I might be interested if you're prepared to ship them overseas.
__________________
SILVER '02SS
MTI Lid, Holley Filter, SLP Bellows,Ported TB, FTRA, SLP LTs, Corsa Catback, SLP Pulley, BAER Eradispeed F/R Rotors, BMR LCAs/PHRs,Koni 4/4s,Hotchkis Polished Strut Brace.
MISC:pro 5.0.,Clear Corner Lenses,SS engine bling.


07 C30 T5
MasterV8 is offline   Reply With Quote
Old 01-16-2012, 08:57 AM   #20
Kleeborp the Moderator™
Garage is empty, add now

MeentSS02's Avatar

Trader Rating: 11
Join Date: Mar 2004
Location: Dayton, OH
Posts: 10,300
Default

Chrome, but not sure how much it would cost me to ship them overseas.
__________________
2008 Viper
MeentSS02 is offline   Reply With Quote
