Old 06-20-2008, 10:40 AM   #41
TECH Apprentice
1978 Chevrolet Caprice

KC Henry's Avatar

Trader Rating: 0
Join Date: Jul 2006
Location: Kansas City
Posts: 301
Default

Quote:
Originally Posted by Pro Stock John View Post
My Merc is supposed to be pretty much a 77-80 B-body frame-wise, I'm interested in these swaps. What oil pan did KC Henry use? Looks like the swap is straightforward except for the oil pan?
Click the image to open in full size.

I just used a Stock 1998 Trans Am Engine (Oil Pan), Harness, and ECM. We notched the engine crossmember, and the rest basically dropped right in. (I have since added a $7.97 "Home Depot" Cold Air Intake so I am waiting to take it to the track to see if it helped or hurt me. I would like to improve on my 12.7 @ 104 from last year.)
__________________

2012 Mustang GT Premium - 5.0L Kona Blue Sexiness
2001 Ranger XTL XCab/Stepside 4x4 - 4.0L/5sp Auto
1978 Caprice Coupe - Cammed LQ9 6.0L - Sold after 18 Years www.youtube.com/user/HenryInKC
KC Henry is offline   Reply With Quote
Old 09-19-2008, 11:28 PM   #42
TECH Regular
Garage is empty, add now

Trader Rating: 2
Join Date: Oct 2004
Location: Struble, IA
Posts: 433
Default

I'm gonna bump this up to see what's been happening, but I want to ask a question too.

I was looking at the 98 connector pinouts on your site, and saw you had the Delphi part #'s for the C100 and other connectors, but cannot find them to save my life, for sale new.............got a bone you can throw me?
__________________

1979 Impala
Undergoing Turbo LS1/4L60E Swap

Build Progress
loweredd is offline   Reply With Quote
Old 09-20-2008, 12:06 AM   #43
TECH Apprentice
Garage is empty, add now

archerandsons's Avatar

Trader Rating: 16
Join Date: Oct 2007
Posts: 344
Default

wow
kool conversion
__________________
-1999 WS6 tan-sold
-1999 WS6 NBM-sold
-2001 WS6 NBM-sold
-1998 Formula-sold
-2004 CTS-V-sold
archerandsons is offline   Reply With Quote
Old 09-20-2008, 06:15 PM   #44
TECH Enthusiast
Garage is empty, add now

Trader Rating: 3
Join Date: Nov 2004
Location: West Plains, Missouri
Posts: 540
Send a message via MSN to busta9876 Send a message via Yahoo to busta9876
Default

Quote:
Originally Posted by loweredd View Post
I'm gonna bump this up to see what's been happening, but I want to ask a question too.

I was looking at the 98 connector pinouts on your site, and saw you had the Delphi part #'s for the C100 and other connectors, but cannot find them to save my life, for sale new.............got a bone you can throw me?
Well I finally gathered up all the parts for a drive by wire setup. I've actually been outside today getting it together. I finished the 2004 Trail Blazer 5.3L harness this morning. I must say the layout on the S/T truck 5.3 harness is much nicer to work with then the truck/suv 5.3 harness. I got to modify the gas pedal, and such. Right now its going together without the turbo, untill I can get some plumbing for the turbo. Exhaust plumbing is done, just need out of turbo through intercooler and into throttle body.

As for the connectors, I've had luck with

www.mouser.com and
www.waytekwire.com
www.powerandsignal.com

These are distributor's of delphi's parts. Waytek & Power and Signal usually sell in bulk, sometimes you can find a small quantity. Mouser will offer in lower volumes, but don't have as much cataloged. I get obd2 ports and such from mouser, come out to about $1.30 for a complete OBD2 port.

And of course, here is the Delphi connectors catalog page. here you can get detailed drawings of connectors, parts that go along with connectors, etc. you can't order directly from Delphi.

http://connectors2.delphi.com/DCSGDMCS/HomePage.aspx

Good luck, hope this helps.
__________________
1967 Chevy Pickup, 6.0L 4L65E, LS6 Cam
1989 Chevy Caprice, 5.3L, 4L80E, 67mm Precision Turbo
1986 Chevy K5 Blazer, 5.3L TH400, 208, Dana 60/14 bolt on 38'' TSL's
busta9876 is offline   Reply With Quote
Old 09-27-2008, 12:44 AM   #45
TECH Enthusiast
Garage is empty, add now

Trader Rating: 3
Join Date: Nov 2004
Location: West Plains, Missouri
Posts: 540
Send a message via MSN to busta9876 Send a message via Yahoo to busta9876
Default

I got the headers done tonight to run NA on. When I first got this running I stole the headers from my 67 pickup, so I've now made another set. This will highlight how I made them..

1979-93 Mustang Fox body 5.0 aftermarket headers, $100 from ebay.
GM LSx exhaust flanges, pn# 12480130 $22 each (dealer cost)

Started by cutting off the stock ford flange, as close to flange as possible, sawsall works great for this. The stock ford header tubes are smashed sort of rectangle UP & Down to fit the ford head. LSx's are more rectangle Side to Side, so the ports need worked with to make them fit better, and flow better. This is accomplished by heating the ends of the tubes red hot, and using some sort of round object to open things back up. I used a cut off peice of sway bar from a mid 80's pickup, its about 1" 1/8 or so. I ground the end to be kind of a wedge to help get into the tubes. Then I could flair out the end of the tubes by heating red, and prying with the peice of sway bar.

Flanges are tack welded in place for now to make sure no interfearance between the collector and side of the block, frame etc. Will bend to where I want them, then will finish welding inside & outside and grind smooth inside.

Tomorrow I should be driving the caprice again. Its been too long.

Click the image to open in full size.

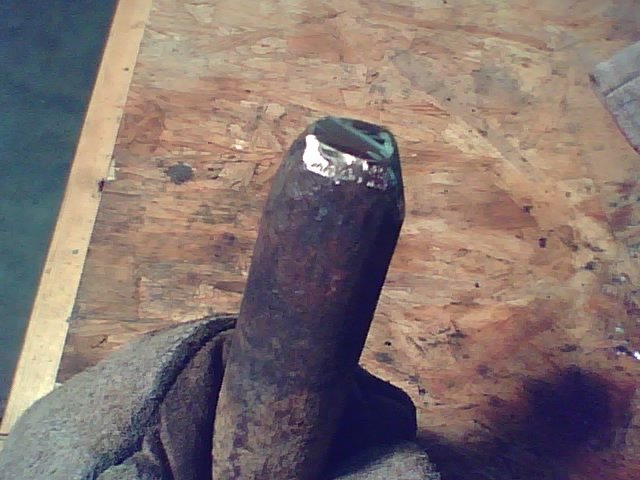

modified sway bar, used to expand ports on headers
Click the image to open in full size.

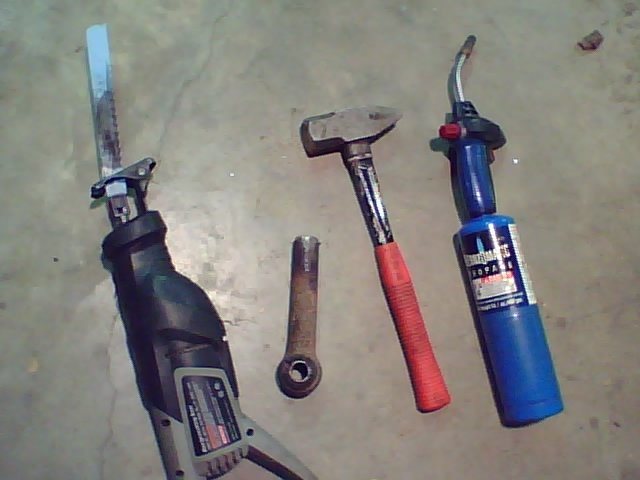

some of other common tools needed to do this, vice to hold the header helps too.
Click the image to open in full size.

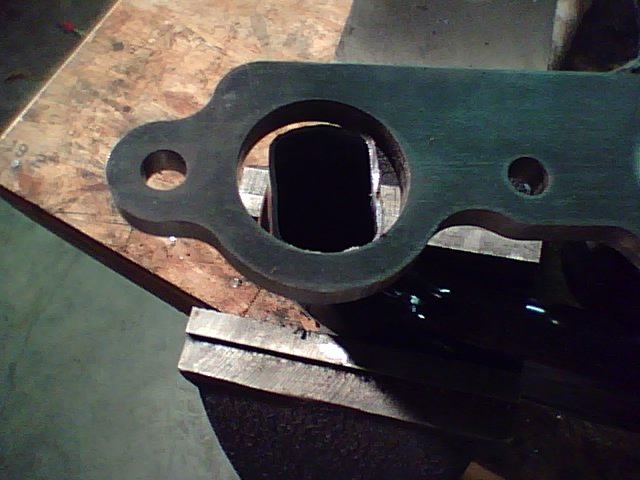

This is the stock ford tube, inside new flanges...
Click the image to open in full size.

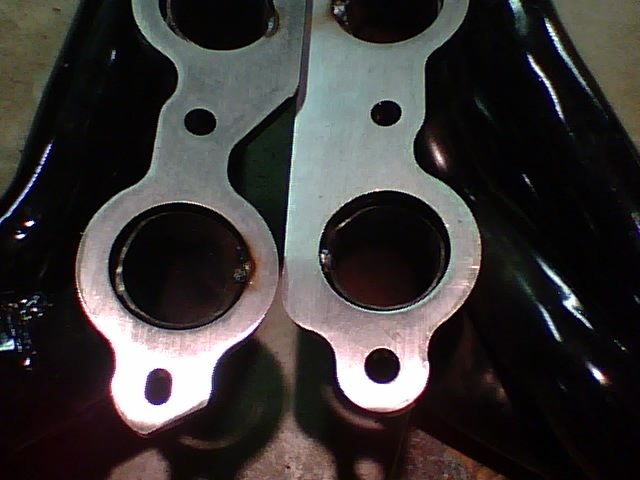

...and after expanding the tubes...
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.
check out how thick these GM flanges are!! GM Part# 12480130
__________________
1967 Chevy Pickup, 6.0L 4L65E, LS6 Cam
1989 Chevy Caprice, 5.3L, 4L80E, 67mm Precision Turbo
1986 Chevy K5 Blazer, 5.3L TH400, 208, Dana 60/14 bolt on 38'' TSL's

Last edited by busta9876; 11-29-2008 at 09:39 PM..
busta9876 is offline   Reply With Quote
Old 09-27-2008, 12:50 AM   #46
TECH Regular
Garage is empty, add now

Trader Rating: 2
Join Date: Oct 2004
Location: Struble, IA
Posts: 433
Default

Yep, GM flanges are thick, and cheap.


Hmmmm.....that used to be my nickname. LOL.


Have fun driving it man. I hope to get mine out of the garage soon.
__________________

1979 Impala
Undergoing Turbo LS1/4L60E Swap

Build Progress
loweredd is offline   Reply With Quote
Old 09-27-2008, 12:57 AM   #47
TECH Enthusiast
Garage is empty, add now

Trader Rating: 3
Join Date: Nov 2004
Location: West Plains, Missouri
Posts: 540
Send a message via MSN to busta9876 Send a message via Yahoo to busta9876
Default

Quote:
Originally Posted by loweredd View Post
Yep, GM flanges are thick, and cheap.


Hmmmm.....that used to be my nickname. LOL.


Have fun driving it man. I hope to get mine out of the garage soon.
You going to keep the 4L60E with the turbo install??? i've got a 4L60E but its out of a 1995 Camaro, not as strong as the newer ones. I picked up a 4L80E I'm going to rebuild. Little more expensive, but should hold up. I like the closer 1st & 2nd gear ratio on the 4L80E. I'll throw in some 4.11 or 4.56's with a spool when I get the overdrive in there. 3.42's will have to do for now.
busta9876 is offline   Reply With Quote
Old 09-27-2008, 01:14 AM   #48
TECH Regular
Garage is empty, add now

Trader Rating: 2
Join Date: Oct 2004
Location: Struble, IA
Posts: 433
Default

I was going to get a 4L80E way back when....but then I decided I was not going to do anything, and leave the LT1 in there. Then I changed my mind again, and put the engine in, and was going to slap on some F-body headers. Then I changed my mind again and decided to turbo it. LOL.

I am going to grenade the rear end before anything, so I will worry about the trans after that. HAHAHAHAHA.
__________________

1979 Impala
Undergoing Turbo LS1/4L60E Swap

Build Progress
loweredd is offline   Reply With Quote
Old 09-28-2008, 10:38 PM   #49
TECH Enthusiast
Garage is empty, add now

Trader Rating: 3
Join Date: Nov 2004
Location: West Plains, Missouri
Posts: 540
Send a message via MSN to busta9876 Send a message via Yahoo to busta9876
Default

Well I drove the Caprice today. Got it running about midnight Saturday and decided to wait untill daylight to go drive it. Now all I need is exhaust and I'll be rolling.

attached are some underhood pics, still need to finish covering the heater box after removing the A/C evaporator. I've got a air intake tube on it now also.
Attached Thumbnails
5.3L in a 89' Caprice 9C1-09282008-136.jpg   5.3L in a 89' Caprice 9C1-09282008-137.jpg   5.3L in a 89' Caprice 9C1-09282008-135.jpg   5.3L in a 89' Caprice 9C1-09282008-138.jpg   5.3L in a 89' Caprice 9C1-09282008-139.jpg

__________________
1967 Chevy Pickup, 6.0L 4L65E, LS6 Cam
1989 Chevy Caprice, 5.3L, 4L80E, 67mm Precision Turbo
1986 Chevy K5 Blazer, 5.3L TH400, 208, Dana 60/14 bolt on 38'' TSL's
busta9876 is offline   Reply With Quote
Old 09-28-2008, 10:50 PM   #50
TECH Regular
Garage is empty, add now

Trader Rating: 2
Join Date: Oct 2004
Location: Struble, IA
Posts: 433
Default

Awesome man!! I see you made your upper radiator mount like I did for the LT1. Works great. Now clean up that engine bay, and have fun driving!!

*EDIT* Headers look like they fit good.
__________________

1979 Impala
Undergoing Turbo LS1/4L60E Swap

Build Progress
loweredd is offline   Reply With Quote
Old 10-05-2008, 05:45 AM   #51
Teching In
Garage is empty, add now

Trader Rating: 0
Join Date: Oct 2008
Posts: 24
Default

looks great --subscribed..
BandAid is offline   Reply With Quote
Old 10-05-2008, 10:35 PM   #52
TECH Enthusiast
Garage is empty, add now

Trader Rating: 3
Join Date: Nov 2004
Location: West Plains, Missouri
Posts: 540
Send a message via MSN to busta9876 Send a message via Yahoo to busta9876
Default

Well I've been driving the Caprice all weekend, got some exhaust on it Friday night and it sounds great. I put some Flowtech Terminator Mufflers on it, headers, 2.5 inch pipe. Very deep rumble, low & loud. Very different from my 67 pickup 5.3L with the Thrush welded muflers, which are loud & raspy sounding.

Only a few loose ends on the caprice, including getting the electric fan mounted, and wiring from the PCM to control the relay. I am going to see if I can make the 4000 pulse/mile signal generator on my 89 caprice work with the PCM as a speed signal input. It tries to idel too low after driving for a while, almost seems like it wants to die. Also got to get cruise control working, diagnostic port mounted, and finding the stock 89's check engine light wire under the dash.

Game plan is drive the Caprice untill I get my 1990 Cavalier Z24 swap done. I'm putting a 3800 supercharged v6 with the 5speed trans. As soon as this is done (I have all parts, only got to get it done) Caprice will be back in the shop for the turbo install. I still need to find a waste gate & blow off valve, and some plumbing for intercooler, throttle body.
__________________
1967 Chevy Pickup, 6.0L 4L65E, LS6 Cam
1989 Chevy Caprice, 5.3L, 4L80E, 67mm Precision Turbo
1986 Chevy K5 Blazer, 5.3L TH400, 208, Dana 60/14 bolt on 38'' TSL's
busta9876 is offline   Reply With Quote
Old 10-14-2008, 10:54 PM   #53
Teching In
Garage is empty, add now

Trader Rating: 1
Join Date: Aug 2006
Location: B.F.E. missouri
Posts: 41
Default

man I can't wait to get home and ride in it
twisselman1968 is offline   Reply With Quote
Old 10-15-2008, 05:20 PM   #54
TECH Enthusiast
Garage is empty, add now

Trader Rating: 3
Join Date: Nov 2004
Location: West Plains, Missouri
Posts: 540
Send a message via MSN to busta9876 Send a message via Yahoo to busta9876
Default

it pulls great all way up to 6000, rev limiter is very weird, it fuel cuts, then uses the drive by wire to limit RPM. I think its because it see 0 MPH, thinks it is free reving. I need to get the speed sensor hooked up.

Here's the problem with that

Most of the 80's gm's with electric cruise & cable speedos, use an optical sensor for a speed signal. Something like a infrared led emits a beam onto a reflector on the speedo cable, and it counts the revolutions. The output from this sensor is a 2 pulse per revolution square wave signal.

PCM needs SIN wave signal. So i'm trying to find a source for a 4 pulse SIN wave sensor that will screw into the 5/8 threads of my speedo drive on the TH400. www.jagsthatrun.com have one, but they want like $90 for it.

I will keep you all updated when I figure out my speed sensor issues.
__________________
1967 Chevy Pickup, 6.0L 4L65E, LS6 Cam
1989 Chevy Caprice, 5.3L, 4L80E, 67mm Precision Turbo
1986 Chevy K5 Blazer, 5.3L TH400, 208, Dana 60/14 bolt on 38'' TSL's
busta9876 is offline   Reply With Quote
Old 01-17-2009, 04:42 PM   #55
TECH Enthusiast
Garage is empty, add now

Trader Rating: 3
Join Date: Nov 2004
Location: West Plains, Missouri
Posts: 540
Send a message via MSN to busta9876 Send a message via Yahoo to busta9876
Default

Well thought I'd post an update on this project....

I've been daily driving the caprice now since my last post. I'm actually pulling off close to 20 miles per gallon in it, worse when I feel like having some fun in it. Still no turbo on it, however I have gotten some more parts.

I got everything to relocate battery to the trunk. I also have everything to redo the fuel system. I am running an intake Walbro pump, Aeromotive 13109 bypass regulator. The regulator will be in the back, with a short return line, and one single fuel line to the front. I got a new intake with the stainless steel rails and single inlet fuel line. I have a set of 62 lb hour injectors, might be a bit big at first, I've also got a set of 'flex fuel' injectors....I've also got a Innovate wide band o2 controller and sensor new in the box. now need to find a nice weekend where I'm not working on other peoples wiring harnesses and get to work.

I'm kind of at a cross roads for what to do for the computer side of things.

1. I have a Megasquirt II assembled ready to go on whatever I want. Megasquirt is nice because of its 'on the fly' tuning features and support for boost. No real downside, other then lack of electronic trans support if I go with the 4L80E down the road.

2. I have a friend that wants to sell me his HP Tuners fairly cheap. I know HP Tuners has very good speed density operating systems to run with boost. Downside is no real time tuning. However it does seem to have good data logging features.

3. I could purchase a RoadRunner real time tuning PCM from moates, I already have the CATS OBD2 and a few definitions. But downside here is speed density operating system. I just don't know much about boost tuning using MAF or stock operating system.

so after I make this decision I'm going to move forward with the turbo install. Anyone have any suggestions on any of the three approaches?
__________________
1967 Chevy Pickup, 6.0L 4L65E, LS6 Cam
1989 Chevy Caprice, 5.3L, 4L80E, 67mm Precision Turbo
1986 Chevy K5 Blazer, 5.3L TH400, 208, Dana 60/14 bolt on 38'' TSL's
busta9876 is offline   Reply With Quote
Old 03-22-2009, 10:52 PM   #56
TECH Enthusiast
Garage is empty, add now

Trader Rating: 3
Join Date: Nov 2004
Location: West Plains, Missouri
Posts: 540
Send a message via MSN to busta9876 Send a message via Yahoo to busta9876
Default

well making some progress on this beast.

Battery is relocated in the trunk now. Fuel system parts from Summit should be here Tuesday. These include all the AN fittings to plumb in a A1000 fuel pressure regulator, and connect to the fuel rail. stainless braided fuel line for supply and return. I got a box of silicone hoses in last week and t-clamps. Fiberglass header wrap is ordered along with some stainless zip ties to hold the wrap on. I ordered a new MAF. I plan to run the stock ECU with a MAF and go until I max out the MAF.

This weekend the fuel system should be completed. I'm still driving this every day to work, so I'm trying to get one step at a time done during the weekend.

I'll get some more pictures this weekend and get them posted.
__________________
1967 Chevy Pickup, 6.0L 4L65E, LS6 Cam
1989 Chevy Caprice, 5.3L, 4L80E, 67mm Precision Turbo
1986 Chevy K5 Blazer, 5.3L TH400, 208, Dana 60/14 bolt on 38'' TSL's
busta9876 is offline   Reply With Quote
Old 03-23-2009, 07:45 AM   #57
TECH Regular
Garage is empty, add now

Trader Rating: 2
Join Date: Oct 2004
Location: Struble, IA
Posts: 433
Default

That's awesome. I haven't done anything to mine in months.
__________________

1979 Impala
Undergoing Turbo LS1/4L60E Swap

Build Progress
loweredd is offline   Reply With Quote
Old 11-25-2009, 04:03 PM   #58
Teching In
Garage is empty, add now

Trader Rating: 1
Join Date: Aug 2006
Location: B.F.E. missouri
Posts: 41
Default

progress report? any news on this one
twisselman1968 is offline   Reply With Quote
Old 01-26-2010, 01:43 PM   #59
Teching In
Garage is empty, add now

Trader Rating: 0
Join Date: Jan 2010
Posts: 1
Default

i'm new to the thread and recently have been thinkin about doin a similar motor swap in my car...i want to know what all is needed to complete this task...any input would be greatly appreciated.car is a 1990 chevy caprice 5.7 350tbi
90boxchevy is offline   Reply With Quote
Old 12-29-2010, 02:31 PM   #60
Teching In
Garage is empty, add now

Trader Rating: 0
Join Date: Sep 2010
Location: Cleveland, ms
Posts: 14
Default

What mounts you used for your setup. I tried plates to reuse the brackets and original clamshells that worked with 305. Off on one side
Jayhill is offline   Reply With Quote
Old 12-29-2010, 02:31 PM
LS1Tech
Pontiac Firebird




Paid Advertisement
Reply

Tags
1978, 80, 89, 9c1, body, caprice, engines, find, fit, heater, ls1, optical, red, sensor, throttle, turbocharger


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are On
Refbacks are Off

Similar Threads
Thread Thread Starter Forum Replies Last Post
The Single Turbo Caprice Classic is Alive! bfurches Conversions & Hybrids 20 07-05-2014 10:14 PM
Looking for good prices on swap material list and some advice...gbody Malibu ihavetoomuchstuffman Conversions & Hybrids 5 09-15-2013 02:36 PM
Hello from the Space Coast! elc32955 Introductions & Greetings 4 06-30-2013 07:50 PM



All times are GMT -5. The time now is 07:28 AM.


Powered by vBulletin® Version 3.7.4
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
Advertising - Terms of Service - Privacy Statement - JOBS
Emails & Contact Details
