Where did you guys mount your cutoff switch in the trunk? I have the push/pull type from summit and I'm not sure the best place to mount it. Any pictures would be appreciated.
__________________
07 Z06 - Stock
buzz12586 is offline   Reply With Quote
Old 07-18-2011, 10:37 AM   #2
TECH Addict
Garage is empty, add now

sweetbmxrider's Avatar

Trader Rating: 13
Join Date: Sep 2008
Location: jersey shore
Posts: 2,445
Default

I mounted it on the passenger frame rail. My handle goes through the body and the unused portion of the reverse light.
__________________
Quote:
Originally Posted by Mr. Hyde View Post
Almost as gay as listing out all your weaksauce mods in your sig...but hey, who's judging?
sweetbmxrider is offline   Reply With Quote
Old 07-18-2011, 12:01 PM   #3
TECH Enthusiast
Garage is empty, add now

buzz12586's Avatar

Trader Rating: 17
Join Date: Feb 2006
Location: Charlotte, NC
Posts: 732
Default

Quote:
Originally Posted by sweetbmxrider View Post
I mounted it on the passenger frame rail. My handle goes through the body and the unused portion of the reverse light.
Do you happen to have a picture of it? Thanks.
__________________
07 Z06 - Stock
buzz12586 is offline   Reply With Quote
Old 07-18-2011, 12:20 PM   #4
9 Second Club
2002 Chevrolet Camaro

Need_a_Camaro's Avatar

Trader Rating: 24
Join Date: Apr 2009
Location: Augusta, WV
Posts: 306
Send a message via AIM to Need_a_Camaro
Default

Quote:
Originally Posted by sweetbmxrider View Post
I mounted it on the passenger frame rail. My handle goes through the body and the unused portion of the reverse light.


Anyway you can snap a pic of that? I'm trying to decide where to put mine as well.
__________________

408/91mm/TH400
Need_a_Camaro is offline   Reply With Quote
Old 07-18-2011, 02:27 PM   #5
9 Second Club
Garage is empty, add now

minytrker's Avatar

Trader Rating: 13
Join Date: Sep 2004
Location: Burton
Posts: 1,293
Send a message via MSN to minytrker
Default

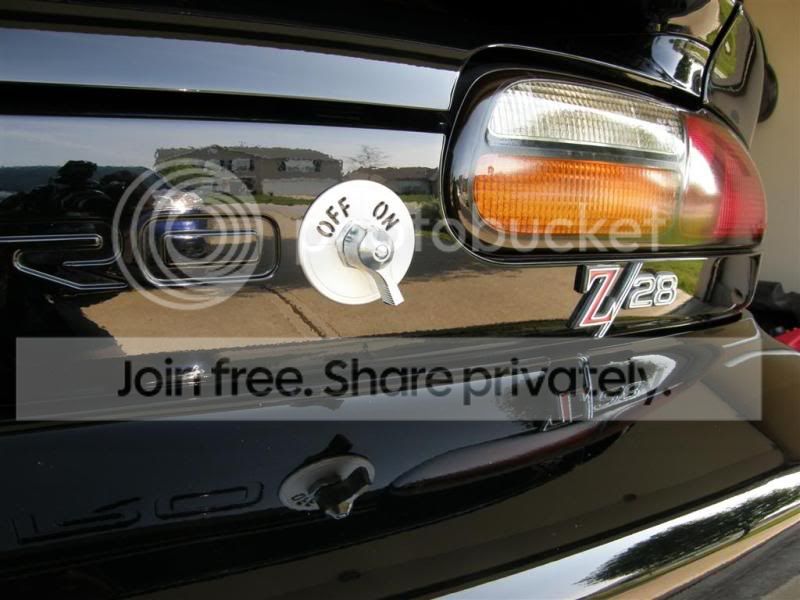

Mine is right under the passenger tail light. The switch is mounted on the frame rail.

Click the image to open in full size.
__________________
99 Z28 Camaro|LS3 416 with a S480 on straight alcohol Tuned by LSX Power Tuning
2003 CC Duramax Dually|19.5 w/245/70/19.5|Tuned by LSX Power Tuning|5in exhaust
2009 G8 GT 391rwhp/385rwtq SAE|Rotofab CAI|X pipe|LS9 Cam|Pacesetters| Tuned by LSX Power Tuning|GXP Mufflers|Custom System
2006 CTS-V 423rwhp/420rwtq SAE| K&N CAI|OBX Headers|Stock LS3|Built Trans w/LS7 clutch| G-Force Axles|Tuned by LSX Power Tuning|
minytrker is offline   Reply With Quote
Old 07-18-2011, 03:34 PM   #6
TECH Fanatic
Garage is empty, add now

6techniques's Avatar

Trader Rating: 7
Join Date: May 2004
Posts: 1,229
Default

mine is located on the passenger frame rail as well, which is the most common area on f-bodies...I will try to get pics up later.
6techniques is offline   Reply With Quote
Old 07-18-2011, 04:59 PM   #7
TECH Apprentice
Garage is empty, add now

SWeiser31's Avatar

Trader Rating: 9
Join Date: Jul 2007
Location: Missouri
Posts: 336
Send a message via AIM to SWeiser31 Send a message via Yahoo to SWeiser31
Default

Here's how I have mine mounted.
Click the image to open in full size.
Click the image to open in full size.
__________________
1999 HOSS M6:
Old combo: stock internals, LS6 intake, ARH 1 7/8, S60, 4.56 gears, and faceplated T-56. 11.50 @ 118
New combo: 404 LS2. 10.52 @ 129
On the cover and featured in Jan 2012 issue of Hot Rod Magazine
http://www.youtube.com/watch?v=40Nc1...&feature=feedf
SWeiser31 is offline   Reply With Quote
Old 07-18-2011, 06:03 PM   #8
TECH Fanatic
Garage is empty, add now

ryarbrough's Avatar

Trader Rating: 18
Join Date: Jan 2007
Location: Mechanicsville, VA
Posts: 1,194
Default

Mine is low in the spare well. It comes out through the middle of the far right side of my plate.
__________________
99 Formula - Forged 347, MS4, PRC Stage 2.5 5.3L Heads, ZEX Perimeter Plate, TH400, Yank Eliminator 3600

10.08 @ 134 - 435 hp NA through the big auto

Richmond Performance Musclecars...The Real RPM!
ryarbrough is offline   Reply With Quote
Old 07-18-2011, 06:30 PM   #9
TECH Enthusiast
Garage is empty, add now

Trader Rating: 17
Join Date: Mar 2007
Location: Alexandria, VA
Posts: 516
Send a message via AIM to 00T/AWS6
Default

subscribed for more pic's and suggestions!
__________________

2000 Trans Am WS6 = Roller looking for a motor!!
2009 Inifiniti G37X = DD
00T/AWS6 is offline   Reply With Quote
Old 07-18-2011, 08:23 PM   #10
9 Second Club
2002 Chevrolet Camaro

Need_a_Camaro's Avatar

Trader Rating: 24
Join Date: Apr 2009
Location: Augusta, WV
Posts: 306
Send a message via AIM to Need_a_Camaro
Default

This is great, I need ideas. I'm afraid of making the car look half assed.
__________________

408/91mm/TH400
Need_a_Camaro is offline   Reply With Quote
Old 07-19-2011, 10:15 AM   #11
TECH Addict
Garage is empty, add now

sweetbmxrider's Avatar

Trader Rating: 13
Join Date: Sep 2008
Location: jersey shore
Posts: 2,445
Default

I'll try getting pics later.
__________________
Quote:
Originally Posted by Mr. Hyde View Post
Almost as gay as listing out all your weaksauce mods in your sig...but hey, who's judging?
sweetbmxrider is offline   Reply With Quote
Old 07-19-2011, 05:47 PM   #12
Race your car!
Garage is empty, add now

Trader Rating: 49
Join Date: Mar 2004
Posts: 14,346
Default

I welded the tab for mine off the bar of the cage/at the frame plate, comes out right next to where the WS-6 symbol is on the bumper cover. Worked out well.
JL ws-6 is offline   Reply With Quote
Old 07-20-2011, 10:07 AM   #13
TECH Addict
Garage is empty, add now

sweetbmxrider's Avatar

Trader Rating: 13
Join Date: Sep 2008
Location: jersey shore
Posts: 2,445
Default

Typical cell phone pic, you get the idea.

Click the image to open in full size.
__________________
Quote:
Originally Posted by Mr. Hyde View Post
Almost as gay as listing out all your weaksauce mods in your sig...but hey, who's judging?
sweetbmxrider is offline   Reply With Quote
Old 07-21-2011, 07:55 PM   #14
TECH Enthusiast
Garage is empty, add now

buzz12586's Avatar

Trader Rating: 17
Join Date: Feb 2006
Location: Charlotte, NC
Posts: 732
Default

Quote:
Originally Posted by sweetbmxrider View Post
Typical cell phone pic, you get the idea.

Click the image to open in full size.
So it comes out of the back angled up?
__________________
07 Z06 - Stock
buzz12586 is offline   Reply With Quote
Old 07-22-2011, 10:13 AM   #15
TECH Addict
Garage is empty, add now

sweetbmxrider's Avatar

Trader Rating: 13
Join Date: Sep 2008
Location: jersey shore
Posts: 2,445
Default

Yes, I shimmed the switch itself so its on a slight angle as well. You push the handle, it easily goes down and kills the car. I tried to upload cell pics of the outside but facebook denied. One of these days I'll get real pics
__________________
Quote:
Originally Posted by Mr. Hyde View Post
Almost as gay as listing out all your weaksauce mods in your sig...but hey, who's judging?
sweetbmxrider is offline   Reply With Quote
