10° max mounting angle for BW S480?
#1
TECH Regular
Thread Starter
10° max mounting angle for BW S480?
Trying to mount this unit up close to the firewall. Being able to tilt the *** end down will help with down pipe fabrication.
Has anyone mounted this unit at this angle (10°) or greater? Anything I can do to allow it to be tilted more?
Turbo is a BWS480 billet ETRHO 1.25 t4 race cover.
Thanks.
Has anyone mounted this unit at this angle (10°) or greater? Anything I can do to allow it to be tilted more?
Turbo is a BWS480 billet ETRHO 1.25 t4 race cover.
Thanks.
#2
8 Second Club
iTrader: (4)
Trying to mount this unit up close to the firewall. Being able to tilt the *** end down will help with down pipe fabrication.
Has anyone mounted this unit at this angle (10°) or greater? Anything I can do to allow it to be tilted more?
Turbo is a BWS480 billet ETRHO 1.25 t4 race cover.
Thanks.
Has anyone mounted this unit at this angle (10°) or greater? Anything I can do to allow it to be tilted more?
Turbo is a BWS480 billet ETRHO 1.25 t4 race cover.
Thanks.
I read Garrett called out +/- 15* on most units.
Somewhere In the Maximum boost book I believe it indicated 30* was the max.
#3
TECH Regular
Thread Starter
I have read mention of the journal bearing turbos not taking as much of an angle as a ball bearing unit.
Still, I would like to hear someone with experience mounting a BW at an angle, how much of an angle, and if/how it affected its bearings.
#4
TECH Regular
Thread Starter
Just found this on Garrett's site;

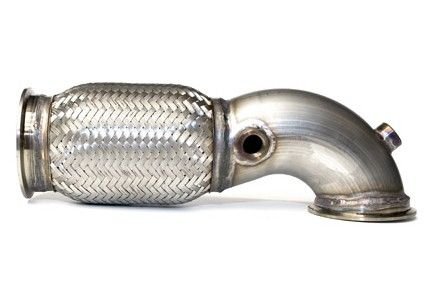

Basically I would need something like this but in 4". Or, have the down pipe pie cut to death..
Turbo tilted back on its axis past recommended 15°.
Basically I would need something like this but in 4". Or, have the down pipe pie cut to death..
Last edited by Razor; 01-18-2015 at 08:48 AM.
#6
9 Second Club
I would highly doubt the concern is a bearing one.
But if it is tilted too far there is a likely hood of oil building up and bypassing the piston ring and causing a little smoking.
If you can live with that I wouldnt be too concerned
But if it is tilted too far there is a likely hood of oil building up and bypassing the piston ring and causing a little smoking.
If you can live with that I wouldnt be too concerned
Trending Topics
#8
TECH Regular
Thread Starter
I am just concerned about the bearings not liking the angle.
What is the maximum angle you think I could get away with and not have any adverse effects on turbo life? 30°?
#10
8 Second Club
iTrader: (19)
I am not concerned with oil drain. The turbo will have more than enough angle on the drain line to gravity evac and it is a -10 line. A little puff of smoke is a non issue for me as well. I am just concerned about the bearings not liking the angle. What is the maximum angle you think I could get away with and not have any adverse effects on turbo life? 30°?
If your turbo manufacturer says 30* is acceptable than go with 30* my .02 anyways.
Last edited by oscs; 01-19-2015 at 09:19 AM.
#11
8 Second Club
iTrader: (4)
-10AN line is on the small side in some cases. Esp. if the fitting ID isn’t a true -10. Check the actual drain port diameter on the turbo itself and ensure you don’t go smaller than that anywhere in the system. I believe BW suggests no smaller than a 19cm (3/4”!) ID drain. Copper tubing works well for this.
I’d be more than comfortable up to 30* assuming the drain is setup correctly.
I’d be more than comfortable up to 30* assuming the drain is setup correctly.
#12
8 Second Club
iTrader: (19)
-10AN line is on the small side in some cases. Esp. if the fitting ID isn’t a true -10. Check the actual drain port diameter on the turbo itself and ensure you don’t go smaller than that anywhere in the system. I believe BW suggests no smaller than a 19cm (3/4”!) ID drain. Copper tubing works well for this. I’d be more than comfortable up to 30* assuming the drain is setup correctly.
