Default HELP!!!! melted Head-light connector ????

As I was adjusting my headlight I notice the smell of burning plastic coming from passenger headlight (low beam). So I decide to take apart the headlight assemble and notice a burnt connector Not sure what might of cause this ...... looking for some advice any would be greatly appreciated

(side-note)
I have never replace my driver-side headlight since I have own the car (4 years) but replace passenger-side headlight bulb for low beams at least once year I never really investigated the matter due time or didn't really saw it as high priority at the time.

Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
__________________
"I don't suffer from insanity I enjoy every minute of it." ---
--- Heads and Cam combo/TUNE from VA Speed
(Performance Inductions LXR Heads 215cc) and custom cam

Last edited by crazymonkey; 12-29-2010 at 01:04 AM.. Reason: missing words/typo
crazymonkey is offline   Reply With Quote
Old 12-29-2010, 12:42 AM   #2
Copy & Paste Moderator
Garage is empty, add now

VIP1's Avatar

Trader Rating: 0
Join Date: Apr 2002
Location: Eastern MA
Posts: 8,431
Default

My conector melted too, but it was due to a loose and corroded connection. I gues it caused some arcing or at least enough heat to melt the connector. Unfortunately, at the time, I couldn't find anyone selling the connectors. I think I did find one a few years ago. If I find the connector again, I'll send you the link.

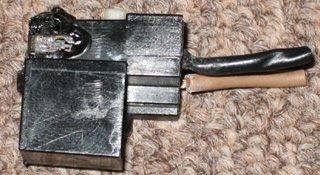

Here are pics of what mine looked like.

Click the image to open in full size.
Click the image to open in full size.
__________________
- 2001 Black Formula --- 75th Anniversary Package --- www.fadingarrow.com -
Perf Mods: Koni SA, UMI roto-joint LCA, Lid, Holly Filter, Strano 35/22 sway, ATE Blanks, HPS Pads, ATE SuperBlue Brake Fluid
Appr Mods: Black Z06 Motorsports (17x9.5), F1 GS-D3 (275/40/17), Silver Door Panel & Arm Rest Fabric, Silver Vent Rings, A4 Leather Shift Boot, Hella H9 Projectors, Pioneer AVIC-D3
--- Lighting FAQ -- Sig Rules -- General Suspension Issues/Questions FAQ ---
VIP1 is offline   Reply With Quote
Old 12-29-2010, 01:14 AM   #3
Staging Lane
2002 Pontiac Torrent

crazymonkey's Avatar

Trader Rating: 2
Join Date: Dec 2006
Location: V.A Beach
Posts: 63
Default

I just replace the headlight-motor (so all adjacent connectors hanging off should be new i.e (low/high beam) I hoping this small issue isn't underling for a bigger issue.
__________________
"I don't suffer from insanity I enjoy every minute of it." ---
--- Heads and Cam combo/TUNE from VA Speed
(Performance Inductions LXR Heads 215cc) and custom cam
crazymonkey is offline   Reply With Quote
Old 12-29-2010, 07:53 AM   #4
Save the manuals!
Garage is empty, add now

wssix99's Avatar

Trader Rating: 5
Join Date: Dec 2007
Location: Chicago, IL
Posts: 6,946
Default

On your new connector, I'd suggest using a ton of dielectric grease to keep corrosion down. I had similar issues on mine before I changed the headlight type.
__________________
Black 1999 Firebird Formula WS6; M6

Please DO NOT send PMs for questions that can be answered in the forums!
wssix99 is offline   Reply With Quote
Old 12-29-2010, 09:38 AM   #5
Staging Lane
2002 Pontiac Torrent

crazymonkey's Avatar

Trader Rating: 2
Join Date: Dec 2006
Location: V.A Beach
Posts: 63
Default

Is this common issue with these connectors ??? (is it because connector is cheap or b/c so much of connector is exposed)
Hypothetically lets say I continue have issue with connector. Corrective me if I'm wrong but typically black/blue = ground and offset color = power. Since the black/blue part of connector melted that would suggest I might have ground issue ......... Would rerouting the ground to one of the ground points in engine bay resolve this hypothetical issue ???
By all means I not that electrically incline so any input would be great
__________________
"I don't suffer from insanity I enjoy every minute of it." ---
--- Heads and Cam combo/TUNE from VA Speed
(Performance Inductions LXR Heads 215cc) and custom cam
crazymonkey is offline   Reply With Quote
Old 12-30-2010, 04:32 PM   #6
Save the manuals!
Garage is empty, add now

wssix99's Avatar

Trader Rating: 5
Join Date: Dec 2007
Location: Chicago, IL
Posts: 6,946
Default

Quote:
Originally Posted by crazymonkey View Post
Is this common issue with these connectors ???
Corrosion, yes. Meltdown, no.

Quote:
Originally Posted by crazymonkey View Post
(is it because connector is cheap or b/c so much of connector is exposed)
Its because it is now 2010 and the headlight design is vintage 1971.

Quote:
Originally Posted by crazymonkey View Post
Hypothetically lets say I continue have issue with connector. Corrective me if I'm wrong but typically black/blue = ground and offset color = power. Since the black/blue part of connector melted that would suggest I might have ground issue ......... Would rerouting the ground to one of the ground points in engine bay resolve this hypothetical issue ???
By all means I not that electrically incline so any input would be great
I think that if you keep corrosion in check, you shouldn't have any issues at all.
__________________
Black 1999 Firebird Formula WS6; M6

Please DO NOT send PMs for questions that can be answered in the forums!
wssix99 is offline   Reply With Quote
Old 01-01-2011, 12:18 PM   #7
Save the manuals!
Garage is empty, add now

wssix99's Avatar

Trader Rating: 5
Join Date: Dec 2007
Location: Chicago, IL
Posts: 6,946
Default

Quote:
Originally Posted by VIP1 View Post
My conector melted too, but it was due to a loose and corroded connection. I gues it caused some arcing or at least enough heat to melt the connector. Unfortunately, at the time, I couldn't find anyone selling the connectors. I think I did find one a few years ago. If I find the connector again, I'll send you the link.

Here are pics of what mine looked like.

Click the image to open in full size.
Click the image to open in full size.
FYI - Doorman makes pigtails with these connectors, so any parts store should be able to order them: (If anyone ever needs these in the future.)
Dorman 85896 (Lowbeam)
Dorman 85897 (Highbeam)
__________________
Black 1999 Firebird Formula WS6; M6

Please DO NOT send PMs for questions that can be answered in the forums!
wssix99 is offline   Reply With Quote
Old 01-02-2011, 12:55 AM   #8
Copy & Paste Moderator
Garage is empty, add now

VIP1's Avatar

Trader Rating: 0
Join Date: Apr 2002
Location: Eastern MA
Posts: 8,431
Default

Quote:
Originally Posted by wssix99 View Post
FYI - Doorman makes pigtails with these connectors, so any parts store should be able to order them: (If anyone ever needs these in the future.)
Dorman 85896 (Lowbeam)
Dorman 85897 (Highbeam)
Thanks, i found out about the Dorman connectors recently as well. 4703 & 4701 connectors used to be hard to find, but i found some online recently. There are a few othe brands now too. However, I no longer need them since I have Hella 90mm H9 projectors. Funny how you find things when you don't need them.

I don't have the links, but if you search on google for 4703 connector (or socket), you'll find them.
