Description:

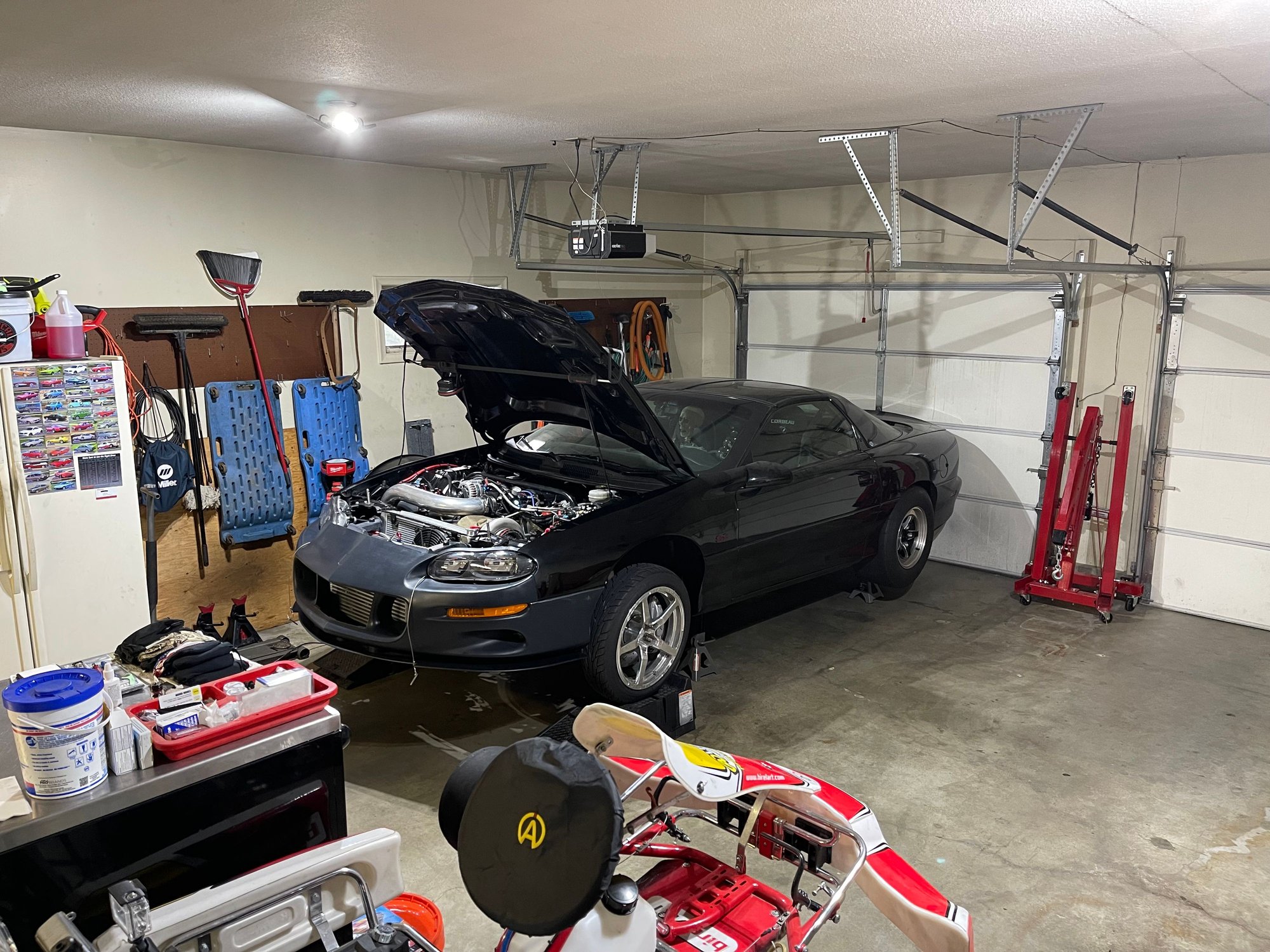

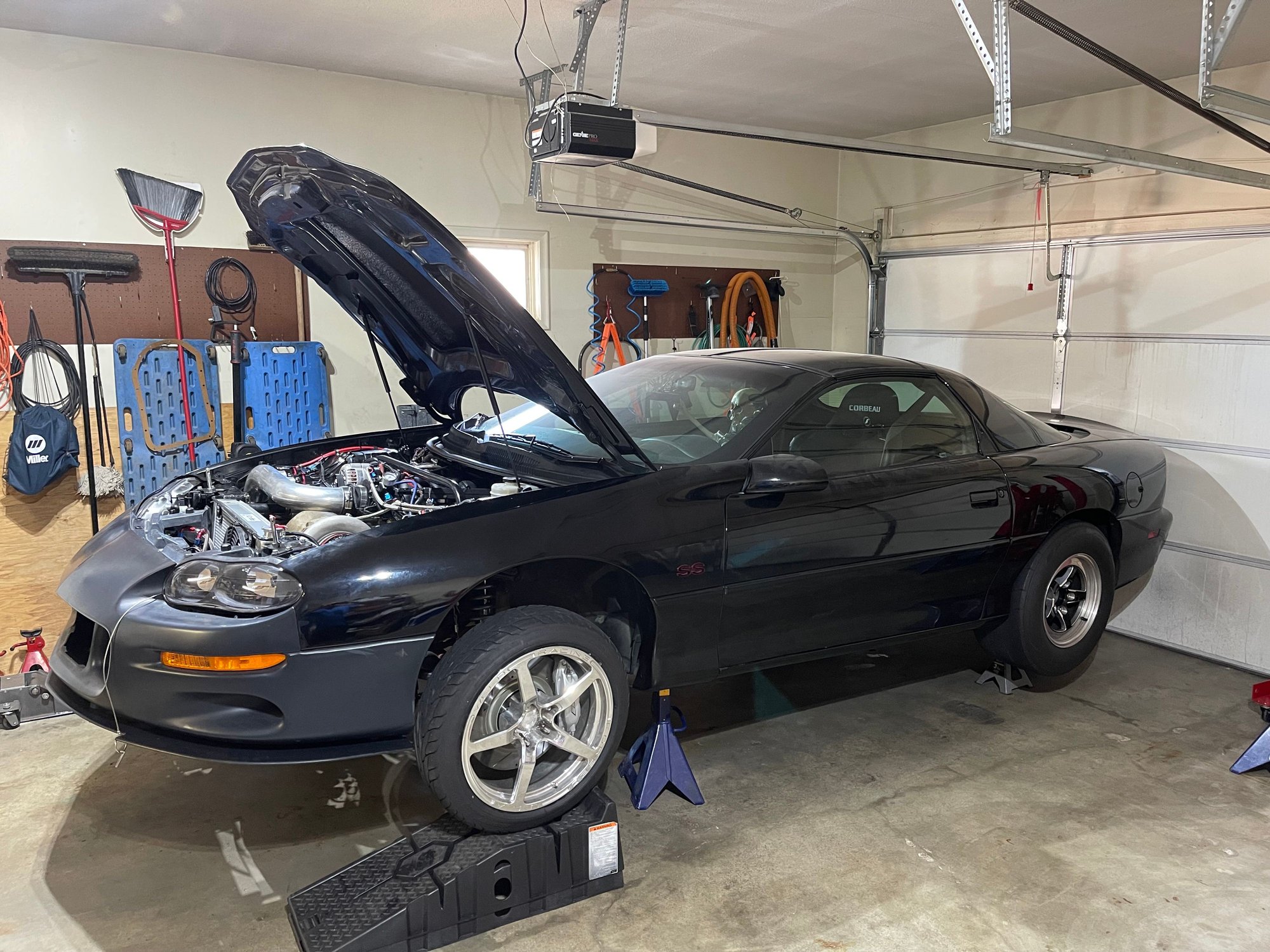

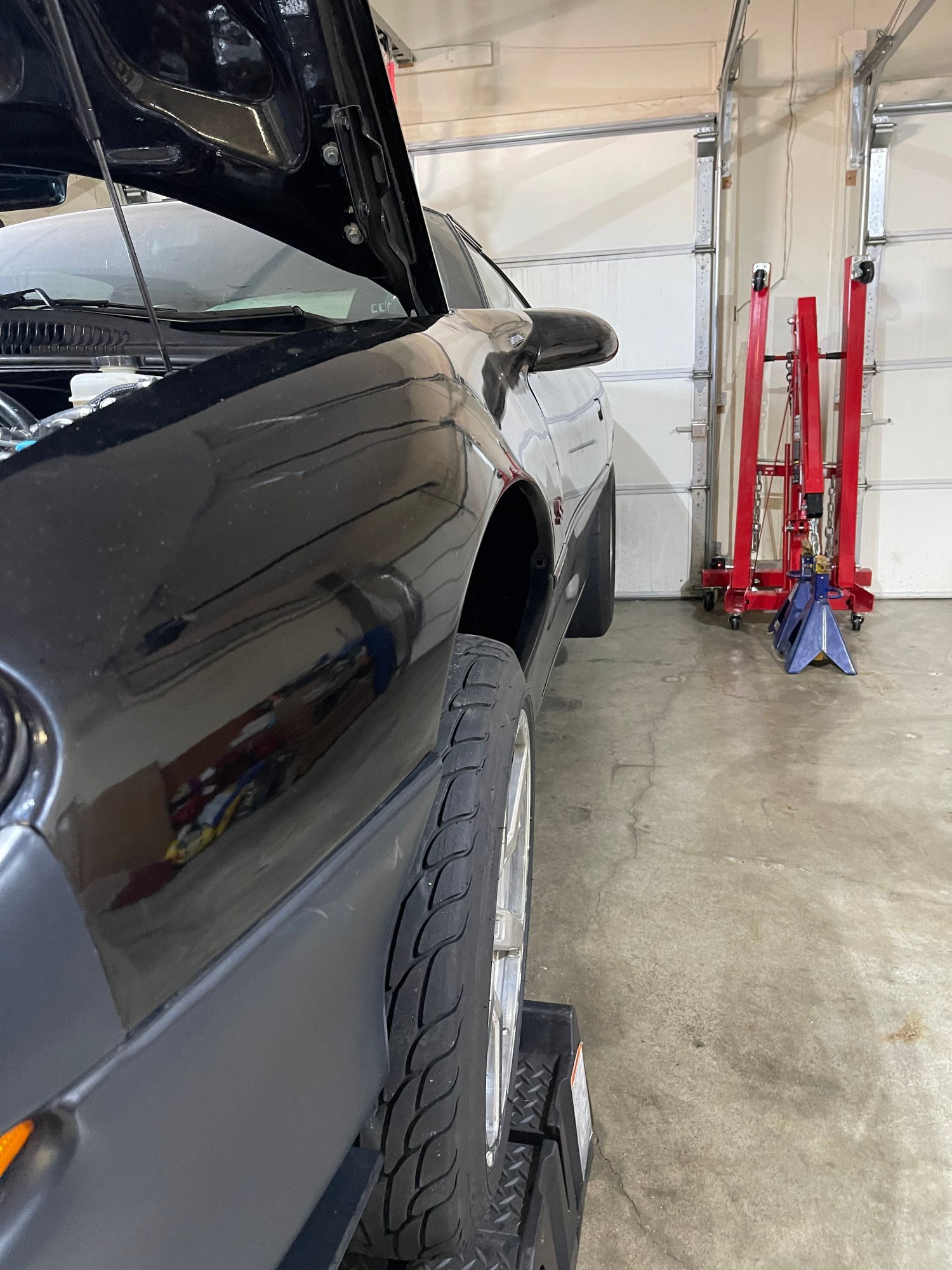

1999 Camaro Z28

SHAWN KRUEGER
johnnynofive@protonmail.com

Will entertain resonable offers as i need to move this thing , car starts and runs on base tune and drives fine . Will need finishing touches and its ready !!!





Engine


Iron Block 408ci Gen IV - 9.9:1 compression (Build Sheet available)
Diamond Boost Pistons - Teflon skirted
Diamond Boost Rings
Callies H beam Rods
Callies Crankshaft
ARP Rod/Main Bolts
ARP Heads Studs
TFS 220cc heads - CNC combustion Chambers, Competition multi-angle valve job/blended valve job. Heads milled to 60cc. 2.055 intake valve/1.600 exhaust valve.
TFS 7.500" x 5/15" pushrods
Rocker trunion upgrade
243/247 Cam .627/.632 @ 117.5+6

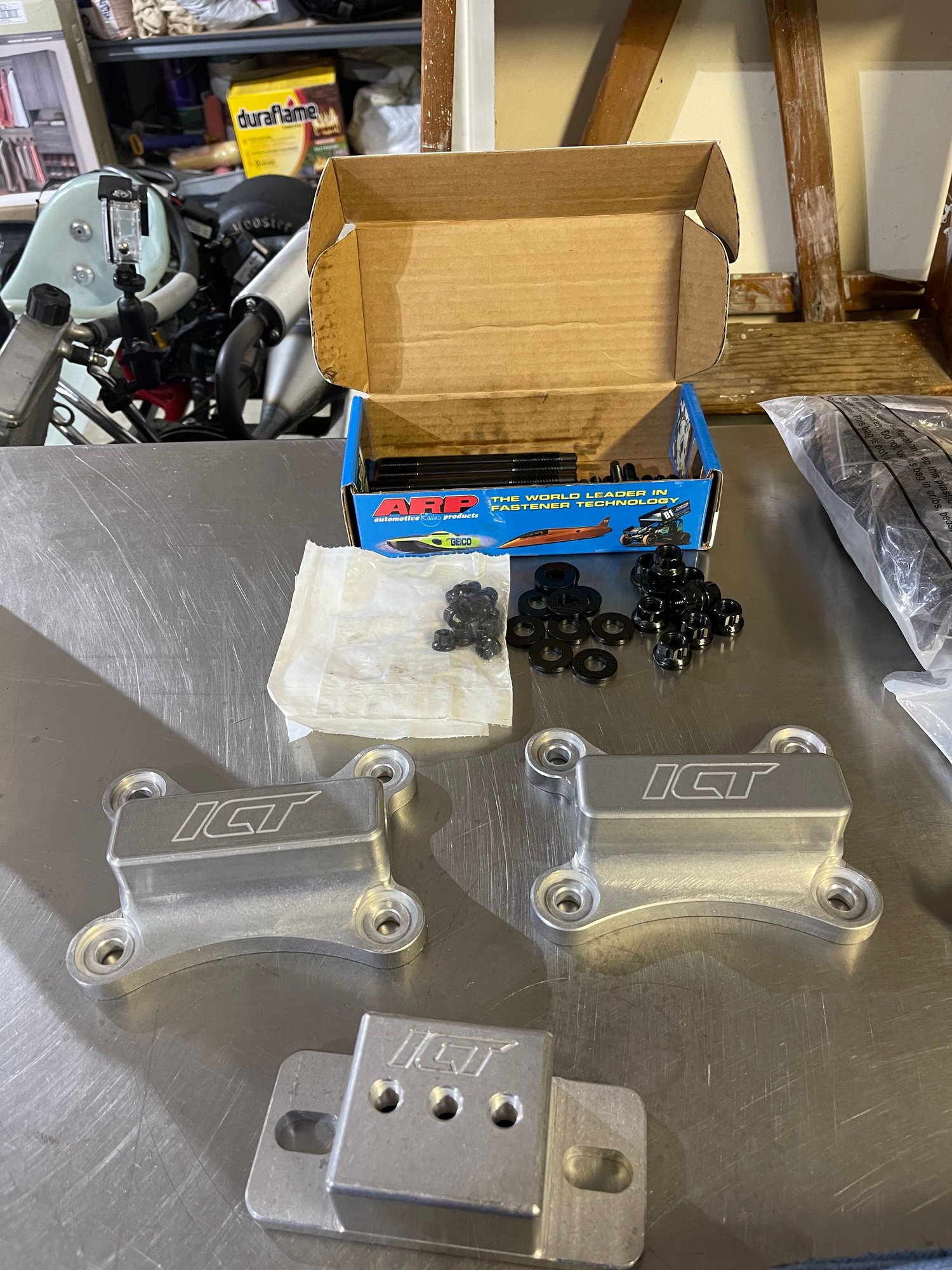

Poly Motor Mounts
ATI Super Damper
Heavy Duty LS2 Timing Chain Set,Melling High press and high flow pump , 7qt oil pan , 10’x10’ remote mounted oil cooler
Build sheet from Billy Briggs Racing engines



Driveline


Jakes Performance Stage 4 4l80e Transmission w/Trans brake



•              Stage 2 - New friction materials, steels, bands, rollerized forward hub, rollerized output shaft thrust, heavy duty intermediate snap ring, 6 clutch direct pack, Hi-Energy carbon clutches in select locations, hydraulic modifications for much increased power capacity and firmer shifting. All 4L80Es also include a new boost valve assembly, new shift solenoids, manifold pressure switch, internal wiring, as applicable.

•              Stage 3 - billet input shaft and rollerized billet forward hub

•              Stage 4 - adds the billet intermediate shaft



Circle D Specialties 265mm torque converter - 10 ½" 5 disk lockup converter for 4L80e. (4,000-4,200 stall)

12’x12’ Temperature controlled trans cooler

+3 qt Oringed trans pan

DLS Custom 9''- 3.25 Gears, TruTrac, 4 Channel, Lightweight Aluminum Center Section

Custom 1000rwhp Steel Driveshaft

Lakewood Driveshaft Loop

B&M Stealth Ratchet Shifter in M6 console/boot



Induction/Fuel

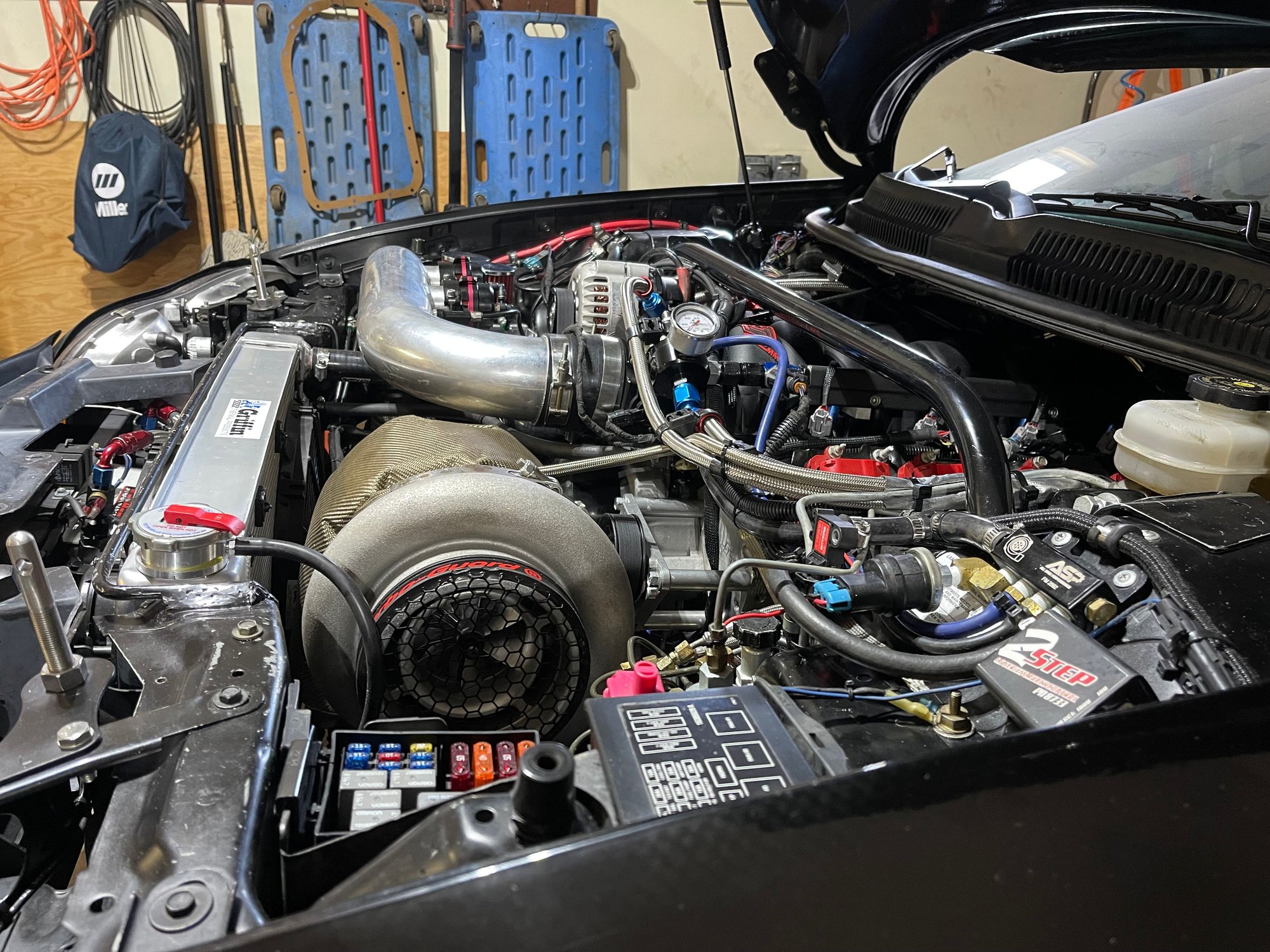

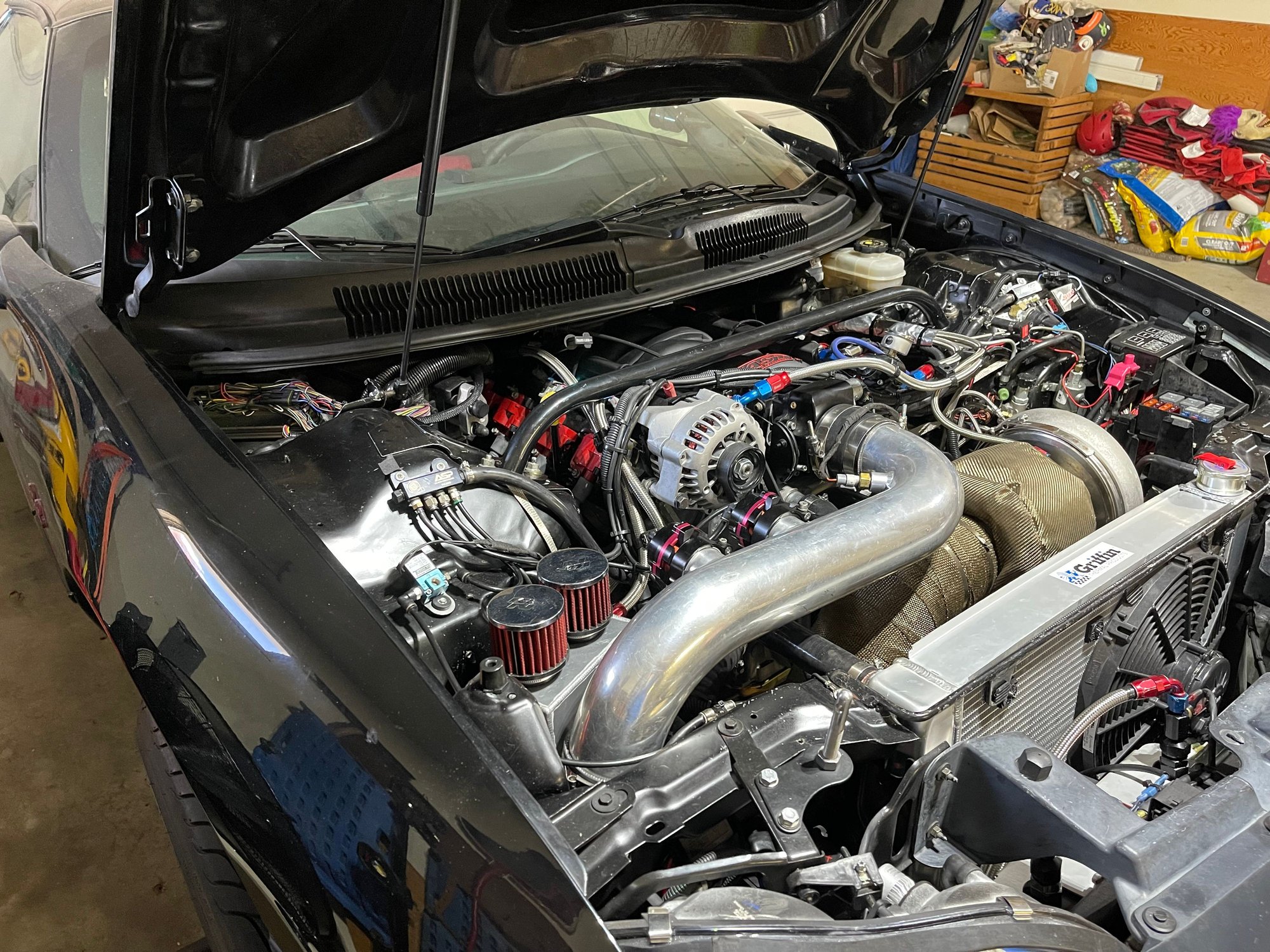

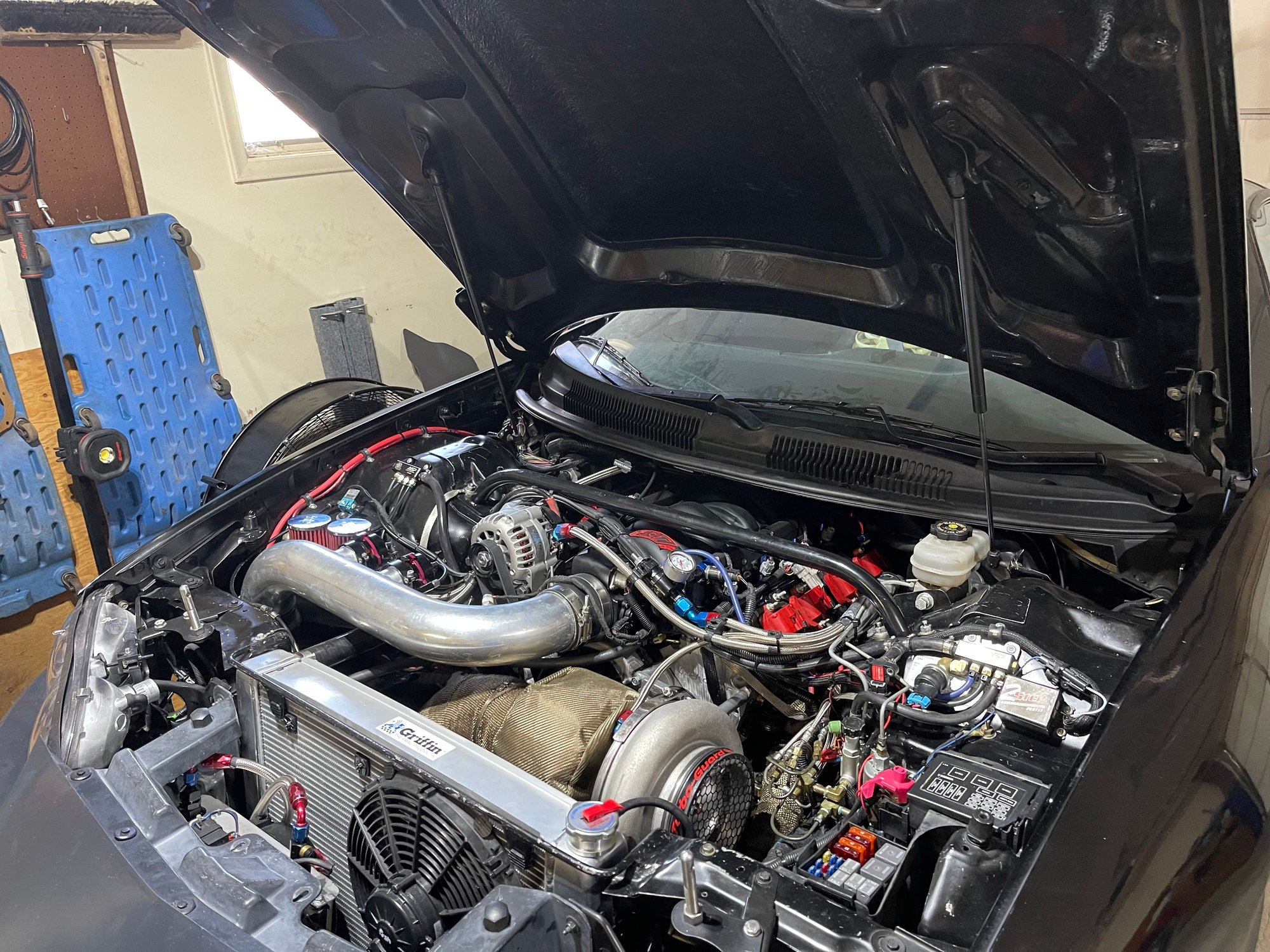

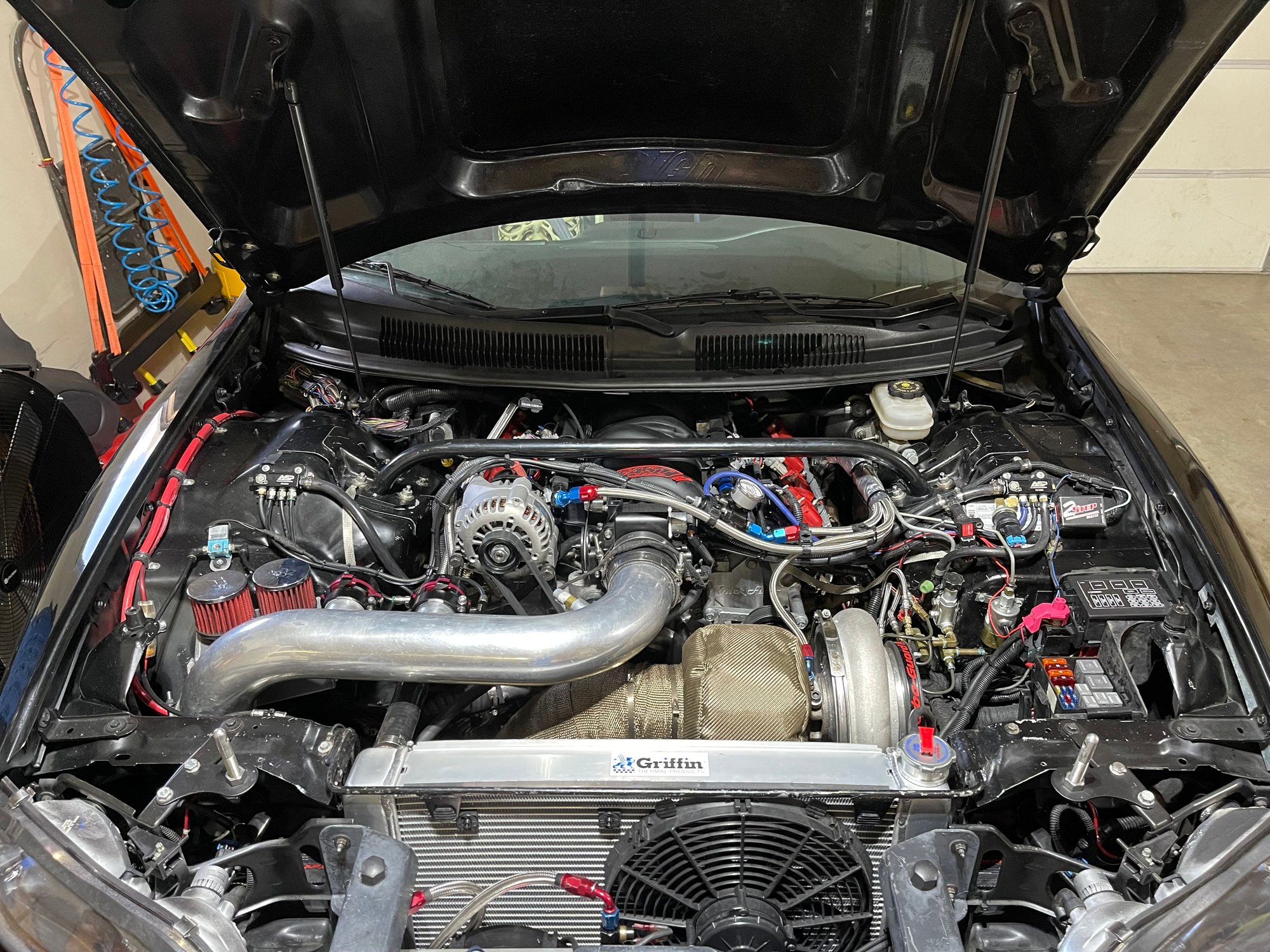

Huron Speed t-6 kit ,Precision turbo 88/87 ball bearing turbo

X2 Precision turbo wastegates

X2 Precision turbo BOV

PTM 90mm Throttle Body

F.A.S.T. 90mm Intake Manifold

X2 F.IC 2150lb E85 Injectors

X2 525 hellcat intank fuel pumps

Aeromotive Dominator fuel pump /Aeromotive Fuel Filter

Speed Inc Billet High Flow Fuel Rails

-8 an PTFE fuel lines e85 safe





Suspension

BMR Tubular Turbo K-Member

Qa1 front coilovers w/ limit travels

Qa1 rear coilovers

Spohn Pro Series rear anti roll drag bar

SLP Bolt-on Subframe Connectors

BMR Chrome Moly Strut Tower Brace

BMR Boxed Lower Control Arms- Poly

BMR Adjustable Panhard Bar- Poly

Random Tech Adjustable Torque Arm

BMR Panhard Relocation Kit w/ Upper Bar

Strano's 35mm Hollow Front Sway Bar



Ignition

MSD 8.5mm Plug Wires

AC Delco Iridium Plugs

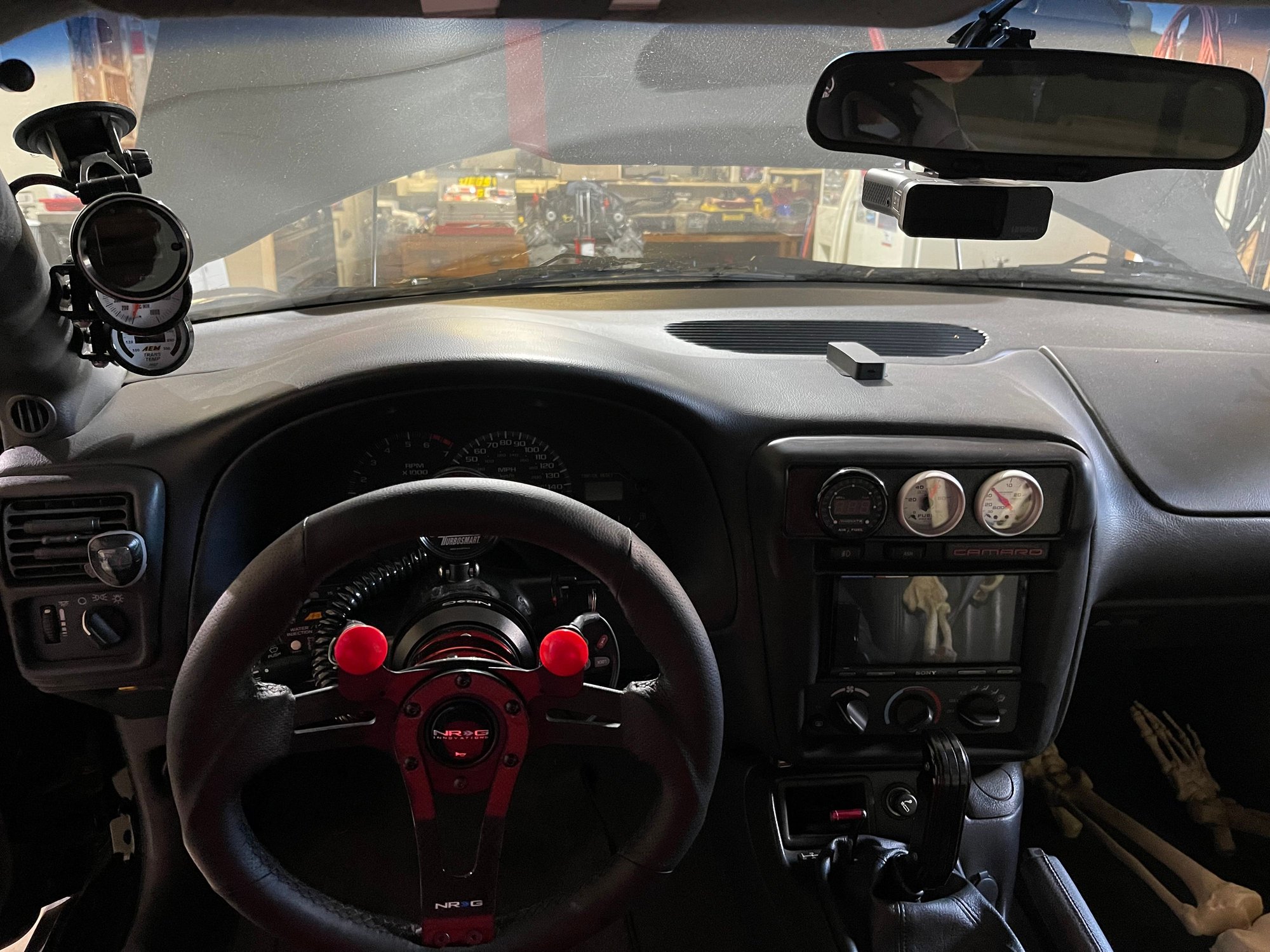

Msd 2-step /Wired to button on steering wheeL



Wheels/Tires and Brakes

Slp line loc in mounting in cig ashtray

Cts-V Front brakes /Calipers

18x4 Weld forged Front wheels

15x10 Weld forged rear wheels , Nitto Nt555r

Spare set 15x10 Weld forged rear wheels w/ New Hoosier slicks



Exterior

VFN Fiberglass Sunoco Cowl Hood

OEM Camaro SS Spoiler



Audio

Resonant Engineering 6.5 2-way Components

Pioneer AS1765 3-way Speakers

Resonant Engineering 10'' Subwoofer w/ stealth box

Planet Audio 4 Channel Amplifier

Rockford Fosgate 8 Gauge Amp kit

Sony 7in double din in dash stereo and navigation
Only trades for a c6 corvette
