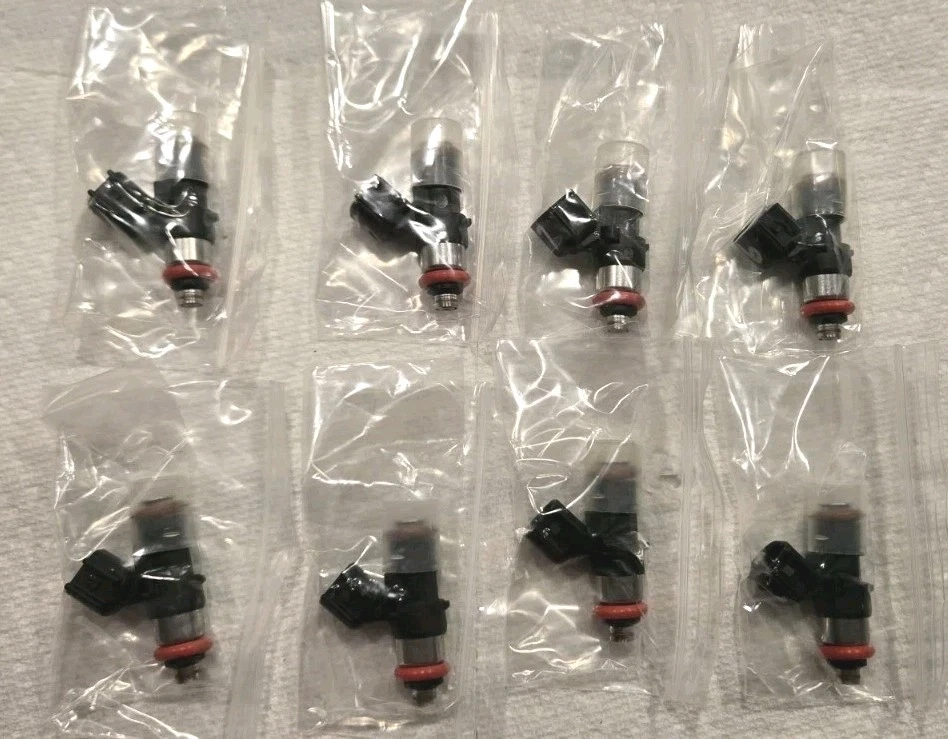

FIC Fuel Injector Connection 60LB 650cc Injectors EV14 LS3 LS7 LSA set 8x.
For SaleEngine - Intake/Fuel
-
Price
$250• OBO
- Location Winter Park, FL, 32792, USA
- Condition Used
Description:
READ FIRST: Some variance between injectors, NOT flow matched.
These are rated from FIC (Fuel Injector Connection) 60lb 650cc at 3-bar (43.5 psi.) Measured flow between 66 lbs. to 72 lbs. flow at 4-bar (58 psi). Cleaned and Flow Tested with new O-rings. Test Data included. Have not been installed since being cleaned last month.
This is a used set of Injectors that came off a Ls3 C6 corvette with an ECS supercharger kit. They were upgraded to larger injectors while doing other upgrades. They were sitting wrapped up for awhile so I had them sent out to be cleaned and flowed.
When they came back from being cleaned/flowed, the data showed a variance in the flow rates. One was higher than the others average, a couple at a hair lower. They are numbered for identification. This is probably ok for many applications as most people put the largest flowing injector on cylinder #7. Definitely better than running stock truck decapped injectors.
I decided against using these on my heads/cam LS7 and bought different injectors for my engine.

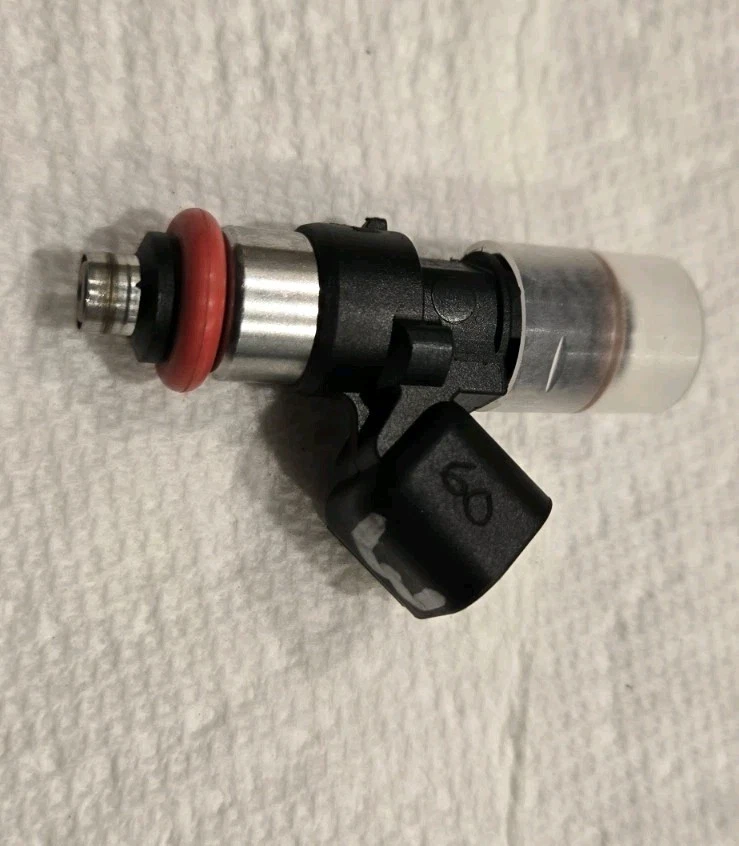

These are EV14 short height injectors used on LS3, LS7 LSA and LS9. Have EV6 type plugs. Not tall or EV1 like the LS1 or LS2.

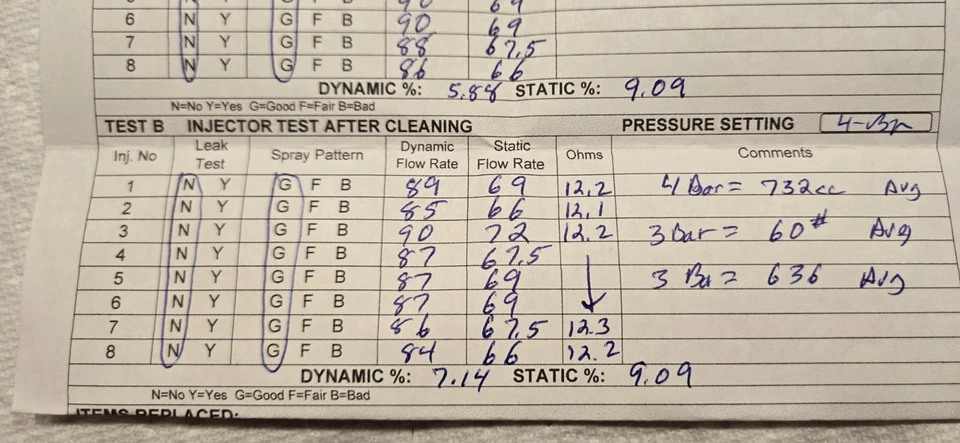

Flow Numbers at 4-bar 58 psi.
69
66
72
67.5
69
69
67.5
66
