Brake booster firewall flex - winter project

Reply

Thread Tools Search this Thread
Old 02-27-2016, 08:27 PM   #1
Teching In
Thread Starter

Join Date: Jan 2012
Posts: 27
Default Brake booster firewall flex - winter project

I finally decided to fix the flex in my 4th gen TA firewall when under hard braking. Now just have to wait for the snow and salt to go away to test it.
Attached Thumbnails
Brake booster firewall flex - winter project-img_2241.jpg   Brake booster firewall flex - winter project-img_2233.jpg   Brake booster firewall flex - winter project-img_2547.jpg
Nemesis 2000AD is offline   Reply With Quote
Old 02-28-2016, 05:53 PM   #2
On The Tree

Join Date: Jun 2015
Posts: 115
Default

Slick. I'm assuming you fabricated it yourself? Let us know how the test drive goes.
NineZeroFive is offline   Reply With Quote
Old 02-29-2016, 08:40 PM   #3
On The Tree

Zach-R's Avatar

Join Date: Feb 2015
Location: Chemical Valley
Posts: 194
Default

The excellent idea. I noticed today actually how much the firewall flexes. It's more than I expected. Interested to find out how much this helps and whether you'd be making more?
Zach-R is offline   Reply With Quote
Old 03-03-2016, 07:10 PM   #4
Teching In
Thread Starter

Join Date: Jan 2012
Posts: 27
Default

I have a 6 speed in mine and it flexed bad, it's all but gone now (maybe a 1/8" at most) - I can make more no problem - but I want real data before I start selling them - just to make sure nothing weird happens.
Nemesis 2000AD is offline   Reply With Quote
Old 05-28-2017, 08:54 PM   #5
Teching In
Thread Starter

Join Date: Jan 2012
Posts: 27
Default

Got over a year of miles on the brake booster / firewall stiffener. It works really well, it stops it from going forward as well as up. Another nice perk is the clutch pedal / shifts are much better as well now. It ties into the top and sides of the shock tower, two attachment points, and after a year, no stress risers or cracks.

The car is just a normal 2000 F body Trans Am set up for road and track and doubles as a Grand touring car. The cars got over 200 K on it; Last summer it hit 4 High speed autocross races (Midwest Council), tail of the dragon trip, Hwy 16a (Iron Mountain road - favorite), and touring laps around National Corvette track while on vacation
; just normal enjoyment of a F body

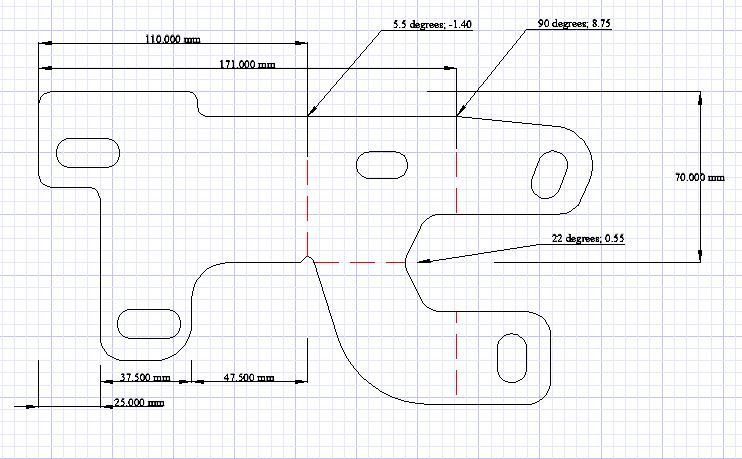

Here's the drawing if anyone wants to make their own, I don't have time to sell them and would rather just share them. If anyone actually wants more details just let me know.

I can also send DXF files to anyone with a plasma or laser table to cut their own, very easy to make and bend - plus it hidden and no own sees it.
Nemesis 2000AD is offline   Reply With Quote
Old 05-29-2017, 08:48 AM   #6
TECH Senior Member
iTrader: (91)

01ssreda4's Avatar

Join Date: Aug 2007
Location: Turnin' Wrenches Infractions: 005
Posts: 22,631
Default

Cool piece
01ssreda4 is online now   Reply With Quote
Old 05-29-2017, 09:41 AM   #7
TECH Apprentice
iTrader: (2)

Join Date: Jan 2004
Location: State College, PA
Posts: 323
Default

Sam Strano now makes a part that does pretty much the same thing. $120 and 5 minute install.
Chris Paveglio is offline   Reply With Quote
Old 05-30-2017, 08:23 AM   #8
TECH Fanatic
iTrader: (3)

Join Date: Aug 2008
Location: Eau Claire, WI
Posts: 1,237
Default

Quote:
Originally Posted by Nemesis 2000AD View Post
Got over a year of miles on the brake booster / firewall stiffener. It works really well, it stops it from going forward as well as up. Another nice perk is the clutch pedal / shifts are much better as well now. It ties into the top and sides of the shock tower, two attachment points, and after a year, no stress risers or cracks.

The car is just a normal 2000 F body Trans Am set up for road and track and doubles as a Grand touring car. The cars got over 200 K on it; Last summer it hit 4 High speed autocross races (Midwest Council), tail of the dragon trip, Hwy 16a (Iron Mountain road - favorite), and touring laps around National Corvette track while on vacation
https://www.youtube.com/watch?v=jo0A9auOXdc ; just normal enjoyment of a F body

Here's the drawing if anyone wants to make their own, I don't have time to sell them and would rather just share them. If anyone actually wants more details just let me know.

I can also send DXF files to anyone with a plasma or laser table to cut their own, very easy to make and bend - plus it hidden and no own sees it.
Would you be willing to send me a .dxf? What thickness of material did you use?
The Batman is offline   Reply With Quote
Old 05-30-2017, 09:45 AM   #9
TECH Junkie
iTrader: (10)

blackbyrd's Avatar

Join Date: Jun 2005
Location: cookeville, TN
Posts: 3,103
Default

Appearance wise I much prefer this design.
blackbyrd is offline   Reply With Quote
Old 05-30-2017, 09:46 AM   #10
TECH Fanatic
iTrader: (3)

Join Date: Aug 2008
Location: Eau Claire, WI
Posts: 1,237
Default

Also, what does that middle hole on the drawing bolt to? I see the right two holes are for both master cylinder bolts, and the left two holes are for the shock mounts.
The Batman is offline   Reply With Quote
Old 05-30-2017, 08:38 PM   #11
Teching In
Thread Starter

Join Date: Jan 2012
Posts: 27
Default

*I used 1/8" 1018 steel, nothing special, easy to bend, very low cost material

* The second bolt hole goes to a 90 degree bracket that bolted to the vertical surface of the shock tower that I added. Restraining it in one direction did not get the results I was looking for - If you watch the way the master cylinder is actually moving, it's in an arc - not a straight forward line. Adding this second mounting point really made the difference. You will really notice on a high speed track turns...

I made this set up because no one made bolt on brackets (lots of weld in ones thou), so two winters ago I made it into a winter project - I just like making stuff up - stress relief from work - I was going to sell some of my other project work - but don't have time to sell them - so I'd rather just share the info... I also gave out my ram air hood inserts drawings for 4th gen trans am's a few years ago (to make it into true ram air) - not looking to make money - just sharing info.
Nemesis 2000AD is offline   Reply With Quote
Old 06-01-2017, 03:31 PM   #12
TECH Regular
iTrader: (22)

5.7stroker's Avatar

Join Date: Apr 2009
Location: OH
Posts: 432
Default

Does the brake booster need to be removed to install this?
5.7stroker is offline   Reply With Quote
Old 06-01-2017, 09:46 PM   #13
Teching In
Thread Starter

Join Date: Jan 2012
Posts: 27
Default

To all the people I e-mailed the DXF files to - could you please post pics and give feedback as to their performance when you finish them.
Nemesis 2000AD is offline   Reply With Quote
Old 06-01-2017, 09:50 PM   #14
Teching In
Thread Starter

Join Date: Jan 2012
Posts: 27
Default

No, the brake booster does not need to be pulled, but to attach the second mounting point, the shock needs to be pulled, to use the drill template.
Nemesis 2000AD is offline   Reply With Quote
Old 06-01-2017, 10:48 PM   #15
TECH Fanatic
iTrader: (3)

Join Date: Aug 2008
Location: Eau Claire, WI
Posts: 1,237
Default

Quote:
Originally Posted by Nemesis 2000AD View Post
To all the people I e-mailed the DXF files to - could you please post pics and give feedback as to their performance when you finish them.
For sure! Thank you!
The Batman is offline   Reply With Quote
Old 06-02-2017, 12:40 PM   #16
TECH Fanatic
iTrader: (6)

BrntWS6's Avatar

Join Date: Feb 2005
Location: Land of the FOID
Posts: 1,899
Default

Neat, I like this version better as well. Wish I had a means to cut this out easy. If anyone wants to make an extra PM me how much you want for it shipped to 60447.
BrntWS6 is offline   Reply With Quote
Old 06-02-2017, 02:15 PM   #17
TECH Senior Member

joecar's Avatar

Join Date: Apr 2002
Location: So.Cal.
Posts: 5,870
Default

I'm interested too.
joecar is online now   Reply With Quote
Old 06-04-2017, 03:35 AM   #18
TECH Enthusiast

TTur1996's Avatar

Join Date: Mar 2014
Posts: 694
Default

Quote:
Originally Posted by Nemesis 2000AD View Post
*I used 1/8" 1018 steel, nothing special, easy to bend, very low cost material

not looking to make money - just sharing info.
Make a copy of that drawing. Seal it in an envelope, and address it to yourself. ( Take a video of the document and you putting it into the envelope and sealing it.) Then take it to the post office and send it back to yourself registered mail. DO Not Open It. Put it away for safe keeping. That way, if a company starts manufacturing this. You have proof its your idea. You should have called BMR and UMI and a few others for them to either make, sell, and you get royalties, or just sell the idea period. Its just a few phone calls. You already have the proto type, blueprint, and testing done. You have already done all the work.

Nice job on that part!!! Its your idea. GET PAID. Or someone else will.
TTur1996 is offline   Reply With Quote
Old 06-04-2017, 10:28 PM   #19
Teching In
Thread Starter

Join Date: Jan 2012
Posts: 27
Default

TTur1996 Thank you for the advise. I actually already did the mailing it to myself before I posted it. The wife had me start doing that when I first sent my drawing for the ram air hood inserts a few years ago.

It's nice to have people looking out for each other - Thank you, much appreciated
Nemesis 2000AD is offline   Reply With Quote
Old 06-05-2017, 09:01 AM   #20
11 Second Club
iTrader: (23)

CamaroRick's Avatar

Join Date: Jan 2005
Location: Maryland
Posts: 331
Default

All he has to do is get a bunch of em cut out on a water jet and sell em as a kit. I would like to test the prototype out I like it a lot more than the other style that is currently for sale. Ill post feedback for you.
CamaroRick is offline   Reply With Quote
Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
New Item: Strano Performance Parts Master Cylinder Brace for all 93-02 cars Sam Strano Suspension & Brakes 197 07-17-2017 03:58 PM
E38 flex fuel pin number Jacktuner PCM Diagnostics & Tuning 2 12-28-2015 02:36 PM
LT1 T56 to TH400 swap help 97lt1stroker LT1-LT4 Modifications 13 12-14-2015 03:25 PM
E67 flex fuel Pin?? 1INSANEGTO PCM Diagnostics & Tuning 25 11-23-2015 11:33 PM
Bolt on master cylinder brace (vendors welcomed) Empatho Suspension & Brakes 12 09-27-2015 12:40 PM
