4l80! Help!

Thread Tools

Search this Thread

Old Oct 15, 2018 | 10:54 AM
  #1
blak_ls1's Avatar
Thread Starter
On The Tree
15 Year Member
iTrader: (4)

Joined: Feb 2009
Posts: 102
Likes: 0
From: San Juan, TX
Default 4l80! Help!

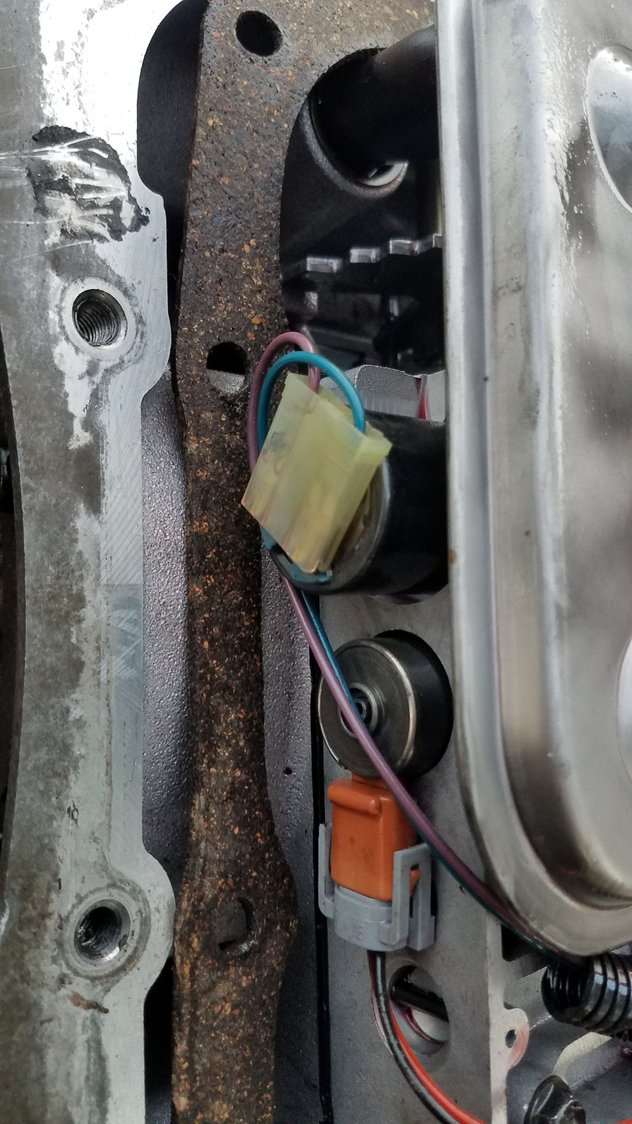

I replaced the harness inside my 4l80.. Now im not sure which is the correct way to plug in the connection to the pressure control solenoid. Ive Googled and cant find my answer. Please help! I added pics in the bottom post. First pic is with the lines out, second is with the lines in , smooth out

Last edited by blak_ls1; Oct 15, 2018 at 11:56 AM.
Reply
Old Oct 15, 2018 | 11:54 AM
  #2
blak_ls1's Avatar
Thread Starter
On The Tree
15 Year Member
iTrader: (4)

Joined: Feb 2009
Posts: 102
Likes: 0
From: San Juan, TX
Default



Reply
Old Oct 15, 2018 | 12:43 PM
  #3
Jays_SSZ28's Avatar
Banned
iTrader: (2)

Joined: Aug 2009
Posts: 2,223
Likes: 56
Default

Looks correct the best I can see.
Reply
Old Oct 15, 2018 | 01:06 PM
  #4
blak_ls1's Avatar
Thread Starter
On The Tree
15 Year Member
iTrader: (4)

Joined: Feb 2009
Posts: 102
Likes: 0
From: San Juan, TX
Default

Which way ?
Reply
Old Oct 15, 2018 | 03:44 PM
  #5
squarles67's Avatar
TECH Regular
10 Year Member
Photogenic
Photoriffic
Shutterbug

Joined: Jun 2013
Posts: 487
Likes: 6
From: Orange, Texas
Default

I don't think it matters, the coil in the solenoid will work either way. The top pic looks like it fits better.
Reply
