rebuilt 4l80e 2nd gear skip
Thread Starter
On The Tree
Joined: Feb 2020
Posts: 180
Likes: 14
rebuilt 4l80e 2nd gear skip I rebuilt a 4l80e (my first rebuild) and swapped it into my 07 Chevy tbss awd. Stock rebuild, replaced all the steels,clutches, bushings, sprag and one way bearings. I did instal a transgo HD kit that was recomended by a local trans shop. I followed a few manuals during the project, everything measured within spec. Got a new converter. Im using a pcmofnc adapter harness, and a ECM and TCM from them setup to get a 4l80e running in a tbss. After getting it together I struggled for way too long to figure out why it was getting a inconsistent half speed signal, long story short I learned that post 96 4wd 4l80es dont have a vss reluctor ring in them. I had to make a diff yoke flange vss, speedo works great now. Driving the truck, it hangs into first too long and jumps to 3rd then 4th. Shifting from 1 - 2 - 3 manually, it stays in 1st, I can feel something slightly happen but not a gear change. I also feel a slight "shudder" on decel and light accel like the converter may be locking up at the wrong time? On the datalog, it says that the current gear is 2, but it never left 1st.
I dont want to throw parts at it, I did too much of that on too many other gremlins. Researching it sounds like I have burnt clutches, bad solenoids/wiring, or low fluid. I can confirm the fluid is not low, may be on the high side which can be a problem I know. Im only posting in hopes that the datalog will make it obvious that its clutches or a solenoid. Any thoughts or info would be greatly appreciated!
I dont want to throw parts at it, I did too much of that on too many other gremlins. Researching it sounds like I have burnt clutches, bad solenoids/wiring, or low fluid. I can confirm the fluid is not low, may be on the high side which can be a problem I know. Im only posting in hopes that the datalog will make it obvious that its clutches or a solenoid. Any thoughts or info would be greatly appreciated!
LS1Tech Sponsor
Joined: Mar 2023
Posts: 1,802
Likes: 1,144
From: BERWICK PA
I rebuilt a 4l80e (my first rebuild) and swapped it into my 07 Chevy tbss awd. Stock rebuild, replaced all the steels,clutches, bushings, sprag and one way bearings. I did instal a transgo HD kit that was recomended by a local trans shop. I followed a few manuals during the project, everything measured within spec. Got a new converter. Im using a pcmofnc adapter harness, and a ECM and TCM from them setup to get a 4l80e running in a tbss. After getting it together I struggled for way too long to figure out why it was getting a inconsistent half speed signal, long story short I learned that post 96 4wd 4l80es dont have a vss reluctor ring in them. I had to make a diff yoke flange vss, speedo works great now. Driving the truck, it hangs into first too long and jumps to 3rd then 4th. Shifting from 1 - 2 - 3 manually, it stays in 1st, I can feel something slightly happen but not a gear change. I also feel a slight "shudder" on decel and light accel like the converter may be locking up at the wrong time? On the datalog, it says that the current gear is 2, but it never left 1st.
I dont want to throw parts at it, I did too much of that on too many other gremlins. Researching it sounds like I have burnt clutches, bad solenoids/wiring, or low fluid. I can confirm the fluid is not low, may be on the high side which can be a problem I know. Im only posting in hopes that the datalog will make it obvious that its clutches or a solenoid. Any thoughts or info would be greatly appreciated!
I dont want to throw parts at it, I did too much of that on too many other gremlins. Researching it sounds like I have burnt clutches, bad solenoids/wiring, or low fluid. I can confirm the fluid is not low, may be on the high side which can be a problem I know. Im only posting in hopes that the datalog will make it obvious that its clutches or a solenoid. Any thoughts or info would be greatly appreciated!
__________________
Frank formerly of Performabuilt, Now just me, What can I build for you today? Call or message me. Click sig pic for my facebook
Frank formerly of Performabuilt, Now just me, What can I build for you today? Call or message me. Click sig pic for my facebook
Thread Starter
On The Tree
Joined: Feb 2020
Posts: 180
Likes: 14
My first guess would be INT sprag in backwards but been a while I think that would cause a bind up in 3rd. So broken or missing centersupport bolt with hole in middle, broken second apply piston or damaged seal . Missiing 2nd acumulator in low/rev servo or seals, I would check the low/rev servo 2nd accum first .
Thanks for the reply Frank! I will check whatever I can before having to drop the trans. I installed the centersupport bolt, I believe the trans go kit included an “upgraded” bolt. I’m considering buying new solenoids and internal harness while I’m in there. I took care installing all the of the apply pistons, lubed them, and used stencil film to slide the lips in. Doesn’t mean I didn’t screw it up though.
On The Tree
Joined: Feb 2022
Posts: 196
Likes: 72
From: Grand Rapids, MI
If you unplug the large connector on the transmission, the unit will default to 2nd and reverse only. If you have forward movement with harness unplugged, then you know 2nd is physically there, and you know you have an electrical or command issue.
Is your adapter harness pinned correctly? Confirm ECU and TCU are tuned and segment swapped correctly?
I would also be highly suspect of your external yoke speed sensor. Is the gap correct? Does the mount vibrate? Even if you read the mph ok with your eyes, how does the data look on in a data log? Smooth/choppy? Bad sensor? Try swapping sensors too!
Is your adapter harness pinned correctly? Confirm ECU and TCU are tuned and segment swapped correctly?
I would also be highly suspect of your external yoke speed sensor. Is the gap correct? Does the mount vibrate? Even if you read the mph ok with your eyes, how does the data look on in a data log? Smooth/choppy? Bad sensor? Try swapping sensors too!
Thread Starter
On The Tree
Joined: Feb 2020
Posts: 180
Likes: 14
If you unplug the large connector on the transmission, the unit will default to 2nd and reverse only. If you have forward movement with harness unplugged, then you know 2nd is physically there, and you know you have an electrical or command issue.
Is your adapter harness pinned correctly? Confirm ECU and TCU are tuned and segment swapped correctly?
I would also be highly suspect of your external yoke speed sensor. Is the gap correct? Does the mount vibrate? Even if you read the mph ok with your eyes, how does the data look on in a data log? Smooth/choppy? Bad sensor? Try swapping sensors too!
Is your adapter harness pinned correctly? Confirm ECU and TCU are tuned and segment swapped correctly?
I would also be highly suspect of your external yoke speed sensor. Is the gap correct? Does the mount vibrate? Even if you read the mph ok with your eyes, how does the data look on in a data log? Smooth/choppy? Bad sensor? Try swapping sensors too!

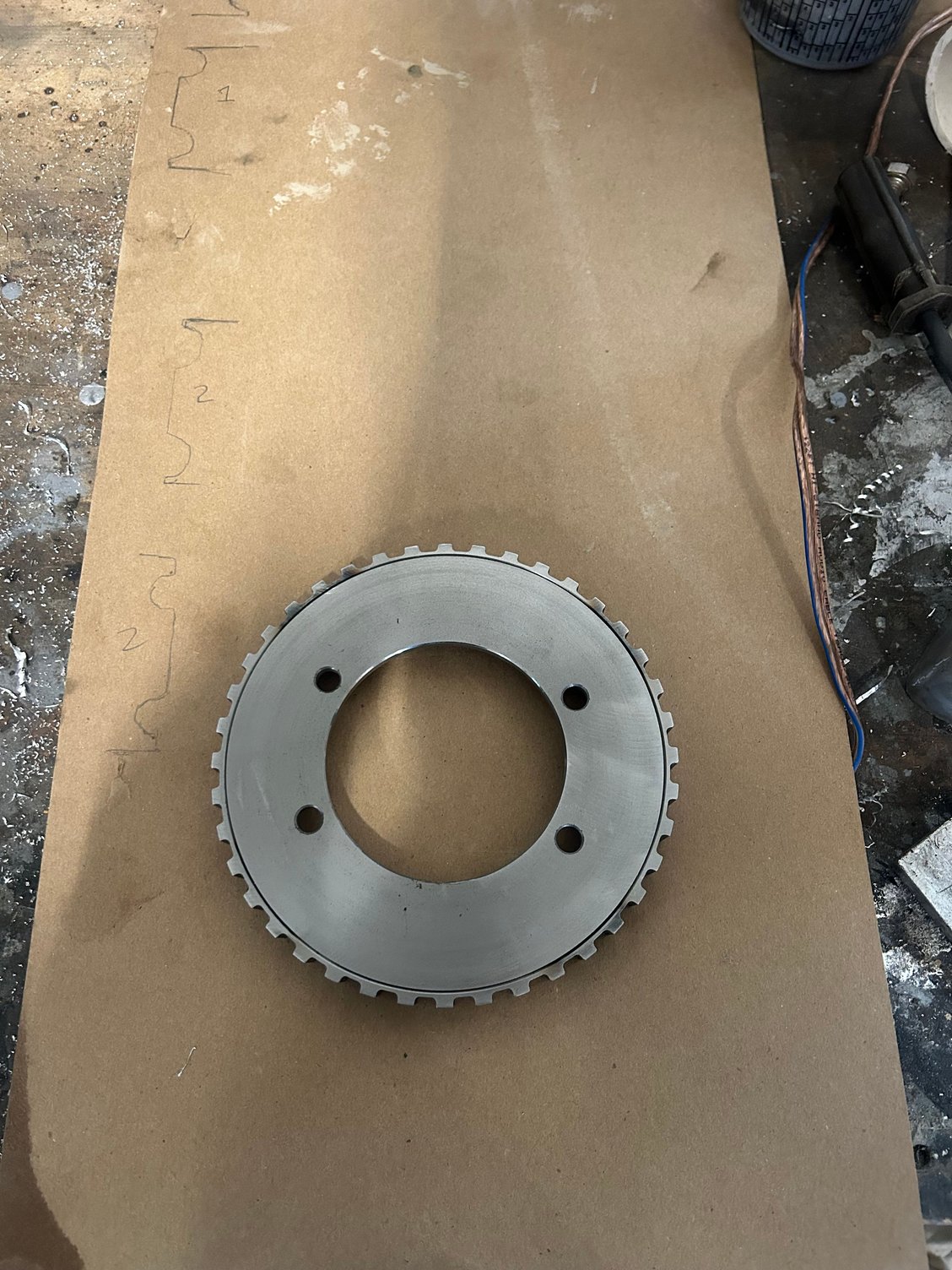

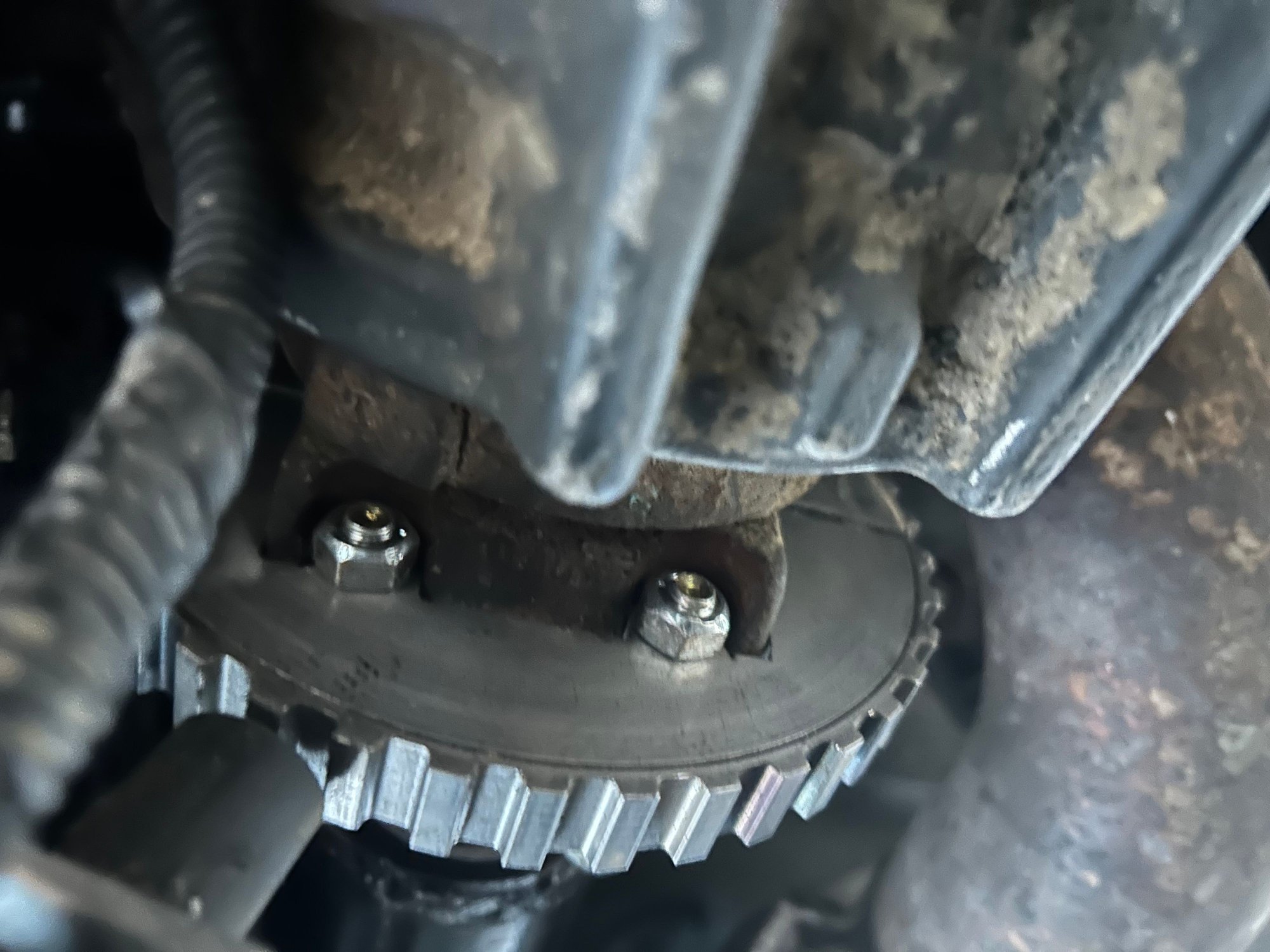

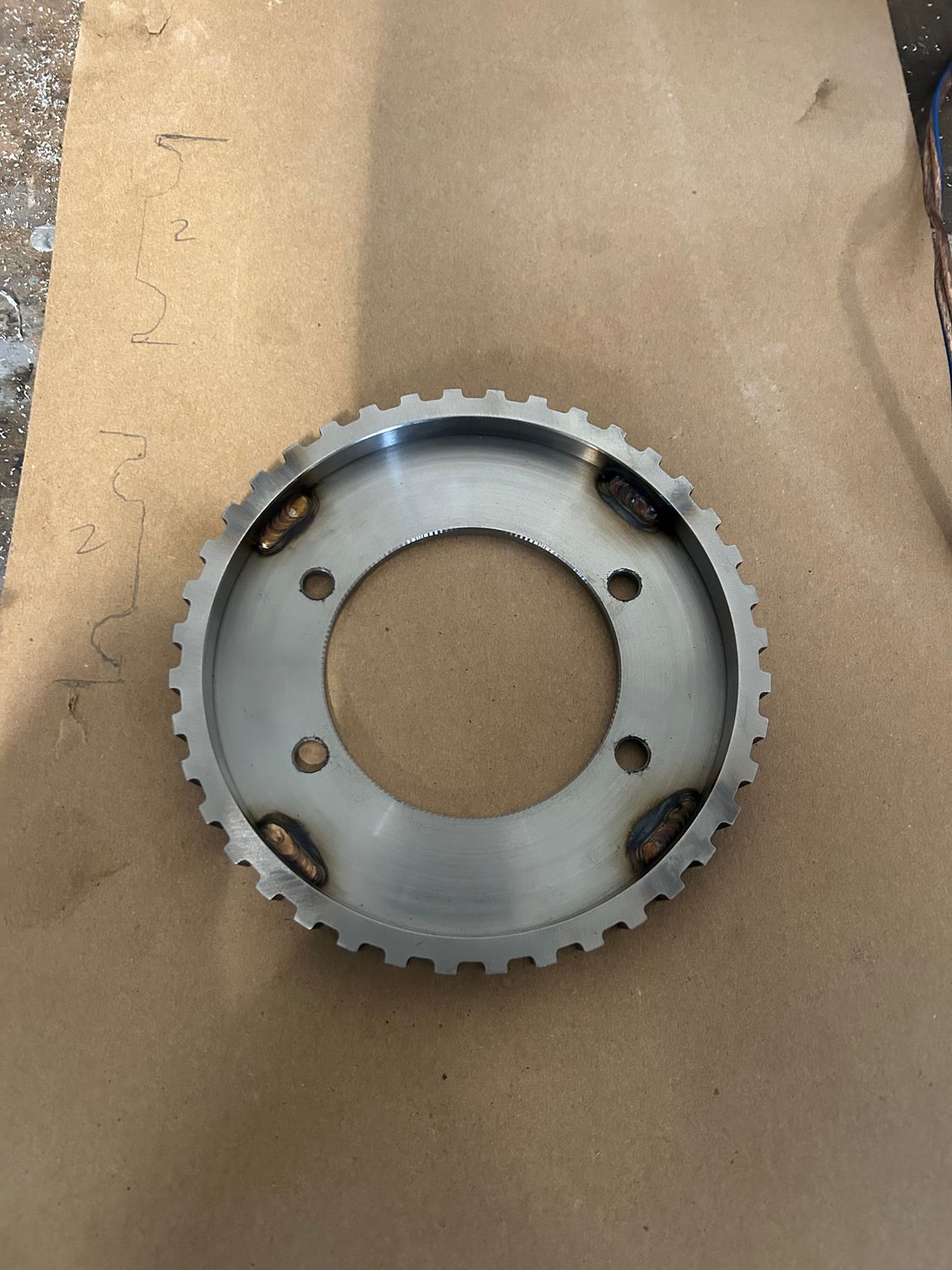

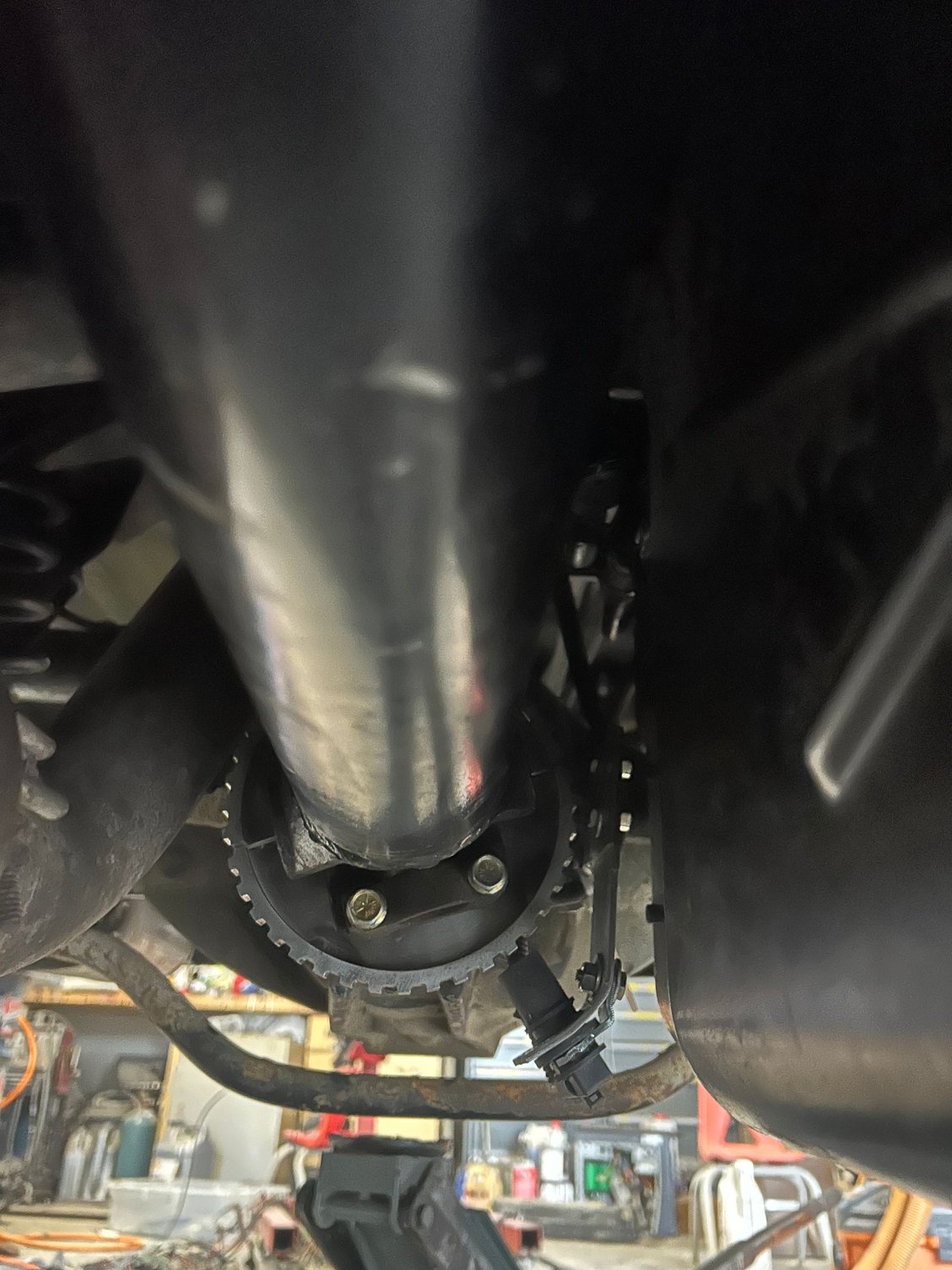

Everything for the vss seems to be working great. Never any hic ups, and it looks normal on the data logs. I used a reluctor ring from a 4l80e, had a plate machined for the center and then split it in half. The bolt pattern was already drilled before I split it, so all the gaps are consistent.
