Routing Steam Vents
Thread Starter
TECH Resident
Joined: May 2004
Posts: 792
Likes: 2
From: SoCal
Routing Steam Vents I know what you're thinking; not another steam vent thread
Actually I'd like to see some photos of how you managed the routing of your steam vents from the head, and what fittings you may have used.
For my application, I have turned my intake 180 degrees for a mid engined application. Also, I made a tensioner bracket that is positioned directly in front of the steam vent fittings, so I'm working in a very tight and limited space. I did get some Wegner steam vent adapters that basically have a 1/8f'male NPT on them so I can adapt to just about anything. In the attached photo it shows a modified stock vent setup (barely visible), but it just won't work for what I want to do.
Many thanks,
Andy1
Actually I'd like to see some photos of how you managed the routing of your steam vents from the head, and what fittings you may have used.
For my application, I have turned my intake 180 degrees for a mid engined application. Also, I made a tensioner bracket that is positioned directly in front of the steam vent fittings, so I'm working in a very tight and limited space. I did get some Wegner steam vent adapters that basically have a 1/8f'male NPT on them so I can adapt to just about anything. In the attached photo it shows a modified stock vent setup (barely visible), but it just won't work for what I want to do.
Many thanks,
Andy1
TECH Regular
iTrader: (5)
Joined: Jan 2008
Posts: 452
Likes: 2
From: Sparta, Mo. in southwest Missouri
Not sure if I'm understanding what it is you're asking. It looks as though you have the late type water pump, so I'm including a picture of how I did mine by tapping into the top of the outlet casting. You could probably notch your bracket and come through on what would normally be the driver side and then run the hose across to it kind'a like the picture shows. Hope this helps. Ron

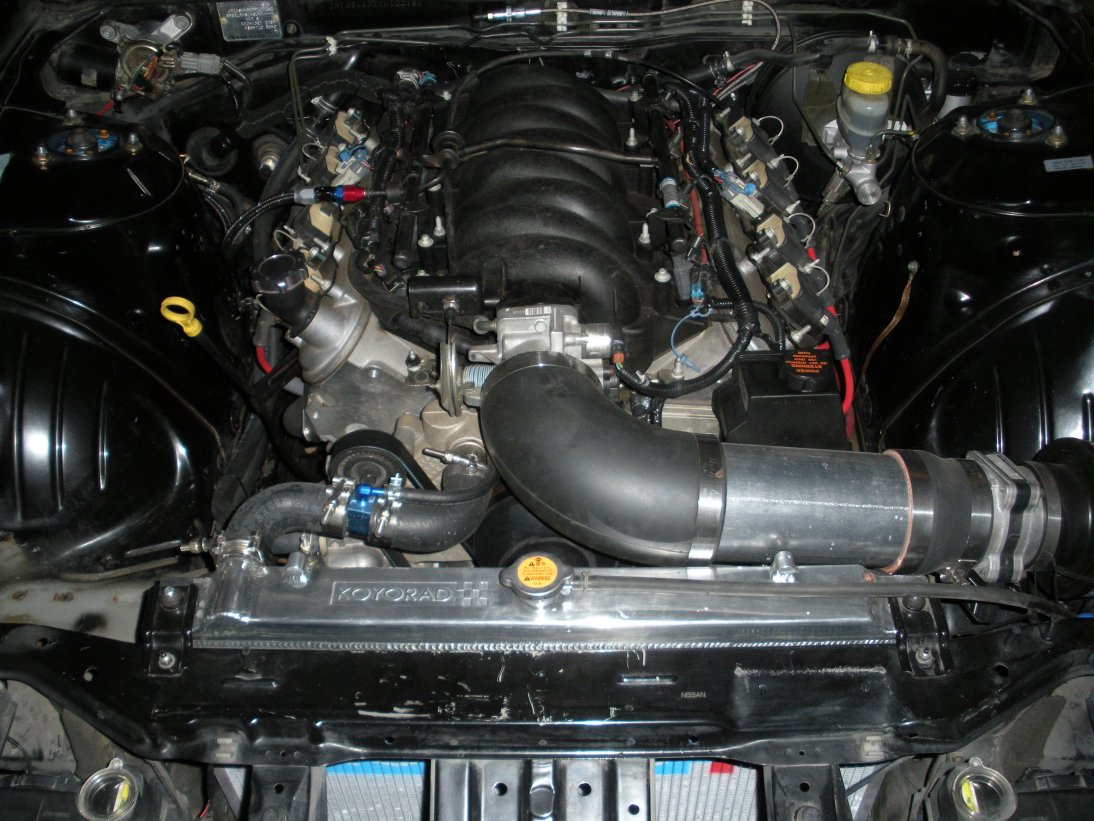

I routed mine to the upper radiator hose. Its going to a water temp sensor hose adapter. I ran it under the throttle body and the hose is run through the tight space between the throttle body and the water pump.
