Stand alone harness question
Thread Starter
Teching In
Joined: Mar 2011
Posts: 31
Likes: 0
Stand alone harness question I'm using LT1swap.com to build a stand alone harness out of a 2005 truck drive by wire harness and I see they put all the pink wires to a separate fuse box.. but where is all 8 of the pink injector power wires going.. dont see how you only use 4 fuses for about 15 wires??
any help would be great!
any help would be great!
Thread Starter
Teching In
Joined: Mar 2011
Posts: 31
Likes: 0

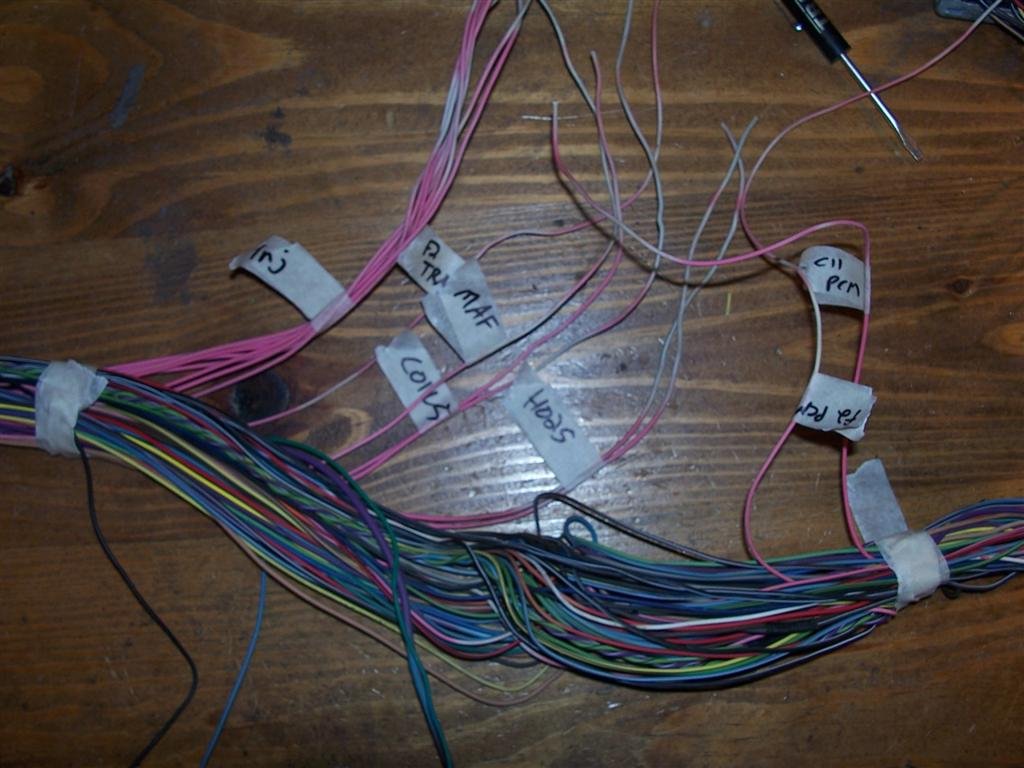

they all went to the C2 plug that went in the trucks fuse box..
http://www.lt1swap.com/pictures/step6%20%28Large%29.jpg
see
http://www.lt1swap.com/pictures/step6%20%28Large%29.jpg
see
Trucks have independent injector fuse wires. They get paired at the fuseblock connector and paired once more at the fuse for one per bank. It wont hurt anything to splice all 4 injectors and the coil IGN wire to one and then send it to a single fuse point for each bank
Most delphi harnesses do the splice vs run individual to save on wire
Most delphi harnesses do the splice vs run individual to save on wire
Teching In
Joined: Nov 2010
Posts: 10
Likes: 0
INJ A 15 Amp fuse feeds Ignition coil 1,3,5, and 7 and 1,3,5, and 7 injectors.
INJ B 15 Amp fuse feeds Ignition coil 2,4,6, and 8 and 2,4,6, and 8 injectors.
Fuses hot on run/start.
Info from a 2002 Chevy Tahoe 5.3L on AllData.
INJ B 15 Amp fuse feeds Ignition coil 2,4,6, and 8 and 2,4,6, and 8 injectors.
Fuses hot on run/start.
Info from a 2002 Chevy Tahoe 5.3L on AllData.
