I am doing an LS1 swap into a 3rd gen (1991) Camaro and am not very familiar with the LS EVAP process.

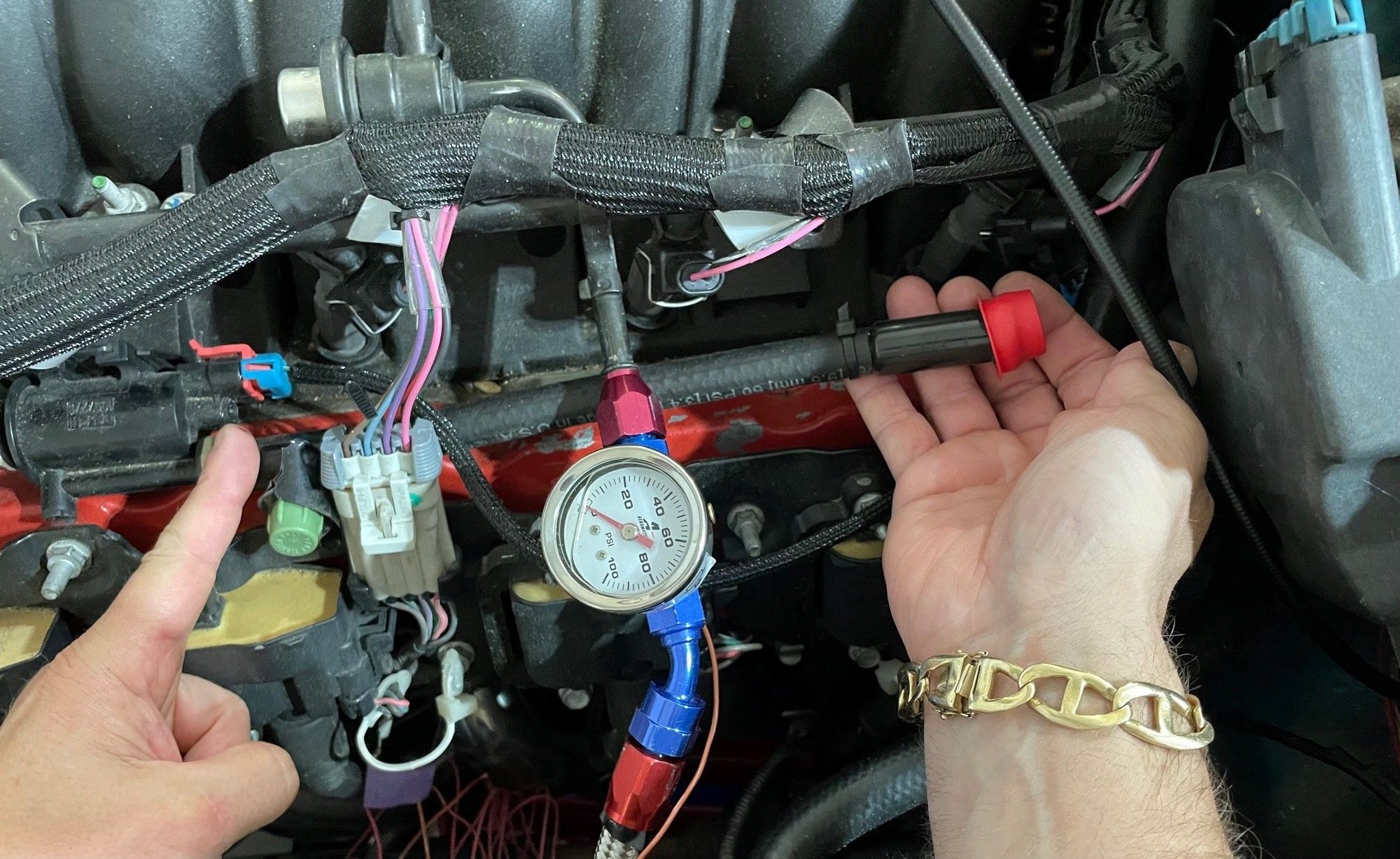

Can someone tell me where the end of the "vapor vent tube assembly" connects to? I am holding the open connection on the right of the image below. Does it somehow connect to the PCV ventilation/valve pipe assembly? If so, how? Can someone send a picture?
Also, what is the red & blue connector I am pointing to on the left? I have the teal/white wire going to the PCM, but what about the other wire (pink?)? Thank you!
Pretty much any of he pink wires are keyed ignition, I think that wire provides power to the purge solenoid, I think the hose goes to the charcoal canister.
Heres a post on LS1Tech that has some diagrams.... https://ls1tech.com/forums/generatio...p-diagram.html
