first turbo buiid


Old 05-20-2019, 10:26 PM
  #1
Teching In
Thread Starter

Join Date: Apr 2017
Location: Long island
Posts: 13
Likes: 0
Received 0 Likes on 0 Posts
Default first turbo buiid


here are photos of my 72 el camino turbo build. never posted much just lurking and absorbing information, which of course i found extremely helpful.

it is a junkyard lq4 when took apart there was water in cylinders and of course surface rust,cam bearings were pitted and flaking. everything else looked ok. so i bought new bearings,cam, rod,and mains. also got some ebay head studs, btr trunion upgrade and springs tick stage 2 cam and ported ls6 pump. cleaned up pistons new rings and gapped them to.028.

tranny is a t56 with viper 30 spline output shaft, hinson shifter and monster stage 3 clutch. 12 bolt with 3:73's and a true trac diff with 33 spline mw axles

ms3 pro ultimate, 1000cc fic injectors and a weldon fuel system, s475 turbo t6 1.32 ar and 2.25 hotside and 4" downpipe.

thanks everyone for the knowledge and help you guys gave without me even asking. i will try to post pics in order.

car is running been driving it around(couldnt post video) this boost is so addictive i love goint into boost. playing it safe at 10psi and it feels awesome what a rush. starts to spool around 2800-3k and pulls to 6500. already planning forged bottom and more boost for next year

old 383 coming out
old junk out

assembling engine




that tool is a pin clip installer awesome tool made by kent moore








master cylinders on homemade bracket

trans to big lol

made new tunnel

came out ok. hinson shifter, this shifter is awesome





made this radiator support chrome moly 1"




tablet i use for gauges,bluetooth from ms3

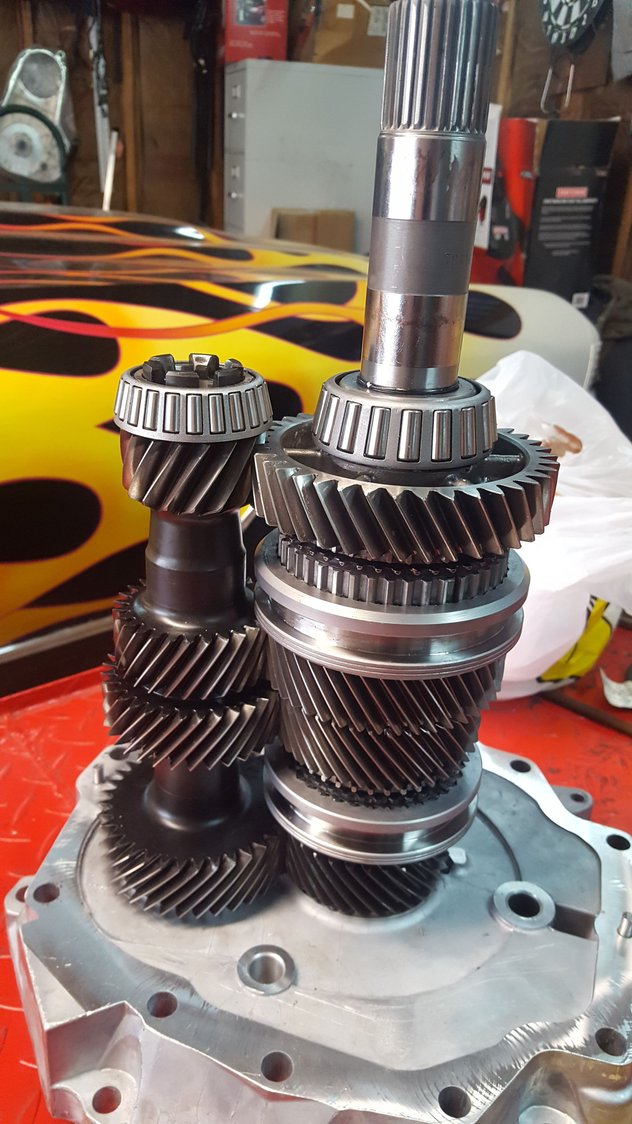

replacing some stuff in trans


making alt bracket. truck one even uglier haha

made this coolant overflow

Last edited by nick67; 05-20-2019 at 10:40 PM. Reason: adding text
nick67 is offline
Old 05-21-2019, 10:27 AM
  #2
TECH Fanatic
iTrader: (1)

Kfxguy's Avatar

Join Date: Apr 2017
Posts: 1,643
Likes: 0
Received 2 Likes on 2 Posts
Default

nice work.


on a funny note, looks like you spilled pepto bismol in the engine. lol
Kfxguy is offline
Old 05-21-2019, 11:07 AM
  #3
Teching In
Thread Starter

Join Date: Apr 2017
Location: Long island
Posts: 13
Likes: 0
Received 0 Likes on 0 Posts
Default

Originally Posted by Kfxguy View Post
nice work.


on a funny note, looks like you spilled pepto bismol in the engine. lol

thank you very much!

thats red line assy lube lol i always thouht the same thing. looks like pepto
nick67 is offline
