Need a vacuum source for you boost referenced stuff?

I bought this about 3 months back, and only realized while I was installing the 60lb mototrons, that I hadn't shared what a time saver and a clean functional lil item this is for adding boost gauges, ADJ FPR's, BOV's, Hobb's switches....anything that needs a boost/vacuum signal and you can find em for around 20-30 bucks on ebay or GP's on riceboards(where I got mine....had to register as a rice dude but got the deal on the vacuum manifold

....you can score all sorts of FI related hardware on the riceboards in their GP's

) They come polished, titanium finish, natural and another finish but I can't remember which color it is...and I am colorblind so the lil pic doesn't help me at all lol.
I got the natural finish.

This is the Golden Eagle Vacuum manifold......

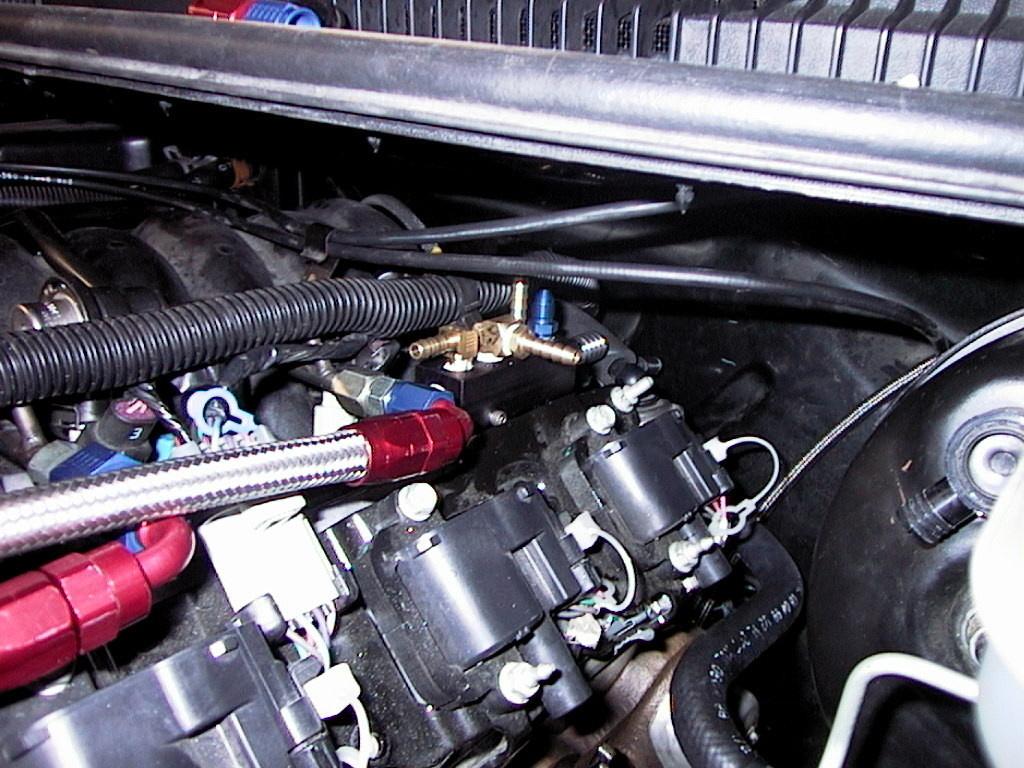

Here it is installed on my car

And here is a diagram for all it can do(turbo app, but blowerguys get the idea)

It really cleans up the engine bay, and you don't have to splice and tee into everything and it's a really nice lil piece of machined aluminum. It has mounting tabs and hardware to mount it up, but I found a nice place for it next to the ABS block.
I have mine going to the BOV, ADJ FPR, Hobbs Switch for inline 255lph fuel pump and the boost gauge. The holes are tapped but you have to drill out the bottom so you use as many signals as you need, there are 6 tapped holes. I am using 4.

I have it tee'd into the brake booster line as this comes off the back of the manifold too.
J

Last edited by frcefed98; Sep 9, 2004 at 09:35 PM.

Sep 9, 2004 | 11:03 PM

greentahoe

TECH Addict

iTrader: (2)

Joined: Feb 2004

Posts: 2,784

Likes: 0

From: Tampa, Fl

That is VERY sweet!! Thankyou!! Im getting sick of this cluttered crap and that looks really clean.

Sep 10, 2004 | 12:17 AM

y2khawk

TECH Veteran

iTrader: (5)

Joined: Nov 2001

Posts: 4,491

Likes: 1

From: Olmsted Falls, OH

If you don't wanna get in on a GP, you can get something very similar at McMaster Carr

I had one on my old incon setup

http://harlan-engineering.com/incon/...c_manifold.JPG

http://www.mcmaster.com/ctlg/DisplCt...MainWidth=1388

Sep 10, 2004 | 12:21 AM

BIGBOS

TECH Senior Member

Joined: Nov 2001

Posts: 11,603

Likes: 0

From: Chi-Town, IL

Thats a nice little thing to have

Sep 10, 2004 | 06:31 AM

smokinHawk

TECH Senior Member

iTrader: (48)

Joined: Jan 2002

Posts: 7,354

Likes: 1

From: Columbus, ohio

ya nice, comes in handy. i made my own out of an aluminum block i yanked from work, then i tapped it with a 1/4 npt.
works like a charm.

Sep 10, 2004 | 04:12 PM

frcefed98

Thread Starter

TECH Senior Member

iTrader: (16)

Joined: Oct 2002

Posts: 6,907

Likes: 6

From: Albuquerque, NM

yep real nice and clean and for the 25-30 bucks you can't go wrong.

Sep 10, 2004 | 05:19 PM

Blackbird

TECH Addict

Joined: Nov 2001

Posts: 2,659

Likes: 1

From: Bellevue, Wa

sure now you tell me after I make a huge mess and spend all kinds of money on brass fittings and T's etc...

well all that shizzle is coming out. order'd from mcmaster this morning.

I knew something like this had to exist. just could never find it.

thanks guys!
