Pics of my speed inc rails...
Thread Starter
TECH Senior Member
iTrader: (16)
Joined: Oct 2002
Posts: 6,907
Likes: 6
From: Albuquerque, NM
Pics of my speed inc rails... Yep they look like all the other pics that people have posted
Heres a few mocked up on my old LS1 intake that I had sitting in the garage.
Be sure to measure twice or three times when going to cut the braided hose for the rails, I ended up measuring once and cutting twice
lol.
For those who haven't put together hoses like this before it's pretty straight foward, but here is page from the russel catalog to help out.
Hope that helps some of you who bought this kit.
J
Heres a few mocked up on my old LS1 intake that I had sitting in the garage.
Be sure to measure twice or three times when going to cut the braided hose for the rails, I ended up measuring once and cutting twice
lol.For those who haven't put together hoses like this before it's pretty straight foward, but here is page from the russel catalog to help out.
Hope that helps some of you who bought this kit.
J
Thread Starter
TECH Senior Member
iTrader: (16)
Joined: Oct 2002
Posts: 6,907
Likes: 6
From: Albuquerque, NM
Thanks
, I'll have more pics/write up of what I am doing as soon as I get more pieces to my fuel system in. I usually try to have pics of everything so people can get an idea of what needs to be done or what direction to head.
We are all rookies sometimes. I am still learning about this fuel system, but with this site, it makes doing things ten times easier.
J
, I'll have more pics/write up of what I am doing as soon as I get more pieces to my fuel system in. I usually try to have pics of everything so people can get an idea of what needs to be done or what direction to head.We are all rookies sometimes. I am still learning about this fuel system, but with this site, it makes doing things ten times easier.
J
Hey Jer, Are you going to leave the other end of your rail capped off? Why? Why not put a fuel gauge port there so you can read right off the rail to see what your fuel pressure is.......... Im waiting on my damn fuel line and fittings to show up........
be sure to post more pics when ya get them...
Kyle
be sure to post more pics when ya get them...
Kyle
Thread Starter
TECH Senior Member
iTrader: (16)
Joined: Oct 2002
Posts: 6,907
Likes: 6
From: Albuquerque, NM
No problem Yellowhammer, beautiful ZL1 there
I see you got in on the GP too.
Yep, I am going to leave it capped off. I am either going to put my elec. FP sender into the gauge port on the aeromotive unit that I am trading the CAS in for. I think you have the same one. It has a port on the front right? And if there isn't enough room for that, I have an inline adapter from russel that it will hook into.
I am wait for more fittings too, I also might need to get more line. I always rush measuring stuff out and it always bites me in the A$$.
J
I see you got in on the GP too.Yep, I am going to leave it capped off. I am either going to put my elec. FP sender into the gauge port on the aeromotive unit that I am trading the CAS in for. I think you have the same one. It has a port on the front right? And if there isn't enough room for that, I have an inline adapter from russel that it will hook into.
I am wait for more fittings too, I also might need to get more line. I always rush measuring stuff out and it always bites me in the A$$.
J
Ha Ha ... I ordered all my fittings 2 days ago so they should be here soon.. then i can mock up my intake before i paint it.... I need to order 20' of -8AN and Sump my stock tank and most of the fuel stuff will be done........ Then i need valve cover gaskets and water pump gaskets, and to order my 60# Motrons and send my PCM back to MTI for a base tune to get it runnin to put the miles on the new motor and im done....... well then i nned my Cogs and to go dyno tune....
Ill post my pics of my progress.
Kyle
Ill post my pics of my progress.
Kyle
Trending Topics
On The Tree
Joined: Jul 2002
Posts: 166
Likes: 0
From: Dallas-Fort Worth, Texas
why not instead of capping it up runnig a separate line
I am going to run separate lines to each side of the fuel rail I dont want one side to go lean because it is the last to get the fuel and exspecially on the spray I dont want it to go BOOM
I am going to run separate lines to each side of the fuel rail I dont want one side to go lean because it is the last to get the fuel and exspecially on the spray I dont want it to go BOOM
LS1 Tech Stories
The Best V8 Stories One Small Block at Time
Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked
Pouria Savadkouei
Top 10 Most Powerful Chevy Trucks Ever Made!
Hennessey's New Supercharged Silverado ZR2 Has 700 HP
Verdad Gallardo
Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes
Verdad Gallardo
Awesome K5 Blazer Restomod Comes With C7 Corvette Power
Verdad Gallardo
10 Camaros You Should Never Buy
10 LS Engine Myths That Refuse to Die
Verdad Gallardo
Five Reasons the Camaro Was the Most Pivotal Player in the Pony Car Wars 2.0
Brett Foote
10 Reasons the LS7 Is GM's Most Extreme Naturally Aspirated V8 Engine Ever
Verdad Gallardo
Originally Posted by smokin' joe 00 ss
I'd like to put a fuel pressure gage on mine instead of the plug, anyone have an idea where I can get one?
TECH Fanatic
Joined: Dec 2001
Posts: 1,060
Likes: 0
From: MI
Originally Posted by LawmanSS

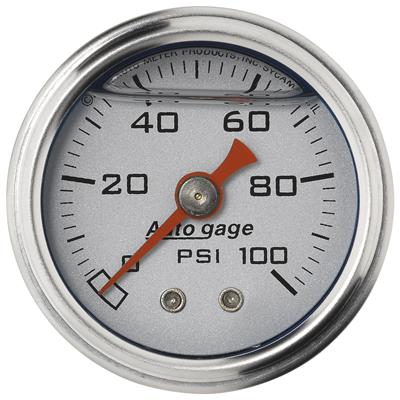

Summit, Jegs, etc...all of the manufacturers have them...the one I bought was an Autometer (part # 2180) 1 1/2" dia, mechanical gauge with a silver face and red needle...reads from 0-100 psi...attaches with 1/8 NPT fitting:
Thanks thats just what I'm looking for.
I believe that you can get an install kit from Speed Inc. with the necessary hardware to tap into the stock fuel feed line...
smokin' joe,
NO problem...glad I could help. FWIW, I liked the looks of the Autometer best...it's available in black, white, and silver faces, but I know for sure that VDO and Summit also sell similar rail mount gauges...
smokin' joe,
NO problem...glad I could help. FWIW, I liked the looks of the Autometer best...it's available in black, white, and silver faces, but I know for sure that VDO and Summit also sell similar rail mount gauges...
TECH Fanatic
Joined: Dec 2001
Posts: 1,060
Likes: 0
From: MI
Originally Posted by LawmanSS
I believe that you can get an install kit from Speed Inc. with the necessary hardware to tap into the stock fuel feed line...
smokin' joe,
NO problem...glad I could help. FWIW, I liked the looks of the Autometer best...it's available in black, white, and silver faces, but I know for sure that VDO and Summit also sell similar rail mount gauges...
smokin' joe,
NO problem...glad I could help. FWIW, I liked the looks of the Autometer best...it's available in black, white, and silver faces, but I know for sure that VDO and Summit also sell similar rail mount gauges...
Thread Starter
TECH Senior Member
iTrader: (16)
Joined: Oct 2002
Posts: 6,907
Likes: 6
From: Albuquerque, NM
Rails are on the car.... Installed them yesterday, with the help of my buddy Josh.
Here is a few pics
Crossover line is in the back.
Almost done at this point. I am just waiting on a couple more fittings. I had to order them from Jegs, because all the Hi performance shops around here don't stock ****
Pretty easy task. I also found that all my intake bolts had loosened up. Glad I read that post on the external board a few days back. So I took off the intake and put locktite on all the bolts and torqued them down to spec. Hopefully they won't loosen up again. Looks like swapping the injectors on the car will be a breeze with the speed inc rails if I need to do that again.
Man from those pics I need to cut down those long *** spark plug wires. I hate that they are so long and make the engine compartment look cluttered with the coil relocation brackets, instead of uncluttering it like they were suppose to do lol. I also need to hide some other wires and lines too
J
Here is a few pics
Crossover line is in the back.
Almost done at this point. I am just waiting on a couple more fittings. I had to order them from Jegs, because all the Hi performance shops around here don't stock ****
Pretty easy task. I also found that all my intake bolts had loosened up. Glad I read that post on the external board a few days back. So I took off the intake and put locktite on all the bolts and torqued them down to spec. Hopefully they won't loosen up again. Looks like swapping the injectors on the car will be a breeze with the speed inc rails if I need to do that again.
Man from those pics I need to cut down those long *** spark plug wires. I hate that they are so long and make the engine compartment look cluttered with the coil relocation brackets, instead of uncluttering it like they were suppose to do lol. I also need to hide some other wires and lines too
J
Thread Starter
TECH Senior Member
iTrader: (16)
Joined: Oct 2002
Posts: 6,907
Likes: 6
From: Albuquerque, NM
Almost finished up for those who are looking at this.
I got the returnline hooked into the stock feedline(which is now being used as a return)
Here is the piece I used to hook into the braided line and hook into the LS1 feedline
Here's how the return-into-stock LS1feed looks completed
I read on Aeromotive's site that the best place for the regulator is at the end of the rails so I put it there...
There is no clearance issues with it mounted there and it makes adjusting it real easy. No reaching down into the space between the fender and header or at the back of the rails. The -6an return line routes perfectly between the valvecover and injectors and right over the manifold into the LS1 feed line.
I am now waiting for a -6an plug for the reg. That's why the black tape is there (jegs forgot to ship it) and then it will be time to install the FP gauge sender.
J
I got the returnline hooked into the stock feedline(which is now being used as a return)
Here is the piece I used to hook into the braided line and hook into the LS1 feedline
Here's how the return-into-stock LS1feed looks completed
I read on Aeromotive's site that the best place for the regulator is at the end of the rails so I put it there...
There is no clearance issues with it mounted there and it makes adjusting it real easy. No reaching down into the space between the fender and header or at the back of the rails. The -6an return line routes perfectly between the valvecover and injectors and right over the manifold into the LS1 feed line.
I am now waiting for a -6an plug for the reg. That's why the black tape is there (jegs forgot to ship it
) and then it will be time to install the FP gauge sender. J
Thread Starter
TECH Senior Member
iTrader: (16)
Joined: Oct 2002
Posts: 6,907
Likes: 6
From: Albuquerque, NM
lol, I orignally ordered the red anodized rails but they were on back order so I just got the polished ones for now. The local paintball place anodizes parts so I might take them over there when I have them off again.
I could only wish to have my engine compartment to look like that
Thanks for the compliment.
BTW where are the wires at in that compartment? Thats outrageous, I can't even see sparkplug wires
I have a pic with no wires showing at all too
too bad it had to go back in
I need to do the !wire mod and loose the A.I.R stuff(it had been edited out anyway) and hack those long *** spark plug wires too. It never ends
J
I could only wish to have my engine compartment to look like that
Thanks for the compliment.BTW where are the wires at in that compartment? Thats outrageous, I can't even see sparkplug wires
I have a pic with no wires showing at all too
too bad it had to go back in
I need to do the !wire mod and loose the A.I.R stuff(it had been edited out anyway
) and hack those long *** spark plug wires too. It never endsJ
