Pattern sanity check

IRS 8.8 with Truetrac and Ford Racing 3.55s.

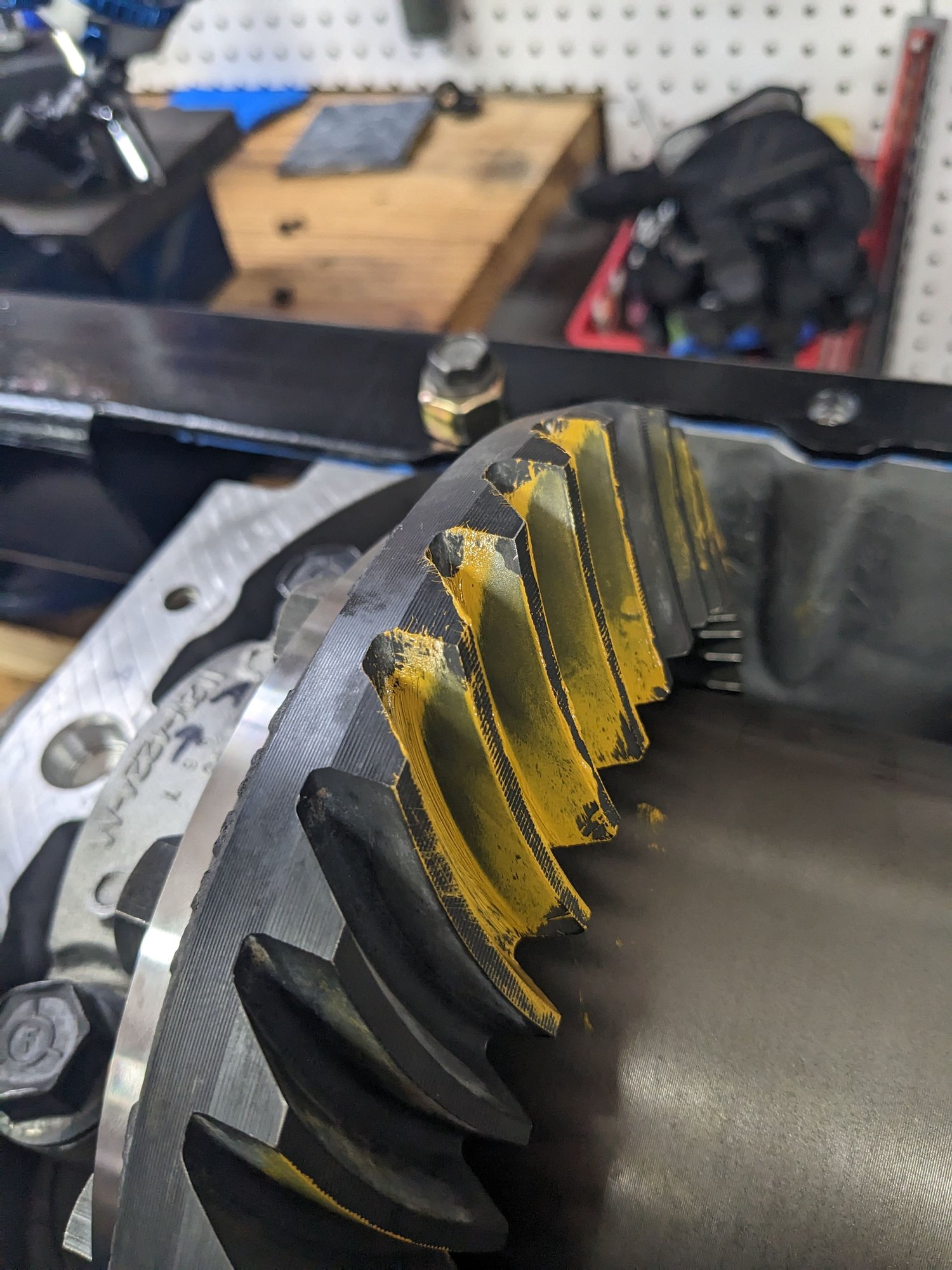

Installing a new diff and gear set today and with preload and backlash set within spec I have the below gear patterns. It seems like the drive side pattern is well centered and the coside pattern is just slightly off centered. Tooth contact seems to be fairly well distributed between the root and crown of the tooth. Just looking for a sanity check that this looks like a decent pattern.

Feb 10, 2023 | 08:47 PM

n2xlr8n66

TECH Apprentice

iTrader: (3)

Joined: Jun 2021

Posts: 352

Likes: 151

From: Gadsden

Every set of Ford Racing gears I've ever set up have had a strange pattern, but it's been a while since I've set up anything higher than 4.10s.

Yours look fine.

Feb 12, 2023 | 12:23 PM

E46RedPill

Thread Starter

Teching In

Joined: Feb 2022

Posts: 13

Likes: 1

Quote:

Originally Posted by n2xlr8n66

Every set of Ford Racing gears I've ever set up have had a strange pattern, but it's been a while since I've set up anything higher than 4.10s.

Yours look fine.

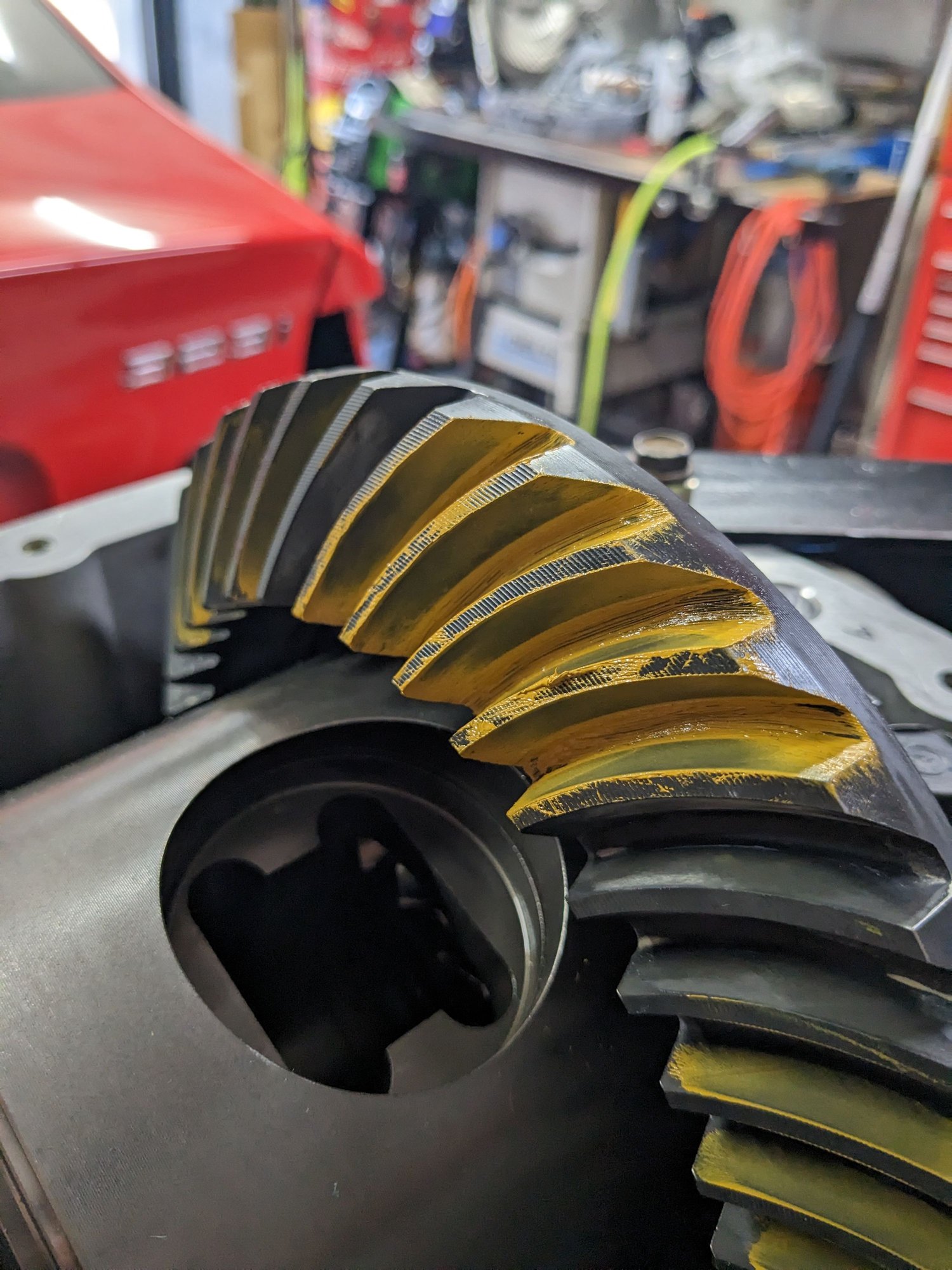

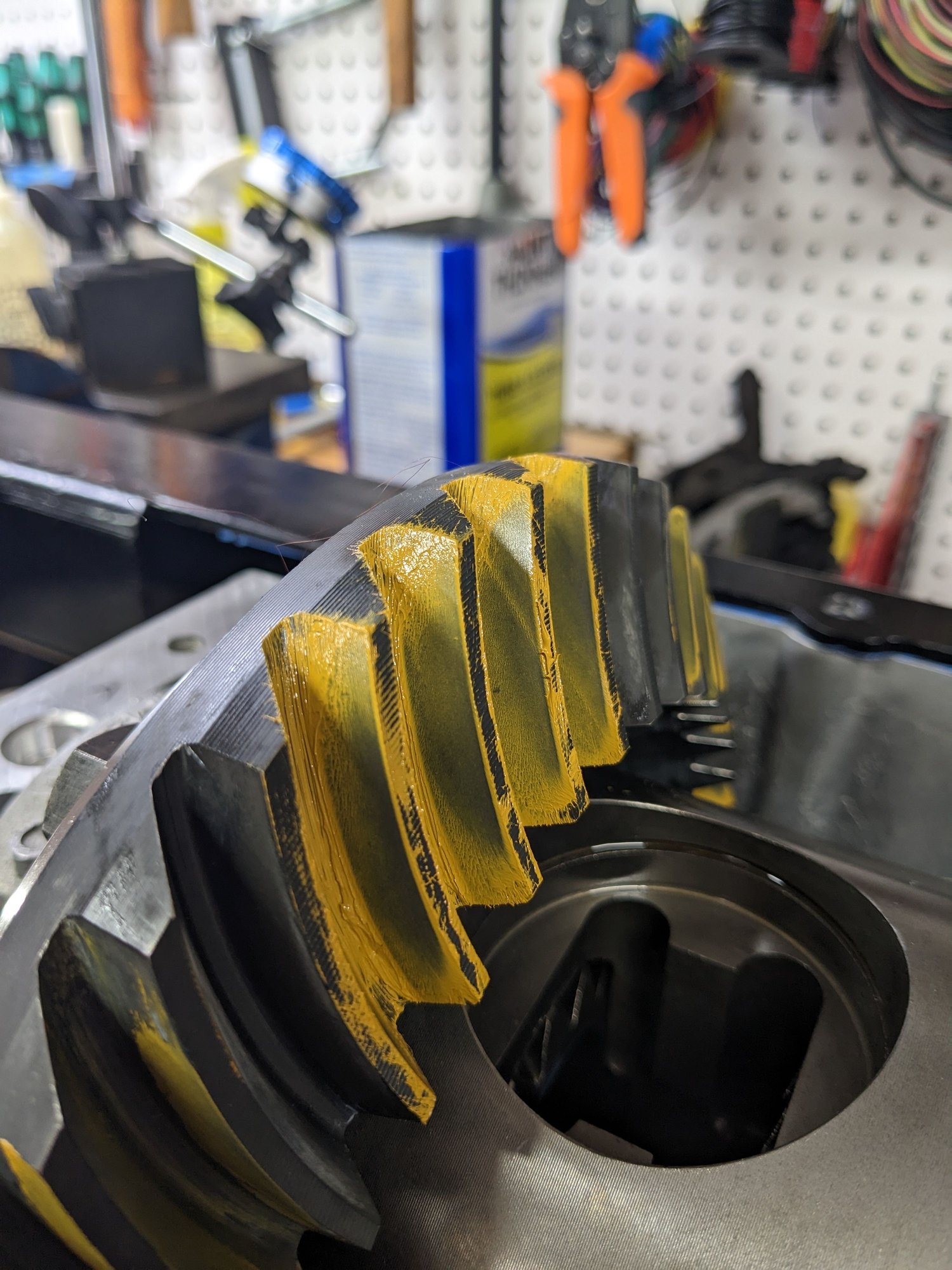

So after getting all the new assembly all finished, I have 22inlb pinion preload, .012 backlash and the following patterens. Thoughts?

Feb 18, 2023 | 10:58 PM

2QWK4RU 06 GOAT

TECH Enthusiast

iTrader: (1)

Joined: May 2006

Posts: 610

Likes: 11

From: Left coast

I'd tighten lash up a bit and shoot for 8 or 9 thou and see if you come off the end of the gear. Definitely needs to be toward the root. Sometimes the ring gear will have the lash setting scribed in when it was matched. You also need to make sure you have proper preload when running a pattern.

Good luck.
