Ls1 starter motor shield

Daveone23 · 2025-09-04 22:29:29

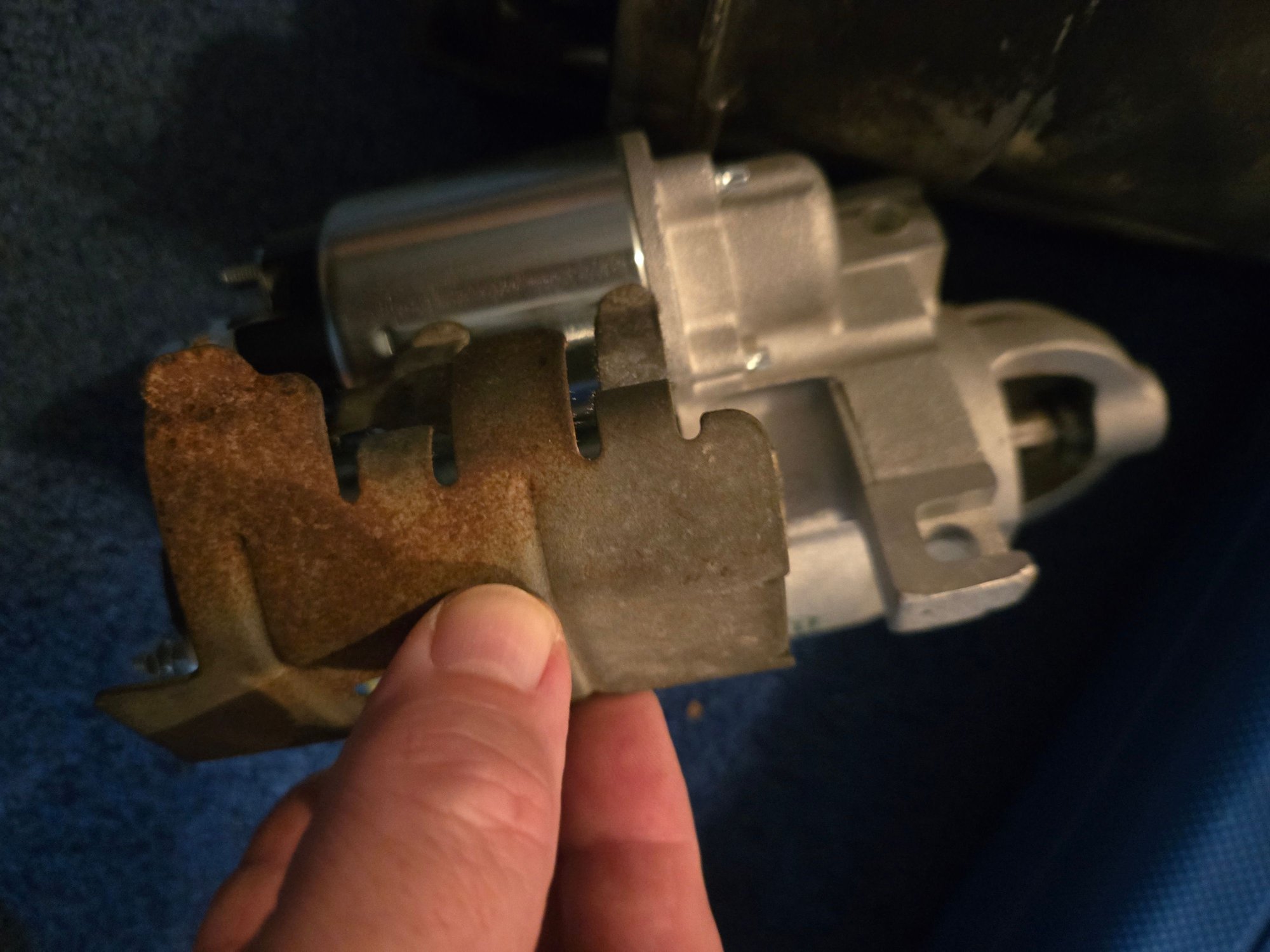

Does the shield face the engine block. https://cimg9.ibsrv.net/gimg/ls1tech.com-vbulletin/2000x1504/20250903_182142_43578d1759e4f8ac5117f61b9aea7a27ac4294e9.jpg

Reply Subscribe

Thread Tools

Search this Thread

Sep 4, 2025 | 05:29 PM

Share

#1

Daveone23

Thread Starter

Teching In

Joined: Aug 2025

Posts: 27

Likes: 0

Ls1 starter motor shield

Does the shield face the engine block.

Reply

0

Sep 5, 2025 | 12:05 PM

Share

#2

wssix99

Save the manuals!

iTrader: (5)

Joined: Dec 2007

Posts: 12,967

Likes: 389

From: Chicago, IL

That should snap on top of the solenoid and shield it from the heat coming from the head and header that sit directly above it.
