Speed density bellows

Ive been trying to find pictures of what guys are using for bellows running SD. Will y'all post yours up? I just ordered a FTP 104mm lid and have a 4x6 straight coupler from WWW.intakehoses.com Im hoping it will fit since the OD of the FTP is 108MM or 4.25 in..

Jan 7, 2016 | 09:57 PM

Firebirdmuscle

10 Second Club

iTrader: (16)

Joined: Jan 2012

Posts: 1,213

Likes: 15

From: Mississippi

I have the same setup. It will be a mother to get on. I ended up getting a paper towel, spraying a little wd-40 on it then wiping the outside neck of the lid and then the inside of the bellow. It's going to hit on the lower air box as well just have to keep playing with it. Once you get it on.l, and if you ever need to take the lid off, keeping the coupler on the lid and just loosening off the throttle body and removing the lid and coupler as one piece has been easier for me.

Jan 7, 2016 | 09:59 PM

DirtyBird2000

Thread Starter

Staging Lane

Joined: Oct 2015

Posts: 54

Likes: 0

From: Fort Worth, TX

Got any pics?

Jan 8, 2016 | 10:11 AM

5_litre_eater

TECH Enthusiast

Joined: Jun 2005

Posts: 546

Likes: 0

From: Wichita, KS

I'm going through this now, as well. I ordered several couplers from intake hoses . Com. I'm using my SLP lid though. I'm most hopeful the 4x6 22 degree hose will fit perfectly. I hope to get it installed tomorrow.

Jan 8, 2016 | 10:57 AM

bbond105

TECH Junkie

Joined: May 2012

Posts: 3,052

Likes: 716

From: Poplarville, MS

5_litre_eater would the opening on SLP lid be more restricted compared to the opening on the FTP 104mm lid?

Jan 8, 2016 | 11:12 AM

DirtyBird2000

Thread Starter

Staging Lane

Joined: Oct 2015

Posts: 54

Likes: 0

From: Fort Worth, TX

Let me know how it fits with some pics. I have not seen anyone use the 22 degree coupler so I went with the straight one.

Jan 8, 2016 | 12:02 PM

5_litre_eater

TECH Enthusiast

Joined: Jun 2005

Posts: 546

Likes: 0

From: Wichita, KS

The SLP lid is more restrictive-- the OD of the lid is 3.8". I didn't go with the FTP because of the quality issues I've read about and the fact my SLP lid rubs, so the larger FTP lid would make a lot of contact.

10 Reasons Daily Driving a Swap Project SUCKS! (& 1 Reason to Do It Anyway)

Michael S. Palmer

6 Gifts Neither Your Dad Nor Grad Will Shove Into the 'Trinket Drawer'

Brett Foote

Topdon ONE vs. Artidiag 800 BT2: Which is the Diagnostic Tablet For You?

Pouria Savadkouei

Gas Monkey Built a 6-Wheel Ferrari Testarossa With a Corvette LT4 Engine

Verdad Gallardo

7 Most Reliable High-Performance Engines GM Has Ever Built

Verdad Gallardo

Amazing '71 Camaro Restomod Is Modern Muscle Car Under the Skin

Verdad Gallardo

6 Common C5 Corvette Failures and What's Involved In Repairing Them

Pouria Savadkouei

Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph

Verdad Gallardo

Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked

Pouria Savadkouei

Top 10 Most Powerful Chevy Trucks Ever Made!

Jan 8, 2016 | 01:19 PM

5_litre_eater

TECH Enthusiast

Joined: Jun 2005

Posts: 546

Likes: 0

From: Wichita, KS

Quote:

Originally Posted by Rise of the Phoenix

Here is my setup. I believe I have the same coupler you have. Also got mine from intakehoses.com

So you were able to use a 4" coupler on the SLP lid? I was wondering if it would fit too loose.

Jan 8, 2016 | 02:57 PM

#10

Rise of the Phoenix

TECH Senior Member

iTrader: (27)

Joined: Dec 2009

Posts: 9,728

Likes: 13

From: Jefferson City, MO

Yeah, it went on nice and tight. The only issue was the coupler probably needed to be angled a bit, but I couldn't find one, so went with the 4"x6" straight one. I was able to get it to work; just required a little finesse.

Jan 8, 2016 | 05:27 PM

#11

Firebirdmuscle

10 Second Club

iTrader: (16)

Joined: Jan 2012

Posts: 1,213

Likes: 15

From: Mississippi

Quote:

Originally Posted by DirtyBird2000

Got any pics?

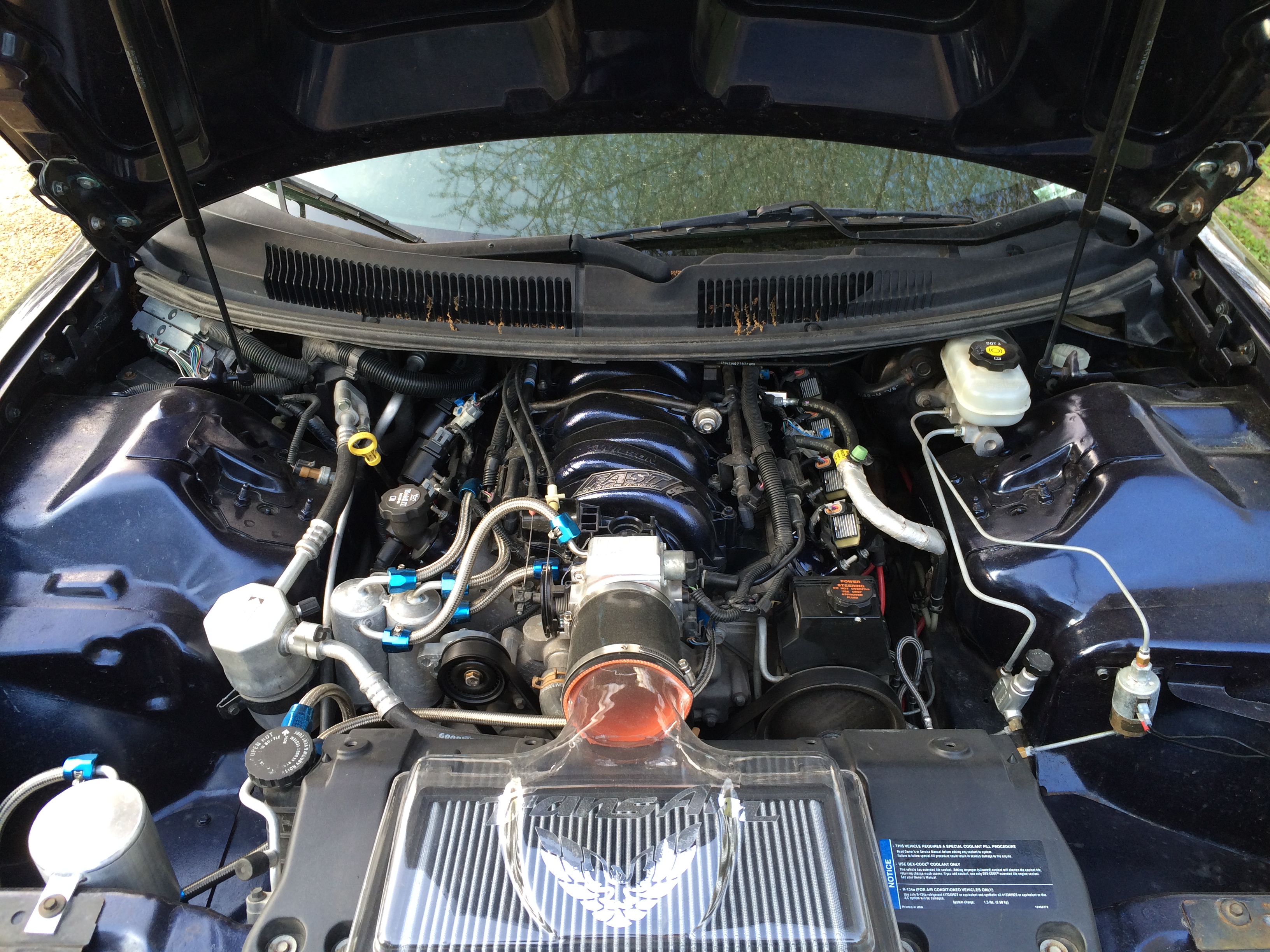

Here is the only pic I have. 104 clear lid, 4x6 intake hose.com coupler to fast 92 throttle body

Attached Thumbnails

Jan 8, 2016 | 05:29 PM

#12

Firebirdmuscle

10 Second Club

iTrader: (16)

Joined: Jan 2012

Posts: 1,213

Likes: 15

From: Mississippi

Quote:

Originally Posted by 5_litre_eater

So you were able to use a 4" coupler on the SLP lid? I was wondering if it would fit too loose.

The 4" coupler fits good on the slp lid. I ran that before I picked up this lid

Jan 8, 2016 | 11:33 PM

#13

5_litre_eater

TECH Enthusiast

Joined: Jun 2005

Posts: 546

Likes: 0

From: Wichita, KS

Good to know. I did a trial fit of the 4" coupler on the SLP lid and it fit loose by 1/8"-1/4" . I'm hoping the band clamps are able to compress the slack.

OP, I will post up some pictures tomorrow of what I accomplish with my setup.

Jan 10, 2016 | 01:18 AM

#14

Ls-x

On The Tree

iTrader: (3)

Joined: Oct 2011

Posts: 110

Likes: 0

From: bahrain

I found the final solution for this and its going to fit like a gloove between the throttle and the ftp 104 lid

it is spectre 4" 22.5 degree flex boot - part number is 9770

i will take photo for it installed on my trans am later

good luck

Jan 10, 2016 | 10:40 AM

#15

01ssreda4

TECH Senior Member

iTrader: (96)

Joined: Aug 2007

Posts: 24,241

Likes: 89

From: Turnin' Wrenches Infractions: 005

4inch exhaust pipe fits perfect inside the 104lid. Make about a 4 inch section of it and then use a smooth bellow stretched around it for an easy combination.

Jan 10, 2016 | 09:19 PM

#16

5_litre_eater

TECH Enthusiast

Joined: Jun 2005

Posts: 546

Likes: 0

From: Wichita, KS

The 4" 22 degree from intake hoses .com works perfect!
