help

i have a 05 gmc 1500. I removed the engine to rebuild it and i found that i ripped the cam sensor plug off of the harness.
I have looked everywhere to find where the go in the plug. its a 3 wire. red, black, brown.

Jun 17, 2025 | 01:43 PM

G Atsma

TECH Senior Member

Joined: Jun 2016

Posts: 22,291

Likes: 3,616

From: Central Cal.

Find a wiring diagram by searching here for a 2005 3 wire cam sensor

Jun 17, 2025 | 03:05 PM

Che70velle

ModSquad

iTrader: (6)

Joined: Jan 2012

Posts: 7,828

Likes: 5,174

From: Dawsonville Ga.

Quote:

Originally Posted by jjohnston

Red, black, brown on a cam sensor?

Jun 17, 2025 | 03:40 PM

RB04Av

TECH Addict

Joined: Dec 2017

Posts: 2,180

Likes: 969

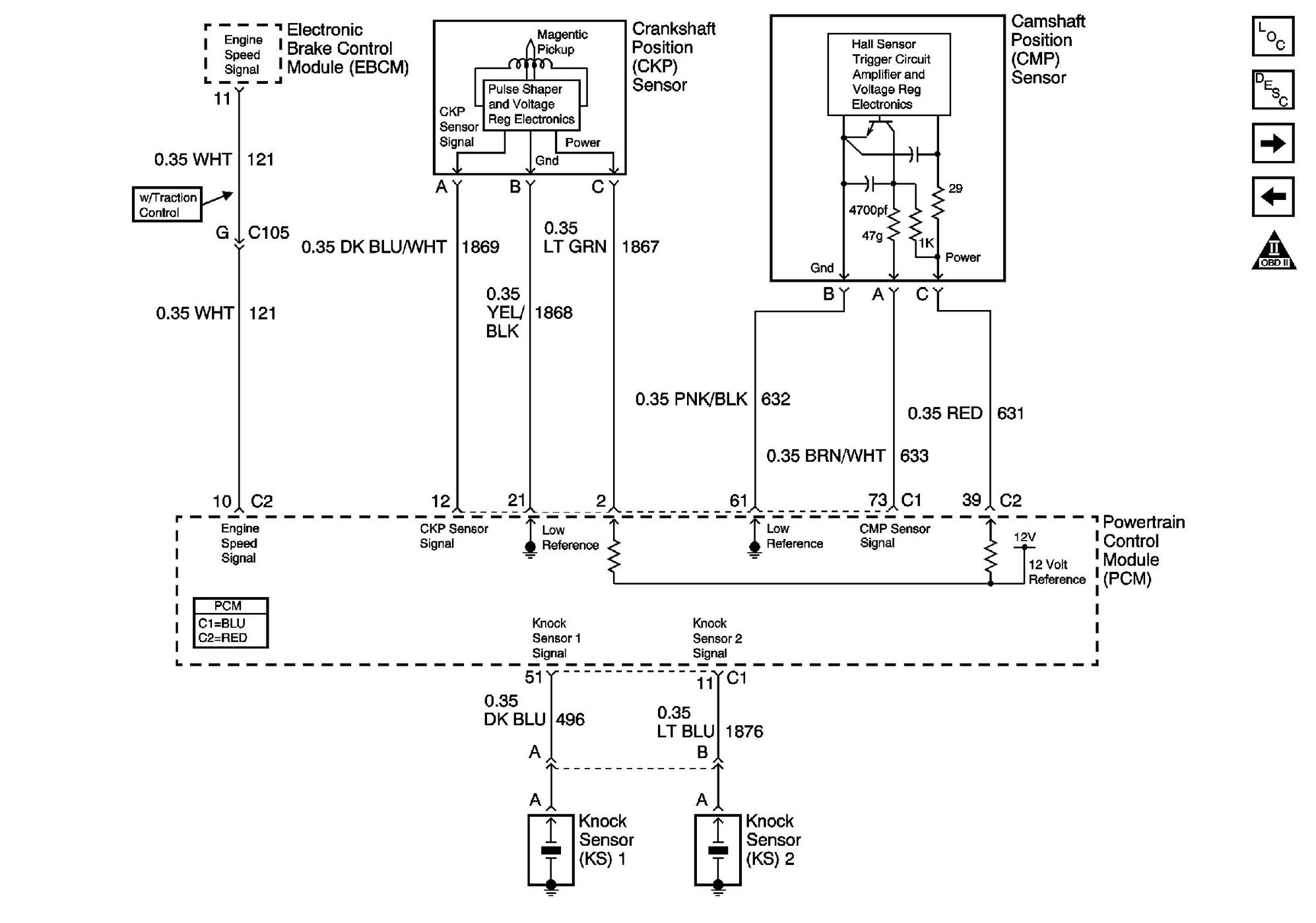

Pretty sure they're something like brown with a stripe (don't recall the color), pink/blk, and red; on pins A B & C respectively. I could be wRong though. (and mistaken on this particular point besides) It's been acoupla months since I replaced my CMPS.

Sounds to me like you're probably gonna need a new pigtail. Those little terminals don't take too well to be yoinked outta their housing.
