Old Mar 6, 2008 | 07:35 AM
  #21
WKMCD's Avatar
TECH Junkie
iTrader: (2)

Joined: Mar 2005
Posts: 3,416
Likes: 2
From: Northern VA
Default

Originally Posted by pwtr02ss

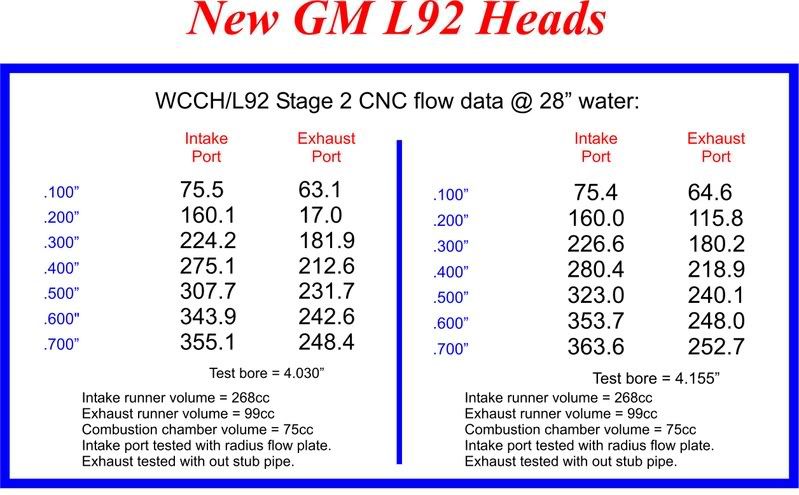

Let's see some flow number's. I'm a little partial to narrowing the guide bosses versus making the ports bigger. So let's see cc size of the runner, verses flow number.

Reply
Old Mar 6, 2008 | 09:01 AM
  #22
Johny GTO's Avatar
TECH Resident

Joined: Jul 2007
Posts: 844
Likes: 0
From: Florida
Default

i am still up in the air on whether to go with these heads or not. I am scratching plans to get ported LS6 heads. Now it looks like either trickflows or AFR's. Which do u think be a better bet for a stock cubed LS2
Reply
Old Mar 6, 2008 | 09:20 AM
  #23
VH5150's Avatar
Dynojet Fan

Joined: Jul 2007
Posts: 342
Likes: 0
From: Mass.
Default

Originally Posted by WKMCD
Looks don't count. Flow quality does.
I understand that... that's not what I ment..... I was refuring to the pix that were posted...
Reply
Old Mar 6, 2008 | 09:48 AM
  #24
Richard@WCCH's Avatar
Banned
iTrader: (3)

Joined: May 2002
Posts: 1,853
Likes: 5
From: Van Nuys, CA
Default

Originally Posted by Mr.Big
Richard do you sell them (L92heads) set up with the Harland Sharp L92 Rollers installed... I've seen where some slight machining has to be done for clearance reasons, and I just want the full package ready to install... PM me details and pricing if you do not want to post info... thanks...
Yes, we have a program to clearance the heads for Harland Sharp's rocker arms. The cost to machine a pair of heads for the clearance runs $40.00 per pair. The rest of our L92 pricing is listed on our website.

Richard
Reply
Old Mar 6, 2008 | 09:52 AM
  #25
Richard@WCCH's Avatar
Banned
iTrader: (3)

Joined: May 2002
Posts: 1,853
Likes: 5
From: Van Nuys, CA
Default

Originally Posted by Beaflag VonRathburg
I know you guys carry All Pros, but do you do CNC work on them or would you send them back to Bob? I have a set of their LS1 bare castings that I'd like to get finished.
PM sent.

Richard
Reply
Old Mar 6, 2008 | 10:54 AM
  #26
turbo'd stang's Avatar
TECH Fanatic

Joined: Mar 2002
Posts: 1,169
Likes: 0
Default

I've got a set of L92's that another vendor did, it looks like they used a drill bit What do you charge to just CNC a set..assuming they didn't screw them up too badly?
Reply
Old Mar 6, 2008 | 11:53 AM
  #27
Richard@WCCH's Avatar
Banned
iTrader: (3)

Joined: May 2002
Posts: 1,853
Likes: 5
From: Van Nuys, CA
Default

Originally Posted by turbo'd stang
I've got a set of L92's that another vendor did, it looks like they used a drill bit What do you charge to just CNC a set..assuming they didn't screw them up too badly?
PM sent.

Richard
Reply
Old Mar 6, 2008 | 12:40 PM
  #28
1997bird's Avatar
TECH Fanatic
iTrader: (2)

Joined: Nov 2006
Posts: 1,360
Likes: 0
From: Aztec, NM
Default

Originally Posted by WKMCD
Early results say these heads like lots of timing to produce results. I ran 12:1 on my first iteration and could only run 26 degrees of timing. Reduced the SCR to 11:3 and now run 30+ degrees. I picked up considerable HP with the additional timing.

My $.02
Kevin this motor would be on alcohol, so I would have an unfair advantage over you pump gas guy's.
Reply
Old Mar 6, 2008 | 12:51 PM
  #29
Sharpe's Avatar
TECH Veteran
iTrader: (7)

Joined: Aug 2004
Posts: 4,996
Likes: 1
From: Southeastern IL
Default

Reply
Old Mar 6, 2008 | 01:39 PM
  #30
edcmat-l1's Avatar
Thread Starter
Banned
iTrader: (10)

Joined: Jul 2006
Posts: 4,782
Likes: 4
From: Va Beach
Default

Originally Posted by pwtr02ss
Let's see some flow number's. I'm a little partial to narrowing the guide bosses versus making the ports bigger. So let's see cc size of the runner, verses flow number.
If Richard saw results from widdling the guide bosses down, I'm sure they'd be done that way.
Reply
Old Mar 6, 2008 | 05:27 PM
  #31
WKMCD's Avatar
TECH Junkie
iTrader: (2)

Joined: Mar 2005
Posts: 3,416
Likes: 2
From: Northern VA
Default

Originally Posted by 1997bird
Kevin this motor would be on alcohol, so I would have an unfair advantage over you pump gas guy's.

Then everything I know is out the window...
Reply
Old Mar 7, 2008 | 12:43 AM
  #32
1997bird's Avatar
TECH Fanatic
iTrader: (2)

Joined: Nov 2006
Posts: 1,360
Likes: 0
From: Aztec, NM
Default

Originally Posted by WKMCD
Then everything I know is out the window...
Yep, about a 3 to 1 burn ratio from alky to gas. So in a 25 lap main on a 7/16 mile track they will go through roughly 15 to 20 gallons of alky($3 per gallon last year). The trade off is the extra octane and the cooling properties that help add 20 to 25% more power on average. At 5300 ft. we need all the power we can get to offset the loss of air density(roughly 20% less HP).
Reply
Old Mar 7, 2008 | 05:55 AM
  #33
WKMCD's Avatar
TECH Junkie
iTrader: (2)

Joined: Mar 2005
Posts: 3,416
Likes: 2
From: Northern VA
Default

Originally Posted by 1997bird
At 5300 ft. we need all the power we can get to offset the loss of air density(roughly 20% less HP).
I went to UNM for 2 years while my knees healed up from motocross and ran at a small oval track outside the city sometimes. Tiny little jets in the carbs to make any power. Probably 30% smaller than we would run at sea level.
Reply
Old Mar 7, 2008 | 06:27 AM
  #34
pwtr02ss's Avatar
Staging Lane
iTrader: (33)

Joined: Dec 2006
Posts: 87
Likes: 0
Default

Originally Posted by edcmat-l1
If Richard saw results from widdling the guide bosses down, I'm sure they'd be done that way.
I know everyone has their own theory's and to each their own. You see thousands of other professional head porter's do it, so maybe he's on to something new
Reply
Old Mar 7, 2008 | 10:34 AM
  #35
1997bird's Avatar
TECH Fanatic
iTrader: (2)

Joined: Nov 2006
Posts: 1,360
Likes: 0
From: Aztec, NM
Default

Originally Posted by pwtr02ss
You see thousands of other professional head porter's do it, so maybe he's on to something new
If that were always the case we would all be driving Mustangs, b/c there are millions out there that everyone seems to have.
Reply
Old Mar 7, 2008 | 06:25 PM
  #36
Mr.Big's Avatar
TECH Apprentice

Joined: Aug 2006
Posts: 366
Likes: 0
Default

Originally Posted by Richard@WCCH
Yes, we have a program to clearance the heads for Harland Sharp's rocker arms. The cost to machine a pair of heads for the clearance runs $40.00 per pair. The rest of our L92 pricing is listed on our website.

Richard
Thank you Sir...
Reply
Old Mar 10, 2008 | 08:06 PM
  #37
edcmat-l1's Avatar
Thread Starter
Banned
iTrader: (10)

Joined: Jul 2006
Posts: 4,782
Likes: 4
From: Va Beach
Default

Bump for a great product. Hope ya sell tons of em Richard.
The engine is going together. Should have results end of the month. We're using a super secret, custom grind cam that was speced out by the cam witch doctors. We (the witch doctors) used a crystal ball and a weegee (SP) board.
Seriously though, its a fairly mild cam, even less than what WKMCD is running.
Reply
Old Mar 11, 2008 | 10:07 AM
  #38
Richard@WCCH's Avatar
Banned
iTrader: (3)

Joined: May 2002
Posts: 1,853
Likes: 5
From: Van Nuys, CA
Default

Thanks a ton for all your feedback Ed. I look forward to following up on how this engine project turns out. Nice choice on the cam too.

Richard
Reply
Old Mar 11, 2008 | 09:56 PM
  #39
99blancoSS's Avatar
Banned
iTrader: (115)

Joined: Feb 2005
Posts: 9,892
Likes: 3
From: ST Helens, OR
Default

Great sponsor here to deal with, thankx for all your help Richard, I lucked into a pair of AP's Great looking work on the L92's.
Reply
Old Mar 12, 2008 | 09:10 AM
  #40
blu00rdstr's Avatar
TECH Enthusiast

Joined: Dec 2001
Posts: 548
Likes: 0
From: Dublin, CA
Default

Beautiful work!
