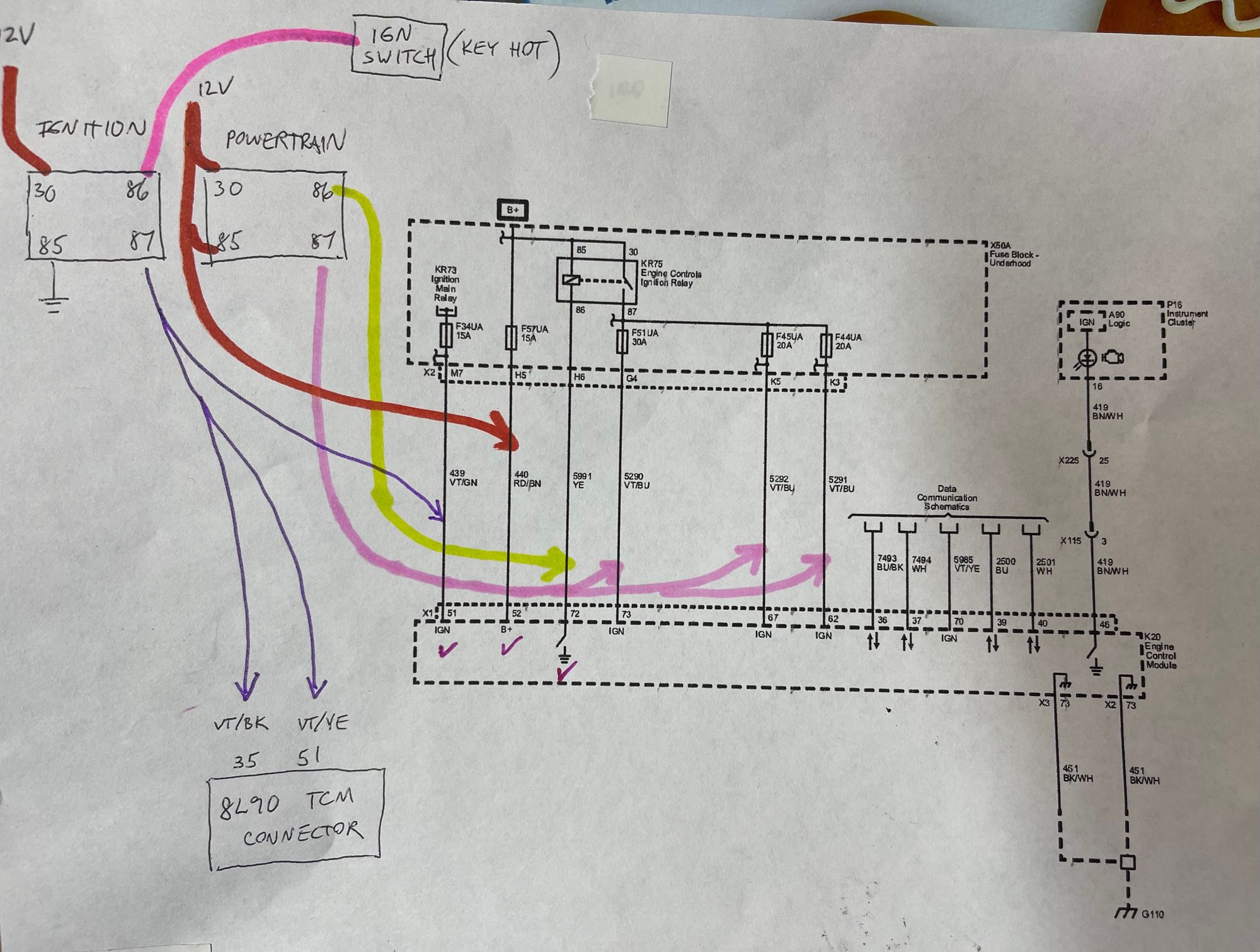

I’m trying to replicate a stock 2015 Silverado main relay and powertrain relay like the diagram pictured. It’s a 8L90 harness so I have two additional wires in the main relay fused circut. I’m a little confused about the powertrain relay. Two 12v sources and no ground?
My only input is to ensure you use a powertrain relay rated at the same as the factory. My 2014 harness relay is not a standard 30 amp relay like the others. I am thinking its a 50 amp relay. These systems draw a ton of amps running the injectors, coils and other solenoids; much more than a LSX based system.
My only input is to ensure you use a powertrain relay rated at the same as the factory. My 2014 harness relay is not a standard 30 amp relay like the others. I am thinking its a 50 amp relay. These systems draw a ton of amps running the injectors, coils and other solenoids; much more than a LSX based system.
it works the way I wired it. Good info on the relay, I didn’t really think about the amps of the relays. I have 4 relays that came with my Current Performance Wiring SA2000 fuse block so I’ll check to see what they are.
