Default alternator relocation bracket.
I have an alternator relocation bracket that remounts it above the passenger head.
$110 shipped.
Last edited by smokinHawk; 01-23-2006 at 06:01 AM.
smokinHawk is offline
Like
Old 01-02-2006, 08:37 AM
  #2
TECH Apprentice
iTrader: (6)

SUPER DAVES Z's Avatar

Join Date: Nov 2003
Location: Bastrop , TEXAS
Posts: 397
Likes: 0
Received 0 Likes on 0 Posts

Default
Great deal!!! I bought one and it fits and works perfectly!!!
SUPER DAVES Z is offline
Like
Old 01-02-2006, 10:46 AM
  #3
On The Tree
iTrader: (33)

CamminV6's Avatar

Join Date: Feb 2005
Location: North Carolina
Posts: 125
Likes: 0
Received 0 Likes on 0 Posts
Default
whats the purpose behind moving it??
CamminV6 is offline
Like
Old 01-02-2006, 11:50 AM
  #4
TECH Senior Member
Thread Starter
iTrader: (48)

smokinHawk's Avatar

Join Date: Jan 2002
Location: Columbus, ohio
Posts: 7,354
Likes: 0
Received 1 Like on 1 Post

Default
it allows clearance for turbos. most turbo headers or downpipes occupy the space the alternator sits so you need to move it up top.
smokinHawk is offline
Like
Old 01-02-2006, 02:09 PM
  #5
...with cheese.
iTrader: (41)

Armageddon's Avatar

Join Date: Jul 2004
Location: AL
Posts: 1,856
Received 2 Likes on 2 Posts

Default
I paid $300 for mine like a retard... this is a good deal!
Armageddon is offline
Like
Old 01-02-2006, 02:21 PM
  #6
TECH Apprentice
iTrader: (10)

fash00's Avatar

Join Date: Nov 2003
Location: virginia
Posts: 384
Likes: 0
Received 0 Likes on 0 Posts
Default
bought one from him good deal waiting for it in the mail
fash00 is offline
Like
Old 01-02-2006, 05:03 PM
  #7
Launching!
iTrader: (49)

Elec87's Avatar

Join Date: Feb 2004
Location: Davenport, IA
Posts: 289
Likes: 0
Received 0 Likes on 0 Posts

Default
Can you send me a picture of this unit? If I can see it I am pretty sure I will buy one.
Thanks
Elec

Picture of just the bracket. Any modification needed for this?
Elec87 is offline
Like

Trending Topics

Old 01-02-2006, 08:03 PM
  #8
TECH Senior Member
Thread Starter
iTrader: (48)

smokinHawk's Avatar

Join Date: Jan 2002
Location: Columbus, ohio
Posts: 7,354
Likes: 0
Received 1 Like on 1 Post

Default

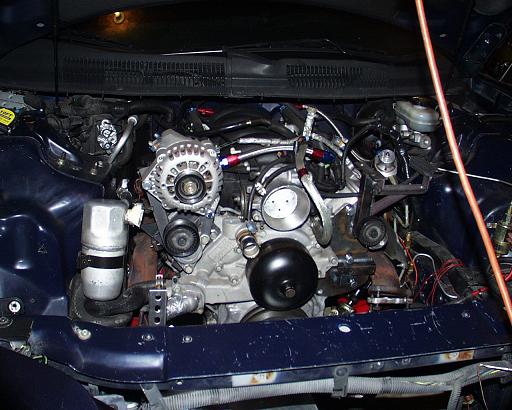

if you have aftermarket fuel rails like i do, you have to trim the back of the alternator cover a bit, and use a hose to pipe thread type instead of the pipe thread to an then an to hose.
you can see this on the pics ill post
Attached Thumbnails alternator relocation bracket.-p1010168.jpg   alternator relocation bracket.-p1010169.jpg   alternator relocation bracket.-p1010170.jpg   alternator relocation bracket.-p1010171.jpg   alternator relocation bracket.-p1010172.jpg

smokinHawk is offline
Like
Old 01-02-2006, 08:04 PM
  #9
TECH Senior Member
Thread Starter
iTrader: (48)

smokinHawk's Avatar

Join Date: Jan 2002
Location: Columbus, ohio
Posts: 7,354
Likes: 0
Received 1 Like on 1 Post

Default
one more
Attached Thumbnails alternator relocation bracket.-p1010173.jpg
smokinHawk is offline
Like
Old 01-02-2006, 08:49 PM
  #10
TECH Apprentice
iTrader: (10)

fash00's Avatar

Join Date: Nov 2003
Location: virginia
Posts: 384
Likes: 0
Received 0 Likes on 0 Posts
Default
is the last one a pic of mine
fash00 is offline
Like
Old 01-03-2006, 05:20 AM
  #11
TECH Senior Member
Thread Starter
iTrader: (48)

smokinHawk's Avatar

Join Date: Jan 2002
Location: Columbus, ohio
Posts: 7,354
Likes: 0
Received 1 Like on 1 Post

Default
Originally Posted by fash00
is the last one a pic of mine
no yours is boxed up. didnt get to ship it yesterday since everyplace was closed for new years , but im having the wife ship it out once she wakes up.

also the pics should show you how to assemble it if you didnt know.
smokinHawk is offline
Like
Old 01-03-2006, 10:05 AM
  #12
TECH Senior Member
Thread Starter
iTrader: (48)

smokinHawk's Avatar

Join Date: Jan 2002
Location: Columbus, ohio
Posts: 7,354
Likes: 0
Received 1 Like on 1 Post

Default
oh by the way for the belt i found out its a 74" 6 rib belt.
Last edited by smokinHawk; 01-29-2006 at 05:10 PM.
smokinHawk is offline
Like
Old 01-03-2006, 11:02 PM
  #13
Teching In

76TR6's Avatar

Join Date: Jan 2006
Posts: 0
Likes: 0
Received 0 Likes on 0 Posts
Default
Bracket looks good, I might be interested. How high does the top of the alternator extend above the intake Manifold? ~3 inches??? A measurement from either the top of the MAF or maybe the top of the water pump would help me decide.

Thanks,
Michael
76TR6 is offline
Like
Old 01-04-2006, 04:37 AM
  #14
TECH Senior Member
Thread Starter
iTrader: (48)

smokinHawk's Avatar

Join Date: Jan 2002
Location: Columbus, ohio
Posts: 7,354
Likes: 0
Received 1 Like on 1 Post

Default
ok ill get that measurement later tonight
smokinHawk is offline
Like
Old 01-04-2006, 07:46 PM
  #15
TECH Senior Member
Thread Starter
iTrader: (48)

smokinHawk's Avatar

Join Date: Jan 2002
Location: Columbus, ohio
Posts: 7,354
Likes: 0
Received 1 Like on 1 Post

Default
Originally Posted by 76TR6
Bracket looks good, I might be interested. How high does the top of the alternator extend above the intake Manifold? ~3 inches??? A measurement from either the top of the MAF or maybe the top of the water pump would help me decide.

Thanks,
Michael
ok from the top of the throttle body to the highest point of the alternator is 2.75"
from the flat of the water pump (above the hose connection, the flat spot where they tap the truck water nossle at) is 7.25"
let me know if you want one or not.
smokinHawk is offline
Like
Old 01-05-2006, 08:23 PM
  #16
TECH Senior Member
Thread Starter
iTrader: (48)

smokinHawk's Avatar

Join Date: Jan 2002
Location: Columbus, ohio
Posts: 7,354
Likes: 0
Received 1 Like on 1 Post

Default
up still forsale.
smokinHawk is offline
Like
Old 02-14-2006, 10:02 PM
  #17
10 Second Club
iTrader: (1)

Darren P's Avatar

Join Date: Sep 2004
Location: Fairview NC (near Charlotte)
Posts: 717
Received 0 Likes on 0 Posts

Default
Is that a stock alternator
Darren P is offline
Like
Old 02-14-2006, 10:48 PM
  #18
10 Second Fun Car
iTrader: (7)

jlrz28's Avatar

Join Date: Nov 2002
Location: Pearland, Tx
Posts: 2,045
Likes: 0
Received 1 Like on 1 Post

Default
That would be great for all the road grime and water mine has seen, but I still have egr (required for emissions)so it doesnt appear to work with that
jlrz28 is offline
Like
Old 02-15-2006, 04:36 AM
  #19
TECH Senior Member
Thread Starter
iTrader: (48)

smokinHawk's Avatar

Join Date: Jan 2002
Location: Columbus, ohio
Posts: 7,354
Likes: 0
Received 1 Like on 1 Post

Default
Yes its the stock alternator.
i have seen a couple of people use that bracket and keep their egr, not sure how they moved things as i have long since removed mine.
my alternator stays alot cleaner up top.
smokinHawk is offline
Like
Old 02-15-2006, 09:00 AM
  #20
TECH Fanatic
iTrader: (20)

Ping King's Avatar

Join Date: Feb 2003
Location: PA
Posts: 1,631
Likes: 0
Received 9 Likes on 8 Posts

Default
ill take it...can you PM me with payment info?
