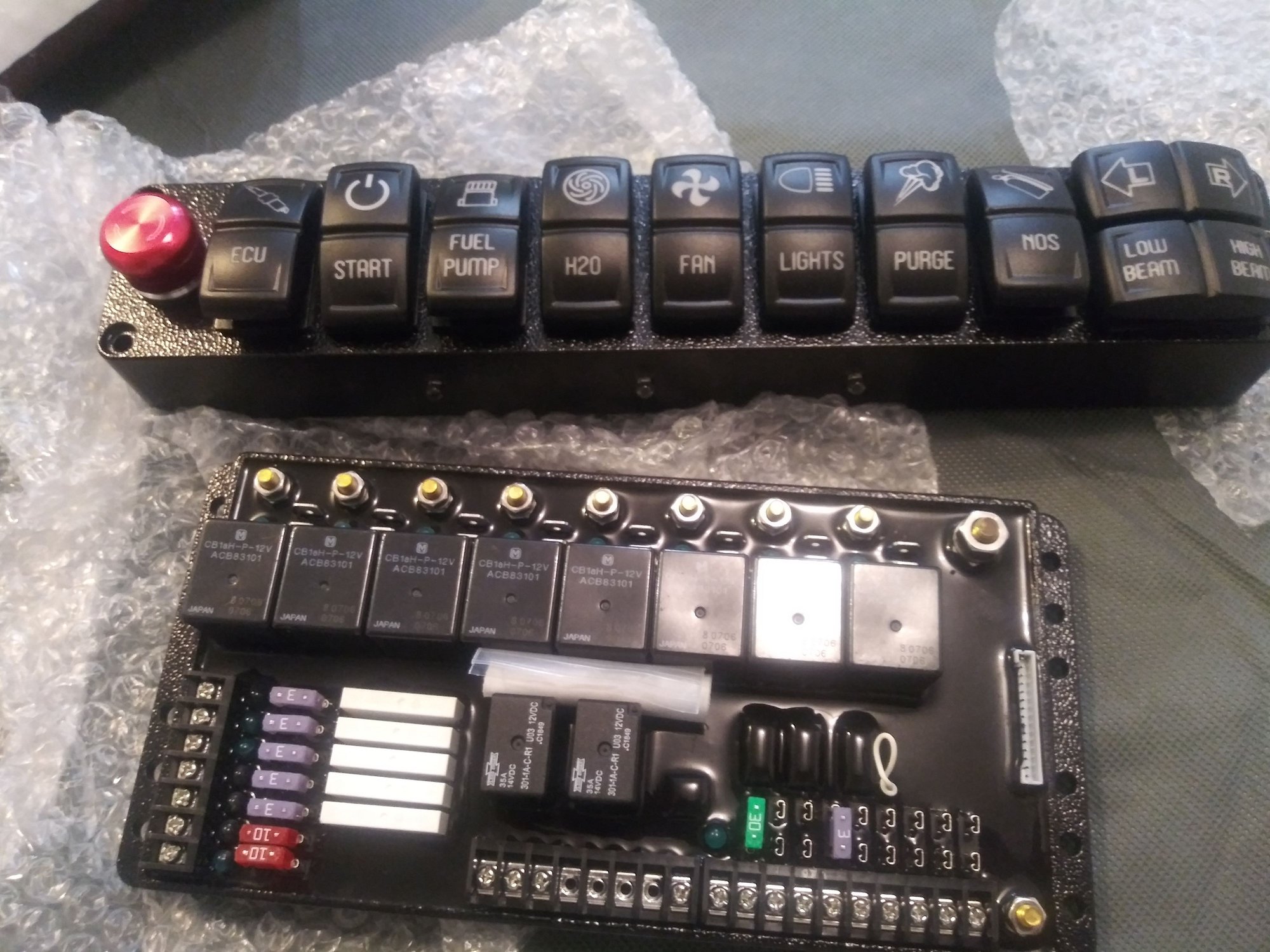

Street/Strip Switch Panel and Relay Module Combo
Brand NEW upgrade. Now the transbrake relay is a Solid State Relay. So the transbrake relay can be used as a normal transbrake relay or for transbrake bumping controller by a ECU like a Holley. Can also be setup for positive or negative trigger.
You will need to type in the box how you want the switches labeled. Note that the first switch is the ignition switch.
Street/Strip wiring board
features: 8x 70 amp relays with heavy duty fuse sockets (one with built in optional transbrake safety for use with nitrous system), fused transbrake relay. Fused lighting outputs including high beam headlights, low beam headlights, turn signal blinkers, brake light, park light, 3 fuse batt+ outputs, 5 fused ignition voltage outputs. Board measures 9.375" x 4.5", billet aluminium base. This is like my 8 relay board, prostreet board and single stage nitrous board all in one compact unit. J-case fuses not included.
You can now add a ESTOP button. This is a safety feature so in case of emergency you can reach your switch panel and push the button to kill power to the switch panel
so that everything its controlling will shut off. It's easier than trying to flip all the rockers off in a hurry.
You will need to type in the box how you want the switches labeled. Note that the first switch is the ignition switch.
Street/Strip wiring board
features: 8x 70 amp relays with heavy duty fuse sockets (one with built in optional transbrake safety for use with nitrous system), fused transbrake relay. Fused lighting outputs including high beam headlights, low beam headlights, turn signal blinkers, brake light, park light, 3 fuse batt+ outputs, 5 fused ignition voltage outputs. Board measures 9.375" x 4.5", billet aluminium base. This is like my 8 relay board, prostreet board and single stage nitrous board all in one compact unit. J-case fuses not included.
You can now add a ESTOP button. This is a safety feature so in case of emergency you can reach your switch panel and push the button to kill power to the switch panel
so that everything its controlling will shut off. It's easier than trying to flip all the rockers off in a hurry.
