This may sounds like a simple and dumb question but I'm trying to figure out what's right and what's wrong with this swap I'm working on, i did the swap its completely done and running.
Tuner told me he's having some weird signals coming in and assumes my wiring is messed up somewhere, I've checked using a fancy snap on diagnostic tool, all the live data from all my sensors looking for abnormal reading or spikes, cant find any.

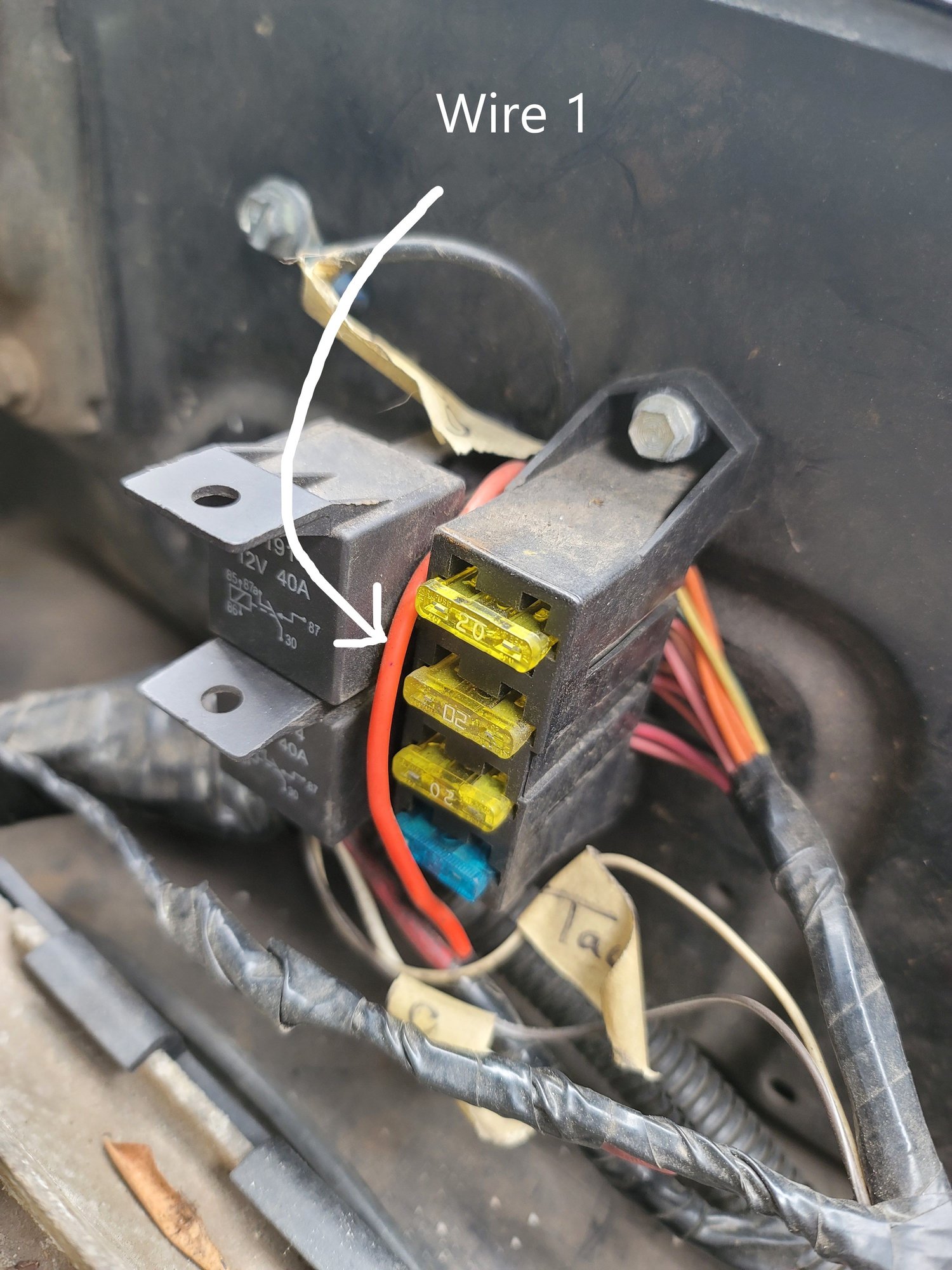

only thing i can think of if having my fuse in a wrong spot would somehow affect my PCM behavior. The red wire labeled wire 1 in the picture is connected to the battery with a inline 25A fuse, and is split before it goes into the fuse block and 1 part goes into the 12v ignition wire, that goes to the ignition to trigger the starter. my questions are, is this wrong? do I need a fuse for this wire? what does this wire power, is it the main power for the entire engine coil packs and all? what should this wiring setup look like. Thanks for any input I'm pretty new to the LS swap world.
