Alright so I went to speedway last night and they have just what I needed. Ended up with 17" swedge tubes for the LCA's which put me right at 19.5inch center to center. I just need to cut an 1/8in or so off and they will be perfect.
For the PHB they have tie rod / drag link bars that come in 1/2inch increments center to center and they have 43.5 which is exactly what I need. I got the wrong Heims last night so I'm going over lunch to get the right stuff.

Oct 20, 2015 | 10:16 AM

#22

Corvett z07

TECH Enthusiast

iTrader: (2)

Joined: Aug 2014

Posts: 549

Likes: 0

From: Ft. Wayne, IN

Interested in this little project of yours, bought a used panhard rod with new lower control arms for a good price. Wondering how much you'll end up putting into it...

Oct 20, 2015 | 02:21 PM

#23

96LT1Z

Thread Starter

TECH Regular

Joined: May 2013

Posts: 467

Likes: 2

From: Lincoln NE

I spent just at like $140 for all three bars, 3 of each RH and LH Heims. The Heims are pretty nice too. And jam nuts. Only thing they didn't have for me is the spacers for each side of the heim, which I'm making today. So I just need to cut about 1/8-1/4 off of the LCA swedge tubes and they'll be perfect.
I ended up going with 5/8 tubes, so my Heims are 5/8 shank with a 1/2 thru hole.
I'll update once I get it all on

Oct 20, 2015 | 02:31 PM

#24

96LT1Z

Thread Starter

TECH Regular

Joined: May 2013

Posts: 467

Likes: 2

From: Lincoln NE

The Heims are the expensive part... The bars only cost me like 50$ I think. The Heims I got are pretty nice and added up quick

Oct 20, 2015 | 04:25 PM

#25

MidwestChassis2

TECH Fanatic

iTrader: (1)

Joined: Jan 2015

Posts: 1,504

Likes: 39

Standard LCA/PHB is 3/4 x 3/4 and a step bushing is used. With the heim joint we use a teflon lined version to help keep down the noise.

Oct 20, 2015 | 05:10 PM

#26

96LT1Z

Thread Starter

TECH Regular

Joined: May 2013

Posts: 467

Likes: 2

From: Lincoln NE

Oh ok, how do you fit a 3/4 bolt through the holes on the chassis? Do you have to drill the holes out? Because the stock LCA holes are 1/2

Oct 21, 2015 | 08:10 AM

#27

MidwestChassis2

TECH Fanatic

iTrader: (1)

Joined: Jan 2015

Posts: 1,504

Likes: 39

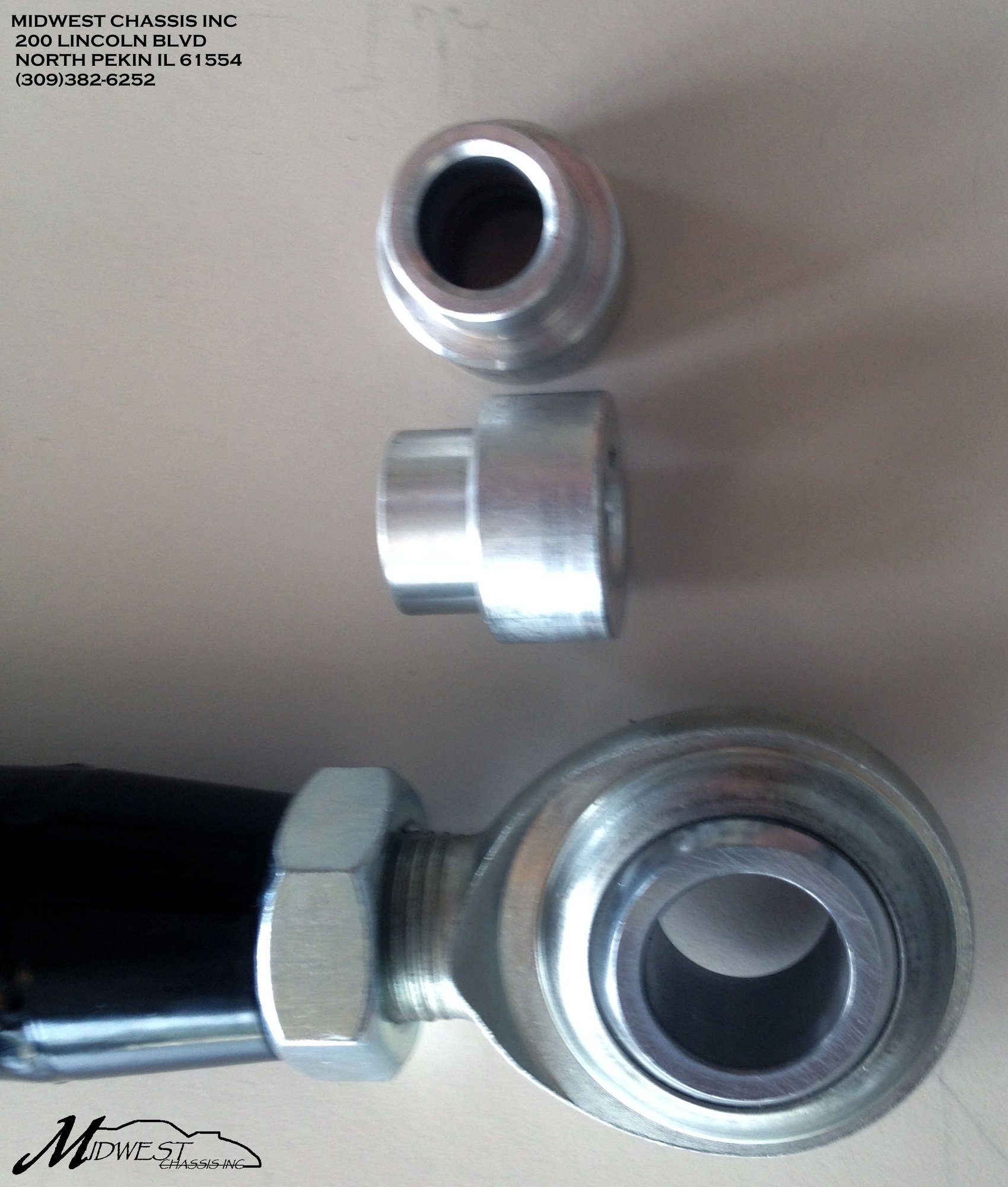

This is a step bushing.

Oct 21, 2015 | 09:48 AM

#28

96LT1Z

Thread Starter

TECH Regular

Joined: May 2013

Posts: 467

Likes: 2

From: Lincoln NE

Oh ok. So you still use the 1/2 bolt?
I'm not confused on why the stepped bushing is necessary?

LS1 Tech Stories

The Best V8 Stories One Small Block at Time

Topdon ONE vs. Artidiag 800 BT2: Which is the Diagnostic Tablet For You?

Pouria Savadkouei

Gas Monkey Built a 6-Wheel Ferrari Testarossa With a Corvette LT4 Engine

Verdad Gallardo

7 Most Reliable High-Performance Engines GM Has Ever Built

Verdad Gallardo

Amazing '71 Camaro Restomod Is Modern Muscle Car Under the Skin

Verdad Gallardo

6 Common C5 Corvette Failures and What's Involved In Repairing Them

Pouria Savadkouei

Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph

Verdad Gallardo

Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked

Pouria Savadkouei

Top 10 Most Powerful Chevy Trucks Ever Made!

Hennessey's New Supercharged Silverado ZR2 Has 700 HP

Verdad Gallardo

Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes

Verdad Gallardo

Oct 21, 2015 | 10:19 AM

#29

UMI Tech

Banned

Joined: Oct 2009

Posts: 419

Likes: 8

The rod ends should have a 3/4" hole in them.

The bushings go in to make the hole 2.4" wide so it fits in the car. Or 1.875" wide for the PHB. You can use a 12mm bolt (factory) or a 1/2" bolt as the spacers are slightly oversize.

http://umiperformance.com/catalog/in...x&cPath=13_222

ramey

Last edited by UMI Tech; Oct 21, 2015 at 10:19 AM. Reason: added link

Oct 21, 2015 | 10:22 AM

#30

96LT1Z

Thread Starter

TECH Regular

Joined: May 2013

Posts: 467

Likes: 2

From: Lincoln NE

So the bushing goes inside the rod end?

Oct 21, 2015 | 10:23 AM

#31

UMI Tech

Banned

Joined: Oct 2009

Posts: 419

Likes: 8

Yes, slides right in. 2 pieces required in each rod end.

Oct 21, 2015 | 11:20 AM

#32

96LT1Z

Thread Starter

TECH Regular

Joined: May 2013

Posts: 467

Likes: 2

From: Lincoln NE

Alright that makes sense. So I should use 3/4 shank and 3/4 bolt hole Heims. Then also 3/4 swedge tubes. Yet still use 1/2 or 12mm bolt like you said?

Oct 21, 2015 | 11:21 AM

#33

UMI Tech

Banned

Joined: Oct 2009

Posts: 419

Likes: 8

Yup. That's the recipe.

Oct 21, 2015 | 12:28 PM

#34

96LT1Z

Thread Starter

TECH Regular

Joined: May 2013

Posts: 467

Likes: 2

From: Lincoln NE

Hmm I might pick up a couple bushing from you guys. For both Panhard and LCA
What would you need the sleeve for? I used a sleeve when I put on the relocation brackets, but that should be in?

Oct 21, 2015 | 12:31 PM

#35

UMI Tech

Banned

Joined: Oct 2009

Posts: 419

Likes: 8

A car would take Qty 8 of 2016A.

http://umiperformance.com/catalog/in...roducts_id=486

And Qty 4 of 2021A.

http://umiperformance.com/catalog/in...roducts_id=485

No additional sleeves would be required. If you have sleeves in the car already they are anti-crush to replace the place where the arms originally were...

Oct 21, 2015 | 04:17 PM

#36

dailydriver

12 Second Club

Joined: Sep 2005

Posts: 4,273

Likes: 0

From: Bucks County, Pa.

Quote:

Originally Posted by 96LT1Z

Alright so I went to Speedway last night and they have just what I needed.

You must be practically across the street from them, correct?

Oct 21, 2015 | 05:14 PM

#37

96LT1Z

Thread Starter

TECH Regular

Joined: May 2013

Posts: 467

Likes: 2

From: Lincoln NE

Just about lol
They're going to be tired of seeing me..

Oct 26, 2015 | 12:59 PM

#38

MidwestChassis2

TECH Fanatic

iTrader: (1)

Joined: Jan 2015

Posts: 1,504

Likes: 39

I appreciate the LCA order. If you need anymore help please let me know.

Oct 26, 2015 | 01:32 PM

#39

96LT1Z

Thread Starter

TECH Regular

Joined: May 2013

Posts: 467

Likes: 2

From: Lincoln NE

Quote:

Originally Posted by MidwestChassis2

I appreciate the LCA order. If you need anymore help please let me know.

You guys were awesome to work with, and were extremely competitive with pricing. I will be recommending you guys and will most definitely do business with you again.
