Wheels & Tires Forged | Billet | Cast | Radials | Slicks

Are these OEM?

Thread Tools

Search this Thread

Old Aug 19, 2019 | 02:44 PM
  #1
98MNBZ28's Avatar
Thread Starter
TECH Resident
15 Year Member
Photogenic
Photoriffic
Shutterbug
iTrader: (21)

Joined: Feb 2007
Posts: 848
Likes: 2
From: Gainesville,FL/Riverdale, GA
Default Are these OEM?

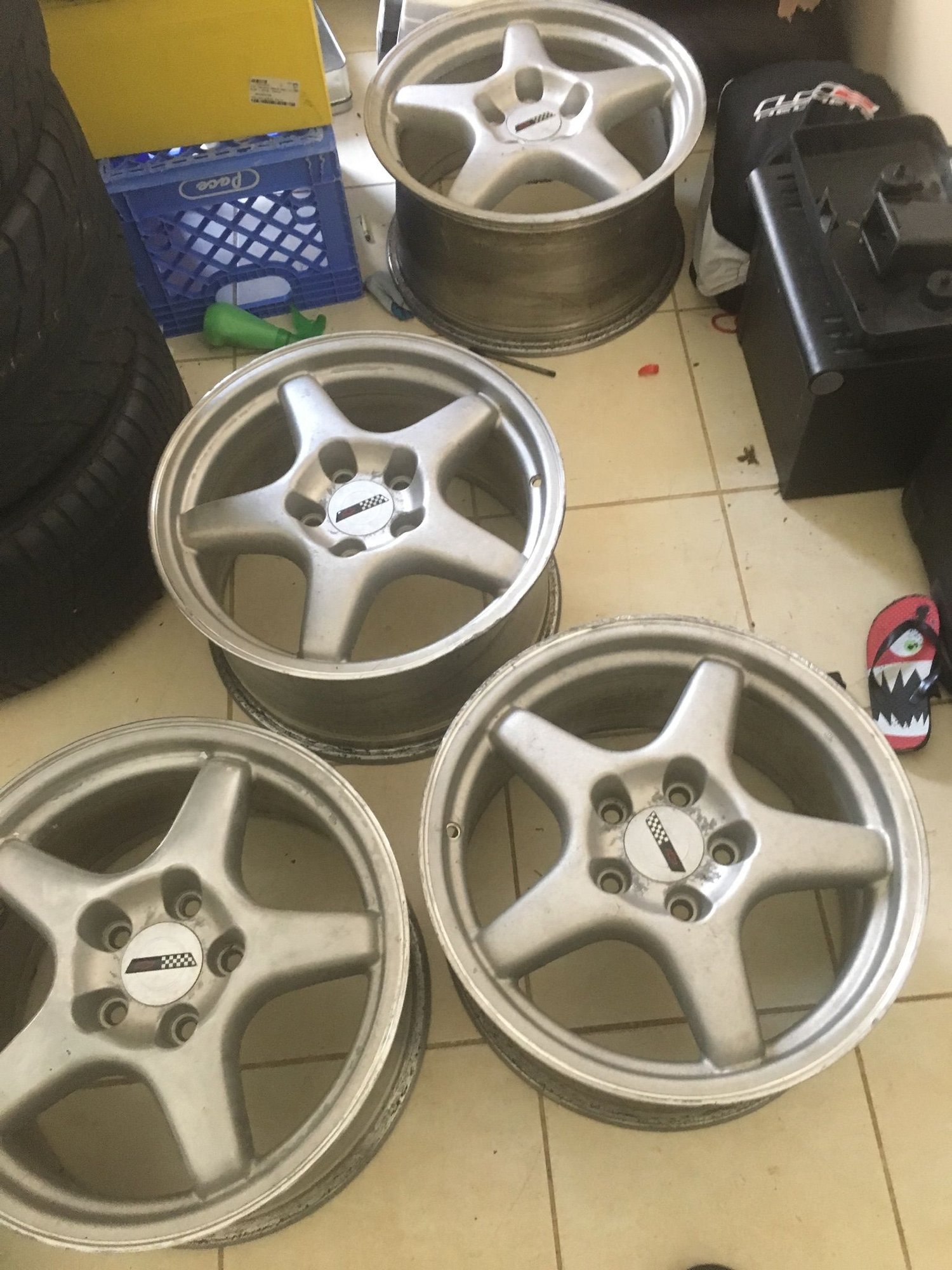

Have these ZR1 wheels and trying to find if OEM or aftermarket

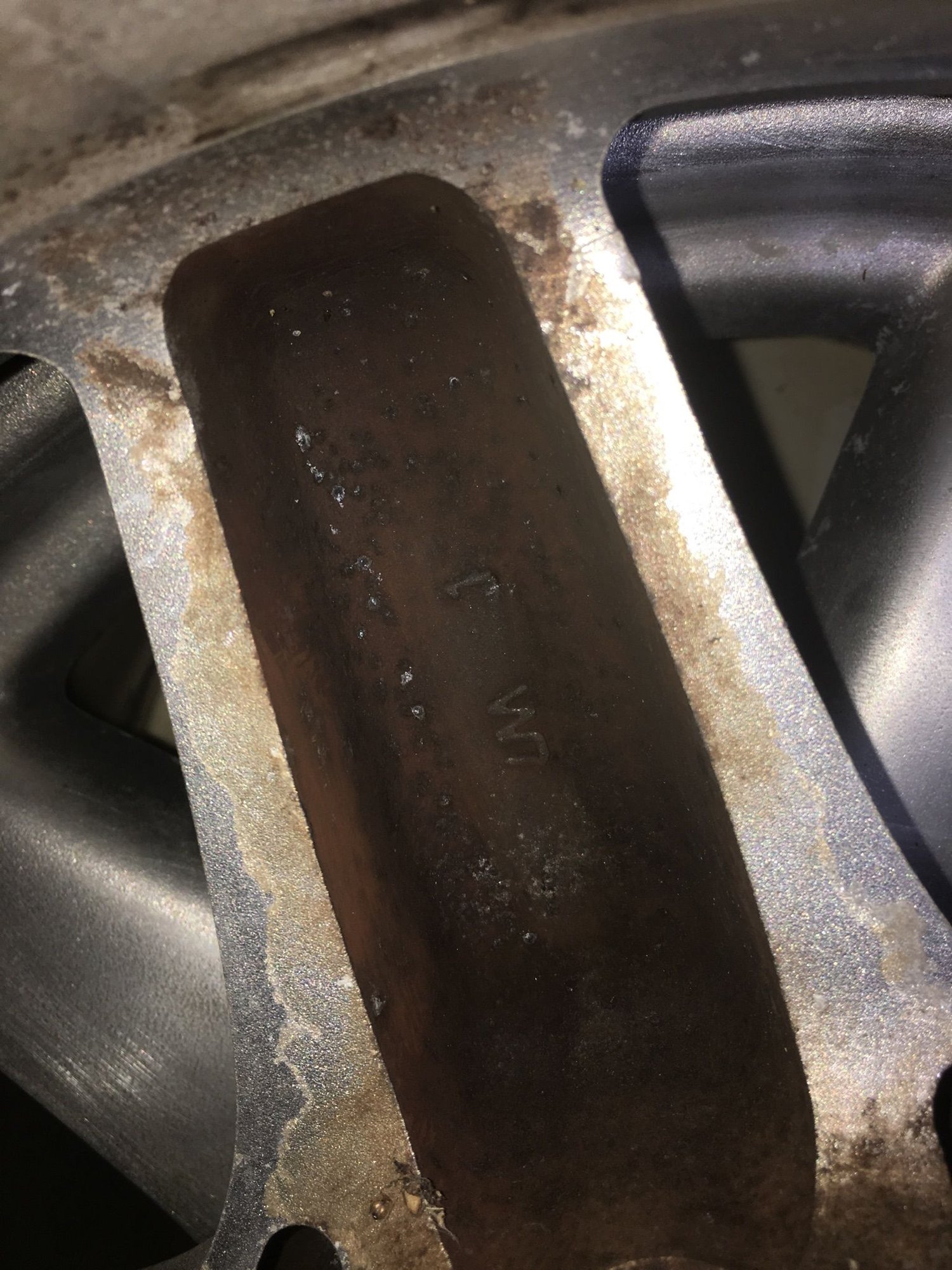

there is also JPN on a backside spoke and JWL on the front inner rim. TIA
Reply
Old Aug 19, 2019 | 06:02 PM
  #2
Z28 6spd's Avatar
On The Tree
10 Year Member
Photogenic
iTrader: (3)

Joined: Oct 2013
Posts: 196
Likes: 5
From: New Windsor, NY
Default

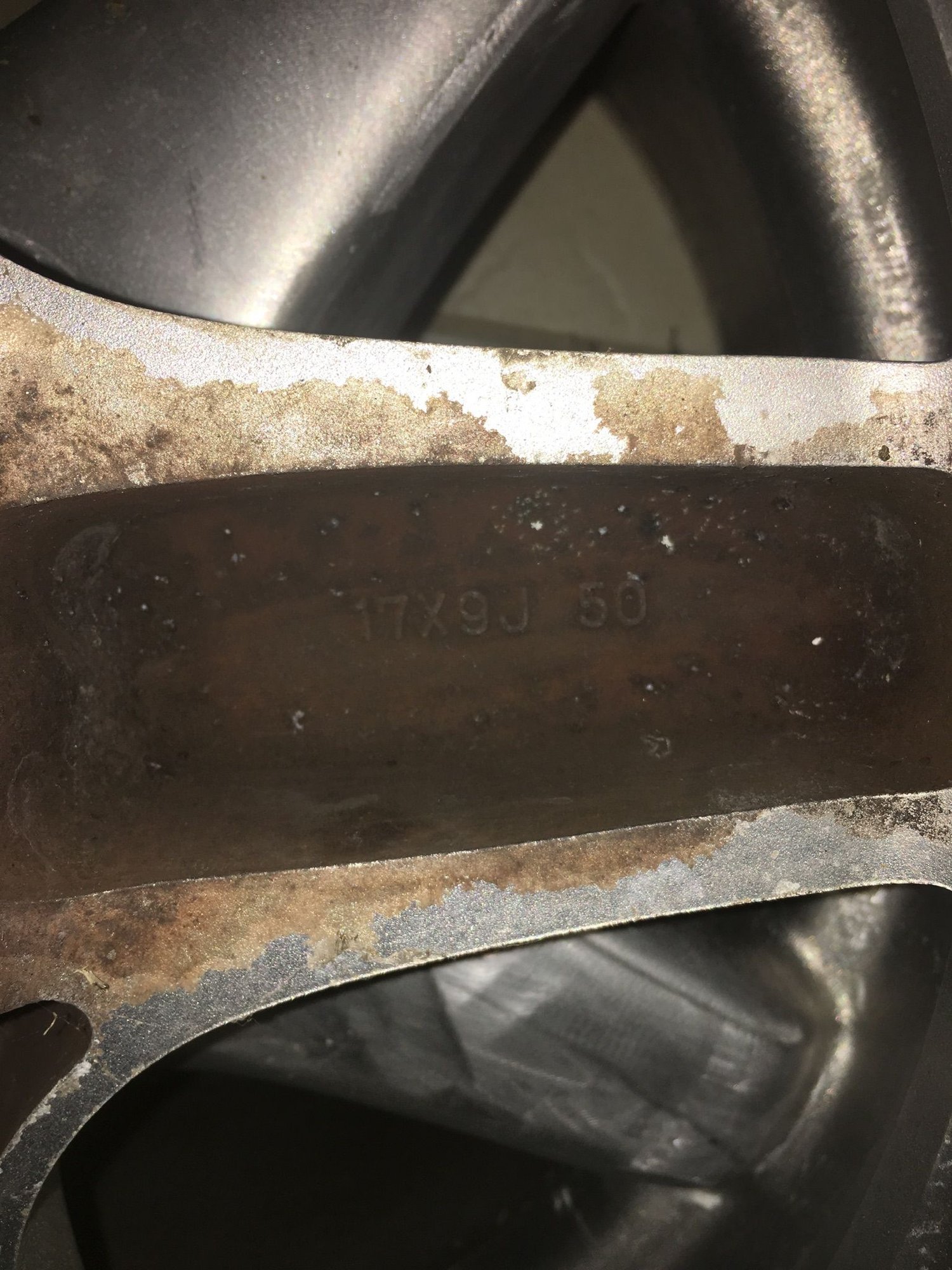

They appear to be OEM wheels by the 17x9J 50 numbers. The 50 meaning 50mm offset which was factory sizing, the aftermarkets were a slightly different offset. Also look for a part number starting with 959 which is common prefix for GM wheels. I have original chrome ZR1's that have 9592880 on the back.
Reply
Old Aug 21, 2019 | 06:08 AM
  #3
RPM WS6's Avatar
LS1Tech Administrator
20 Year Member
Shutterbug
Community Builder
Community Influencer
iTrader: (3)

Joined: Nov 2001
Posts: 34,628
Likes: 2,547
From: Schiller Park, ILL Member: #317
Default

I agree with the "17x9J 50" marking being found on OEM versions however, at least for the '98-'99 years, the OEM silver painted ZR1 style SS wheels had an embossed "GM" logo on the face between the spokes. I can't remember for certain if this same GM marking was present on the '96-'97 issued versions.

I do agree that the 9" wide, 50mm offset version is usually OEM, as the vast majority of aftermarket versions used the C4 Corvette sizing of 9.5" wide, 56mm offset. However, there was a time (~15 years ago) when the OEM SS sizing of 17x9, 50mm offset was available in aftermarket reproduction.

The spoke design and extent of lip polishing would also suggest either an OEM wheel or an older reproduction (newer versions use a slightly more squared off spoke and typically have a greater surface area of the lip polished).

The chrome version mentioned by Z28_6spd above was a slightly different situation; these were optional Y2Y content via SLP, but not offered directly by GM off the assembly line. So you could order the car new with them, but it was supplemental SLP content and I don't seem to recall those versions having the embossed GM logo.
Reply
