Has anyone ever had the pleasure of replacing padded dash on gen4 z28? It seems as though the harness has to be routed from fuse box to right hand kick panel, going across the dash weaving in and out of the metal support, it has to be exactly correct or it won’t go back together, can’t find any info or diagrams on “how to” if you’ve done this job and know how to I’d really appreciate some input



Anybody know where I could find 2000 Camaro dashboard wire harness routing diagram? Don’t need to know where specific wires go but need to know how the entire loom goes in from the rear of the fuse panel. It’s a very specific route and I didn’t take pics removed the cracked up dash pad…..major mistake.



Did you ever find a reference for this?

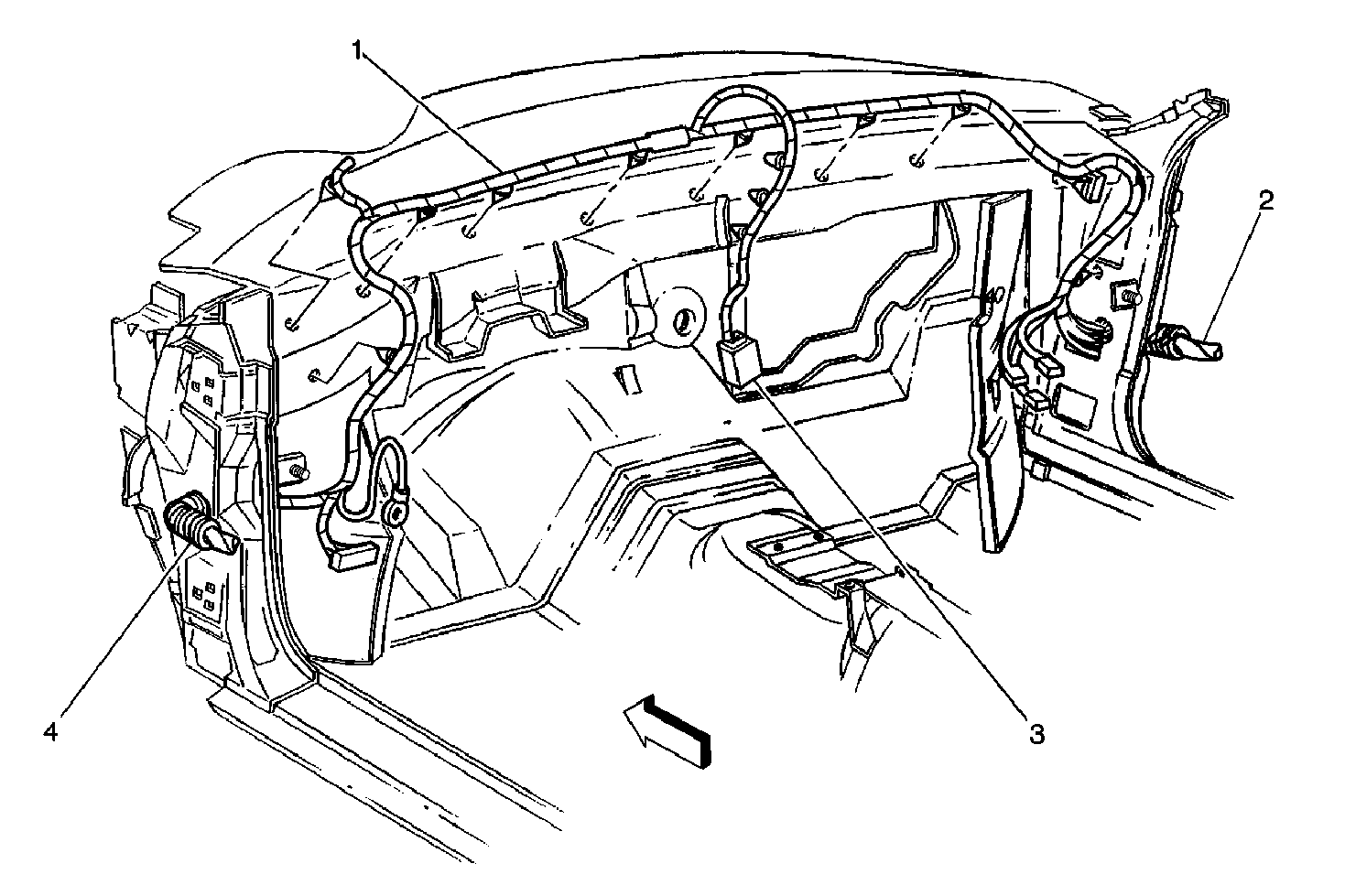

This is the best I could find. It's from the factory service manual.



1 - Crosscar harness
2 - P600
3 - Power Window Control Module
4 - P500
