Well how do you think it turned out? Is the light distribution/ cutoff better? I've read I can use a piece of a pop can glued on with high heat silicon and painted with high heat paint, and that's what I was planning on doing to change my cutoff.
Copy & Paste Moderator
Joined: Apr 2002
Posts: 9,764
Likes: 208
From: Eastern MA
I do like the new square-stepped cut-off better. Its not as sharp as the old cut-off but its not that much different. There is a little more blue at the edge too (which some people strive for, but I'm looking for a decently sharp cut-off). I was able to drive with it yesterday and today. It is an improvement. I'll have to take pics to show you. I don't know where/when though. It looks kinda funny too with the driver-side square-stepped and the passenger-side the original slant (I'm going to change that one too when I'm able to).
I think I've read the same thread you read about using a pop can and high heat silicon.
I think I've read the same thread you read about using a pop can and high heat silicon.
Copy & Paste Moderator
Joined: Apr 2002
Posts: 9,764
Likes: 208
From: Eastern MA
My brother and I modified the passenger-side cut-off today.
It still needs adjustment though.
The driver-side is square-stepped and the passenger side is straight.
Here is a preview.

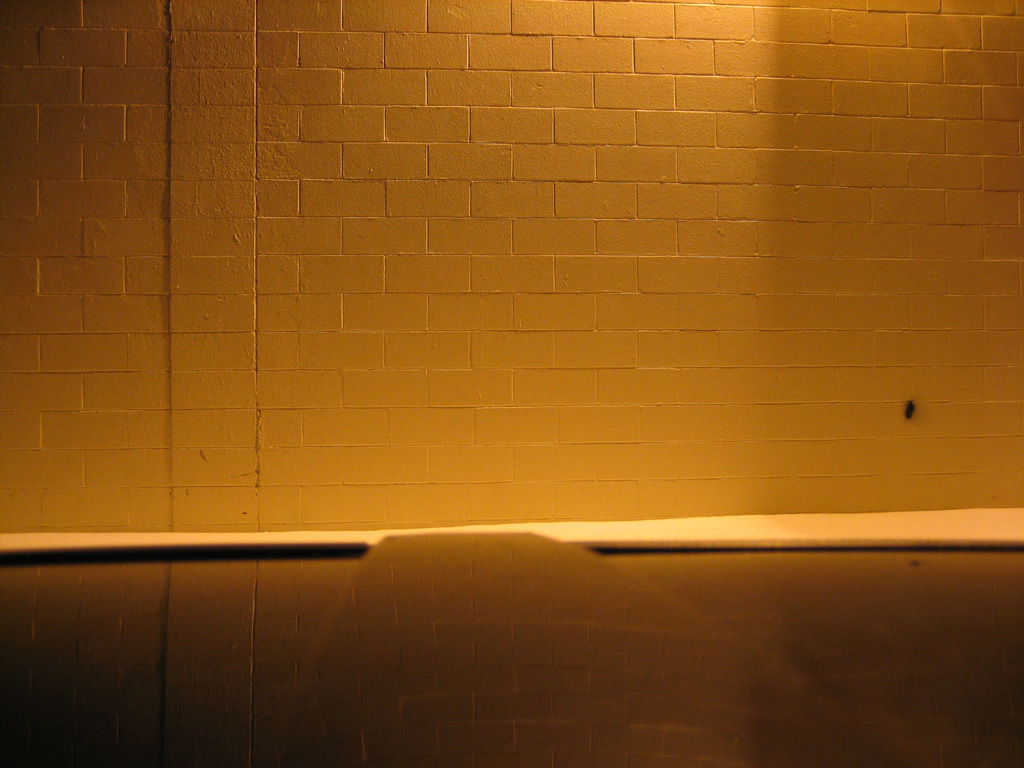

No Lights, for reference:
(The white stuff on the ground is snow
)
http://www.fadingarrow.com/images/Ne...1_NoLights.jpg
Low Beam Only:
http://www.fadingarrow.com/images/Ne...wBea0mOnly.jpg
The passenger-side can be made sharper (I could have sworn I had it sharper than that before I installed it on the car). I'll have to disassemble it again to adjust.
I did test before closing it up, but I guess it moved before I tightened it all down or maybe I hit it. Oh well. Maybe I'll tackle it tomorrow.
BTW, the black bit on the wall appears to be a scorch mark.
It still needs adjustment though.
The driver-side is square-stepped and the passenger side is straight.
Here is a preview.
No Lights, for reference:
(The white stuff on the ground is snow
)http://www.fadingarrow.com/images/Ne...1_NoLights.jpg
Low Beam Only:
http://www.fadingarrow.com/images/Ne...wBea0mOnly.jpg
The passenger-side can be made sharper (I could have sworn I had it sharper than that before I installed it on the car). I'll have to disassemble it again to adjust.
I did test before closing it up, but I guess it moved before I tightened it all down or maybe I hit it. Oh well. Maybe I'll tackle it tomorrow.BTW, the black bit on the wall appears to be a scorch mark.
Last edited by VIP1; Dec 22, 2007 at 06:29 PM.
Looks like the driver's side needs more work on making it sharper than the passenger side (assuming that the left side of the pic is the driver's side with the stepped cutoff). The passenger side looks much more crisp.
Copy & Paste Moderator
Joined: Apr 2002
Posts: 9,764
Likes: 208
From: Eastern MA
Even before I modified it, the driver-side wasn't much sharper than that. The passenger side was always sharper. I think its the lens. The driver-side is done. The orange flare in the middle of the the passenger-side can be removed though. I thought I had removed that flare. I'll have to open it up again and adjust it.
Are those ebay kits that bad? I was going to look into a set for my Jeep beater. Some say without the projector housing its worthless. As long as it works... I really dont care what brand it is
