torque converter to flexplate problems
Thread Starter
On The Tree
Joined: Mar 2007
Posts: 150
Likes: 0

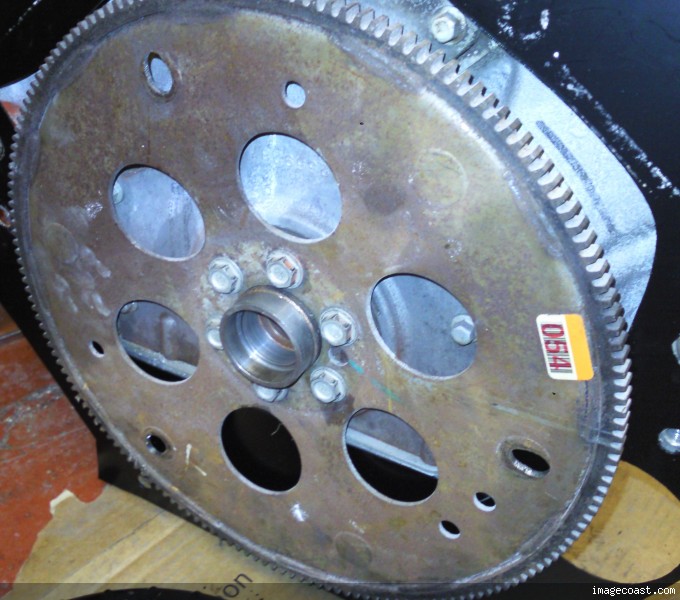

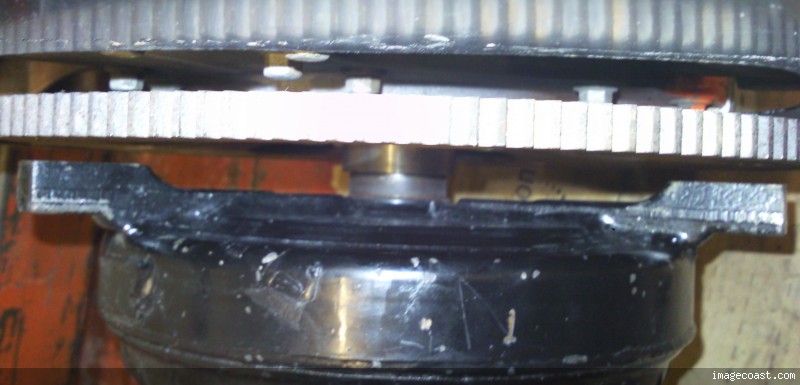

torque converter to flexplate problems i have fitted a th350 to my 2001 ls1 engine along with a tci 8'' race converter, problem is now that the box is fitted the tc has gone tight and wont turn freely i made sure the tc clicked three times when i fitted it, i have the hughes pilot adaptor fitted also there is a space between the flexplate and tc of about 1cm im thinking maybe the flexplate is wrong. thanks in advance
[IMG]
[/IMG]
[IMG]
[/IMG] Not sure I understand everything correctly. It looks like you have to much clearance but you said the converter will not turn?
Which flex-plate are you using? Is there any spacer between the crank and flex-plate?
Chris
Which flex-plate are you using? Is there any spacer between the crank and flex-plate?
Chris
I have never been a big fan of crank pilot spacers. I would get a converter that already has the proper pilot on it for the engine application. If I had to guess the pilot is what is binding. However you have way to much of a gap between the flexplate and the converter pad if in fact it is 1cm. I would get with the manufacture of the converter to see what the build height should be. Also before you remove the trans use a 3/16 drill bit to use a a gauge to see how much space is there. Go larger or smaller to figure out where you are really at. Can you pull the converter forward at all?
I had a similar problem, run some emery cloth over the pilot to get off any paint/rust/burrs. Also run some inside the crank journal, rust loves to form there and with such tight tolerances it will cause it to bind. Also run some grease in there.
Either that or the spacer is wrong.
Either that or the spacer is wrong.
Trending Topics
looks like the pilot is bound.
Greg
Greg
__________________
FTI COMPETITION CONVERTERS AND TRANSMISSIONS
"IT'S NOT CHEATING, IT'S THE COMPETITIVE EDGE."
1-866-726-8358
info@ftiperformance.com
FTIPerformance.com
FTI Converter build sheet
FTI COMPETITION CONVERTERS AND TRANSMISSIONS
"IT'S NOT CHEATING, IT'S THE COMPETITIVE EDGE."
1-866-726-8358
info@ftiperformance.com
FTIPerformance.com
FTI Converter build sheet
LS1 Tech Stories
The Best V8 Stories One Small Block at Time
6 Common C5 Corvette Failures and What's Involved In Repairing Them
Pouria Savadkouei
Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph
Verdad Gallardo
Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked
Pouria Savadkouei
Top 10 Most Powerful Chevy Trucks Ever Made!
Hennessey's New Supercharged Silverado ZR2 Has 700 HP
Verdad Gallardo
Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes
Verdad Gallardo
Awesome K5 Blazer Restomod Comes With C7 Corvette Power
Verdad Gallardo
10 Camaros You Should Never Buy
10 LS Engine Myths That Refuse to Die
Verdad Gallardo
seriously, something is up with the pilot.......
FormerVendor
Joined: Feb 2002
Posts: 430
Likes: 0
From: Falkner, MS
Try removing the spacer and see if the converter fits flush to the flexplate. You should also measure the distance from the end of the converter pilot to the mounting pads. It should be 3/16". If it's more than that, the converter may already have a pilot extension on it. Hope this helps.
I think it might be the wrong flex-plate. The F-bods LS style flex-plate should have a curve to it. The hight from the crank surface to the converter surface should be about 0.550"-0.600". They vary a little since they are stamped. I grabbed somepics from the internet, hope they help.
Chris
LS Style OE Flex-plate - this is the CAT version, but same idea as OE
TCI LS style flex plate. It is flat but they weld spacers on to get the height correct.
This is a LS style truck Flex-plate. It uses a spacer between the crank and flex-plate. This is taken from the engine side.
You might be able to just add the spacer to solve your problem. It also duplicates the crank diameter so you would eliminate the need for the adapter.
Chris
LS Style OE Flex-plate - this is the CAT version, but same idea as OE
TCI LS style flex plate. It is flat but they weld spacers on to get the height correct.
This is a LS style truck Flex-plate. It uses a spacer between the crank and flex-plate. This is taken from the engine side.
You might be able to just add the spacer to solve your problem. It also duplicates the crank diameter so you would eliminate the need for the adapter.
Thread Starter
On The Tree
Joined: Mar 2007
Posts: 150
Likes: 0
hi i have managed to sort the jammed tc turned to be that the pilot had an extension on it which i cut down to size now it turns freely and i can move it backwards and forwards , now if i push it all the way in to the box i have about between 3-4/16'' between the flexplate and the tc pads, is that right?
