O2 sensor wiring
Thread Starter
On The Tree
Joined: Mar 2011
Posts: 153
Likes: 1
From: Granite City, IL
O2 sensor wiring While wiring in my fuse/relay panel I just noticed that pulled all the O2 sensor wiring from my harness by mistake when getting rid of all the wires i didnt need. Could you guys help me tie these 2 sensors back into the harness... I know its 4 wires per side but could you let me know which pin location each wire goes to on the PCM connector. Thanks!
Engine is a 5.3 out of a 2002 GMC Sierra in a 1985 Cutlass
Engine is a 5.3 out of a 2002 GMC Sierra in a 1985 Cutlass
2002 Came with case ground or isolated ground. If i remember correctly pcm does not care what one you use just make sure you wire it properly for your O2 sensors.

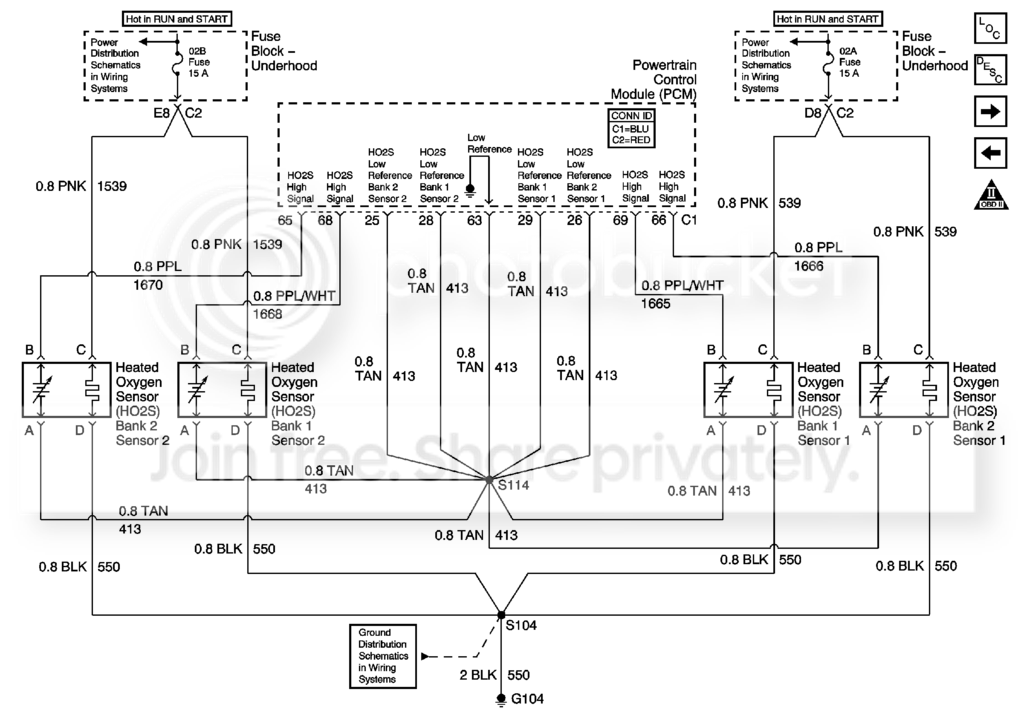

2002 O2 sensors Isolated ground
0
0

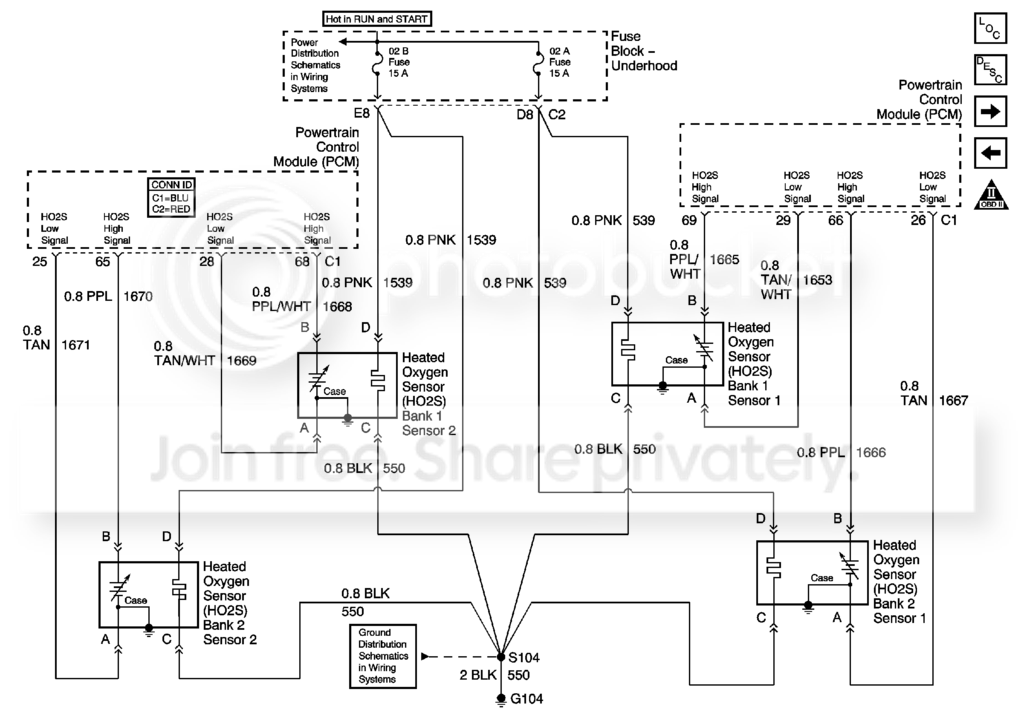

2002 O2 sensors case ground
2002 O2 sensors Isolated ground
0
0
2002 O2 sensors case ground
