Silverado 2006 HD2500 = DBW?

Was the Silverado 2006 2500HD a DBW or DBC from factory?

Oct 29, 2017 | 08:28 PM

mjollnir

Thread Starter

On The Tree

Joined: Jan 2010

Posts: 177

Likes: 1

From: Belgium

Bonus question: does the TAC (integrated in the pedal) connect directly to the TB or is there interconnection through the ECU?

I can't find a 6 pins connector on my harness nor any DBW indications in my ECU schematics

Oct 29, 2017 | 08:29 PM

CattleAc

TECH Fanatic

iTrader: (7)

Joined: Dec 2007

Posts: 1,644

Likes: 429

From: Dakota Territory

DriveByWire

Oct 29, 2017 | 08:38 PM

mjollnir

Thread Starter

On The Tree

Joined: Jan 2010

Posts: 177

Likes: 1

From: Belgium

Thanks CattleAc

I followed pin 15 from Blue Connector. That leads to a Delphi connector with 3 wires while a TAC module for a 2005 Silverado has 6 pins. What's wrong here?

Oct 29, 2017 | 08:42 PM

CattleAc

TECH Fanatic

iTrader: (7)

Joined: Dec 2007

Posts: 1,644

Likes: 429

From: Dakota Territory

Your throttle pedal assy, "APPS" should have wires that go to the "TAC" module.

The TAC module should have wires going to the electronic throttle body, and the PCM.

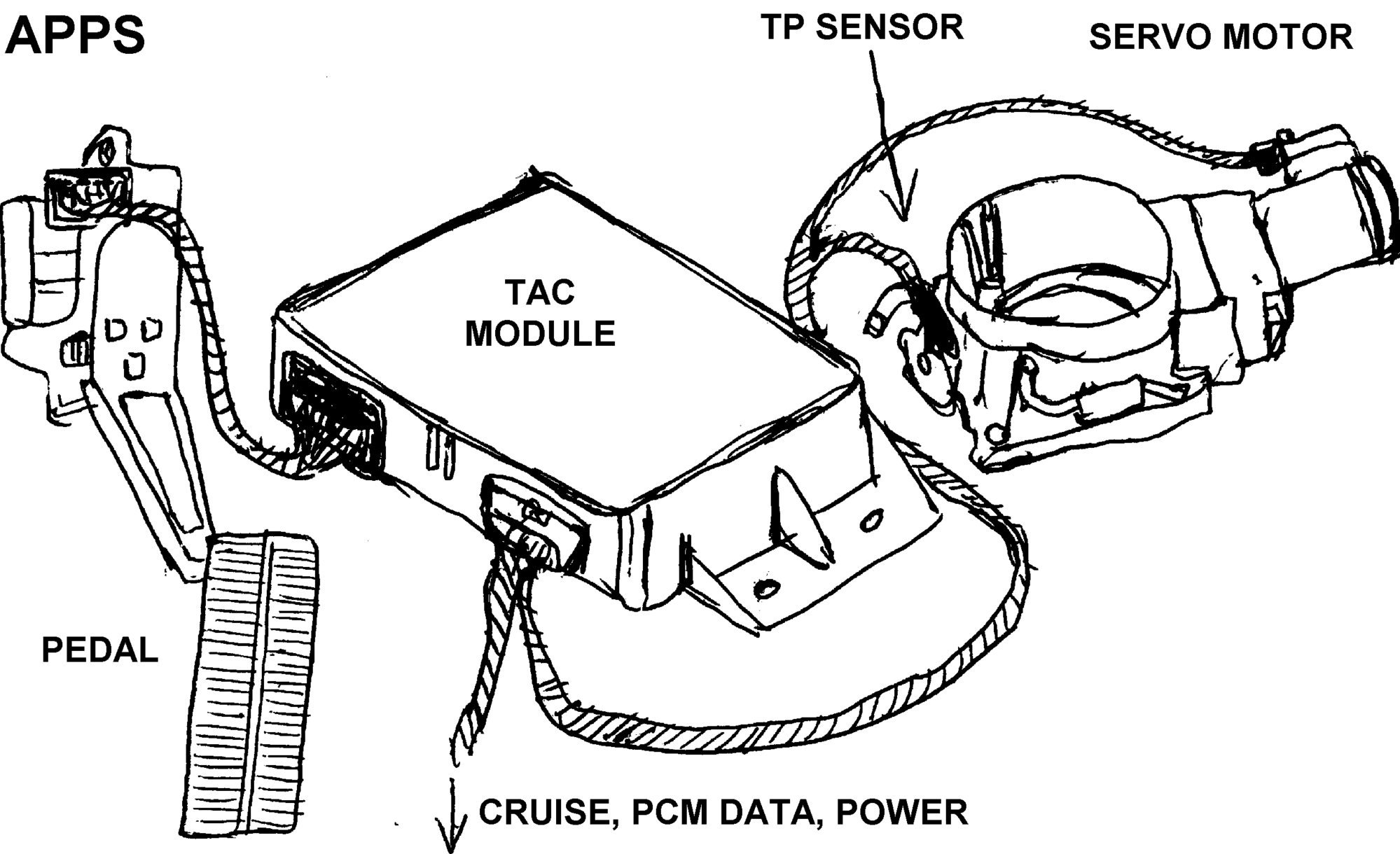

Crude drawing...

Oct 29, 2017 | 08:44 PM

mjollnir

Thread Starter

On The Tree

Joined: Jan 2010

Posts: 177

Likes: 1

From: Belgium

Oct 29, 2017 | 08:55 PM

CattleAc

TECH Fanatic

iTrader: (7)

Joined: Dec 2007

Posts: 1,644

Likes: 429

From: Dakota Territory

Quote:

Originally Posted by mjollnir

I followed pin 15 from Blue Connector. That leads to a Delphi connector with 3 wires while a TAC module for a 2005 Silverado has 6 pins. What's wrong here?

What color are the 3 wires?

There should be three wires you don't need that are for the cruise control. Grey, Grey/Black, Dark Blue...

Amazing '71 Camaro Restomod Is Modern Muscle Car Under the Skin

Verdad Gallardo

6 Common C5 Corvette Failures and What's Involved In Repairing Them

Pouria Savadkouei

Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph

Verdad Gallardo

Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked

Pouria Savadkouei

Top 10 Most Powerful Chevy Trucks Ever Made!

Hennessey's New Supercharged Silverado ZR2 Has 700 HP

Verdad Gallardo

Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes

Verdad Gallardo

Awesome K5 Blazer Restomod Comes With C7 Corvette Power

Verdad Gallardo

10 Camaros You Should Never Buy

10 LS Engine Myths That Refuse to Die

Verdad Gallardo

Oct 29, 2017 | 09:42 PM

CattleAc

TECH Fanatic

iTrader: (7)

Joined: Dec 2007

Posts: 1,644

Likes: 429

From: Dakota Territory

I don't see any wires with that color for the drive by wire wiring.

Would you have a picture of what your working with??

Oct 30, 2017 | 09:06 PM

#10

mjollnir

Thread Starter

On The Tree

Joined: Jan 2010

Posts: 177

Likes: 1

From: Belgium

Pin 15 from PCM BLUE is the blue/white wire you see on that connector

Oct 30, 2017 | 09:47 PM

#11

brandon6.0

TECH Addict

iTrader: (32)

Joined: Dec 2009

Posts: 2,331

Likes: 29

From: Glennville, GA.

If that harness come from a 4x4 truck that would be your 4x4 front diff pigtail. Not needed on a 2wd swap.

Oct 30, 2017 | 09:49 PM

#12

CattleAc

TECH Fanatic

iTrader: (7)

Joined: Dec 2007

Posts: 1,644

Likes: 429

From: Dakota Territory

Pretty sure that's the Crank Position Sensor connector...

Oct 31, 2017 | 07:04 AM

#13

mjollnir

Thread Starter

On The Tree

Joined: Jan 2010

Posts: 177

Likes: 1

From: Belgium

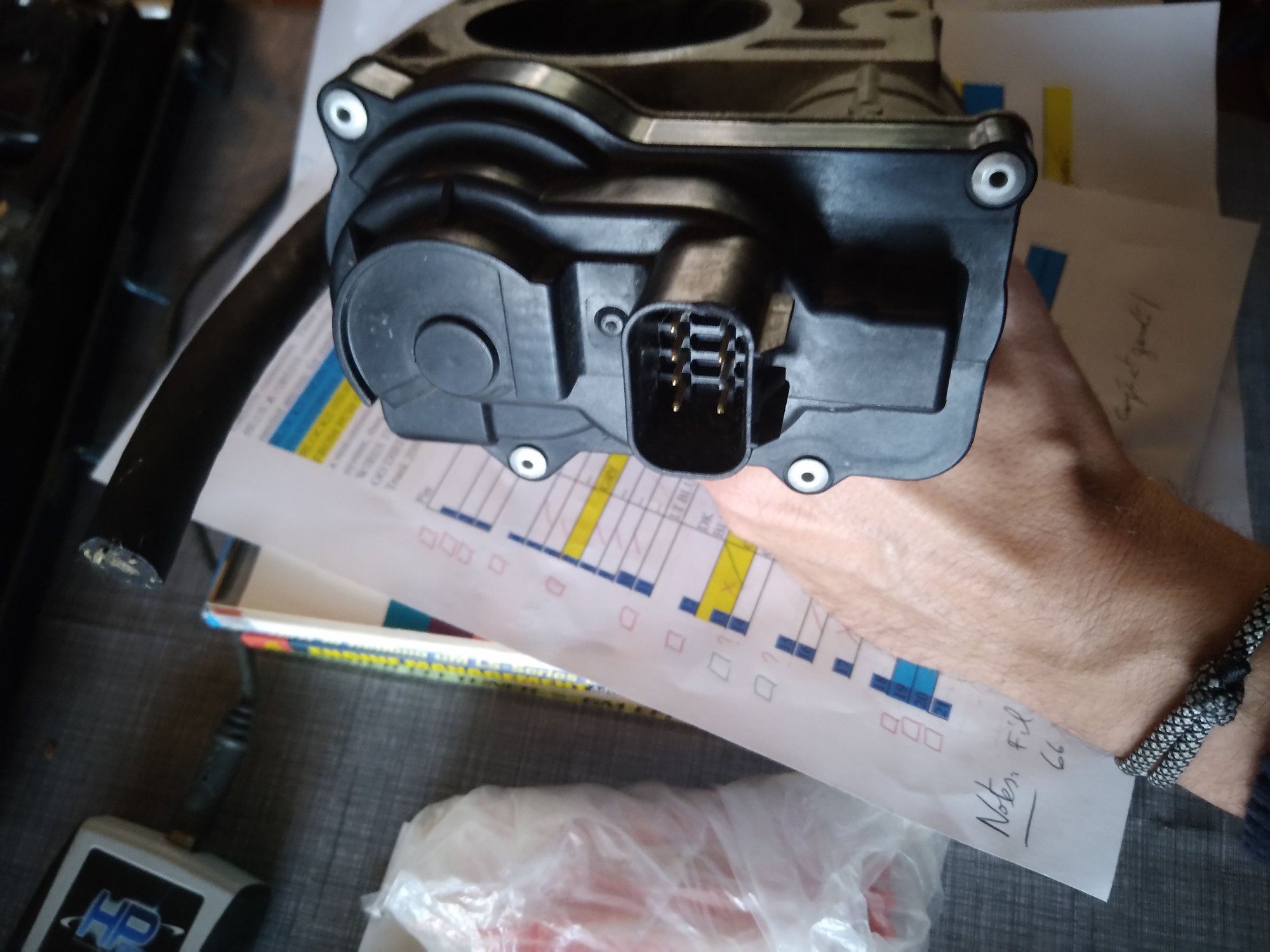

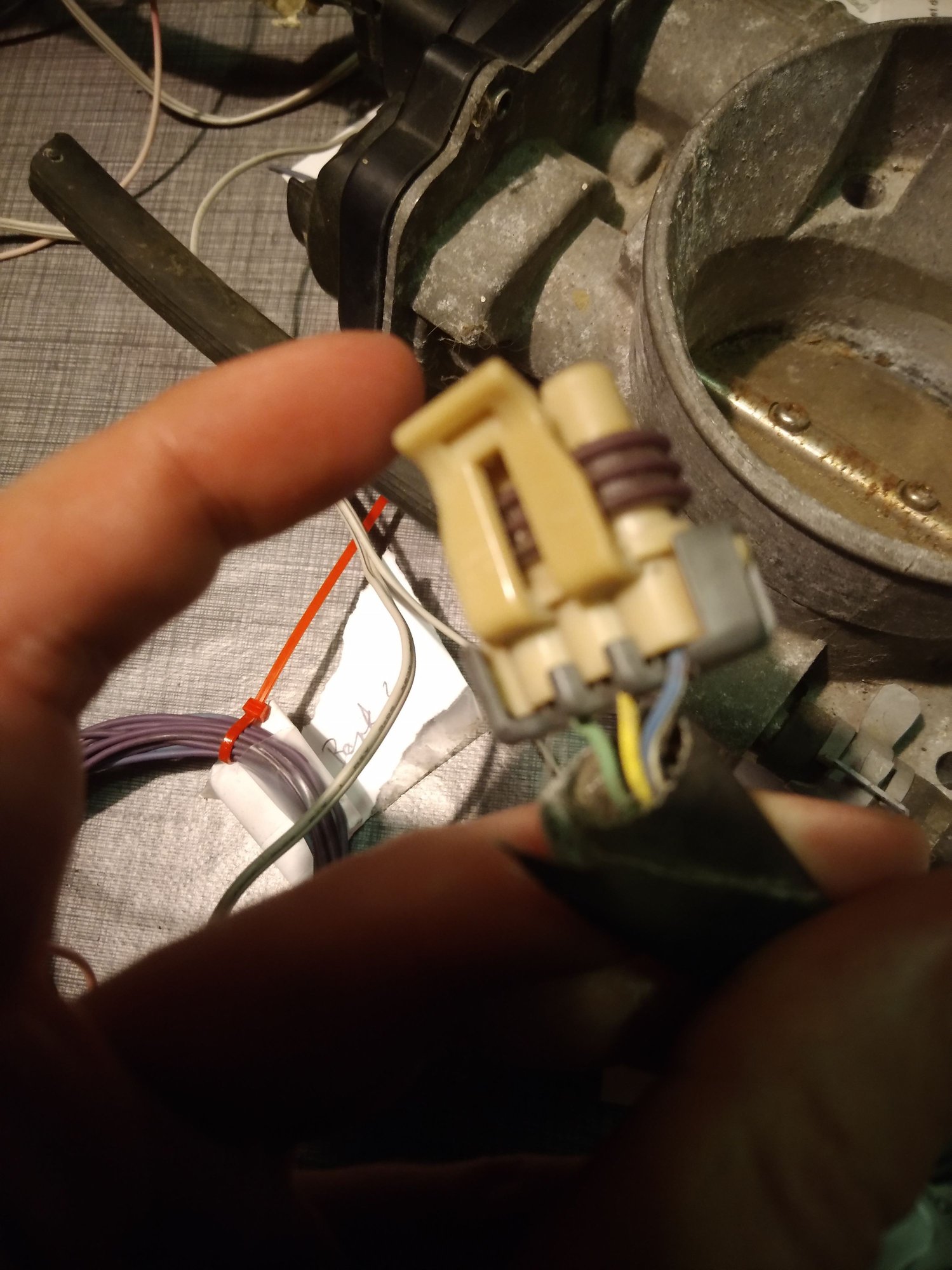

Here is the connector on throttle body from truck:
