2015 LS3 schematics needed
2015 LS3 schematics needed I'm nearly finished with the LS3, M10 Camaro harness. Just a few nagging issues that I can't find answers to.
1: ALDL schematic. It has changed from the Gen 3 stuff I'm used to. I did a Connect and cruise install and there were data lines in it I hadn't dealt with before.
2: X1 pin 18: serial data wake up. Does it get 12V+ from ignition
3: I can't find an output for a speedometer in my pinouts.
4: X1 27,28. I think these will go to the ALDL.
Anyone know of a source where I can print schematics from. The source I had closed.
thanks guys!
1: ALDL schematic. It has changed from the Gen 3 stuff I'm used to. I did a Connect and cruise install and there were data lines in it I hadn't dealt with before.
2: X1 pin 18: serial data wake up. Does it get 12V+ from ignition
3: I can't find an output for a speedometer in my pinouts.
4: X1 27,28. I think these will go to the ALDL.
Anyone know of a source where I can print schematics from. The source I had closed.
thanks guys!
Depending on what year camaro (I'm guessing old)
X1 18 not used in your case
X1 27-28 (twisted pair) would go to TCM but in your case now go to the ALDL with a resister (I believe 120ohm) this is high speed LAN
gen 4 now get speedometer from wheel speed sensor or GPS
https://www.ls2.com/boggs/dtcs/Scan_...LAN_Device.pdf
X1 18 not used in your case
X1 27-28 (twisted pair) would go to TCM but in your case now go to the ALDL with a resister (I believe 120ohm) this is high speed LAN
gen 4 now get speedometer from wheel speed sensor or GPS
https://www.ls2.com/boggs/dtcs/Scan_...LAN_Device.pdf
Last edited by LS BRAVADA; Jan 29, 2020 at 09:42 PM.

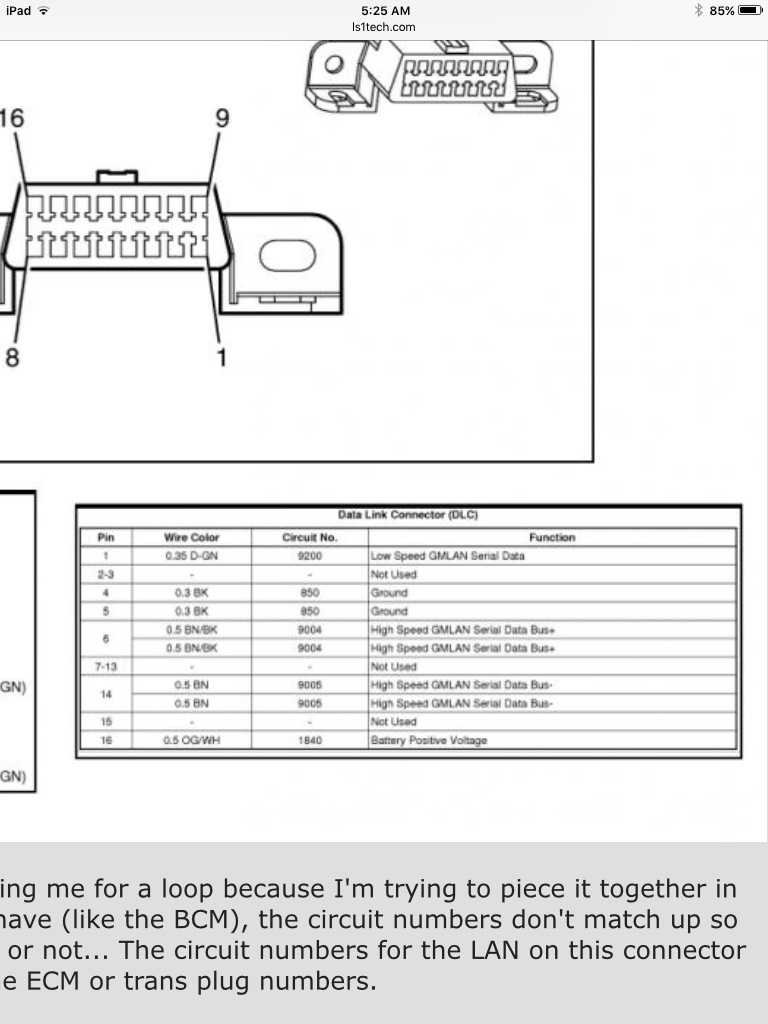

Thank you! I found the 27,28 info today also. ALDL 14, 6. I didn't know about the speed from wheel sensors. The PCM with a Connect and cruise has a VSS out for Speedo. I'm searching for that info from a prior build but that pcm had 3 connectors. Will I still need the purple wire in pin 2 of the ALDL, and if so where to?
Last edited by rubrhammer; Jan 30, 2020 at 05:36 PM.
TECH Enthusiast
Joined: Jul 2019
Posts: 636
Likes: 187
they need to be twisted because it's a CAN bus, which uses a differential pair for "high speed" (usually 250 kbps) communication. Differential pair makes it much more resistant to electrical noise, twisted wire makes the differential pair most effective.
Trending Topics
LS1 Tech Stories
The Best V8 Stories One Small Block at Time
6 Common C5 Corvette Failures and What's Involved In Repairing Them
Pouria Savadkouei
Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph
Verdad Gallardo
Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked
Pouria Savadkouei
Top 10 Most Powerful Chevy Trucks Ever Made!
Hennessey's New Supercharged Silverado ZR2 Has 700 HP
Verdad Gallardo
Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes
Verdad Gallardo
Awesome K5 Blazer Restomod Comes With C7 Corvette Power
Verdad Gallardo
10 Camaros You Should Never Buy
10 LS Engine Myths That Refuse to Die
Verdad Gallardo The 2 data circuits are 2500 and 2501. From what I've found the 120 ohm resistor is in the PCM. I'll know today.
I find it interesting that the E67 PCM has circuit 818 for Speedo but the E38 doesn't. Just something I've discovered. Thanks for the help guys!
I find it interesting that the E67 PCM has circuit 818 for Speedo but the E38 doesn't. Just something I've discovered. Thanks for the help guys!
i believe you will need one at the ALDL also.
it doesn't seem you have any other modules so I'm not 100%
