Wiring harness identification

Thread Tools

Search this Thread

Old Feb 29, 2020 | 07:55 AM
  #1
fastlt1's Avatar
Thread Starter
12 Second Club
20 Year Member
Photogenic
Liked
Loved
iTrader: (4)

Joined: Sep 2005
Posts: 1,512
Likes: 20
Default Wiring harness identification

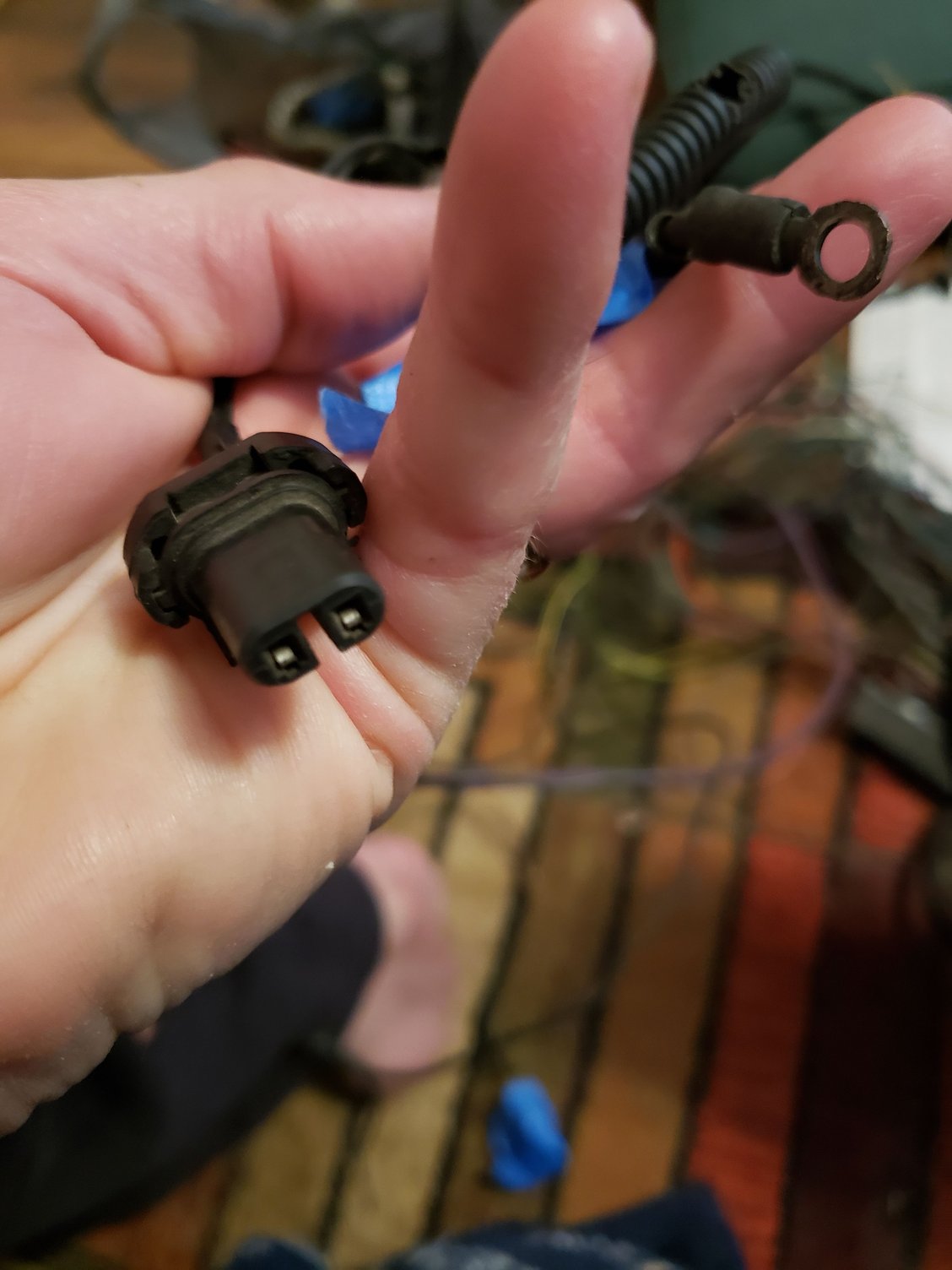

1999 Camaro z28 6spd engine wiring harness. Got a plug I need help with. Its bundled with the thick purple wire going to starter. 2 prong. I'm thinking ac. I ran the wires back to pin 70. Every diagram says not used.

Reply
Old Feb 29, 2020 | 12:55 PM
  #2
SE-R Spec's Avatar
TECH Enthusiast
10 Year Member
iTrader: (2)

Joined: Jan 2011
Posts: 541
Likes: 32
Default

Pin 70 on blue connector in the truck harness is low oil level switch (brown)

pin 70 on red connector is not used. Hope this helps you out

Derek
Reply
Old Feb 29, 2020 | 03:56 PM
  #3
fastlt1's Avatar
Thread Starter
12 Second Club
20 Year Member
Photogenic
Liked
Loved
iTrader: (4)

Joined: Sep 2005
Posts: 1,512
Likes: 20
Default

Its diffinetly 70 on the red
Reply
