e38 windstar wiring help please

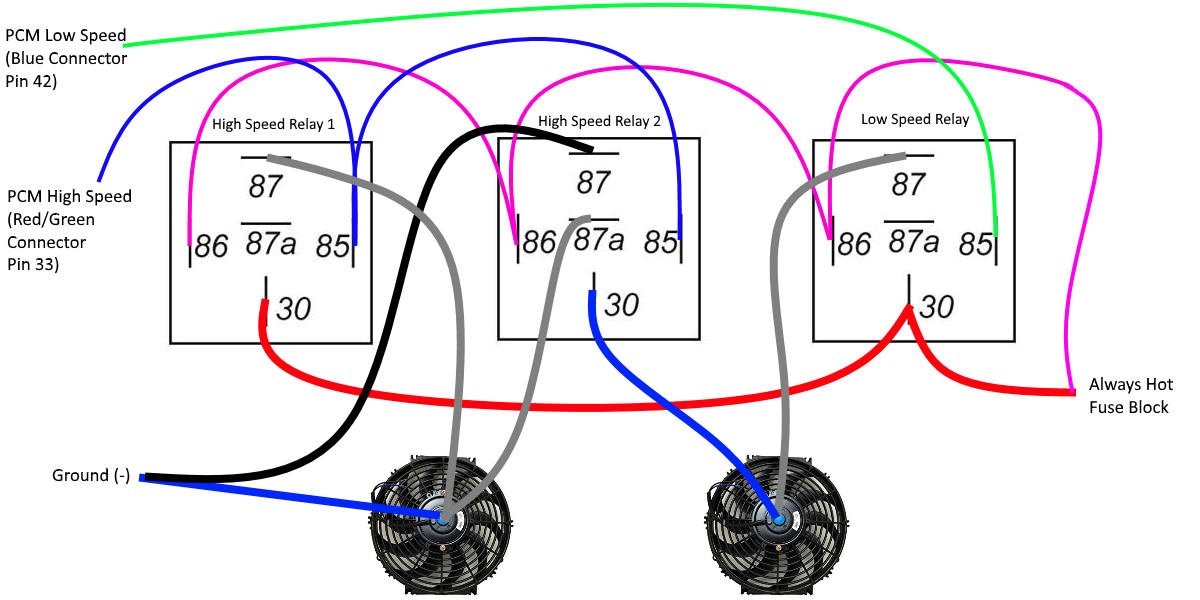

So I thought I had this figured out, but now I've second guessed myself and at this point I'm burnt out. This is sorta what I was following but will this work on Windstar fans? Or is this trying to kick both fans on high when only 1 on the windstar actually goes into high? I'm just confused at this point lol.. Any help would be appreciated

Feb 9, 2021 | 11:50 PM

G Atsma

TECH Senior Member

Joined: Jun 2016

Posts: 22,291

Likes: 3,616

From: Central Cal.

Is this a series/parallel circuit? If so, by running the fans parallel at first they run slower. Then when more air is needed they run in series, speeding them up.
If need be, google "series/parallel engine fan circuit" to see how it should look.
Also, look up ls1fans.com for ready made harnesses to do exactly what you want to do.

Feb 10, 2021 | 07:52 AM

79LS1FOX

TECH Regular

iTrader: (11)

Joined: Jan 2009

Posts: 441

Likes: 36

I think its opposite, series is low speed parallel is high speed, but that circuit looks good to me.

Feb 10, 2021 | 10:19 AM

G Atsma

TECH Senior Member

Joined: Jun 2016

Posts: 22,291

Likes: 3,616

From: Central Cal.

Quote:

Originally Posted by 79LS1FOX

I think its opposite, series is low speed parallel is high speed, but that circuit looks good to me.

You are right! Must have been too late for straight thinking.... LOL

Feb 10, 2021 | 12:47 PM

Nawcor

Thread Starter

Teching In

Joined: Jul 2020

Posts: 17

Likes: 3

From: Florida

Quote:

Originally Posted by 79LS1FOX

I think its opposite, series is low speed parallel is high speed, but that circuit looks good to me.

Well, I'm going to take your word for it lol. I thought this was correct but I think when i saw the two "high speed" on the picture I started debating myself.
