Pics of my LS1, what needs to be done?
Thread Starter
Joined: Aug 2005
Posts: 1,959
Likes: 4
From: The trailer park

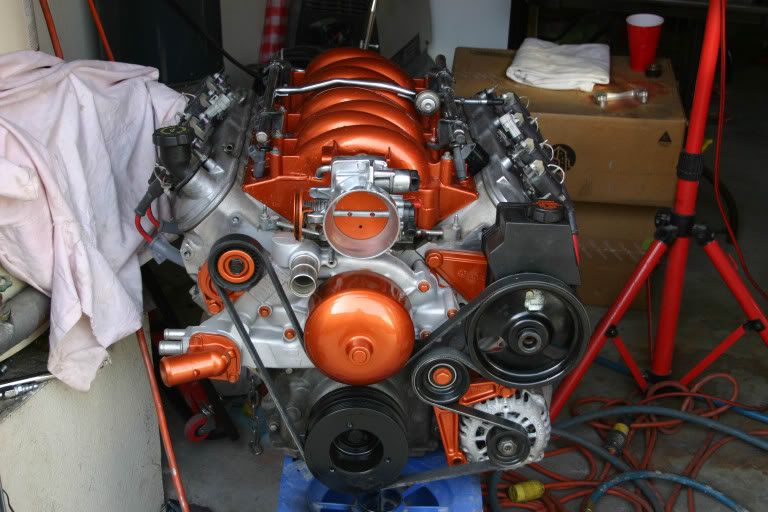

Pics of my LS1, what needs to be done? While my car's been in the bodyshop, I've gotten to blasting and painting parts on my engine. Something's not right, it still looks too cluttered..
what needs to be done? Paint the valve covers? Polish them? I'm planning on getting some c5 coil covers in black, then painting the "corvette" logo orange, too. I'm looking for ideas here.
olly
what needs to be done? Paint the valve covers? Polish them? I'm planning on getting some c5 coil covers in black, then painting the "corvette" logo orange, too. I'm looking for ideas here.
olly
On The Tree
Joined: Mar 2005
Posts: 125
Likes: 0
Ideas....... Your project looks really nice. I have seen some people mount the coil packs on the firewall, 4 on each fenderwell, or even hidden behind the fenderwell. I think the hidden coil packs would be sweet on ur ride. Then grind, sand, & smooth the valve covers..............
Good Luck!
Good Luck!
Thread Starter
Joined: Aug 2005
Posts: 1,959
Likes: 4
From: The trailer park
I was considering that, but I don't really want to buy new sparkplug wires, right now, I just sprung for the MSD's seeing as I broke 2 stockers. I agree, that'd look awesome, though... Keep the suggestions coming..
olly
olly
TECH Enthusiast
iTrader: (17)
Joined: Sep 2005
Posts: 619
Likes: 0
From: Detroit, MI - Camp Pendleton, CA
I say do the covers in orange and leave the lettering black. That would definately go with the theme you have going. Chrome UDP's and a aluminum oil cap off ebay and you'll be all set for the looks department. Great work! -Alex
Staging Lane
Joined: Jan 2006
Posts: 96
Likes: 1
From: KC MO....
I think, the orange accessory brkts and pulleys make your eyes continually scan the motor. TOO much going on, thats why it looks cluttered. Leave the intake alone, and try a nuetral color on the rest. Let your eye fall on the intake, and the fact that the block and heads are aluminum, will make it cleaner.
Loose/move the coil packs forget the engine covers, get some fabricated valve covers (racey look, the stockers suck), and put the corvette emblems on the fabbed covers if ya need some identification or what ever.
Sometimes, less is more.
Paint the brkts and pulleys silver or aluminum, they will dissapear, and your eye will see the motor, not the pullies and brkts.
Just an opinion.
By the way , cool project, very cool.
Loose/move the coil packs forget the engine covers, get some fabricated valve covers (racey look, the stockers suck), and put the corvette emblems on the fabbed covers if ya need some identification or what ever.
Sometimes, less is more.
Paint the brkts and pulleys silver or aluminum, they will dissapear, and your eye will see the motor, not the pullies and brkts.
Just an opinion.
By the way , cool project, very cool.
Trending Topics
LS1 Tech Stories
The Best V8 Stories One Small Block at Time
6 Common C5 Corvette Failures and What's Involved In Repairing Them
Pouria Savadkouei
Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph
Verdad Gallardo
Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked
Pouria Savadkouei
Top 10 Most Powerful Chevy Trucks Ever Made!
Hennessey's New Supercharged Silverado ZR2 Has 700 HP
Verdad Gallardo
Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes
Verdad Gallardo
Awesome K5 Blazer Restomod Comes With C7 Corvette Power
Verdad Gallardo
10 Camaros You Should Never Buy
10 LS Engine Myths That Refuse to Die
Verdad Gallardo
What I like to see is a orange engine compartment (firewall, inner fenders, etc..) with a black and polished and chrome engine! Thats how Im doing mine, except my car will be yellow!
Thread Starter
Joined: Aug 2005
Posts: 1,959
Likes: 4
From: The trailer park
I sanded it first, to knock down the little stupid casting molding injection thingies, then sprayed it with this poly-primer stuff that the guy at the paint store recommended, so it looked like this.
then some surfacing primer to make it smooth..

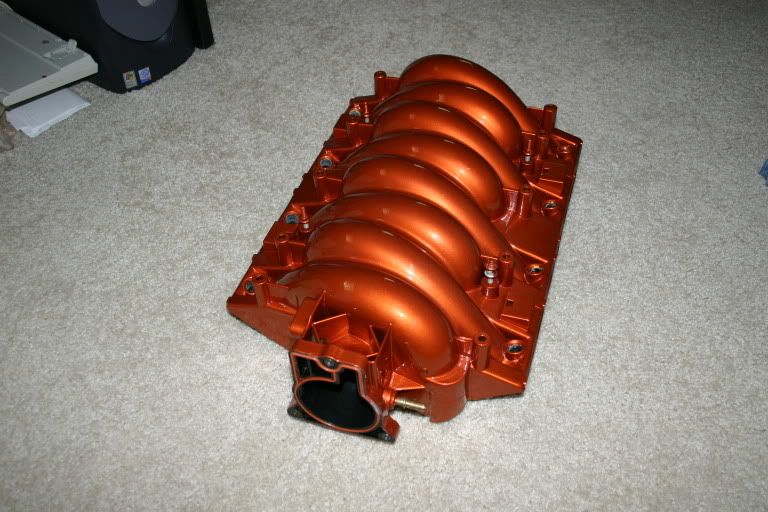

then some base and clear, the color of the car.. Color looks poor because its indoors..
I'm thinking about maybe just cleaning up the valve covers, painting them orange, then putting cleaned up coils back on, then get some corvette engine covers (it was originally out of a C5 anyways), black with orange lettering, which will contrast nicely with body color painted inner fenders and firewall. Some engine compartments hurt the eyes because they're so blatantly one color. I think that'd look good. whaddyathink?
olly
then some surfacing primer to make it smooth..
then some base and clear, the color of the car.. Color looks poor because its indoors..
I'm thinking about maybe just cleaning up the valve covers, painting them orange, then putting cleaned up coils back on, then get some corvette engine covers (it was originally out of a C5 anyways), black with orange lettering, which will contrast nicely with body color painted inner fenders and firewall. Some engine compartments hurt the eyes because they're so blatantly one color. I think that'd look good. whaddyathink?
olly
Feel free to borrow any ideas off my engine. I definately recommend relocating the coils to the rear of the heads or onto the firewall somewhere. That allows you to put real valve covers on. Mine are from Katech but there are many nice looking ones out there. The billet fuel rails are a nice touch too and don't cost too much. You can get them from Speed Inc.
Thread Starter
Joined: Aug 2005
Posts: 1,959
Likes: 4
From: The trailer park
your vette is gorgeous.. I dont have room behind the heads, but once it's back in the car, I'll look for a spot for them. Making mounts will be easy, I work in a CNC shop
olly
Launching!
Joined: Aug 2002
Posts: 242
Likes: 0
From: Los Angeles, CA
I like the engine, and think some coil covers will mask most of the clutter.
That pic of the car in your sig is a clients car of mine, Andrew Harshman. We put a T56 into it, and got it into PHR. Nice chop work.
Tyler
That pic of the car in your sig is a clients car of mine, Andrew Harshman. We put a T56 into it, and got it into PHR. Nice chop work.
Tyler
Originally Posted by Mark IXZD 150
Feel free to borrow any ideas off my engine. I definately recommend relocating the coils to the rear of the heads or onto the firewall somewhere. That allows you to put real valve covers on. Mine are from Katech but there are many nice looking ones out there. The billet fuel rails are a nice touch too and don't cost too much. You can get them from Speed Inc.
thanks
Pat
Originally Posted by 67RSCamaroVette
I'm planning on getting some c5 coil covers in black, then painting the "corvette" logo orange, too. I'm looking for ideas here.
Also, why hasn't someone made a valve cover cover that fits over the regular valve covers tightly and is just high enough to cover up the ignition "stuff"? Seems like it could made easily either in sheet metal or some heat resistant plastic.
Thread Starter
Joined: Aug 2005
Posts: 1,959
Likes: 4
From: The trailer park
Originally Posted by Teetoe_Jones
That pic of the car in your sig is a clients car of mine, Andrew Harshman. We put a T56 into it, and got it into PHR. Nice chop work.
Tyler
Tyler
before...
after..
A guy at camaros.net used his digital paint booth software to do the exact color for me.
olly
Thread Starter
Joined: Aug 2005
Posts: 1,959
Likes: 4
From: The trailer park
I think I got it. Painted my coils red, coil brackets silver, valve covers orange, and re-loomed the coil harnesses. Oh, painted the oil cap, too.
olly
oh and a closeup of the coil packs/brackets. MSD for 1/100th the cost
sry bout poor pics, it's nighttime.
olly
oh and a closeup of the coil packs/brackets. MSD for 1/100th the cost
sry bout poor pics, it's nighttime.
Last edited by 67RSCamaroVette; Feb 24, 2006 at 11:41 PM.
