Map sensor connector pinout needed
Map sensor connector pinout needed I broke the connector and got one from the junkyard, now I want to be sure that I have the connect wires in the correct position, so going from the back of the connector in the plugin position, left to right I have gray. green and black, is this the correct order?

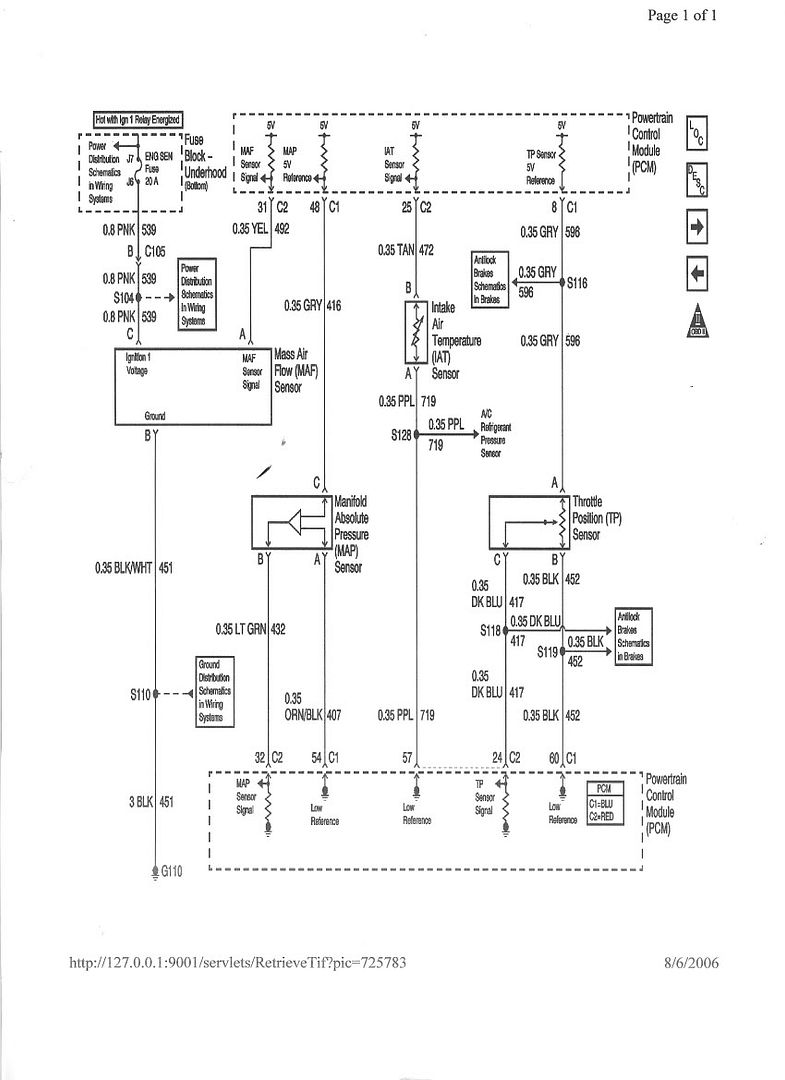

Not sure what year application you have but here is what it is for a 2001 T/A
Pin (A)= orn/blk
Pin (B)= Lt Grn
Pin (C)= Gray
Hope this helps
Pin (A)= orn/blk
Pin (B)= Lt Grn
Pin (C)= Gray
Hope this helps
Last edited by 618HAWK; Aug 6, 2006 at 04:09 PM.
[QUOTE=618HAWK]Not sure what year application you have but here is what it is for a 2001 T/A
Pin (A)= orn/blk
Pin (B)= Lt Grn
Pin (C)= Gray
Hope this helps
Is the Gray on the left or right side when the connector is plugged in?
I also have a 2001 Z28 motor.
Thanks
Pin (A)= orn/blk
Pin (B)= Lt Grn
Pin (C)= Gray
Hope this helps
Is the Gray on the left or right side when the connector is plugged in?
I also have a 2001 Z28 motor.
Thanks
