Harness alteration questions Ok, so I've read the FAQ and printed the schematic and list of what the wires are from there.
If I'm reading this correct I add some relays and a fuse panel to the stock harness? Where can I get a fuse block?
Looks to need 6 fuses.
Other than that I just start removing the wires listed as having been removed and wire the remaining ones to the fuse block and relays and showed correct?
This might be more difficult than I anticipated. Or maybe I'm just not clear on how to go about actually doing the modification...
If I'm reading this correct I add some relays and a fuse panel to the stock harness? Where can I get a fuse block?
Looks to need 6 fuses.
Other than that I just start removing the wires listed as having been removed and wire the remaining ones to the fuse block and relays and showed correct?
This might be more difficult than I anticipated. Or maybe I'm just not clear on how to go about actually doing the modification...
Thread Starter
11 Second Club
iTrader: (18)
Joined: Mar 2008
Posts: 8,358
Likes: 27
From: Northwest AR
oh and how do you know which way the numbers start on the red and blue plugs? like...say looking head on into it how should it be positioned so the numbers match the pins?
Thread Starter
11 Second Club
iTrader: (18)
Joined: Mar 2008
Posts: 8,358
Likes: 27
From: Northwest AR
well I removed the pins from the red and blue ecm plugs that were specified and taped them up together
I feel kinda dumb but I really am having trouble figuring out what I'm supposed to be doing with the schematic...
do I splice the relays/fuses in between the ecm plug and the corresponding F body specific (c100 ect) plugs? thats the best guess I can figure out from just looking at the schematic and the fact it was not designated to remove the wires for those from the ECM plugs
am I on the right track here?
I feel kinda dumb but I really am having trouble figuring out what I'm supposed to be doing with the schematic...
do I splice the relays/fuses in between the ecm plug and the corresponding F body specific (c100 ect) plugs? thats the best guess I can figure out from just looking at the schematic and the fact it was not designated to remove the wires for those from the ECM plugs
am I on the right track here?
Joined: Sep 2004
Posts: 3,148
Likes: 12
From: Downers Grove, IL
Yep, you can add some relays and a fuse panel to the stock harness. You can source them from another car or from the aftermarket. I pulled my fuse/relay center out of a 96 v6 camaro because it had 8 relays and 12 fuses all in one package.
The fuses and relays go between the power supply and the harness. Normally you supply power to the harness plugs (c100, etc).
The fuses and relays go between the power supply and the harness. Normally you supply power to the harness plugs (c100, etc).
Trending Topics
Thread Starter
11 Second Club
iTrader: (18)
Joined: Mar 2008
Posts: 8,358
Likes: 27
From: Northwest AR
so it's like I was thinking then
I buy some wire to run from the battery to the fuse block/relay, then from the other side of the fuse block/relay I strip part of the factory harness and solder the new wire on to provide power? The only reason I was curious if this was correct is that I didn't know if jumping power to the harness like that would damage the ecm...
Bleh it sounds like I'm over complicating this huh?
I buy some wire to run from the battery to the fuse block/relay, then from the other side of the fuse block/relay I strip part of the factory harness and solder the new wire on to provide power? The only reason I was curious if this was correct is that I didn't know if jumping power to the harness like that would damage the ecm...
Bleh it sounds like I'm over complicating this huh?
LS1 Tech Stories
The Best V8 Stories One Small Block at Time
6 Common C5 Corvette Failures and What's Involved In Repairing Them
Pouria Savadkouei
Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph
Verdad Gallardo
Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked
Pouria Savadkouei
Top 10 Most Powerful Chevy Trucks Ever Made!
Hennessey's New Supercharged Silverado ZR2 Has 700 HP
Verdad Gallardo
Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes
Verdad Gallardo
Awesome K5 Blazer Restomod Comes With C7 Corvette Power
Verdad Gallardo
10 Camaros You Should Never Buy
10 LS Engine Myths That Refuse to Die
Verdad Gallardo
How big of a hurry are you in to complete the harness? If you can wait until next weekend (sunday), bring it to my house and I'll help you. It's about a 2 hour drive for you, if you are in Fayetteville. We can do the harness in 3 or 4 hours total.

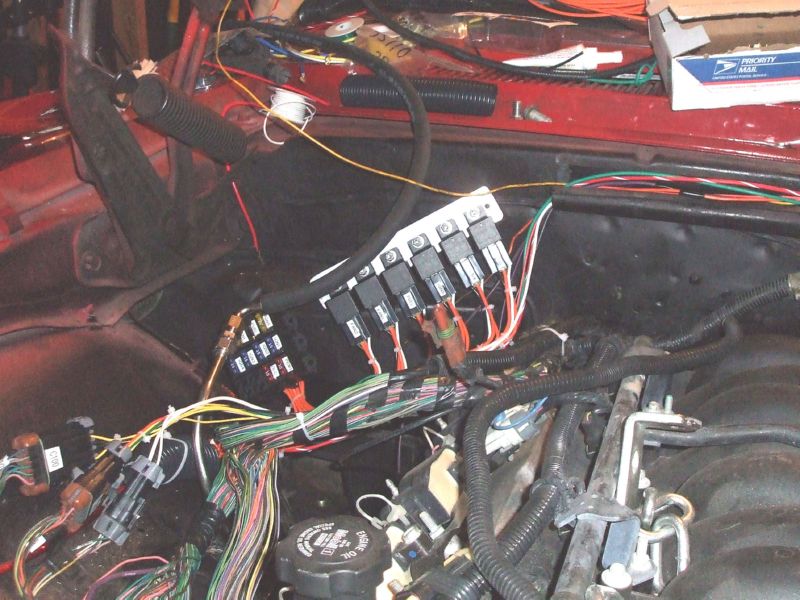

You don't need to "modify" an LS1 harness at all unless you want to clean out the unused wires. All you need to do is make an adapter harness for it to plug into. The fuses and relays are part of the adapter harness. In the picture below, see the three connectors on the left side. One side of those is the original LS1 harness, the other side is my adapter harness that runs to the fuses and relays at the top of the pic. The fuses and relays connect to the battery, fans, fuel pump, ignition switch, etc too. Fuse blocks came from AutoZone, and I got a good deal on the relays on EBay. Info on how I did mine is at http://www.blown.net/ls1swap/rodders...1t56wiring.doc.
