Speartech LS9 Supercharger Swap! Since we are working on the stand alone harness/computer kits for the LS9 crate engine swaps, I couldn't help noticing how nice and compact the TVS 2300 S/C package is on this engine.
GM laid this whole thing out really well; not too tall, not too wide on any of the components, 11 rib belt right from the factory, etc. It's so much more compact compared to the MP-112 Magnuson I've been running for the past few years on my 91 Z28.
The car still runs consistent 10.7's but since the engine has grown to 408 cubes, the MP-112 is dreadfully outsized and only makes 4 psi using the smallest pulley they make for it.
How about an LS9 TVS-2300 upgrade!
We started tearing down the engine in the Z for the swap while at the same time gathering parts and doing a mockup on another short block in the shop.
My ported LS6 heads have been great, but the LS9 S/C uses the LS3/L92 style heads.
Off with the LS6 heads.
The pistons and cylinder walls all look great, so nothing needed there.
Thanks to Richard at West Coast Cylinder Heads for the quick service on a beautiful set of CNC ported and milled L92 heads for the project.
WCCH is known for turning out nice heads and these are no exception!
I gotta tell you, having a complete LS9 in here makes it super convenient for figuring out everything you need for a swap, and how it all fits together!
More to come.......
GM laid this whole thing out really well; not too tall, not too wide on any of the components, 11 rib belt right from the factory, etc. It's so much more compact compared to the MP-112 Magnuson I've been running for the past few years on my 91 Z28.
The car still runs consistent 10.7's but since the engine has grown to 408 cubes, the MP-112 is dreadfully outsized and only makes 4 psi using the smallest pulley they make for it.
How about an LS9 TVS-2300 upgrade!
We started tearing down the engine in the Z for the swap while at the same time gathering parts and doing a mockup on another short block in the shop.
My ported LS6 heads have been great, but the LS9 S/C uses the LS3/L92 style heads.
Off with the LS6 heads.
The pistons and cylinder walls all look great, so nothing needed there.
Thanks to Richard at West Coast Cylinder Heads for the quick service on a beautiful set of CNC ported and milled L92 heads for the project.
WCCH is known for turning out nice heads and these are no exception!
I gotta tell you, having a complete LS9 in here makes it super convenient for figuring out everything you need for a swap, and how it all fits together!
More to come.......
__________________
91 Z28 LS2 408CI, LS9 Supercharger, LPE GT7 cam, Yank3000, 3450 raceweight.
Latest numbers: 9.71 ET, 141.42 MPH, 1.40 60' , 610 RWHP Mustang Dyno
www.speartech.com
91 Z28 LS2 408CI, LS9 Supercharger, LPE GT7 cam, Yank3000, 3450 raceweight.
Latest numbers: 9.71 ET, 141.42 MPH, 1.40 60' , 610 RWHP Mustang Dyno
www.speartech.com
Last edited by Speartech; Oct 22, 2009 at 05:46 PM.
Trending Topics
LS1 Tech Stories
The Best V8 Stories One Small Block at Time
Gas Monkey Built a 6-Wheel Ferrari Testarossa With a Corvette LT4 Engine
Verdad Gallardo
7 Most Reliable High-Performance Engines GM Has Ever Built
Verdad Gallardo
Amazing '71 Camaro Restomod Is Modern Muscle Car Under the Skin
Verdad Gallardo
6 Common C5 Corvette Failures and What's Involved In Repairing Them
Pouria Savadkouei
Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph
Verdad Gallardo
Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked
Pouria Savadkouei
Top 10 Most Powerful Chevy Trucks Ever Made!
Hennessey's New Supercharged Silverado ZR2 Has 700 HP
Verdad Gallardo
Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes
Verdad Gallardo Thread Starter
Joined: Nov 2001
Posts: 1,707
Likes: 33
From: Anderson, Indiana
We're using another LS9 SC, not the one from our crate motor. Got way too much invested there to start stealing parts from it!!
__________________
91 Z28 LS2 408CI, LS9 Supercharger, LPE GT7 cam, Yank3000, 3450 raceweight.
Latest numbers: 9.71 ET, 141.42 MPH, 1.40 60' , 610 RWHP Mustang Dyno
www.speartech.com
91 Z28 LS2 408CI, LS9 Supercharger, LPE GT7 cam, Yank3000, 3450 raceweight.
Latest numbers: 9.71 ET, 141.42 MPH, 1.40 60' , 610 RWHP Mustang Dyno
www.speartech.com
Thread Starter
Joined: Nov 2001
Posts: 1,707
Likes: 33
From: Anderson, Indiana
Yes, quite a bit more.
The TVS 2300 is a lot bigger than the MP 112.
The TVS series are 4 lobes each with a twist of 160 degrees. The MP 112 is a 3 lobe rotor with 60 degrees of twist. I think that info is correct.
The TVS 2300 is a lot bigger than the MP 112.
The TVS series are 4 lobes each with a twist of 160 degrees. The MP 112 is a 3 lobe rotor with 60 degrees of twist. I think that info is correct.
__________________
91 Z28 LS2 408CI, LS9 Supercharger, LPE GT7 cam, Yank3000, 3450 raceweight.
Latest numbers: 9.71 ET, 141.42 MPH, 1.40 60' , 610 RWHP Mustang Dyno
www.speartech.com
91 Z28 LS2 408CI, LS9 Supercharger, LPE GT7 cam, Yank3000, 3450 raceweight.
Latest numbers: 9.71 ET, 141.42 MPH, 1.40 60' , 610 RWHP Mustang Dyno
www.speartech.com
Thread Starter
Joined: Nov 2001
Posts: 1,707
Likes: 33
From: Anderson, Indiana
We got lucky and stumbled onto a race shop that had removed it from an engine.
None of this stuff is cheap at all at this early stage!
None of this stuff is cheap at all at this early stage!
__________________
91 Z28 LS2 408CI, LS9 Supercharger, LPE GT7 cam, Yank3000, 3450 raceweight.
Latest numbers: 9.71 ET, 141.42 MPH, 1.40 60' , 610 RWHP Mustang Dyno
www.speartech.com
91 Z28 LS2 408CI, LS9 Supercharger, LPE GT7 cam, Yank3000, 3450 raceweight.
Latest numbers: 9.71 ET, 141.42 MPH, 1.40 60' , 610 RWHP Mustang Dyno
www.speartech.com
def subscribing to this, that whole set up looks a smidge lower than my Vic JR intake, 90mm TB set up.....I just wonder how hard it would be to swap this into a 4th gen after all.
With the others using kmember spacers and some "cutting" right above the maggie on the 4th gen kits to get it in there...I wonder how much more you'd have to cut or lower the kmember to get this to fit....i'd think it wouldn't be too painful if it was tried.
J
With the others using kmember spacers and some "cutting" right above the maggie on the 4th gen kits to get it in there...I wonder how much more you'd have to cut or lower the kmember to get this to fit....i'd think it wouldn't be too painful if it was tried.
J
Thread Starter
Joined: Nov 2001
Posts: 1,707
Likes: 33
From: Anderson, Indiana
Time to start putting it back together.
On with the WCCH L92 heads
I went ahead and used the LS9 head gaskets. I don't know if that's good or bad so we'll find out.
Lotsa layers to them:
Time to move on to the blower base.

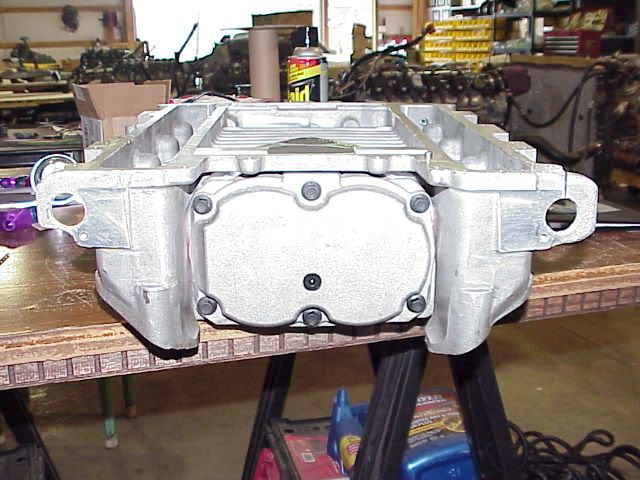

I had to modify the "ears" on the back of the blower (the 2 holes) so that I could add AN fittings to the back of the fuel rails. This way I can put the needed boost referenced FP regulator in the fuel system.
