02 T/A HuronSpeed Turbo Build Thread
Finally decided to pull the trigger and build up a decently fast street car, so I sold off both my motorcycles, and began putting together a kit, with ample help and advice from LT1RAY. I've owned a c5 z06 and a c5 FRC prior to this car, and always wanted to but a blower on both of them, but never had the time, funds, or knowledge. Prior to this build, the most mechanical experience I've had was a 4l60e swap on my NBS Silverado. I've also been procrastinating putting together the build thread, and uploading photos, so at this point, I'm over a week into dis assembly. I will try to keep this thread updated as much as possible on, at least, a semi daily basis.
Parts list:
Turbo Kit: HuronSpeed V2 A/C Delete
Turbo: Turbonetics Billet 7575
Boost Controller: Innovate SCG-1
Clutch: LUK 04-905 Gold Package (LS7 Clutch, flywheel pressure plate)
Pusher Fans: 2x Derale 16925
Meth: AEM 30-3300
Pushrods: Brian Tooley 7.400 Chromoly
Valve Springs: PAC-1218
Head Bolts: Speedmaster PCE279.1023
Fuel Pump: Walbro 400
Fuel Pump Wiring: Racetronix F99
Fuel Injectors: Siemens Deka 60# Flow Matched
Map Sensor: EFISource LSX 3 Bar
I picked this car up from a Craigslist ad in Albuquerque, Ray also found the ad for me. About a 5 hour drive each way to pick it up in January, and luckily , the weather cooperated. Here's how she sat the day after driving home. Gave her a quick polish and rejex.
Picked up some WS6 wheels, after debating between them and TT2s. So far, the only mods are the wheels, and a Tick master cylinder to help my failing slave along, until we moved into our own house in March.
Shortly after moving, picked up the clutch kit, and got to work replacing it and the slave. The old one flywheel looked like it had been abused quite a bit.
Drove the car for about 700 miles after this, to give the clutch some time to break in, while I posted up the bikes for sale. This is when I decided to start a turbo build.
Ordered parts mid April, and they started showing up shortly after! Getting really excited by this point, but I still enjoyed driving the car stock, so I waited for boxes to start showing up before taking stuff apart.
This was over a week ago, started taking the front end of the car apart. Bumper, fans, airlid, etc.
It was late so I stopped there for a couple of days. Next up were the coil packs, fuel rails, and AC. Kinda worked on this here and there when I had time after work for several days.
Manifolds came off surprisingly easy. I had anti siezed all of the y-pipe bolts and catback bolts when changing the clutch, so this time they were also not a headache. The SLP catback wouldn't come apart however, pretty much stopped for a couple of days after getting mad banging on it with a mallet.
Came back eventually, and pulled out the plugs, intake manifold, and other misc parts.
Decided I wanted to drop the fuel tank yesterday. Was able to get the catback weasled out of there after I dropped the support above the panhard bar.
Also pulled the thermostat and block plugs, to let them drain at least overnight, since I had forgotten to when I drained out the radiator earlier in the week.
Found these nice lights left in my attic, was pretty excited to be able to keep working on the car late.
Fuel tank out finally. The garage reeked of gas for hours, and so did I. Did some reorganizing while I let some fans pull the fumes out for a while.

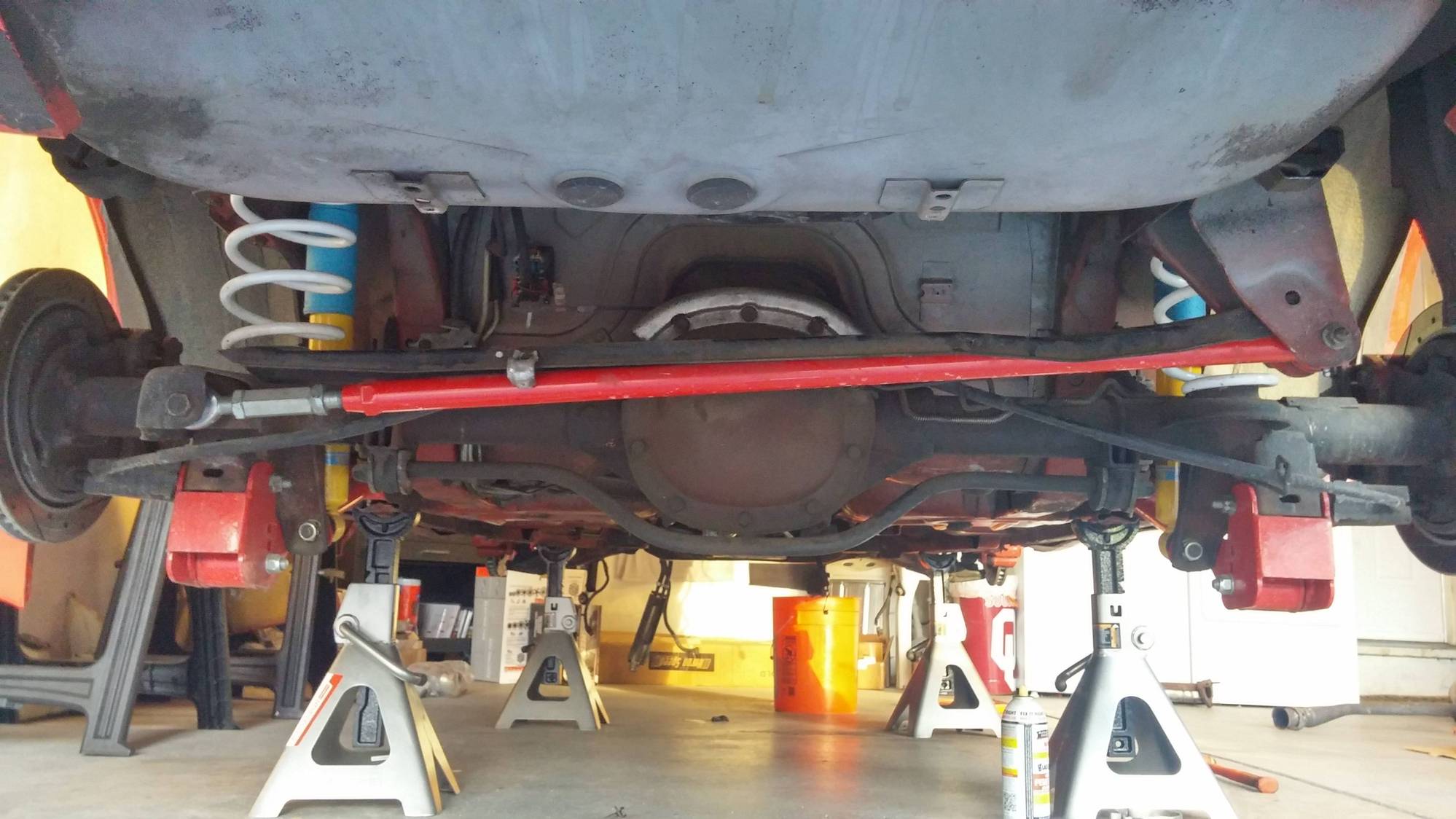

Here's how we're sitting right now. I'm going to try to get a lot of work done on the car over my weekend (Sun-Tue), and get the piping at least mocked up. The turbo has not shipped yet, as I understand they are on backorder for a while, but I will try to keep the thread updated with photos and commentary. I'll also take more detailed photos of the parts as they go in, everything Ray has pointed me towards has looked awesome. Thanks for taking the time to read it all!
Parts list:
Turbo Kit: HuronSpeed V2 A/C Delete
Turbo: Turbonetics Billet 7575
Boost Controller: Innovate SCG-1
Clutch: LUK 04-905 Gold Package (LS7 Clutch, flywheel pressure plate)
Pusher Fans: 2x Derale 16925
Meth: AEM 30-3300
Pushrods: Brian Tooley 7.400 Chromoly
Valve Springs: PAC-1218
Head Bolts: Speedmaster PCE279.1023
Fuel Pump: Walbro 400
Fuel Pump Wiring: Racetronix F99
Fuel Injectors: Siemens Deka 60# Flow Matched
Map Sensor: EFISource LSX 3 Bar
I picked this car up from a Craigslist ad in Albuquerque, Ray also found the ad for me. About a 5 hour drive each way to pick it up in January, and luckily , the weather cooperated. Here's how she sat the day after driving home. Gave her a quick polish and rejex.
Picked up some WS6 wheels, after debating between them and TT2s. So far, the only mods are the wheels, and a Tick master cylinder to help my failing slave along, until we moved into our own house in March.
Shortly after moving, picked up the clutch kit, and got to work replacing it and the slave. The old one flywheel looked like it had been abused quite a bit.
Drove the car for about 700 miles after this, to give the clutch some time to break in, while I posted up the bikes for sale. This is when I decided to start a turbo build.
Ordered parts mid April, and they started showing up shortly after! Getting really excited by this point, but I still enjoyed driving the car stock, so I waited for boxes to start showing up before taking stuff apart.
This was over a week ago, started taking the front end of the car apart. Bumper, fans, airlid, etc.
It was late so I stopped there for a couple of days. Next up were the coil packs, fuel rails, and AC. Kinda worked on this here and there when I had time after work for several days.
Manifolds came off surprisingly easy. I had anti siezed all of the y-pipe bolts and catback bolts when changing the clutch, so this time they were also not a headache. The SLP catback wouldn't come apart however, pretty much stopped for a couple of days after getting mad banging on it with a mallet.
Came back eventually, and pulled out the plugs, intake manifold, and other misc parts.
Decided I wanted to drop the fuel tank yesterday. Was able to get the catback weasled out of there after I dropped the support above the panhard bar.
Also pulled the thermostat and block plugs, to let them drain at least overnight, since I had forgotten to when I drained out the radiator earlier in the week.
Found these nice lights left in my attic, was pretty excited to be able to keep working on the car late.
Fuel tank out finally. The garage reeked of gas for hours, and so did I. Did some reorganizing while I let some fans pull the fumes out for a while.
Here's how we're sitting right now. I'm going to try to get a lot of work done on the car over my weekend (Sun-Tue), and get the piping at least mocked up. The turbo has not shipped yet, as I understand they are on backorder for a while, but I will try to keep the thread updated with photos and commentary. I'll also take more detailed photos of the parts as they go in, everything Ray has pointed me towards has looked awesome. Thanks for taking the time to read it all!
