Ill start off by sayin i am new to LS1 tech, i belong to other Ford forums though. I am a full on ford fan and recently decided to build a foxbody coupe and put an LQ4 in it which will eventually be a writeup as well.
I decided to go GM engine because of the car below.
a little about the car, its a 2000 camaro 162,xxx mile 5.7 aluminum block 6 speed manual T56 car. stock ten bolt rear.

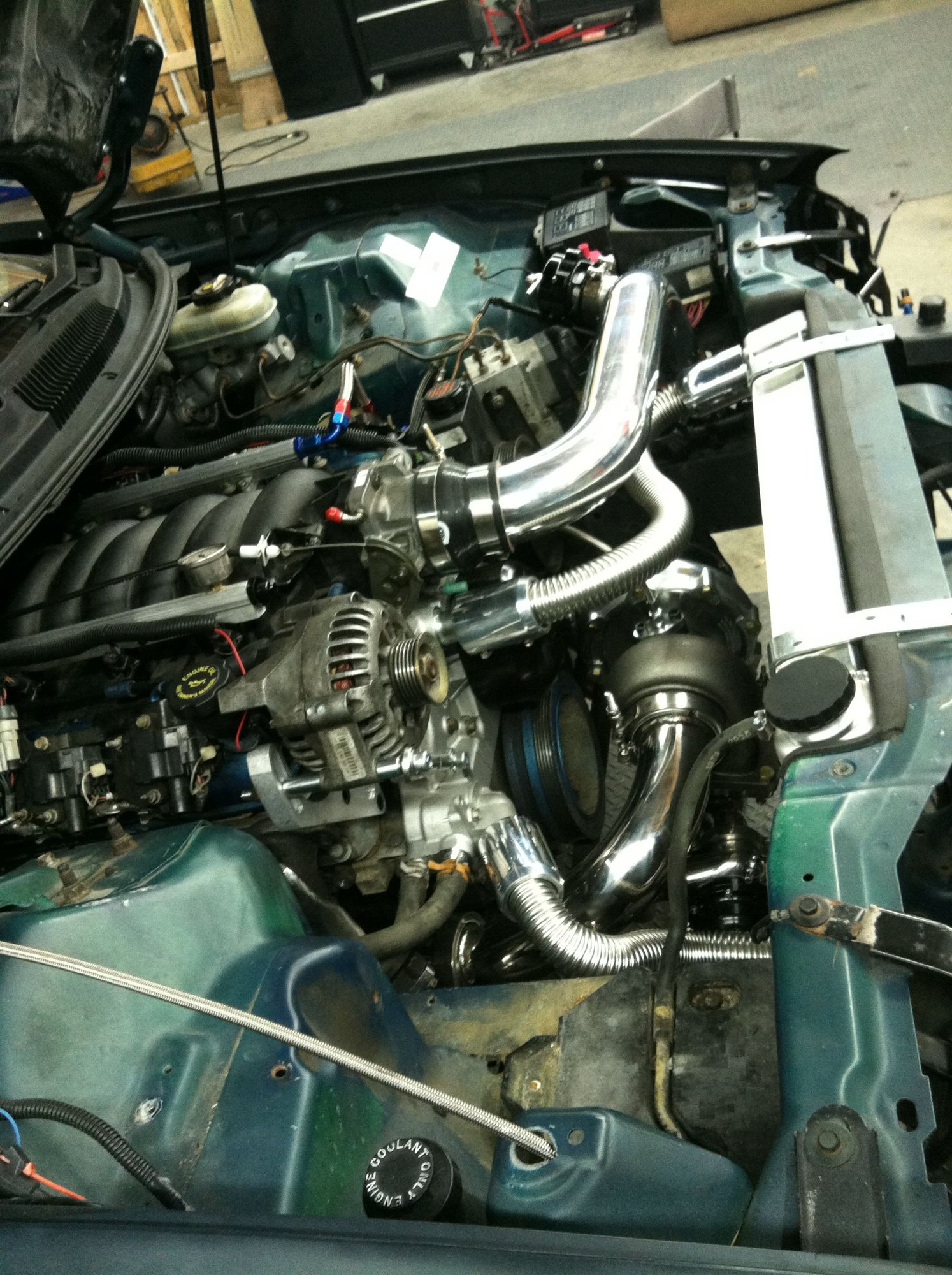

Back in February my buddy bought an On3 turbo kit for his 00 camaro. Got the kit including most everything, 60lb injectors, ceramic ball bearing turbo, in-tank fuel pump.
we started by pulling the entire front end off the car. after getting the belt off there was a TON of play in the water pump pulley so a need water pump was installed. This build will not be retaining the AC.
Car has the stock k member and is keeping it for now. Had to notch the k member a little bit for clearance. Where the stock truck manifold and the crossover pipemeets on
I decided to go GM engine because of the car below.
a little about the car, its a 2000 camaro 162,xxx mile 5.7 aluminum block 6 speed manual T56 car. stock ten bolt rear.
Back in February my buddy bought an On3 turbo kit for his 00 camaro. Got the kit including most everything, 60lb injectors, ceramic ball bearing turbo, in-tank fuel pump.
we started by pulling the entire front end off the car. after getting the belt off there was a TON of play in the water pump pulley so a need water pump was installed. This build will not be retaining the AC.
Car has the stock k member and is keeping it for now. Had to notch the k member a little bit for clearance. Where the stock truck manifold and the crossover pipemeets on
#4
Teching In
Thread Starter
Join Date: Aug 2016
Location: Hanover, Virginia
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
Car is done, i just started the thread because i tried typing it all at once, and it logged me off before i finished typin.. lost all my work haha
its a 76mm ceramic ball bearing turbo, car makes 548RWHP, 530lb torque on 8.5 psi.
its a 76mm ceramic ball bearing turbo, car makes 548RWHP, 530lb torque on 8.5 psi.
#5
TECH Senior Member
iTrader: (27)
I've thought about getting their F-Body non-AC kit, but from all the threads I've read, it's pretty hit and miss. How much more steam does that 76mm ceramic ball bearing turbo have in it? That was the one I was looking at too. Did you run into any fitment issues aside from having to notch the K-Member?
#6
TECH Fanatic
#7
Teching In
Thread Starter
Join Date: Aug 2016
Location: Hanover, Virginia
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts

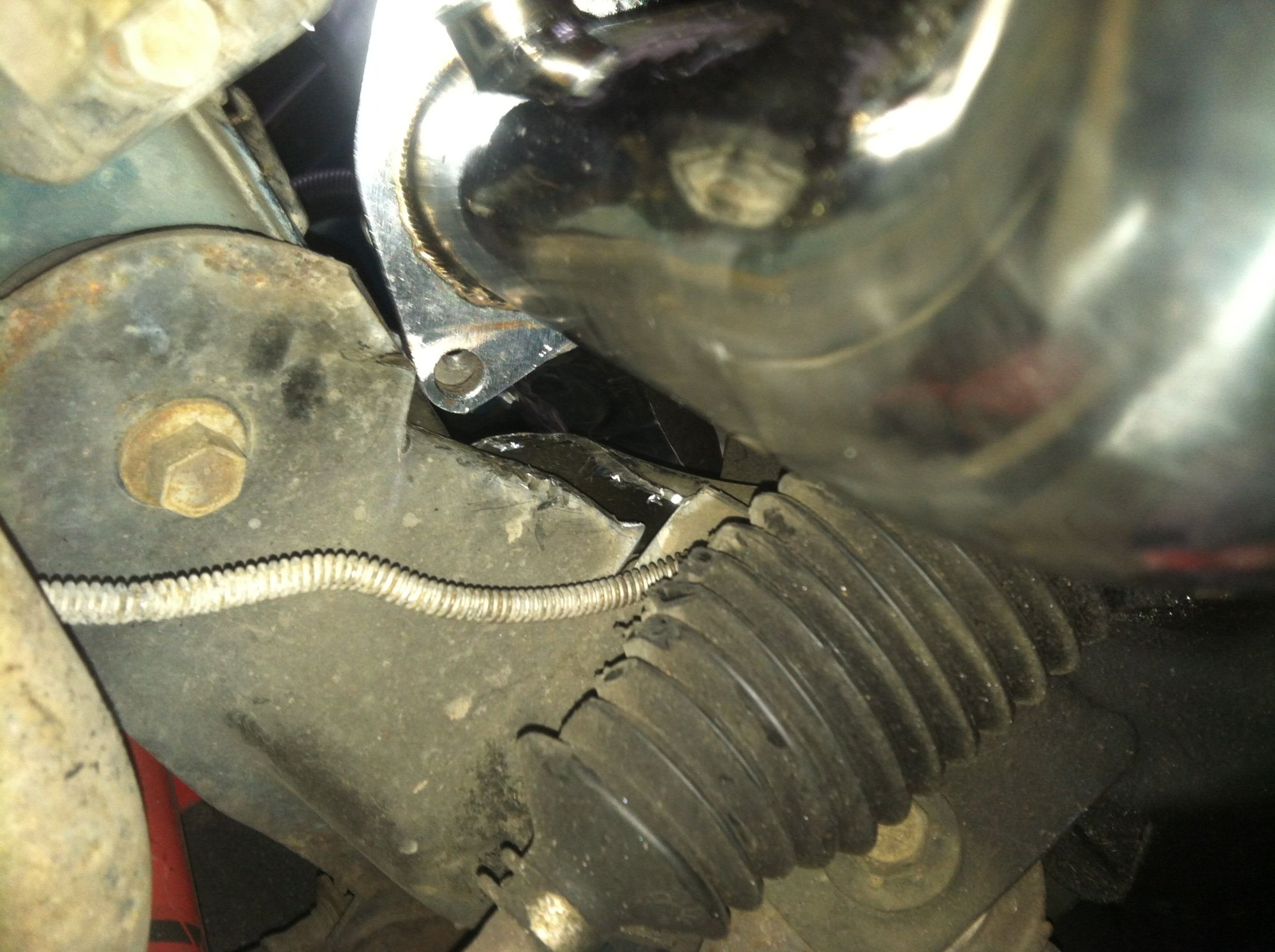

better pic of the notch. kinda pain to do that without pulling the motor.

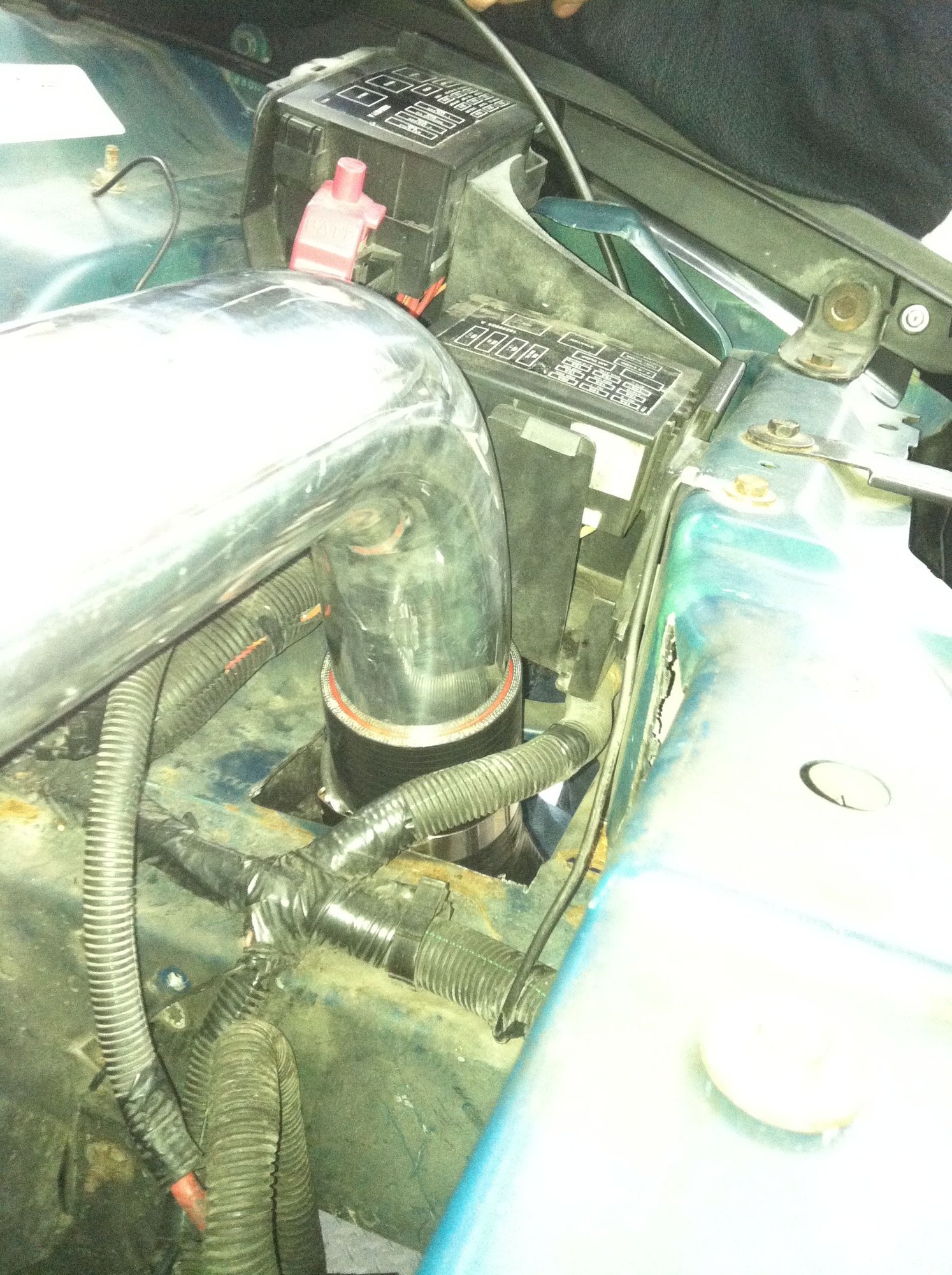

cut this opening here a little bigger and moved the fuse box a hair, fits in there real nice.
anybody can talk all the trash they want about on3, not everyone in the world has the money to buy top of the line **** for their first turbo setup, but you by this on3 kit, when the turbo fails you buy a garrett or whatever your preference may be.
the hot and cold piping are here to stay on this car, piping and welds are really nice. look good too.
This bolt on cover here that i dont really know GM's idea when they installed it, well we used it as the oil supply to the turbo. Drilled a hole through it, tapped it. works perfect.
dont hate on the high quality brass fittin...
cut a nice little door out to get the fuel pump out without dropping the tank.
install the pump in the stock unit...
we used the EVAP line as the return line for the fuel system. you gotta remove the check valve in the back of the car near the tank in that evap line. or itll blow fuel all over the garage on first start up, i know because thats what happen to us....
