Default Stock Muffler Cutaways
I’m working on an exhaust-related project and the topic of the factory F-car mufflers arose.

Might have anyone cut open the large-case standard LS1 F-car muffler or the small-case WS6/SS muffler? Please post any pics if possible!
Reply
0
Old Apr 20, 2025 | 12:29 PM
Share
  #2
RPM WS6's Avatar
RPM WS6
LS1Tech Administrator
20 Year Member
Shutterbug
Community Builder
Community Influencer
iTrader: (3)

Joined: Nov 2001
Posts: 34,564
Likes: 2,472
From: Schiller Park, IL Member: #317
Default

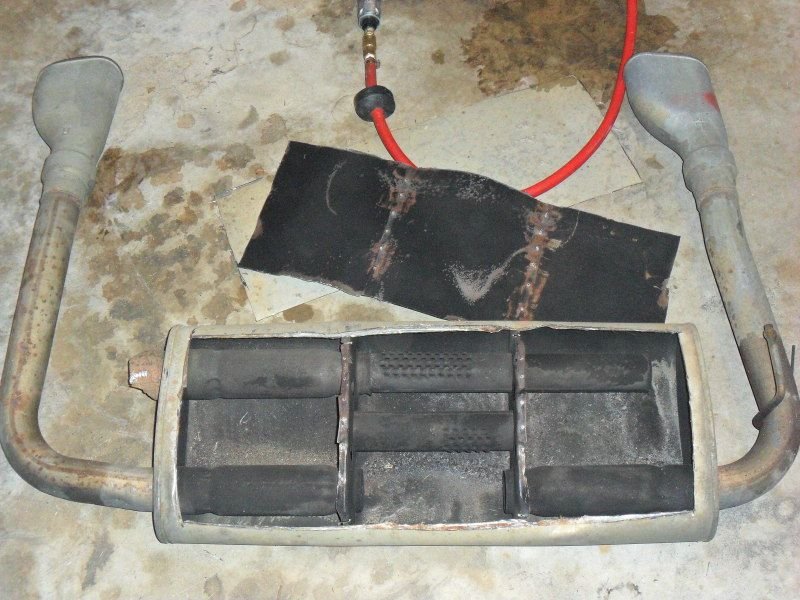

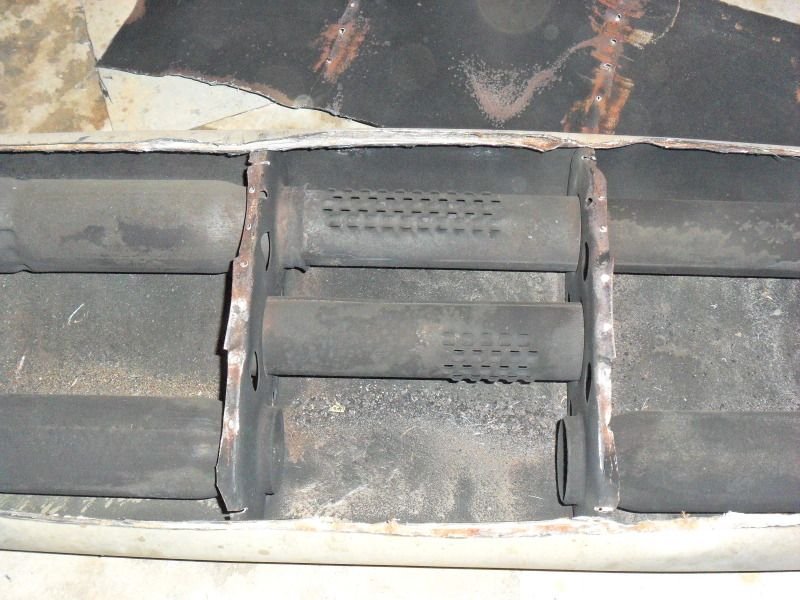

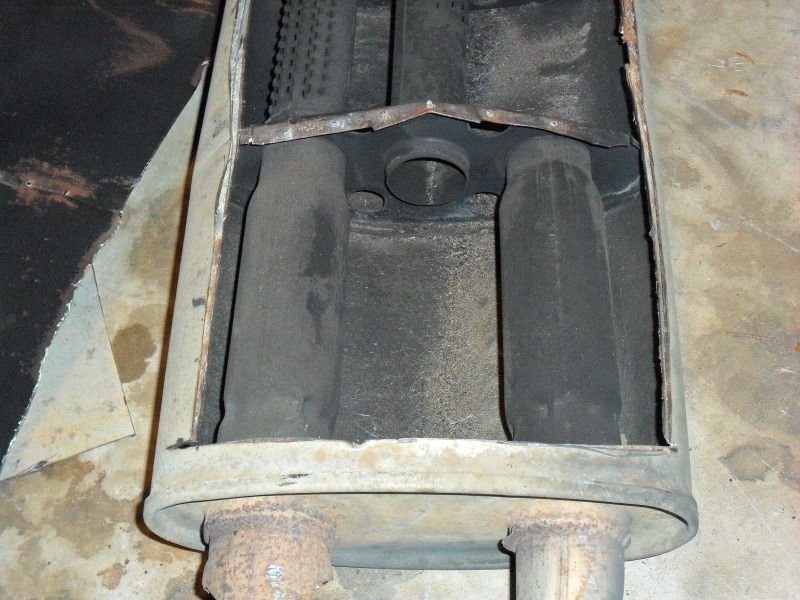

Here are images of the base V8 (Z28/Formula/TA) 1998-02 F-body muffler:










Reply
1
Old Apr 20, 2025 | 12:50 PM
Share
  #3
Rocky Rotella's Avatar
Rocky Rotella
Thread Starter
Staging Lane
20 Year Member
Photogenic
Photoriffic
Shutterbug
iTrader: (2)

Joined: Sep 2005
Posts: 92
Likes: 3
Default
Thank you!
Reply
0
Old Apr 20, 2025 | 02:23 PM
Share
  #4
G Atsma's Avatar
G Atsma
TECH Senior Member
5 Year Member
Liked
Loved
Community Favorite

Joined: Jun 2016
Posts: 22,285
Likes: 3,613
From: Central Cal.
Default
Originally Posted by RPM WS6
Here are images of the base V8 (Z28/Formula/TA) 1998-02 F-body muffler:
Holy cow what a choker!!
Reply
2
