Crank Case vent routing
I plan on running a Moroso catch can where the valve covers run to a Tee which then runs to the CC. From there, I'd run a 10an hose to the intake manifold. BTW, I am running a Holley Mid Rise intake with a 4150 Wilson Manifolds TB.
I was also contemplating doing the above mentioned, but also adding a 10an 1/2 NPT fitting to the valley cover towards the rear of the engine. From there, I'd run a 10an hose to the catch can. (I would opt for a Moroso can that has 2 10an inlets and a 10an fitting on top to run to the intake manifold) From the catch can to the intake would be a 10an hose.
Or I can run a breather on top of the catch can for a free air vent....

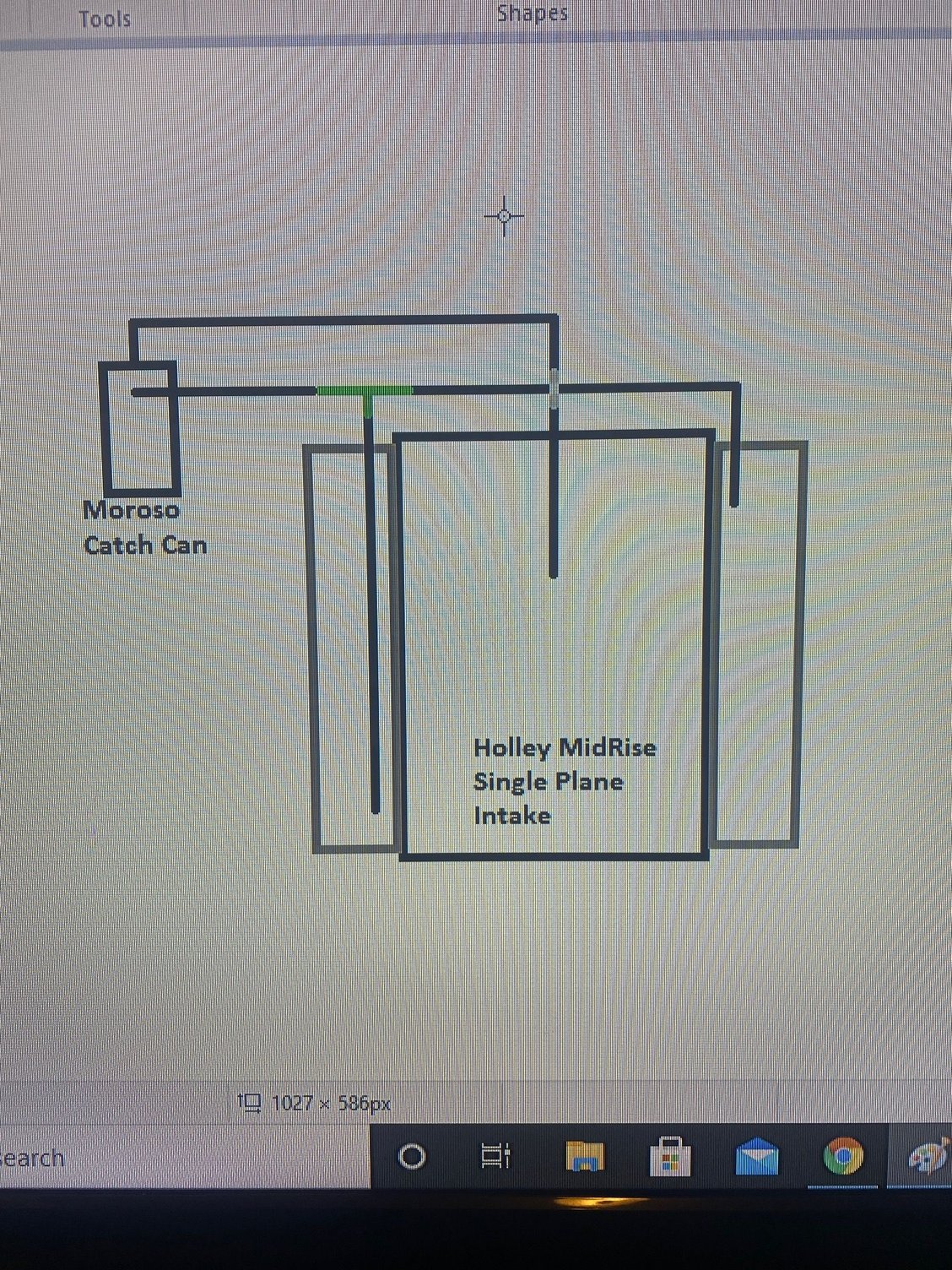

I would like feedback on this. Some say the crank case needs vacuum from the engine to assisted with evacuating the crank case.... Others say free air is enough.. Here are some crudely drawn diagrams of what I was thinking about doing.

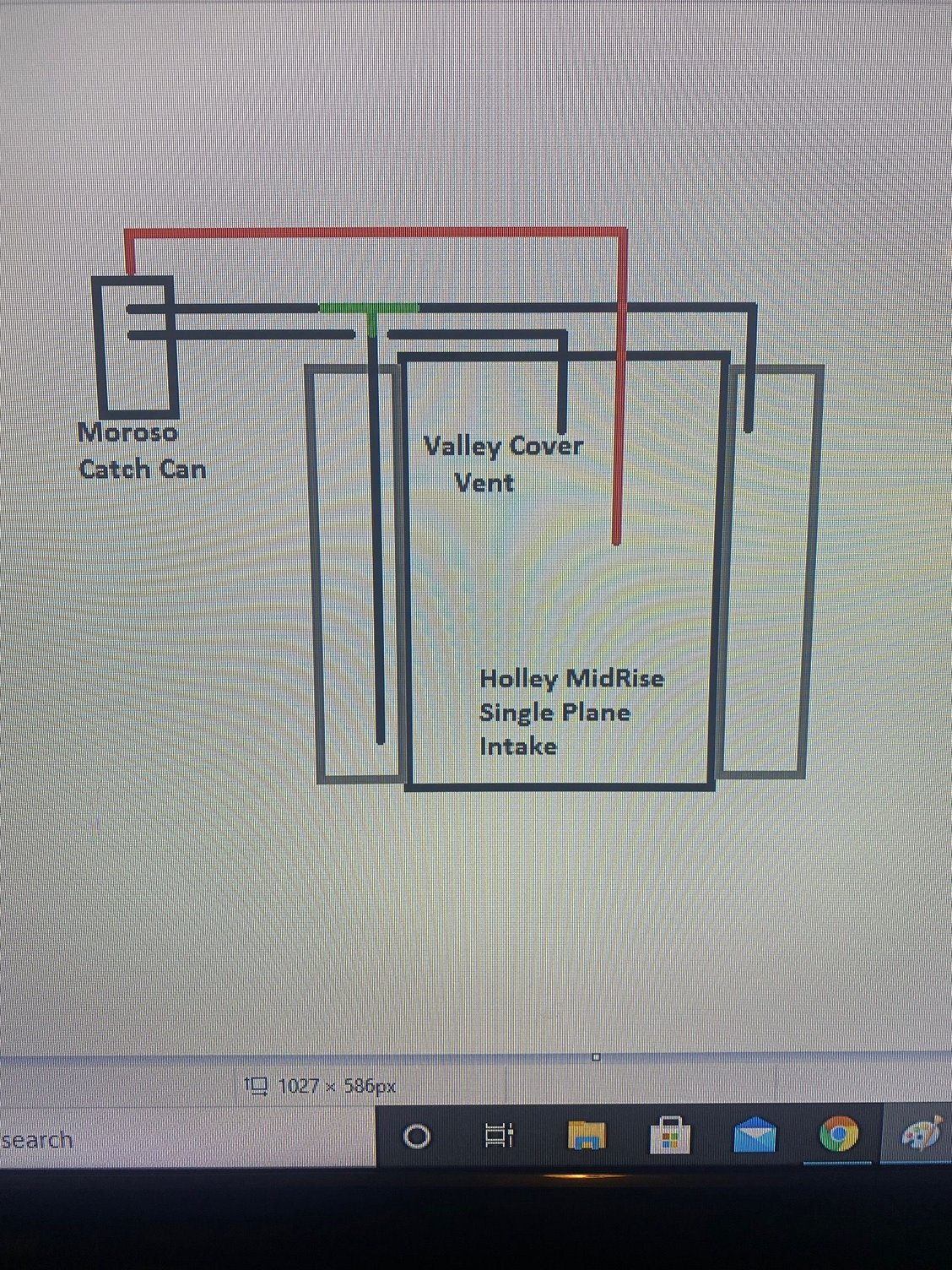

The line that runs from the top of the catch can feeds into the intake on this one... not the valley cover.. i didn't use a different color to illustrate that
the red line goes to the intake.
Last edited by Double06; Nov 8, 2021 at 07:47 AM.

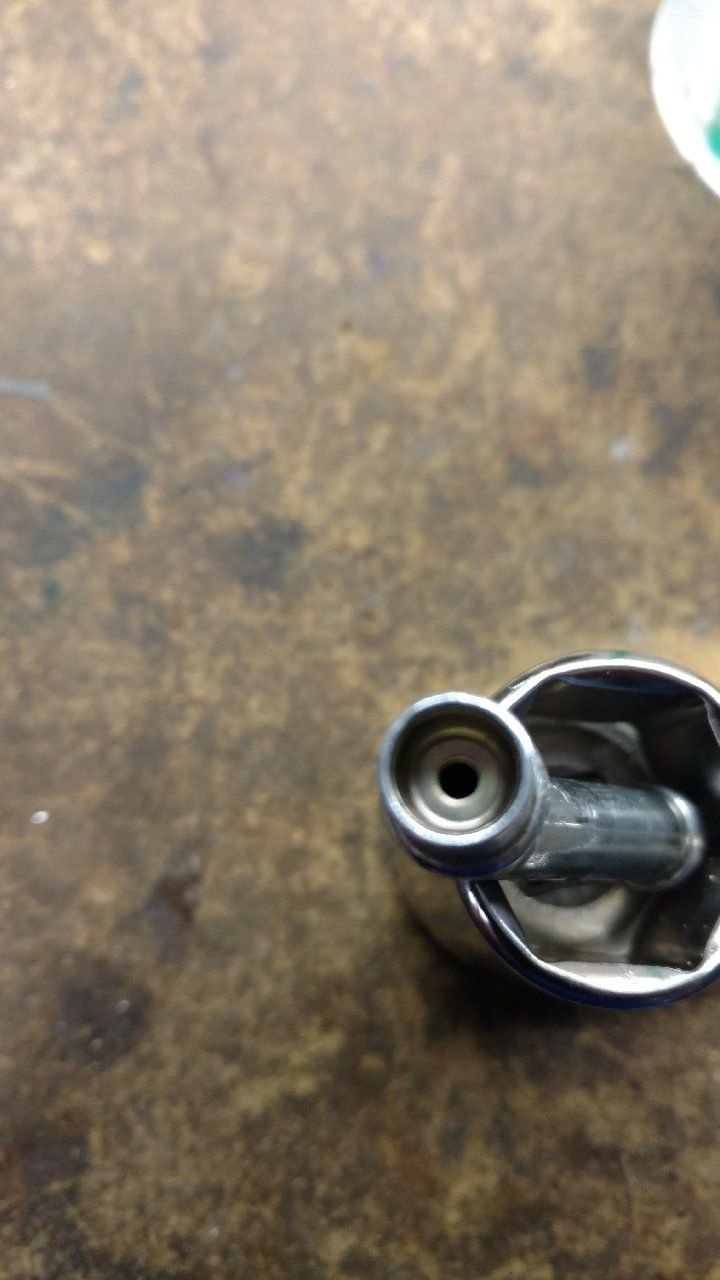

On these proform valve covers, the driver side VC vent tube has a built in restrictor.. like a .125” hole… the passenger side VC has no restrictor in the vent tube.
so if I understand you correctly I should route the driver side vent tube to the intake for vacuum. I can run the passenger side tube around the engine (longer hose adds a restriction in flow) to the intake.
then for High RPM venting, vent the valley pan with a -10an bung with a hose that runs to atmosphere or the intake as well?

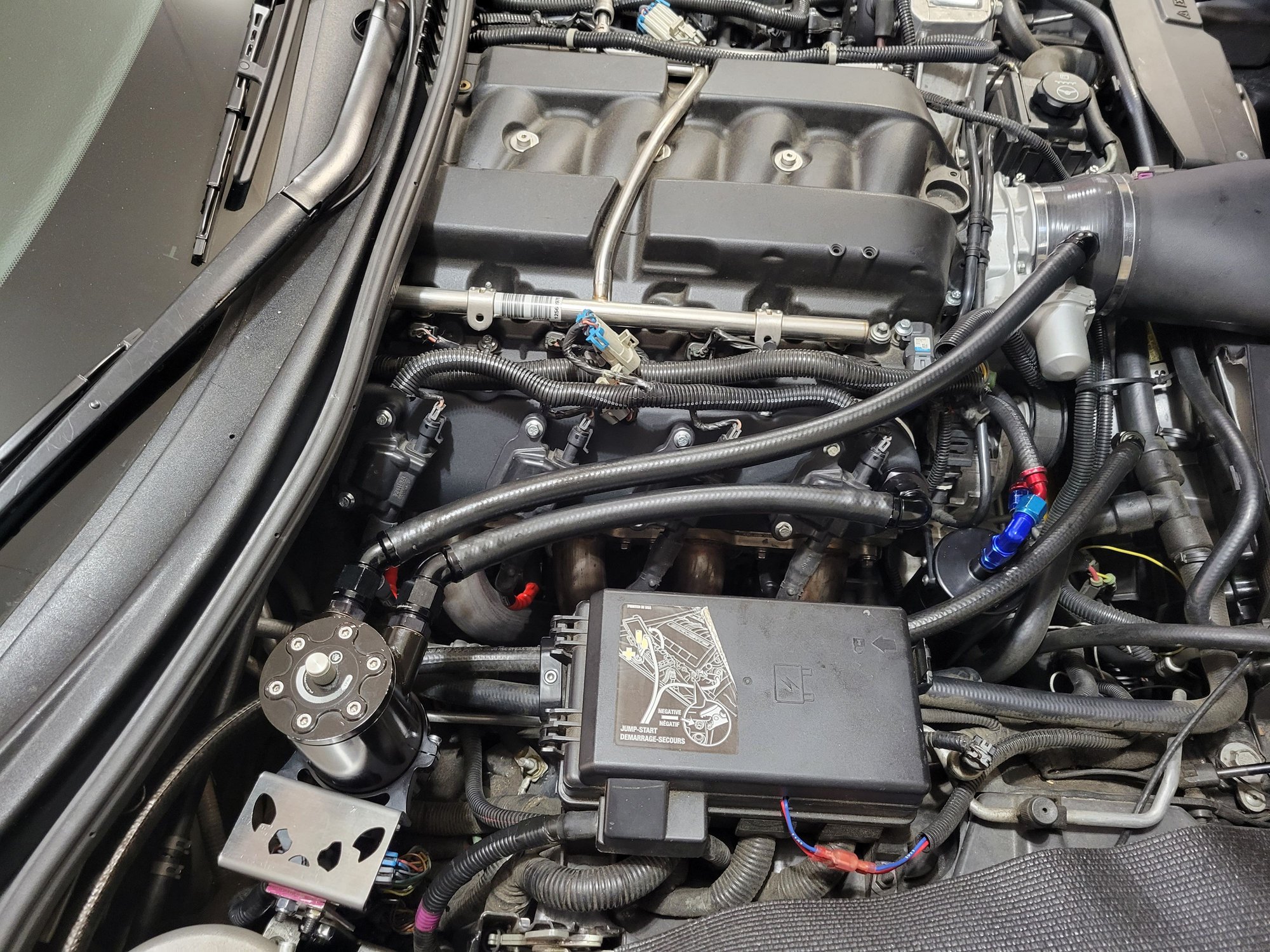

clean air in 12an from behind filter air intake to drivers side head
16an from oil fill to catch can, catch can has one way breather on top,
pcv on catch can to intake manifolld
cap off valley cover port
This way the pcv system works like stock when just cruising but at wot it vents to atmosphere
