Calculating deck height and selecting a HG
Thread Starter
On The Tree
Joined: Jul 2011
Posts: 100
Likes: 17

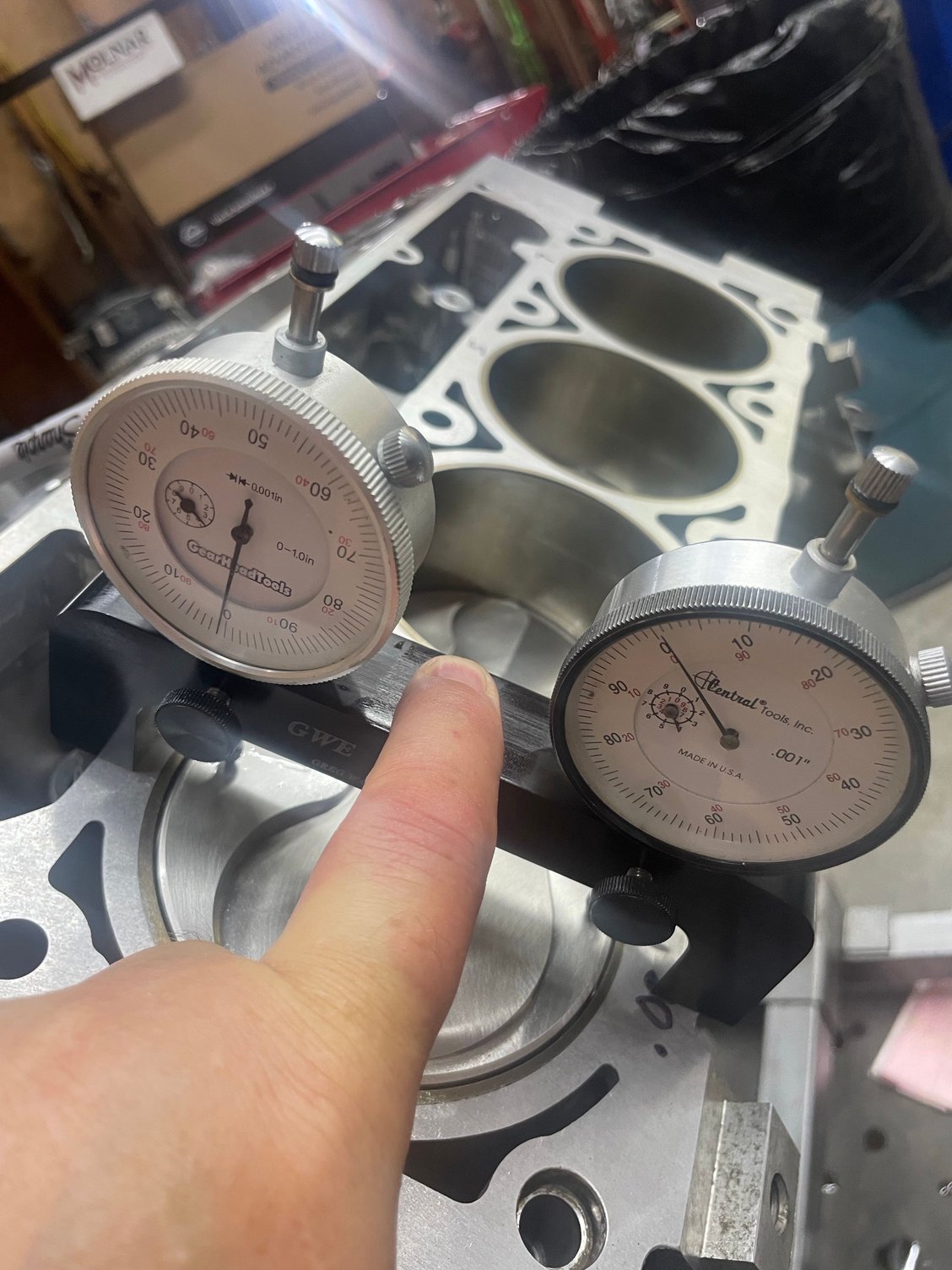

Calculating deck height and selecting a HG Measuring deck height on my dished piston at the very top radius where the squish is, im getting .0185 out of the hole and -.002 in the hole rocking back and forth. Adding and then dividing, i get .0165/2 for a deck height of .00825. Is my math correct? Something seems off to me. I am trying to reach a 11.5:1 compression with a 62cc head, 4.03 bore, and 4.0 stroke (408).
TECH Addict
Joined: Dec 2017
Posts: 2,180
Likes: 969
Is my math correct?
A more urgent question would be however, whether those "numbers" are an accurate reflection of reality.
Standard procedure for determining deck height in an assembled motor, is to measure directly above the piston pin. Takes all the rest of that about "rocking" and whatnot completely out of the equation.
Thread Starter
On The Tree
Joined: Jul 2011
Posts: 100
Likes: 17
Trending Topics
TECH Addict
Joined: Dec 2017
Posts: 2,180
Likes: 969
The valve reliefs hardly ever go all the way to the edge. There's nearly always some "crown" left.
Even if there's not, you can lay a straightedge or flat something or other across it, and use a feeler gauge at the piston pin. I'd trust that AHELLUVALOT more than any "rocking".
Even if there's not, you can lay a straightedge or flat something or other across it, and use a feeler gauge at the piston pin. I'd trust that AHELLUVALOT more than any "rocking".
