Default 93-97 Camaro intercooler pics

I'm getting ready to install a fmic in my 94, but before I start, I'd love to see how others have done it. I'm going to use the Midwest Chassis tubular bumper support, but a stock front would be helpful, as well.
I'm running a Vortech T-trim on my LT1. Any help would be appreciated.
Reply
Old Jan 26, 2026 | 04:44 AM
  #2
Littlelouie69's Avatar
Thread Starter
Staging Lane
iTrader: (1)

Joined: Aug 2022
Posts: 51
Likes: 1
Default

No one has done this?
Reply
Old Jan 26, 2026 | 06:00 AM
  #3
tallrandyb's Avatar
Staging Lane
Photogenic
Photoriffic
Liked

Joined: May 2023
Posts: 61
Likes: 11
From: Florida
Default

Originally Posted by Littlelouie69
I'm getting ready to install a fmic in my 94, but before I start, I'd love to see how others have done it. I'm going to use the Midwest Chassis tubular bumper support, but a stock front would be helpful, as well.
I'm running a Vortech T-trim on my LT1. Any help would be appreciated.
sorry, I went water to air when converting to LS and put it in the engine compartment so no help. I’ve kept my stock front including crash bar and foam.
Reply
Old Jan 27, 2026 | 11:03 AM
  #4
hokeplaya05's Avatar
TECH Fanatic
10 Year Member
Photogenic
Photoriffic
Liked
iTrader: (3)

Joined: Mar 2013
Posts: 1,210
Likes: 78
From: new hampshire
Default

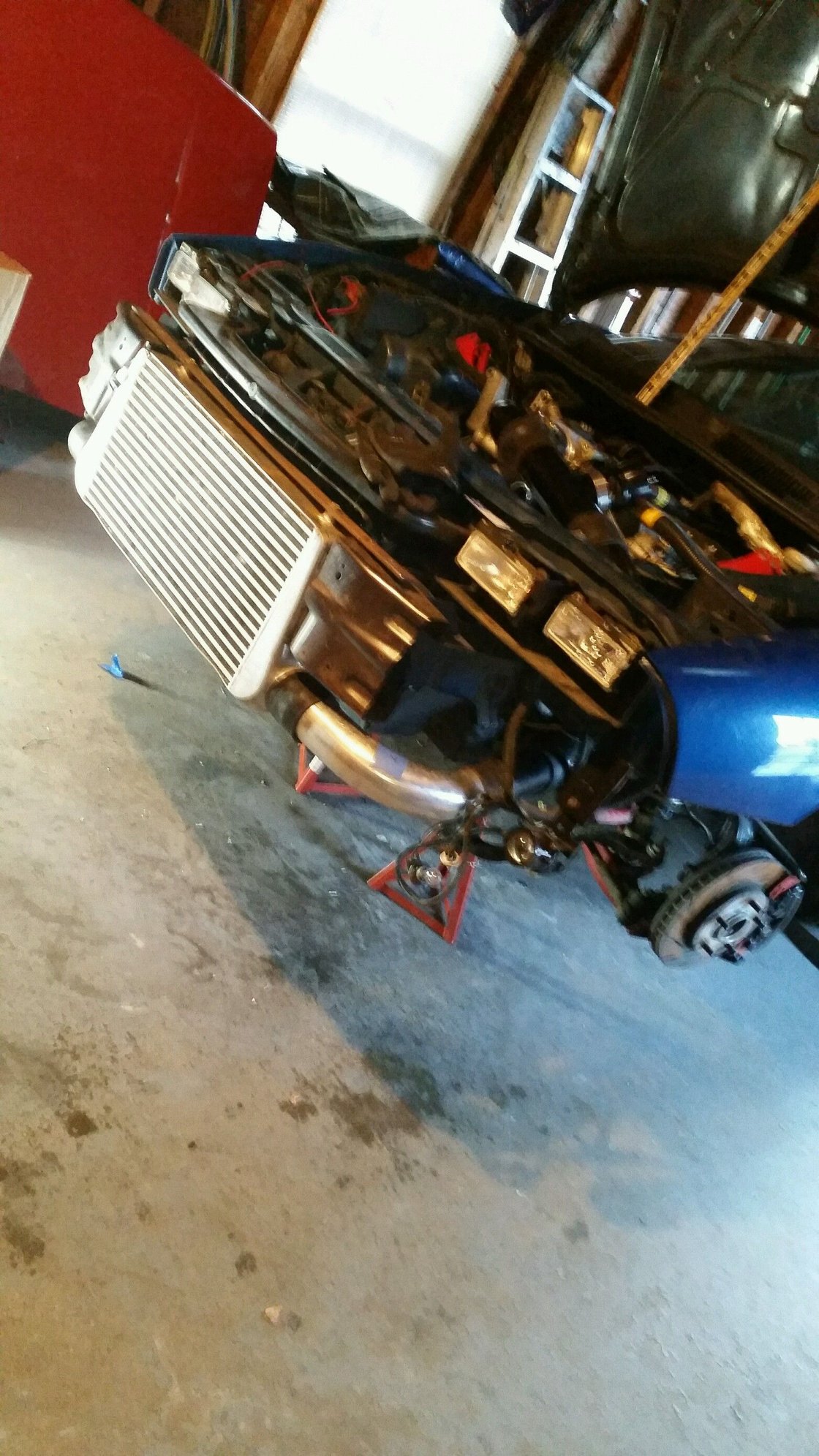

I cut my stock crash bar (removed the platic part in front) to match the outline of my FMIC so it is centered, then took a steel bar and ran it across the top for the top mount and bolted it in. bent up some aluminum tabs for the bottom mounts and bolted them into the core support. all made out of scrap I had laying around. this is the only pic I seem to have right now, and it was in process of mounting so not finished, can get better pics tonight of what I did if you need

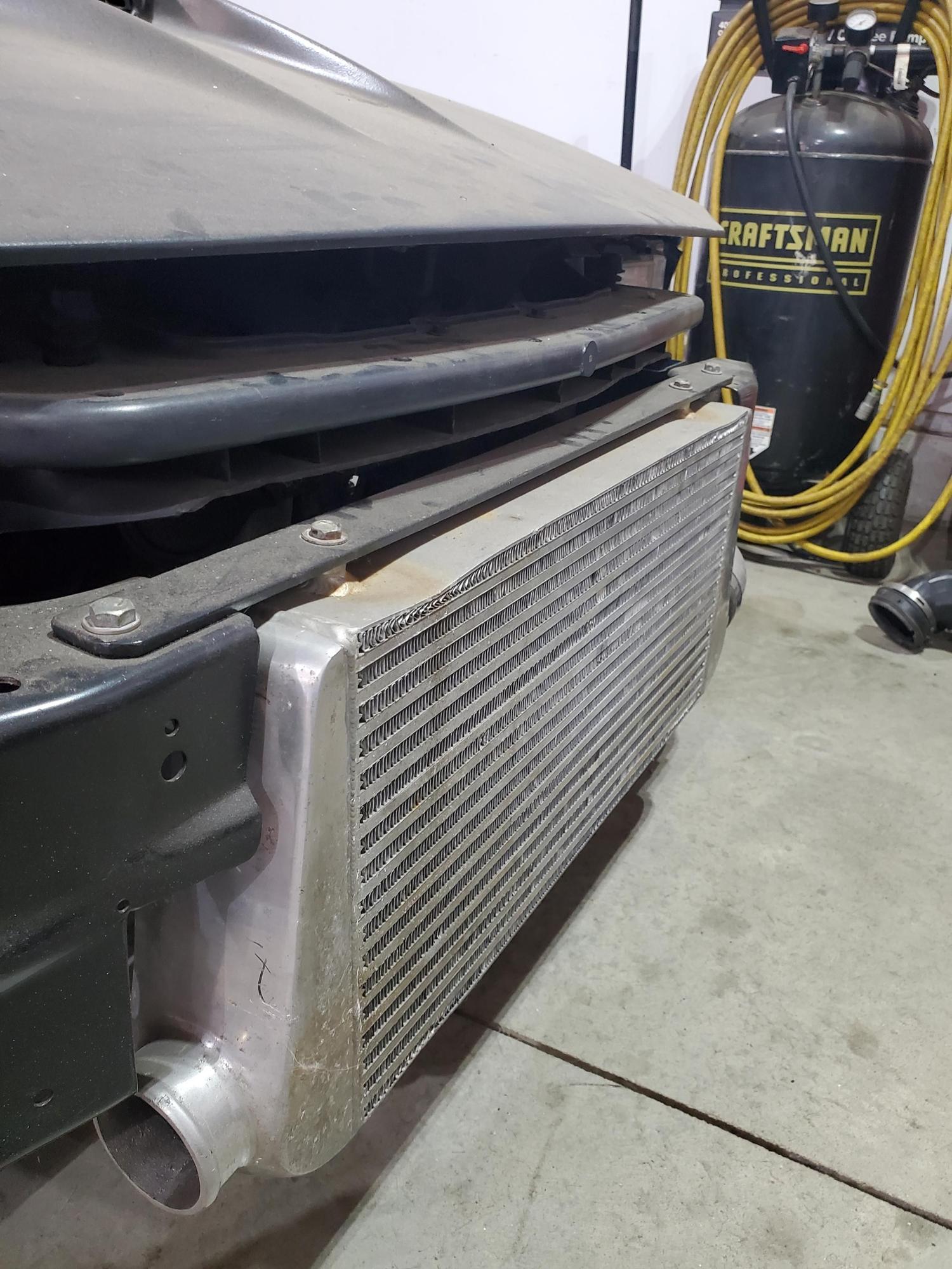

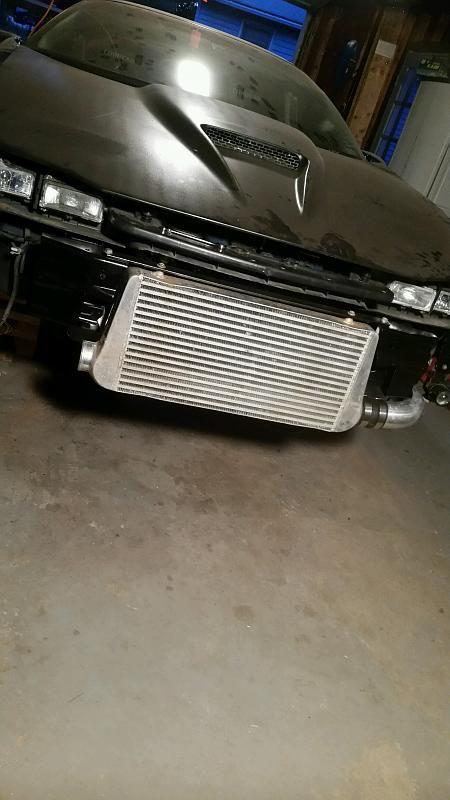

edit: found another slightly better pic I posted in my build thread over on ltxtech, shows the top mount finished






Last edited by hokeplaya05; Jan 27, 2026 at 11:15 AM.
Reply
Old Jan 28, 2026 | 04:12 AM
  #5
Littlelouie69's Avatar
Thread Starter
Staging Lane
iTrader: (1)

Joined: Aug 2022
Posts: 51
Likes: 1
Default

That looks great!
What is the size of your intercooler?
Thanks.
Reply
Old Feb 10, 2026 | 07:52 AM
  #6
hokeplaya05's Avatar
TECH Fanatic
10 Year Member
Photogenic
Photoriffic
Liked
iTrader: (3)

Joined: Mar 2013
Posts: 1,210
Likes: 78
From: new hampshire
Default

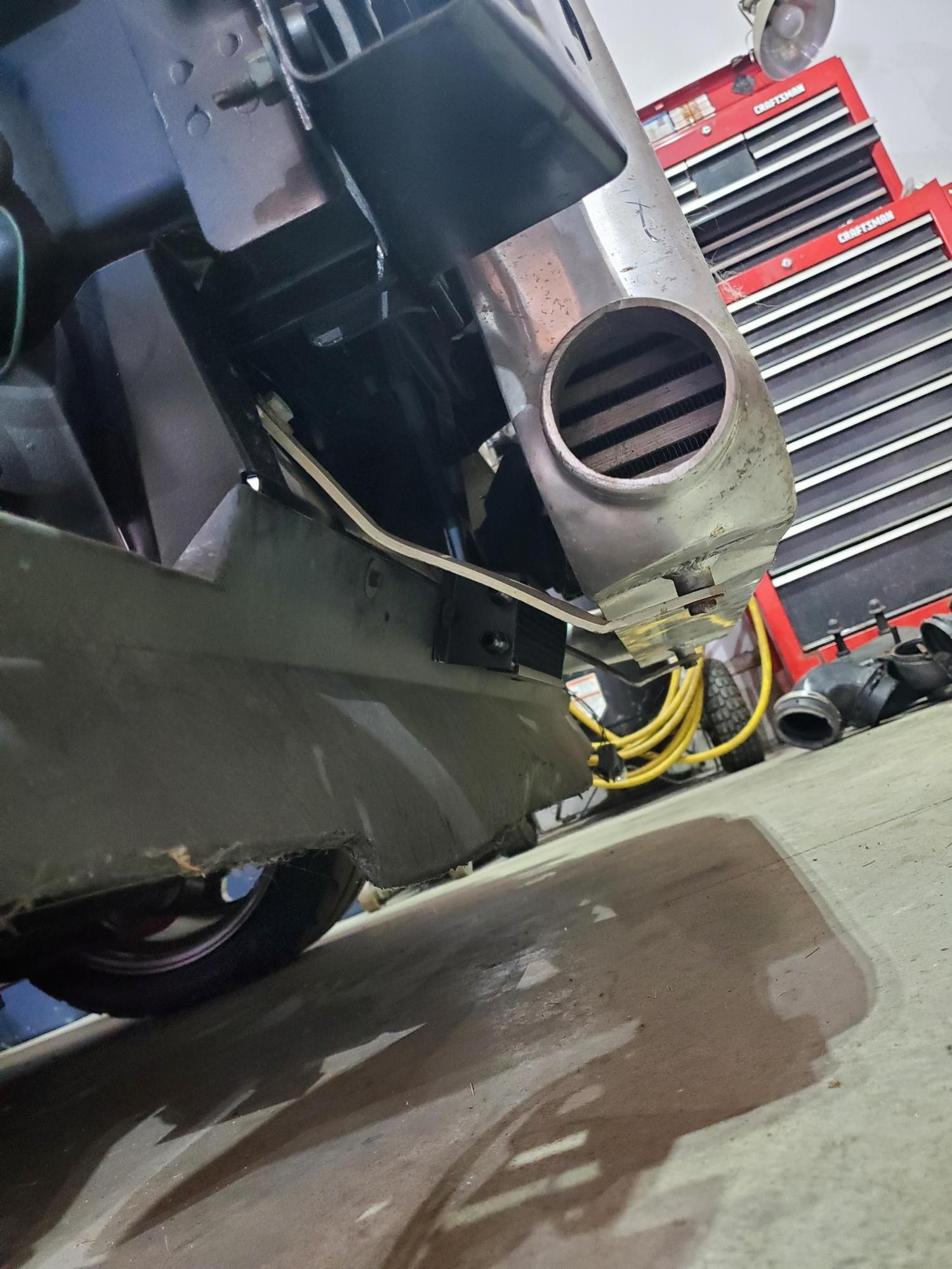

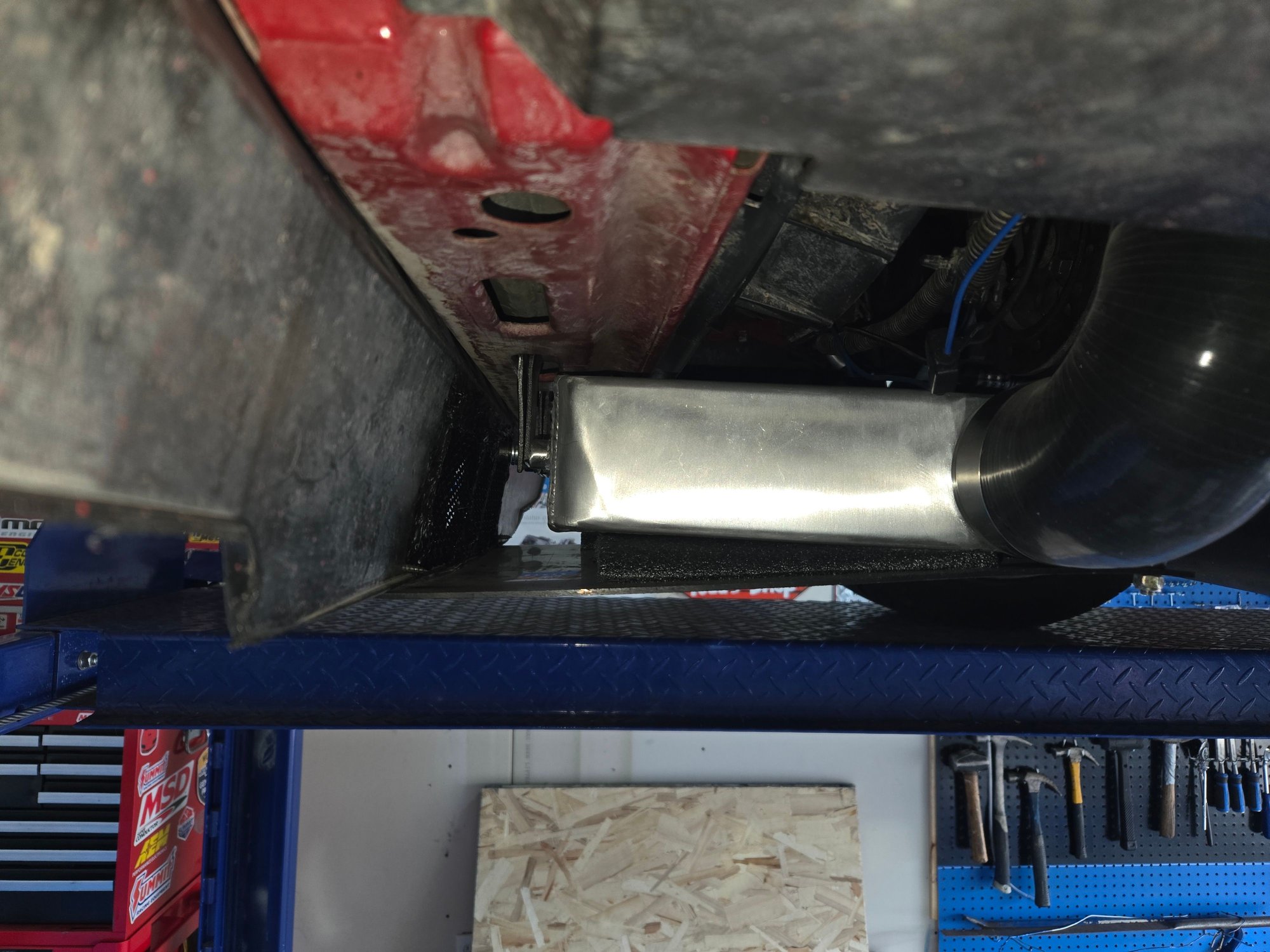

answered your PM with size but also snapped a few more pics over the weekend showing the lower mounts, just a couple pieces of bent aluminum. it is solid and I can stand on the intercooler without issue




Reply
Old Feb 17, 2026 | 04:46 AM
  #7
Littlelouie69's Avatar
Thread Starter
Staging Lane
iTrader: (1)

Joined: Aug 2022
Posts: 51
Likes: 1
Default

Thank you for the great pics!
Reply
Old Mar 24, 2026 | 03:20 PM
  #8
stingr's Avatar
Launching!
15 Year Member
Photogenic
Photoriffic
Shutterbug
iTrader: (8)

Joined: Oct 2007
Posts: 286
Likes: 18
Default

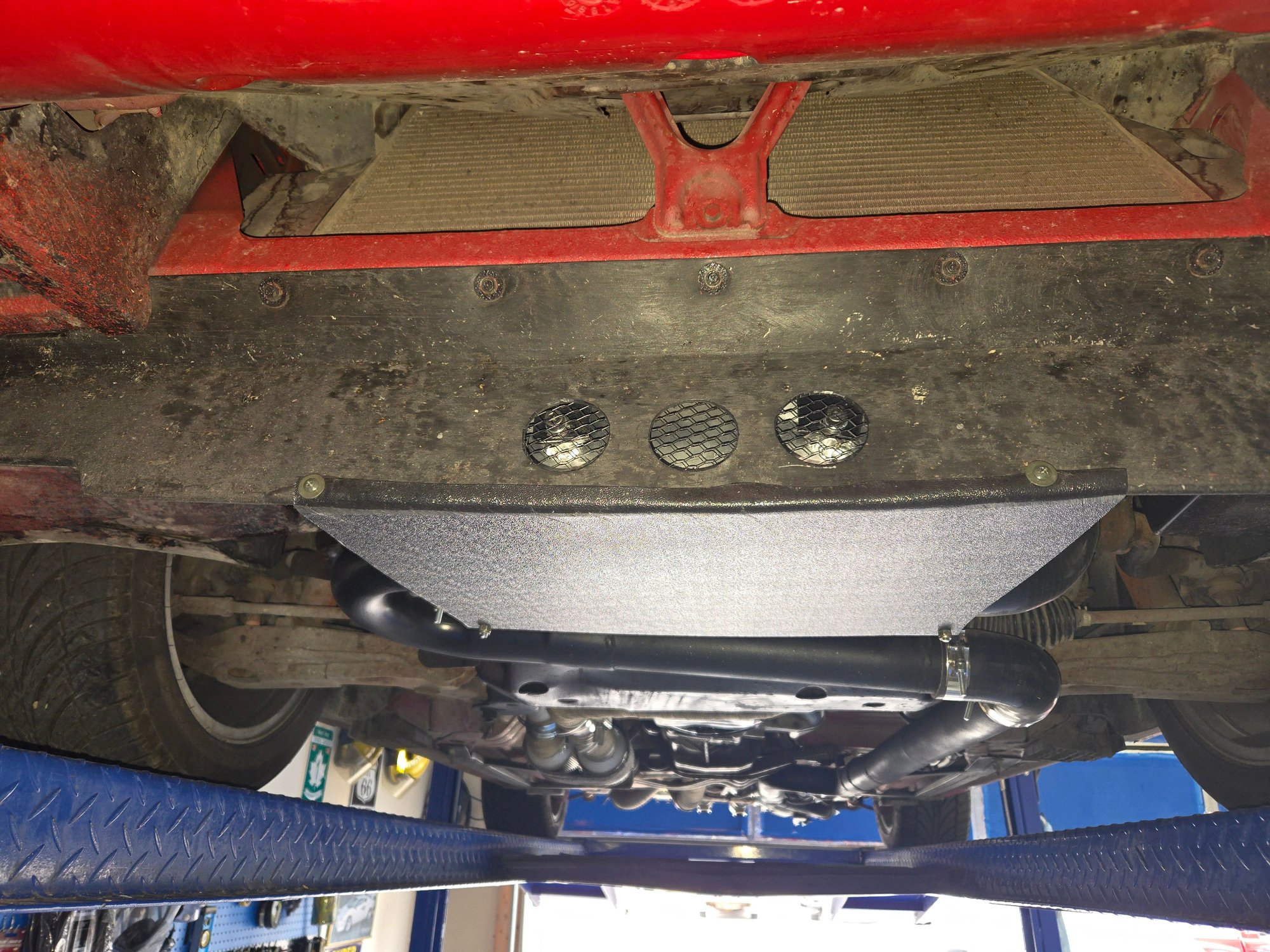

Protects the opti from water as well
Protects the opti from water as well
