Clutch failure analysis.
Clutch failure analysis. Ok First, it's obviously oil that contaminated the friction surface... But Where did it come from?
Oil here in the bottom.
Flywheel:
Pressure plate:
Now, here is the kicker... Back of the flywheel is dry, aside from where the crank mounts to the flywheel. The flywheel bolts were were the oil was coming from. They were all very tight, and the back side were certainly covered in oil, however, there was no oil on the back of the flywheel directly from the oil pan leak. You can see the leak came out through the flywheel bolts onto the clutch, not from the back side as one would expect from an oilpan leak.
Here is a picture eliminating the possibility of a leak at the rear crank oil plug.

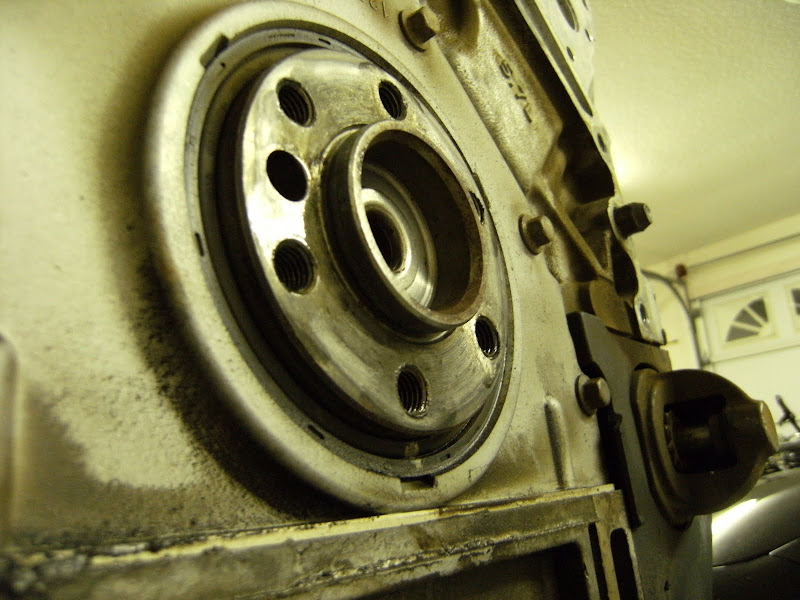

Another showing no oil problems at the rear main seal:
opinions? The oil pan gasket is leaking, but there wasn't any trace of oil on the back of the flywheel where the gasket would have been leaking at. Car was fine for 9000 miles, then all the sudden after a day in traffic it starts slipping in 4th gearish.
Oil here in the bottom.
Flywheel:
Pressure plate:
Now, here is the kicker... Back of the flywheel is dry, aside from where the crank mounts to the flywheel. The flywheel bolts were were the oil was coming from. They were all very tight, and the back side were certainly covered in oil, however, there was no oil on the back of the flywheel directly from the oil pan leak. You can see the leak came out through the flywheel bolts onto the clutch, not from the back side as one would expect from an oilpan leak.
Here is a picture eliminating the possibility of a leak at the rear crank oil plug.
Another showing no oil problems at the rear main seal:
opinions? The oil pan gasket is leaking, but there wasn't any trace of oil on the back of the flywheel where the gasket would have been leaking at. Car was fine for 9000 miles, then all the sudden after a day in traffic it starts slipping in 4th gearish.
The flywheel bolts themselves are "wet" as I understand it. I believe the oil came from behind the flywheel bolts. When I installed them I only used the Moly lube from ARP as instructed, however I think that this may be wrong. McLeod recommends red loctite here, I'm assuming because it also seals the passage and prevents oil from passing through as well. The stock Flywheel bolts that are TTY also have some paste on them.
