F-body T56 parts needed 5th and 6th gears

Notices
Marketplace GM Performance Parts and Cars For Sale Classifieds. Browse new listings, post your items for sale, or list a wanted ad.

F-body T56 parts needed 5th and 6th gears

Drivetrain

01-12-2019, 01:05 AM | Replies: 10 | Views: 313
Teching In
Join Date: Jan 2010
Posts: 27
iTrader: (1)
robguitargod1 is offline

  • Price
    Any Price
  • Location Chicago, IL, USA
  • Condition New or Used
  • Compatibility
Make Model Year
Chevrolet Camaro 1994 - 2002
Description:

I'm looking for F-body T56 parts. Please let me know if you have anything listed below.
Anything 5th and 6th gear related:

Ref Des Part Number Description Notes
108 13-86-193-008 6th gear thrust washer
109 13-86-087-004 6th gear,Drive 67 teeth
110 1386-132-005 6th gear needle bearing 5th and 6th gear needle bearings are different
114 1386-591-005 6th gear blocker ring Same as 5th gear blocker ring 125
115 13-86-053-001 6th gear bearing spacer
116 SP56-50A F-body Snap ring (kit) This snap ring is included in a kit
117 13-86-590-003 5th/6th Synchronizer assembly
122 13-86-596-003 5th/6th Shift Fork
124 SP56-50A F-body Snap ring (kit) This snap ring is included in a kit
125 1386-591-005 5th gear blocker ring Not pictured
126 13-86-086-004 5th gear, Drive 58 teeth
127 1000-132-046 5th gear needle bearing Not pictured
128 13-86-077-007 Countershaft extension Not needed, stock one should clean up
129 LM12749 Countershaft extension top bearing Bearing and race sold together
130 LM12711 Countershaft extension top bearing race Bearing and race sold together
57 4915 Magnet Only need 1
161 TUMS5100 Vent Tube
169 ?? Case bumper
89/91 TUSW7406 Reverse lockout Purchased from Ebay
61 13-86-070-002 5th/6th driven gear cluster 29/37 teeth
81 13-52-110-013 speedo rotor

The above text is supposed to look like this, but I cannot figure out how to format it correctly:




5th and 6th gears assembled. Pretty much what's on the countershaft extension:

Last edited by robguitargod1; 01-12-2019 at 01:24 AM. Reply
Old 01-12-2019, 01:13 AM
  #2
TECH Enthusiast
iTrader: (2)

Join Date: Jan 2014
Posts: 731
Default

I may have the actual 5th and 6th gear in my garage. I can look over the weekend.
350 groundpounder is offline
Old 01-12-2019, 01:15 AM
  #3
Teching In
Thread Starter
iTrader: (1)

robguitargod1's Avatar

Join Date: Jan 2010
Location: Niles, IL
Posts: 27
Default

I'd appreciate it. I was updating the post while you were replying because the font and text were all over the place. Added pics too
robguitargod1 is offline
Old 01-12-2019, 01:19 AM
  #4
Teching In
Thread Starter
iTrader: (1)

robguitargod1's Avatar

Join Date: Jan 2010
Location: Niles, IL
Posts: 27
Default

Added another picture to make my post easier to understand.
robguitargod1 is offline
Old 01-12-2019, 12:10 PM
  #5
TECH Enthusiast
iTrader: (2)

Join Date: Jan 2014
Posts: 731
Default

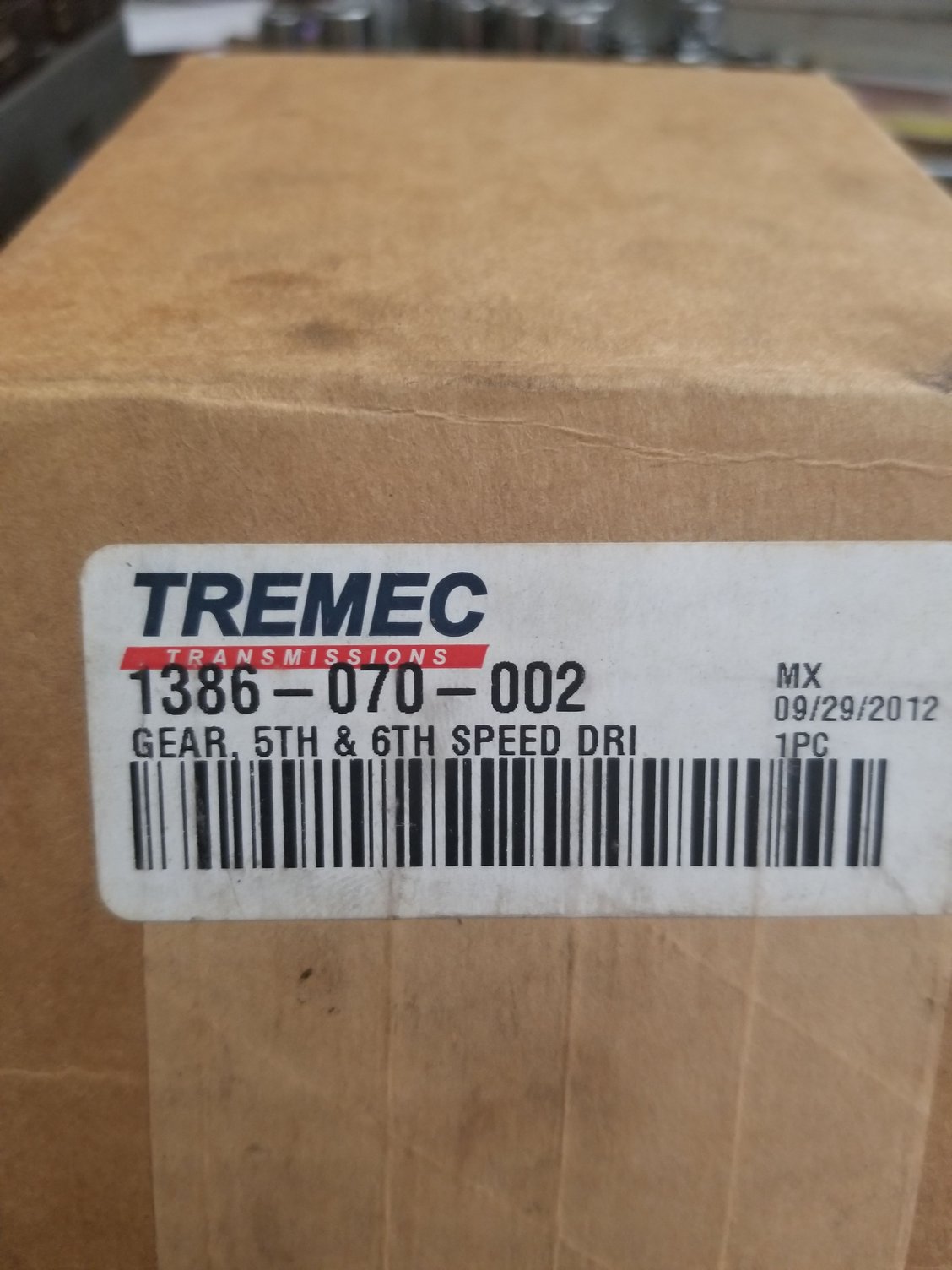

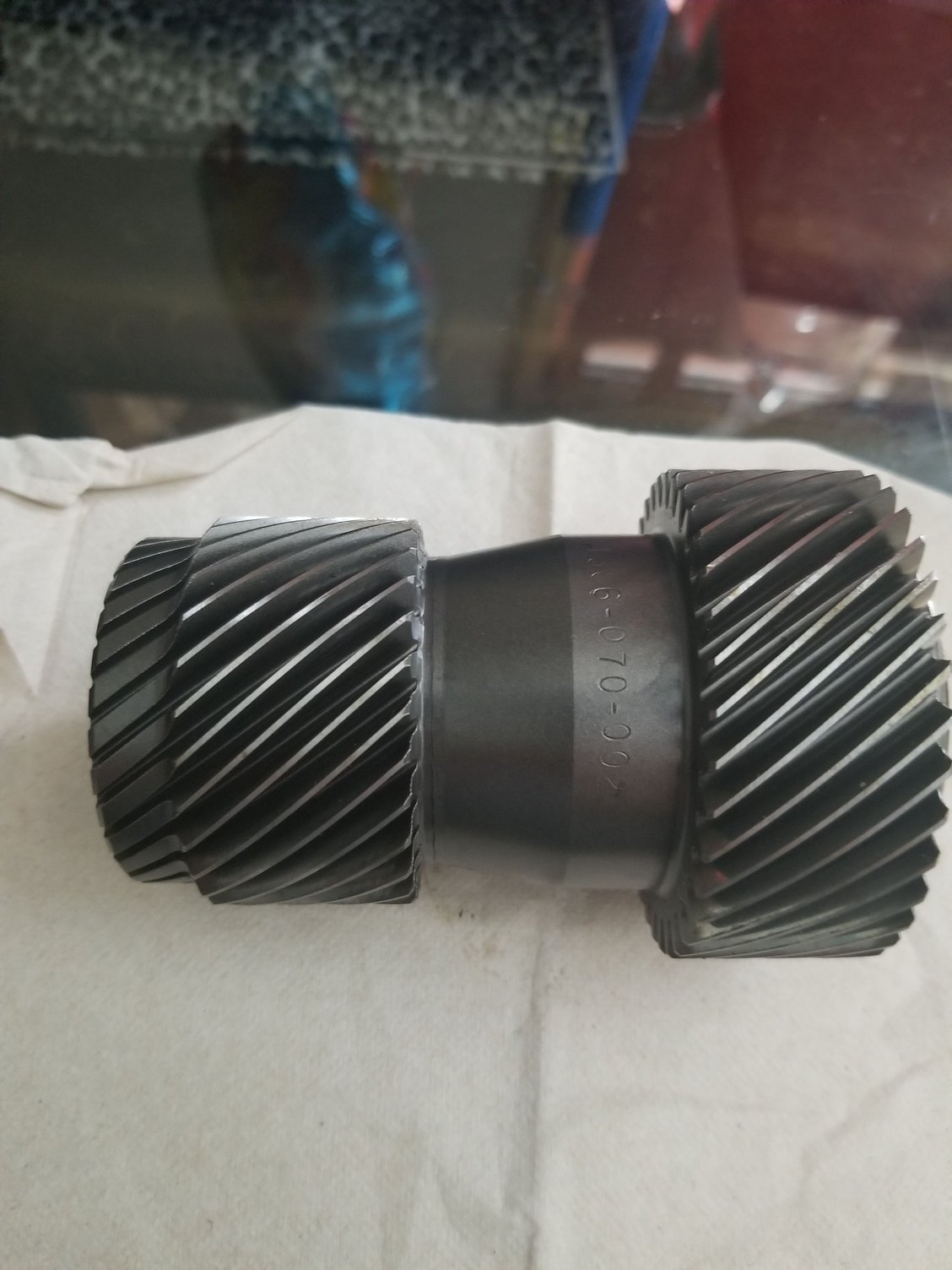

Here are pics of my brand 5th and 6th gear! Its around 220 new.
make reasonable offer and its yours.
i may have more parts, just need time to look. I can ship parts Monday!


Last edited by 350 groundpounder; 01-12-2019 at 12:18 PM.
350 groundpounder is offline
Old 01-12-2019, 12:19 PM
  #6
Teching In
Thread Starter
iTrader: (1)

robguitargod1's Avatar

Join Date: Jan 2010
Location: Niles, IL
Posts: 27
Default

Thanks for the offer but I'm looking for 5th and 6th drive gears. The 5/6 driven gear cluster isn't hard to find and quite inexpensive aftermarket. Yours is obviously a Tremec part, but I appreciate the reply.
robguitargod1 is offline
Old 01-12-2019, 12:31 PM
  #7
TECH Enthusiast
iTrader: (2)

Join Date: Jan 2014
Posts: 731
Default

So this is a part you dont need? I would sell it for $100.
350 groundpounder is offline
Old 01-14-2019, 12:41 PM
  #8
Teching In
iTrader: (1)

Join Date: Feb 2015
Posts: 8
Default

I'm parting out my transmission and should have everything you need. I have the 5th and 6th drive gear and they are in great shape. I will get you pictures tonight when I'm home.

I'd be asking $125 + shipping for each gear.

Thanks
Swift_Striker is offline
Old 01-14-2019, 01:13 PM
  #9
Teching In
Thread Starter
iTrader: (1)

robguitargod1's Avatar

Join Date: Jan 2010
Location: Niles, IL
Posts: 27
Default

Thank you. Please give me a shipped price on everything 5th and 6th gear related. Meaning just pull the countershaft extension fully assembled along with the shift fork and with the 5/6 gear cluster. Exactly like this picture:

robguitargod1 is offline
Old 01-14-2019, 02:07 PM
  #10
Teching In
iTrader: (1)

Join Date: Feb 2015
Posts: 8
Default

PM Sent
Swift_Striker is offline
Old 01-18-2019, 02:33 PM
  #11
Teching In
Thread Starter
iTrader: (1)

robguitargod1's Avatar

Join Date: Jan 2010
Location: Niles, IL
Posts: 27
Default

Originally Posted by Swift_Striker View Post
PM Sent
Swift_Striker came through! Got everything I needed, and in great shape!
robguitargod1 is offline
