the block is stamped 12567393 the heads have WFC 706 it is a super charged engine. I am hoping someone can help.
thank you
Gary



1998 WS6 Trans Am
4L60E

Complete engine/pcm/sensors wiring harness....?

Thanks.

.



Ls1 brake booster to back of intake manifold vacuum hose ?



Need all 4 seats (belts and buckles) parts numbers please, in ebony for 1998?

TIA!!!



Anyone know the part number for the SLP 3rd Brake light in terms of the connector. I have 2 Hawks Motorsports SLP new lights, but no connector.


I want the factory look, so the lights have the ends stripped, I just need a connector I can run those bare ends into and install.



ebony was 00-02

Dark Gray or Very Dark Gray was 97/98/99

Charcoal was 93-96

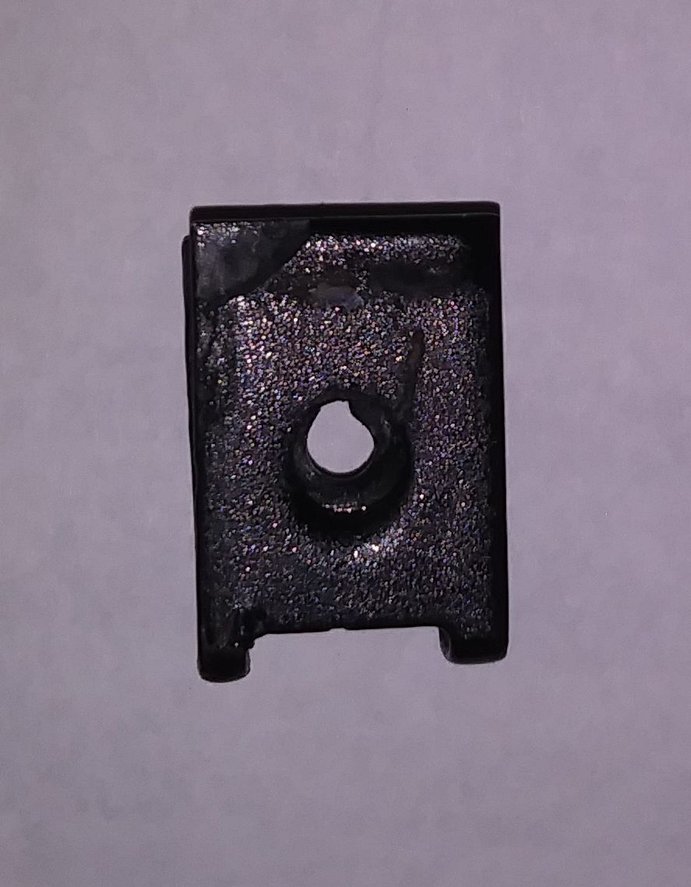

the U clip that goes on the front top of the fender 98-02 birds....takes a 4 mm bolt/screw thru the bumper bracket ....if you look behind the headlights you can see it

dealer cannot find it anywhere in the computer

it measures 20.3 x 13.6 from the back side



I still do not know the GM p/n of the clip but I got a bag of Hillman speed nuts at Lowes...#8....not exact but pretty good fit



looking fo rthe part number for the apron the protects the drivers side of the rack and pinion and alternator. mines torn and I cant find it anywhere



I believe it is NA....if you have whats left of your old one you could make one



Looking for the part numbers for rear bumper and rear fog lights for an export camaro (think it's all the same whether it's for a 93 or an 02).

What I'm talking about:

https://farm4.static.flickr.com/3618...4d316e04_o.jpg

Don't need 5978079 and 5978080 (export tail lights) though.

EDIT: Looks like I found the rear bumper part #. It's 10277161

If anyone finds or knows the rear fogs I'd appreciate it as well!



I need the part number for the metal bracket that attaches the filler neck to the body.

Specifically this:

https://ls1tech.com/forums/attachmen..._173243670.jpg



The parts layout catalog does not show that bracket. Your picture shows it is riveted on, so it's evidently a part of an assembly.



Does anyone have the part number / size type of screw that holds the factory 1998 Trans Am door speaker to the plastic adapter for the door ? I have not found anything in the search & the local stealer ship is no help .

Thanks
Rick



what year ???



1998 Trans Am



Per the layout catalog; SCREW, LG RD HD TORX TAP M4.2 x 1.41 x 20 SS BL OX (RDO FRT S/D SPKR. The number appears to be 16751144.



Thanks .



Hi I have a 2001 Camaro SS I am new to the ls1 platform and was looking at cams on summit racing, I was curious if any of you had any luck with their cams, and if so which one did you go with? What I'm looking for is a stage 1-2 I'm leaning towards stage 1 but would like a cam that has the most aggressive profile, but doesn't need a stall converter because I like to take the car out on the town on the weekends.



UPDATE: Disregard. A. FYI for anyone else looking for this answer, that middle line doesn't have a retainer clip like the fuel lines, it just snaps over the evap fitting and locks on the ridge of the fitting itself. B. I'm an idiot for not noting that when removing the old pump. Lesson learned.

I've been looking for this for days now. I need to find the retainer clip for the middle hose (evap line?) of the fuel pump sending unit on a 2000 Trans Am. I replaced my fuel pump and it didn't come with the clips that keep the hoses on the sending unit fittings. Old pump was gone by the time I noticed.
