E85 and boost referenced regulator
Thread Starter
Joined: Jun 2005
Posts: 2,265
Likes: 671
From: Oskaloosa, Iowa
E85 and boost referenced regulator Car is a 2004 gto cammed sbe with procharger at 9 psi. It has a good tune in it now for pump gas. I’m going to be doing a new fuel system with return and boost referenced regulator. I will do bigger injectors and switch to E85 at the same time.
When I get all the fuel system installed I will change the injector data and stoich for E85. I should then be able to fire it up and set base pressure. After that I should hook up my boost/vacuum source and change my flow rate vs kpa so all columns are the same as zero kpa.
From there i should be able to log and tune my VE. Car is open loop speed density 2 bar and fueling is good currently on pump gas.
Is there anything I’m missing or planned incorrectly? I’m sure my VE will need work, maybe some idle tuning, and hopefully more timing.
When I get all the fuel system installed I will change the injector data and stoich for E85. I should then be able to fire it up and set base pressure. After that I should hook up my boost/vacuum source and change my flow rate vs kpa so all columns are the same as zero kpa.
From there i should be able to log and tune my VE. Car is open loop speed density 2 bar and fueling is good currently on pump gas.
Is there anything I’m missing or planned incorrectly? I’m sure my VE will need work, maybe some idle tuning, and hopefully more timing.
Thread Starter
Joined: Jun 2005
Posts: 2,265
Likes: 671
From: Oskaloosa, Iowa
So the only injector data I need to change in regards to the boost referenced regulator is the flow rate vs kpa? I did some searching and most seem to only mention that while others mess with offsets vs volts and some other things as well.
You should not need to alter the battery voltage offset, those are electro-mechanical characteristics of a given injector and do not change with how much fuel goes through it.
The flow rate vs kPa I usually leave alone since (i think) it only covers 0-100 kPa when the engine is out of boost. Whatever small error is there is made up on the VE table.
The flow rate vs kPa I usually leave alone since (i think) it only covers 0-100 kPa when the engine is out of boost. Whatever small error is there is made up on the VE table.
Thread Starter
Joined: Jun 2005
Posts: 2,265
Likes: 671
From: Oskaloosa, Iowa
You should not need to alter the battery voltage offset, those are electro-mechanical characteristics of a given injector and do not change with how much fuel goes through it.
The flow rate vs kPa I usually leave alone since (i think) it only covers 0-100 kPa when the engine is out of boost. Whatever small error is there is made up on the VE table.
The flow rate vs kPa I usually leave alone since (i think) it only covers 0-100 kPa when the engine is out of boost. Whatever small error is there is made up on the VE table.
Restricted User
Joined: Mar 2014
Posts: 7,192
Likes: 109
From: Ohio
Flow rate vs KPA isn't highly critical. You can do the math to get the flow rate at different pressures, or make the entire row a single number. It'll just change the shape of your VE chart. Hell, you can leave the flow rates what they are now and you'll just have to scale the fueling tables by the same % you would have changed the flow rates.
Thread Starter
Joined: Jun 2005
Posts: 2,265
Likes: 671
From: Oskaloosa, Iowa
I’m sure my VE is currently jacked up tuning around a large pump with stock regulator in the tank giving me way too high of fuel pressure at idle and fluctuations during wot. On cool days with a full tank it’s not a problem, but on hot days under half a tank the fuel heating is a problem.
My my plan is to gravity feed a magnafuel 4301 which was recommended by them for my 600 rwhp on e85. They said I could send it in to upgrade to 4303 for $100 when I’m ready.
I want to run 43.5 ish base pressure and thinking 88 lbs/hr daetschwerks injectors which are rated at 43.5 psi.
I will set the flow rate all across at the actual actual flow rate for 43.5 psi and I can do some math to get the offset for voltage close. I think you guys are right especially with an OLSD tune the weather will make more difference in low pressure tuning, but I’m going to go ahead and make that stuff as accurate as I can.
My main goal is as simple as possible of a fuel system with enough to support 600-650 on e85 without giving me these fuel heating issues. My long term goal for this car when I have a built short block is 700-750 and definitely don’t expect over 800 through the auto. I would move to the 4303 at that time should do it.
Any other advice knowing my plans would be greatly appreciated as both you guys have a lot more experience than I do.
My my plan is to gravity feed a magnafuel 4301 which was recommended by them for my 600 rwhp on e85. They said I could send it in to upgrade to 4303 for $100 when I’m ready.
I want to run 43.5 ish base pressure and thinking 88 lbs/hr daetschwerks injectors which are rated at 43.5 psi.
I will set the flow rate all across at the actual actual flow rate for 43.5 psi and I can do some math to get the offset for voltage close. I think you guys are right especially with an OLSD tune the weather will make more difference in low pressure tuning, but I’m going to go ahead and make that stuff as accurate as I can.
My main goal is as simple as possible of a fuel system with enough to support 600-650 on e85 without giving me these fuel heating issues. My long term goal for this car when I have a built short block is 700-750 and definitely don’t expect over 800 through the auto. I would move to the 4303 at that time should do it.
Any other advice knowing my plans would be greatly appreciated as both you guys have a lot more experience than I do.
Trending Topics
That sounds like a pretty legit plan.
But again, just use the voltage offsets supplied by the injector maker, no need to scale them for pressure/flow. Theyjust tell the computer how the injector will behave as the supplied voltage changes from nominal. Nothing to do with flow/pressure
One benefit to having the flow vs kPa scaled right is the your calculated injector duty cycle % will be more accurate.
It also makes tuning transient fueling much easier.
But again, just use the voltage offsets supplied by the injector maker, no need to scale them for pressure/flow. Theyjust tell the computer how the injector will behave as the supplied voltage changes from nominal. Nothing to do with flow/pressure
One benefit to having the flow vs kPa scaled right is the your calculated injector duty cycle % will be more accurate.
It also makes tuning transient fueling much easier.
LS1 Tech Stories
The Best V8 Stories One Small Block at Time
6 Common C5 Corvette Failures and What's Involved In Repairing Them
Pouria Savadkouei
Retro Modern Bandit Pontiac Trans AM Comes With Burt Reynolds' Autograph
Verdad Gallardo
Top 10 Greatest Cadillac V Series Performance Models Ever, Ranked
Pouria Savadkouei
Top 10 Most Powerful Chevy Trucks Ever Made!
Hennessey's New Supercharged Silverado ZR2 Has 700 HP
Verdad Gallardo
Coachbuilt N2A Anteros Is an LS2-Powered C6 Corvette In Italian Clothes
Verdad Gallardo
Awesome K5 Blazer Restomod Comes With C7 Corvette Power
Verdad Gallardo
10 Camaros You Should Never Buy
10 LS Engine Myths That Refuse to Die
Verdad Gallardo Thread Starter
Joined: Jun 2005
Posts: 2,265
Likes: 671
From: Oskaloosa, Iowa
That sounds like a pretty legit plan.
But again, just use the voltage offsets supplied by the injector maker, no need to scale them for pressure/flow. Theyjust tell the computer how the injector will behave as the supplied voltage changes from nominal. Nothing to do with flow/pressure
One benefit to having the flow vs kPa scaled right is the your calculated injector duty cycle % will be more accurate.
It also makes tuning transient fueling much easier.
But again, just use the voltage offsets supplied by the injector maker, no need to scale them for pressure/flow. Theyjust tell the computer how the injector will behave as the supplied voltage changes from nominal. Nothing to do with flow/pressure
One benefit to having the flow vs kPa scaled right is the your calculated injector duty cycle % will be more accurate.
It also makes tuning transient fueling much easier.

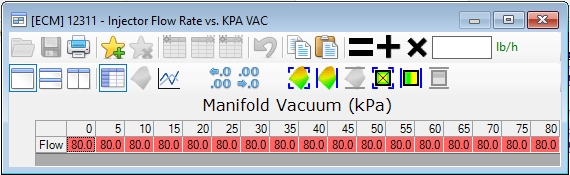

With a referenced regulator that sees both vacuum and boost you want to run a "flat" injector AND offset table. Meaning the 0 manifold vacuum column of both tables are populated across to 80 kpa the same and make sure it is accurate for your selected base fuel pressure. As for the calculated injector duty cycle % in the scan tool that will always be accurate regardless if the tune is scaled or not since it's literally just the result of the actual final injector pulsewidth and RPM.
