terminator x v2 boost control not targeting right
Thread Starter
TECH Addict
Joined: Dec 2004
Posts: 2,178
Likes: 627
From: Florida
terminator x v2 boost control not targeting right I am helping a friend with a terminator x. its set up as dual mac valve, 4 bar map sensor, signal wire is looped back into another input and configured as the same sensor used as dome pressure

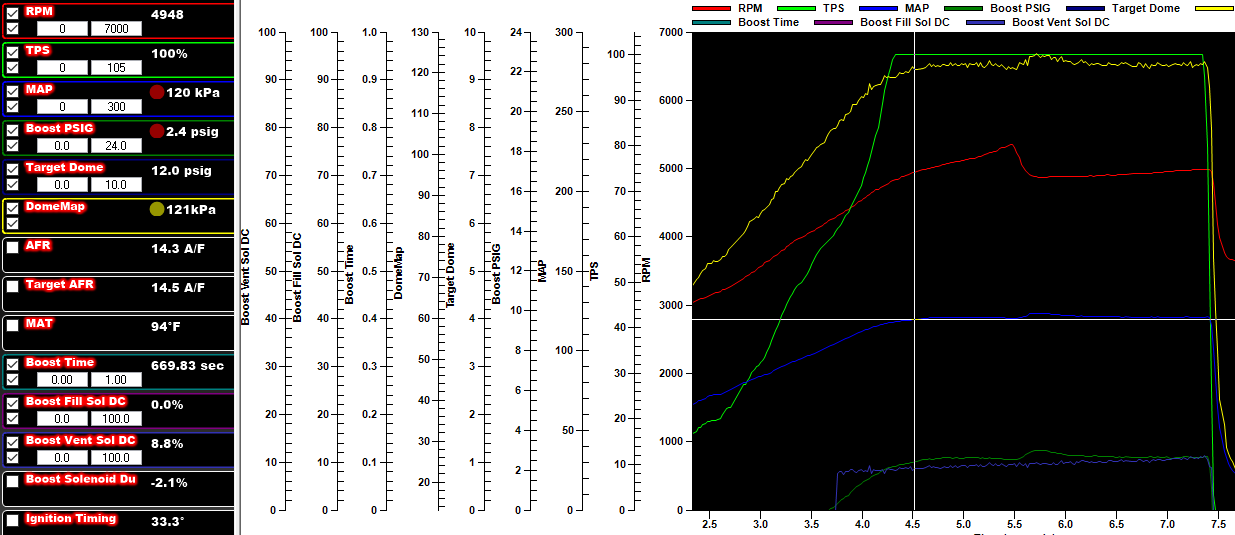

i have a log that shows target boost as 12 psi, boost psig is 2.6, domeMap is 122kpa, but Boost Fill Sol DC never goes above 0%. i cant change units on the domeMap to psig so its kpa and all sensors are reading right.
i cant see why it wouldnt be commanding the fill solenoid.
we are still on v2 software and not looking to change to v3 yet.
is there any condition that a target boost being lower than actual boost wouldnt command fill solenoid duty? the vent solenoid activated briefly so the GUI config seems to be 'right' and it seems to be logging correctly.
i just cant find any reason it didnt command the fill solenoid.
its the same tune we had a 4 port working fine but decided to convert to co2 and dual solenoids after the last race.
thanks all, happy to post whatever screenshots are needed
i have a log that shows target boost as 12 psi, boost psig is 2.6, domeMap is 122kpa, but Boost Fill Sol DC never goes above 0%. i cant change units on the domeMap to psig so its kpa and all sensors are reading right.
i cant see why it wouldnt be commanding the fill solenoid.
we are still on v2 software and not looking to change to v3 yet.
is there any condition that a target boost being lower than actual boost wouldnt command fill solenoid duty? the vent solenoid activated briefly so the GUI config seems to be 'right' and it seems to be logging correctly.
i just cant find any reason it didnt command the fill solenoid.
its the same tune we had a 4 port working fine but decided to convert to co2 and dual solenoids after the last race.
thanks all, happy to post whatever screenshots are needed
